SR2B201FU Schneider Electric Zelio Logic 20 I/O Smart Relay

SR2B201FU: Compact Smart Relay for Demanding Control Panels

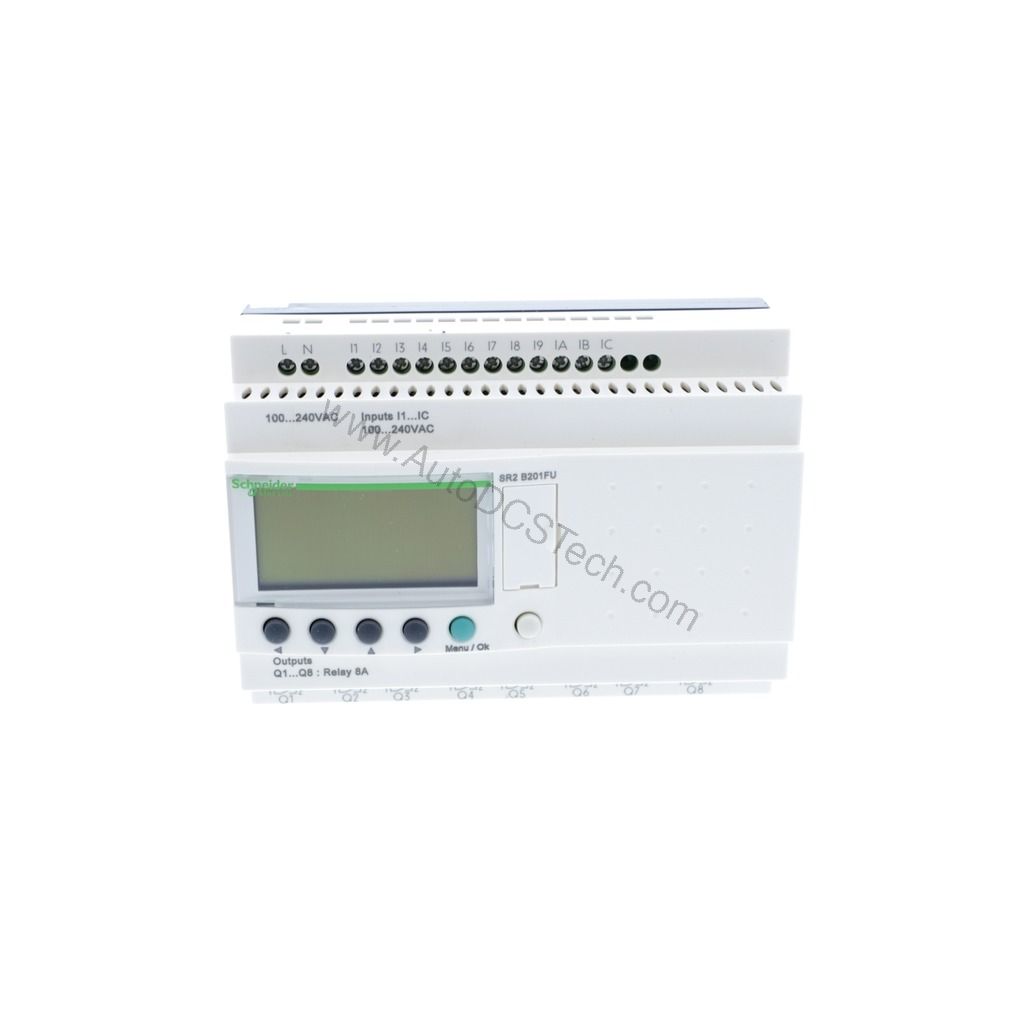

Maintenance engineers often face space constraints and the need for reliable, serviceable control logic. The SR2B201FU from Schneider Electric's Zelio Logic series addresses these challenges directly. This compact smart relay integrates 20 I/O points, a real-time clock, and an LCD interface into a DIN-rail-mount housing. Consequently, it suits applications requiring precise timing and straightforward troubleshooting. The device operates from a 100-240V AC supply, making it compatible with common industrial power networks.

Technical Specifications and I/O Configuration

The SR2B201FU provides 12 digital inputs rated for 100-240V AC and 8 relay outputs. Each relay output handles 5 A, with a maximum of 10 A per common. These ratings allow direct control of contactors, solenoids, and indicator lamps. The table below summarizes the core electrical parameters.

Additionally, the integrated real-time clock enables time-based control without external timers. The LCD with navigation buttons simplifies on-site adjustments and fault diagnosis. For communication, the SR2B201FU relies on extension modules, allowing integration into larger systems when required.

Reliability and Serviceability from a Maintenance Perspective

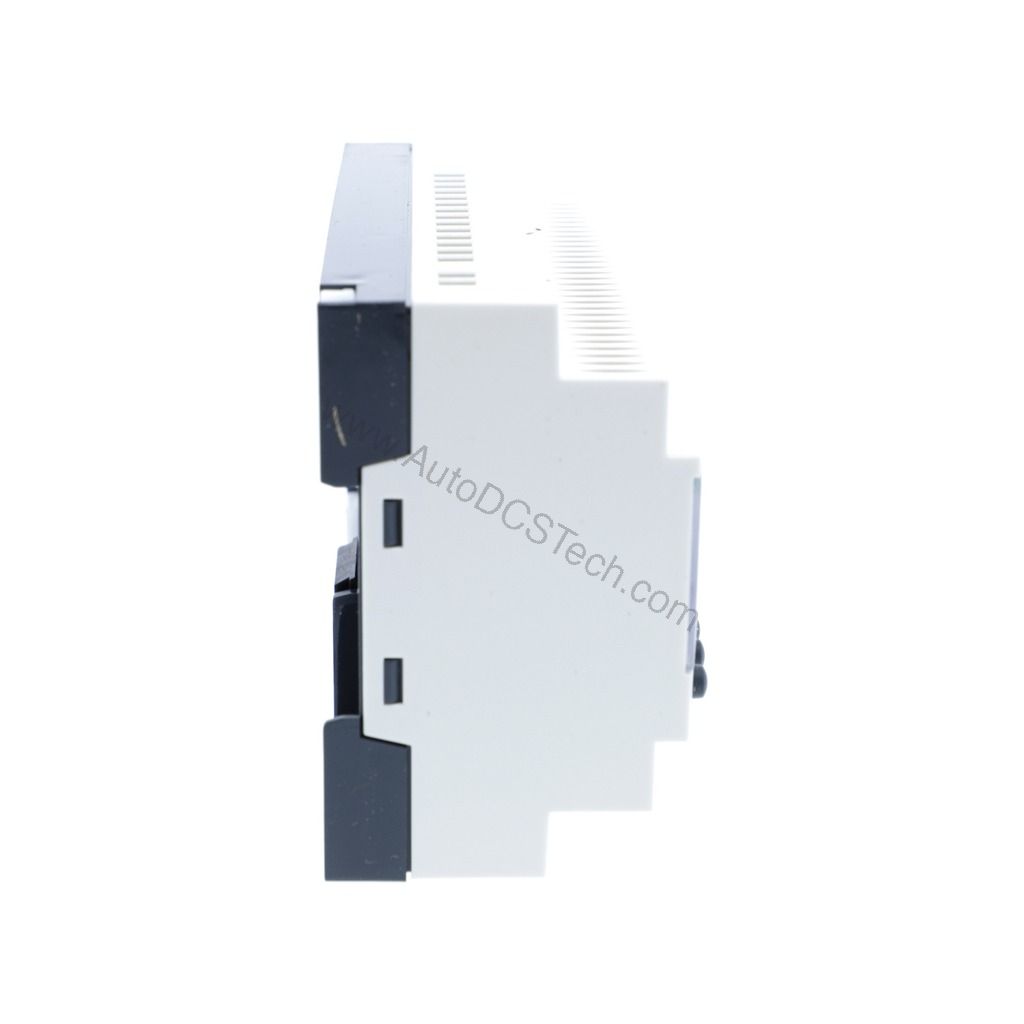

From a maintenance engineer's viewpoint, the SR2B201FU offers robust construction and clear service indicators. The relay outputs provide a mechanical life of 10,000,000 cycles and an electrical life of 500,000 cycles at AC-12, 230V 1.5A. These figures translate to long service intervals in typical control applications. Furthermore, the operating temperature range of -20 to 55 °C ensures stable operation in varied environments. The DIN-rail mounting and compact dimensions (90 × 107.6 × 59.5 mm) facilitate quick replacement or panel reconfiguration. Weighing only 0.28 kg, the unit is easy to handle during maintenance.

Installation and Commissioning Notes

Installing the SR2B201FU requires a standard 35 mm DIN rail. Engineers should verify that the supply voltage falls within the 85-264V AC range before power-up. Because the inputs accept 100-240V AC, no additional interface relays are needed for most pilot devices. For output wiring, respect the 5 A per output and 10 A per common limits to prevent overload. The LCD and navigation buttons allow immediate verification of I/O status and program execution. When using extension modules for communication, ensure they are compatible with the Zelio Logic series.
