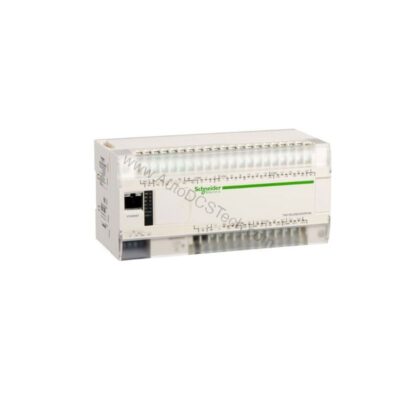

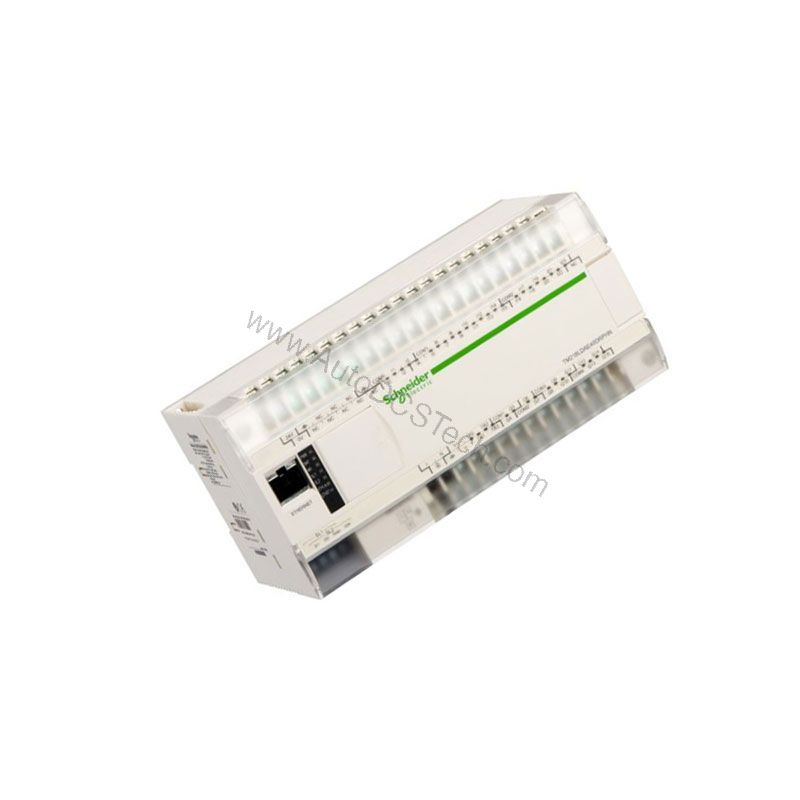

TM218LDD24DUPHN | Schneider Electric 24 I/O Logic Controller

Product Overview of the TM218LDD24DUPHN

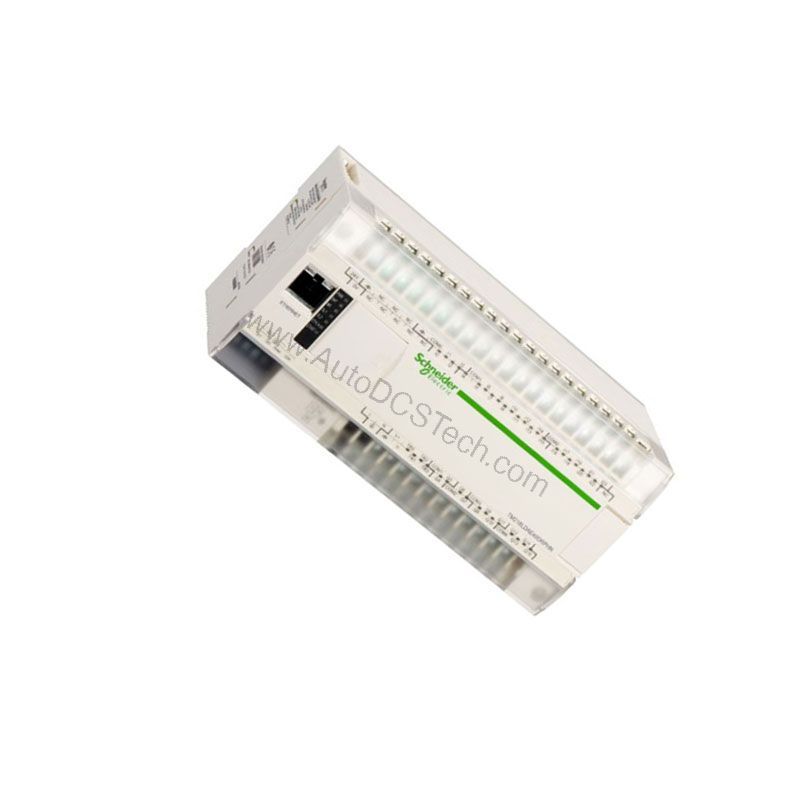

The Schneider Electric TM218LDD24DUPHN is a compact logic controller from the Modicon M218 series. It is engineered for precise control of small to medium machines. This controller runs on a 24 V DC supply and draws 15 W. Its self-powered architecture eliminates any backplane bus requirement. Consequently, wiring is simplified and panel space is reduced. The unit measures 94.5 × 87.5 × 70 mm and weighs 0.35 kg. Its IP20 rating suits installation inside a protected cabinet. Please note that this model is discontinued. Schneider Electric recommends the Modicon M221 as its replacement. Verify current lifecycle status and availability with AutoDCSTech before ordering.

I/O Architecture and Embedded Functions

The TM218LDD24DUPHN provides 14 digital inputs and 10 digital outputs. Among the inputs, 10 accept regular 24 V DC signals. The remaining 4 are fast inputs rated for 10 kHz high-speed counting. On the output side, all 10 points are transistor type with source (PNP) logic. Each point handles 0.5 A. Two outputs support PTO/PWM functions up to 100 kHz. Furthermore, the controller includes 2 high-speed counters at 10 kHz. For expansion, it accepts up to 7 TM2 modules, reaching a maximum of 248 I/O. This scalability supports growing machine requirements without replacing the base unit.

Key Technical Specifications

• Supply voltage: 24 V DC (19.2...28.8 V)
• Power consumption: 15 W
• Digital inputs: 14 (10 regular 24 V DC + 4 fast HSC 10 kHz)
• Digital outputs: 10 transistor, source/PNP, 0.5 A per point
• High-speed counters: 2 × 10 kHz
• Pulse outputs: 2 × PTO/PWM up to 100 kHz
• Program memory: 1 MB Flash
• Data memory: 1 MB RAM
• Operating temperature: 0...+55 °C
• Protection rating: IP20

Communication and Integration

The TM218LDD24DUPHN includes 2 RS-485 ports on terminal blocks and 1 mini USB-B port for programming. It supports Modbus RTU and Modbus ASCII protocols over RS-485. The USB port uses a proprietary programming protocol. For additional fieldbus options, a communication cartridge slot accepts TMCOM series modules. These optional cartridges enable Modbus, CANopen, or Profibus expansion. When integrating into such networks, wiring may require an external gateway or connection module. Confirm cables and gateways with AutoDCSTech for precise matching. The controller is programmed with SoMachine or EcoStruxure Machine Expert software.

Maintenance and Reliability Perspective

From a maintenance engineer's standpoint, the TM218LDD24DUPHN offers straightforward serviceability. Its DIN-rail mounting and front-facing terminals allow quick inspection. Because it has no moving parts, wear is minimal. However, the IP20 enclosure demands a clean, dry control cabinet. Check terminal torque and ventilation periodically. Operating temperature must stay within 0...+55 °C. The 15 W power draw generates modest heat, so ensure adequate airflow. For spare parts planning, note the discontinued status. Stocking a replacement M221 may reduce future downtime risk.
