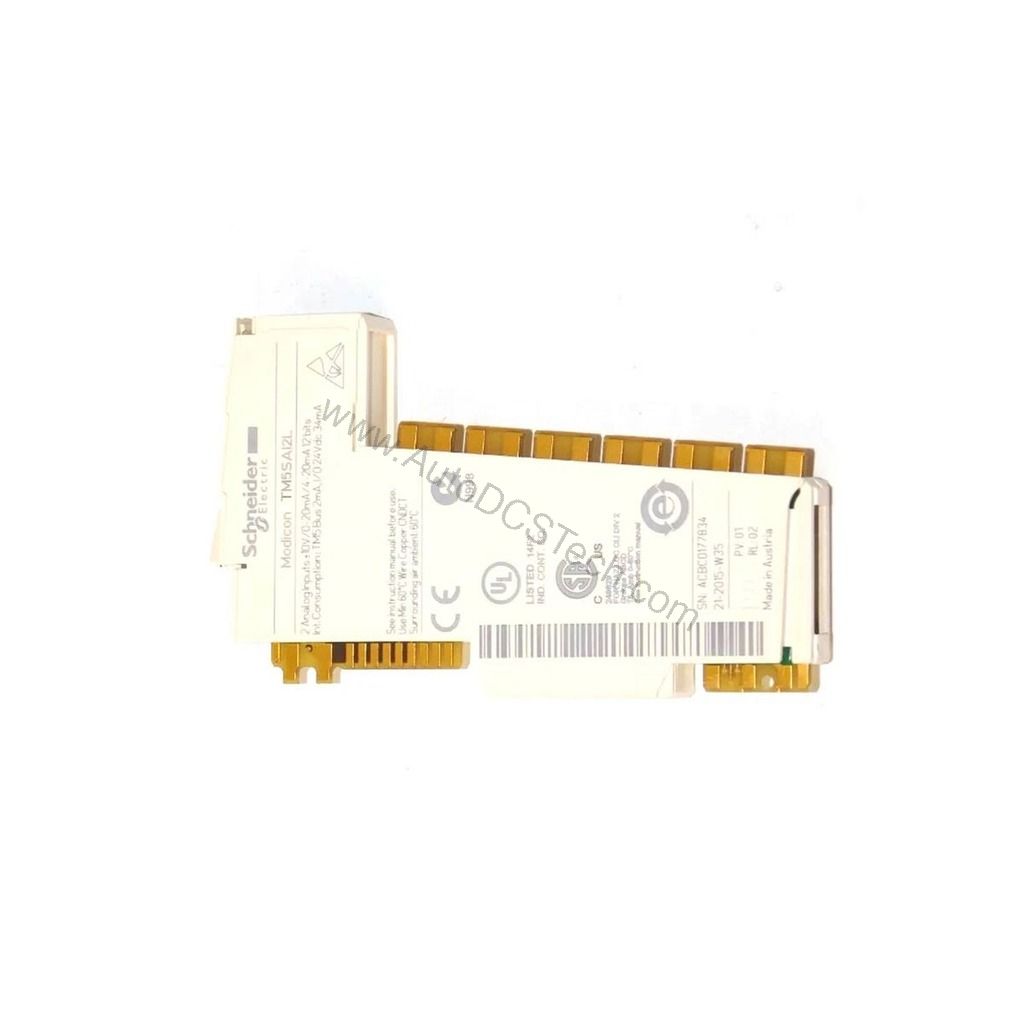

TM5SAI4L Schneider Electric 4-Ch Analog Input Module

TM5SAI4L: Precision Analog Input for Modicon TM5

Analog signal integrity often determines whether a control loop performs as designed or drifts out of tolerance. The Schneider Electric TM5SAI4L addresses this challenge directly. As a four-channel analog input module in the Modicon TM5 series, it converts field signals into 12-bit digital values with ±0.3% full-scale accuracy at 25 °C. Each channel accepts ±10 Vdc, 0-20 mA, or 4-20 mA, configurable in software. Consequently, one module covers mixed voltage and current sensors without hardware changes.

How the TM5SAI4L Solves Signal Conditioning Problems

Wiring errors and sensor faults can silently corrupt process data. The TM5SAI4L therefore provides per-channel diagnostics: below lower limit, above upper limit, and wire break detection for 4-20 mA loops. ModuleOK, DcOk, and NetworkOk status indicators further isolate faults at a glance. In addition, the configurable input cycle (filter off or level 2-128) and 200 µs channel offset let engineers tune response time to the application. Sampling runs at 1 ms or 300 µs per channel.

Key Specifications of the TM5SAI4L

• Channels: 4 analog inputs, software configurable per channel
• Signal ranges: ±10 Vdc, 0-20 mA, 4-20 mA
• Resolution: 12 bits signed (±10 V: -32768 to +32767)
• Accuracy: ±0.3% FS at 25 °C; ±0.5% FS over temperature
• Isolation: 500 Vrms AC between channels and bus; no channel-to-channel isolation
• Supply voltage: 24 Vdc via TM5 bus
• Power consumption: 1.2 W
• Bus current: 3 mA at 5 V DC; 10 mA at 24 V DC
• Operating temperature: 0 to +55 °C
• Protection rating: IP20
• Dimensions (H×W×D): 99 × 12.5 × 75 mm
• Weight: 0.025 kg

Integrating the TM5SAI4L into Modicon Architectures

The module communicates over the TM5 bus and is compatible with Modicon M241, M251, M258, and LMC058 platforms. Because it draws 24 Vdc from the bus or a power distribution module, no separate field supply is required for the module itself. However, analog field wiring should follow standard shielding and grounding practice to preserve accuracy. For precise matching with your existing I/O configuration, contact AutoDCSTech with your exact requirements.

Reliability and Environmental Considerations

With an IP20 rating, the TM5SAI4L suits cabinet-mounted installations. Its operating range of 0 to +55 °C and storage range of -25 to +70 °C cover typical industrial environments. Periodic inspection of terminal connections and verification of diagnostic LEDs can prevent signal degradation. Since the module has no channel-to-channel isolation, maintain a common reference for all analog inputs to avoid ground-loop errors.
