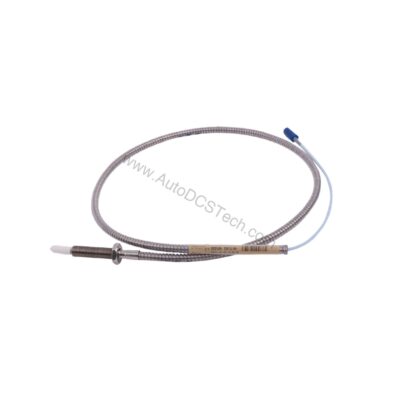

330910-14-19-10-02-00 Bently Nevada 3300 NSv Probe

Introduction: Evolution of Proximity Sensing

In the world of rotating machinery, the ability to measure shaft vibration accurately is not just a technical requirement—it is the foundation of predictive maintenance. Over the years, proximity probe systems have evolved from simple eddy-current sensors to sophisticated devices capable of withstanding harsh process environments. The 330910-14-19-10-02-00 from Bently Nevada represents a significant step in this evolution, offering enhanced chemical resistance and improved side-view characteristics compared to earlier models. This probe is part of the 3300 NSv series, designed for demanding applications where reliability and precision are non-negotiable.

For engineers tasked with maintaining critical assets, the 330910-14-19-10-02-00 provides a robust solution. It is mechanically and electrically interchangeable with the previous 3300 RAM probe, simplifying upgrades. Moreover, its increased chemical resistance makes it suitable for process compressor applications where exposure to aggressive media is common. This article explores the technical specifications, installation considerations, and maintenance practices that make this probe a valuable asset in any vibration monitoring system.

Key Features and Technical Specifications

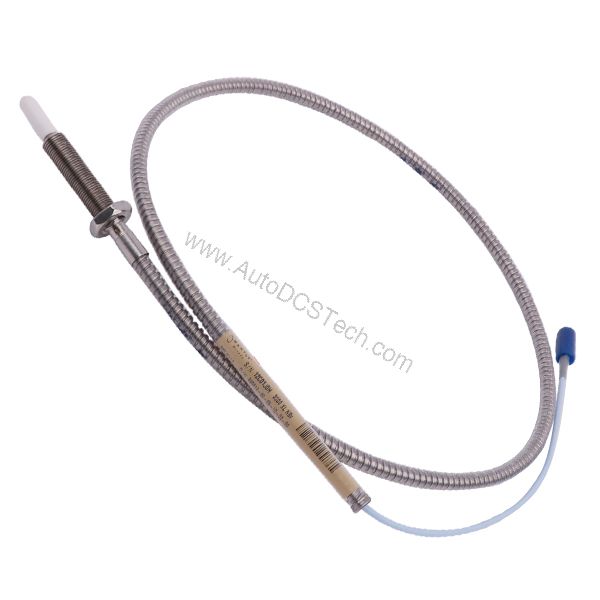

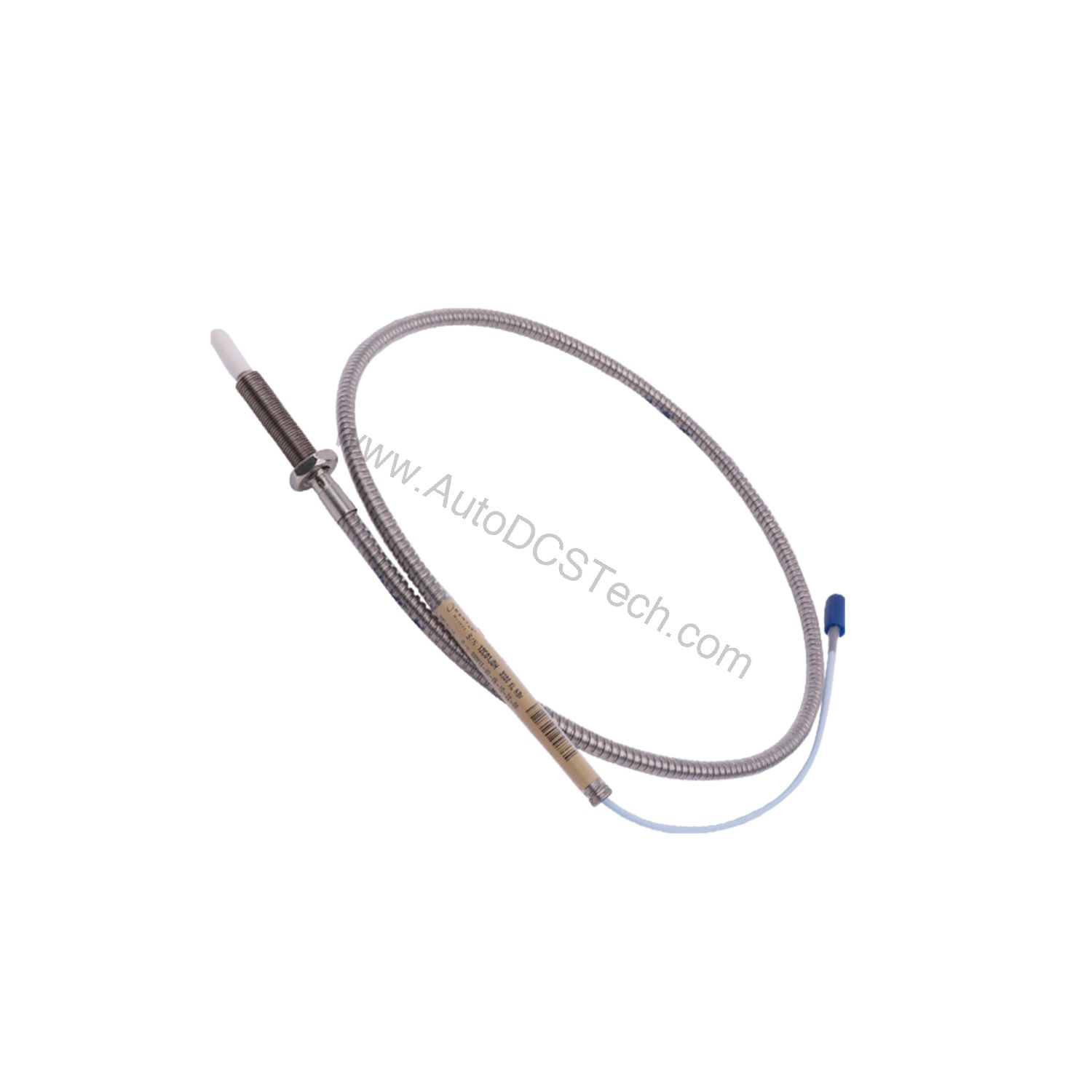

The 330910-14-19-10-02-00 is a 3300 NSv proximity probe with an M10X1 thread and armor. Its key specifications include:

• Unthreaded Length: 140 mm
• Overall Case Length: 190 mm
• Total Length: 1.0 meter (39 inches)
• Connector: Miniature coaxial ClickLoc connector with standard cable
• Agency Approval: Not required

One of the most distinctive features of this probe is its linear range. The 330910-14-19-10-02-00 offers a linear range of 1.5 mm (60 mils), starting at approximately 0.25 mm from the target. The recommended gap setting is 1.0 mm (40 mils), and the incremental scale factor is 7.87 V/mm (200 mV/mil) with interchangeability error of +12.5%/-20%. This precision is critical for accurate vibration measurement.

Furthermore, the probe exhibits a deviation from best fit straight line (DSL) of less than ±0.06 mm (±2.3 mils), ensuring high linearity across its operating range. The frequency response is flat from 0 to 10 kHz with +0, -3 dB typical, even with up to 305 meters (1000 feet) of field wiring. This makes the probe suitable for a wide range of rotating machinery monitoring applications.

Installation and Setup

Proper installation is essential for optimal performance of the 330910-14-19-10-02-00. The probe case is made of AISI 304 stainless steel, and the probe tip is constructed from polyphenylene sulfide (PPS), providing durability and chemical resistance. The recommended installation torque is finger tight, with a maximum torque of 0.56 N•m (5 in•lb). Over-tightening can damage the probe or affect its measurement accuracy.

When routing the probe cable, maintain a minimum bend radius of 25.4 mm (1.0 inch) to prevent damage to the coaxial cable. The probe operates in temperatures ranging from -52°C to +177°C, making it suitable for extreme environments. For field wiring, use a three-conductor shielded triad cable with a maximum length of 305 meters (1000 feet) between the probe and the monitor. Ensure that the cable is properly secured to avoid vibration-induced noise.

Additionally, the probe is designed to seal differential pressure between the probe tip and case using a Viton O-ring. However, probes are not pressure tested prior to shipment. If your application requires a pressure seal test, contact the custom design department for assistance.

Applications and Use Cases

The 330910-14-19-10-02-00 is ideal for vibration monitoring on rotating machinery such as compressors, turbines, and pumps. Its enhanced chemical resistance makes it particularly well-suited for process compressor applications where exposure to corrosive gases or liquids is a concern. The probe's superior side-view characteristics also improve accuracy when gapping the probe at the same distance from the target, reducing measurement errors.

In addition, the probe's compatibility with Bently Nevada's 3300 RAM system allows for seamless integration into existing monitoring setups. Whether you are upgrading an aging system or installing new equipment, the 330910-14-19-10-02-00 provides reliable performance in demanding industrial environments.

Maintenance and Reliability

To ensure long-term reliability, regular inspection of the probe and its cable is recommended. Check for signs of wear, corrosion, or damage to the cable jacket, especially in harsh environments. The probe's operating temperature range of -52°C to +177°C allows it to withstand extreme conditions, but periodic verification of the probe's resistance is advisable. The probe DC resistance from center conductor to outer conductor is 4.2 ± 0.5 ohms for a 1.0-meter probe length. Any significant deviation from this value may indicate a problem.

Additionally, verify that the connector is securely fastened and free from contamination. The ClickLoc connector is designed for easy installation, but ensure it is properly seated to maintain signal integrity. Following these simple maintenance practices will help extend the life of your 330910-14-19-10-02-00 and ensure accurate measurements.

Compatibility and Integration

The 330910-14-19-10-02-00 is designed to work with Bently Nevada's 3300 XL NSv Proximitor Sensor and monitoring systems. The extension cable has a center conductor resistance of 0.220 Ω/m and shield resistance of 0.066 Ω/m, with capacitance of 69.9 pF/m typical. These specifications ensure proper signal transmission over long distances.

For integration, the probe can be used with a variety of monitors that accept proximity probe inputs. However, always verify compatibility with your specific monitoring system before installation. If you have questions about integration, consult the official Bently Nevada documentation or contact AutoDCSTech for expert guidance.

Support and Availability

The 330910-14-19-10-02-00 is available at AutoDCSTech, a trusted supplier of industrial automation parts. We offer new and original factory-packed units with a 12-month warranty. For inquiries about availability or technical support, contact our team today.
