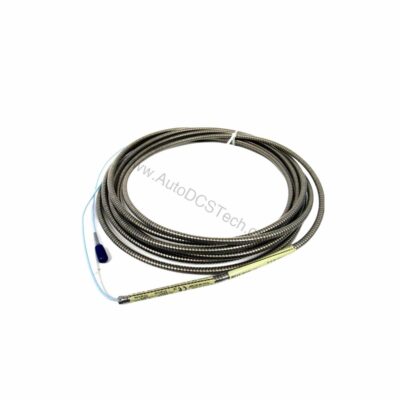

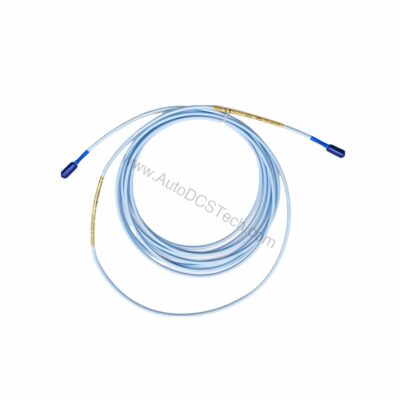

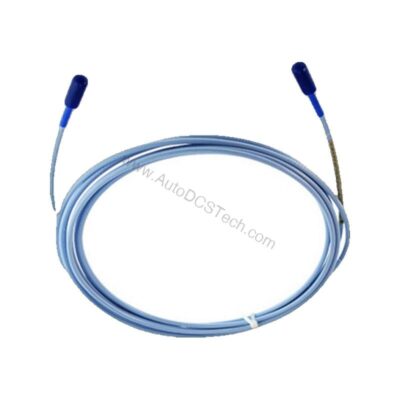

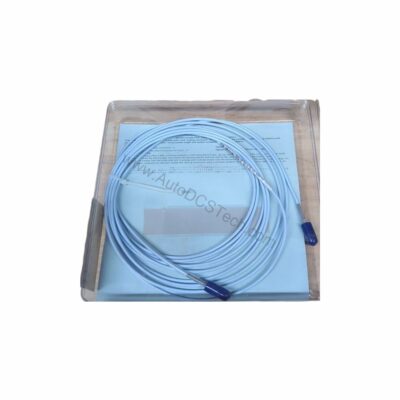

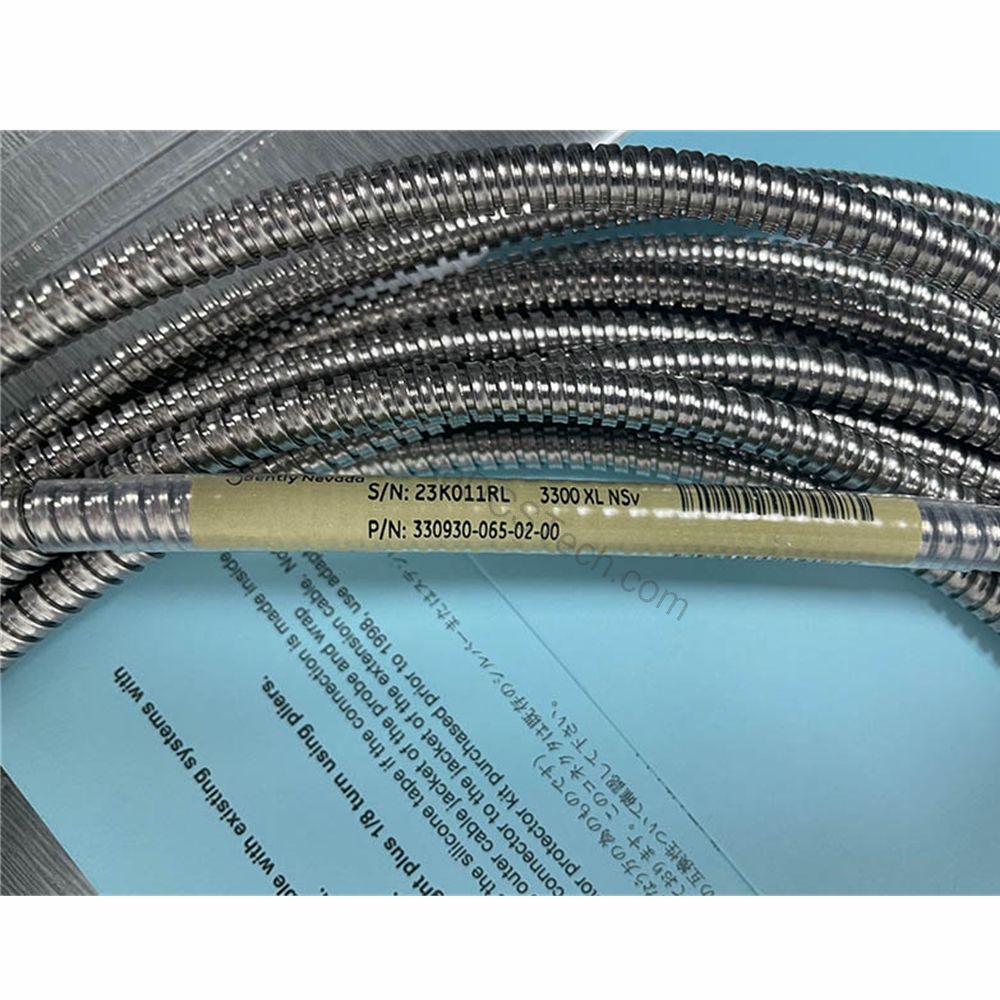

330930-040-04-CN 4.0m Bently Nevada Extension Cable

Introduction to the 330930-040-04-CN Extension Cable

When vibration monitoring systems face harsh environments, cable integrity becomes critical. The 330930-040-04-CN from Bently Nevada addresses this challenge directly. This 3300 NSv extension cable delivers reliable signal transmission between the probe and proximitor sensor.

Engineers trust this cable for its robust construction and precise electrical characteristics. The 4.0-meter (13.1 feet) length provides flexibility in machine train layouts. Additionally, the stainless steel armor protects against physical damage and electromagnetic interference.

Key Features and Technical Specifications

The 330930-040-04-CN is engineered with materials that withstand extreme conditions. Its 75 Ω coaxial construction uses fluoroethylene propylene (FEP) insulation, ensuring stable performance across temperature extremes.

• Cable Length: 4.0 meters (13.1 feet)
• Connector Option: Stainless steel armor with FEP jacket and connector protector
• Operating Temperature: -51°C to +177°C (-60°F to +351°F)
• Shipping Weight: 1.5 kg
• Center Conductor Resistance: 0.220 Ω/m (0.067 Ω/ft)
• Shield Resistance: 0.066 Ω/m (0.020 Ω/ft)
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Connector Material: Gold-plated brass

The cable's tensile strength is rated at 220 N (50 lb) at critical connection points, ensuring durability during installation and operation. The gold-plated brass connectors maintain low contact resistance, preserving signal integrity.

Installation and Setup Considerations

Proper installation is essential for optimal performance. The extension cable length and probe length must sum to the total length required by the Proximitor Sensor. This ensures accurate gap settings and linear measurement.

Field wiring should use three-conductor shielded triad cable with cross-sections from 0.2 to 1.5 mm² (16 to 24 AWG). For applications using ferrules, 0.25 to 0.75 mm² (18 to 23 AWG) is recommended. The maximum distance between the 3300 XL NSv Proximitor Sensor and the monitor is 305 meters (1,000 feet).

For longer field wiring lengths, consult the frequency response graphs (Figure 16 and Figure 17) to understand signal rolloff at high frequencies. This is particularly important for high-speed machinery monitoring.

Maintenance and Reliability

Regular inspection of the cable and connectors ensures long-term reliability. The stainless steel armor provides excellent protection against abrasion and crushing, reducing the risk of signal loss. The FEP jacket resists chemicals and moisture, making the cable suitable for demanding industrial environments.

Because the operating and storage temperature range spans from -51°C to +177°C, the cable can be used in both cryogenic and high-heat applications. This wide range minimizes the need for special handling during maintenance shutdowns.

To maintain signal integrity, verify that all connections are tight and free from corrosion. Gold-plated connectors resist oxidation, but periodic checks are recommended. If the cable is exposed to excessive flexing, inspect the armor for kinks or breaks.

Compatibility and Integration

The 330930-040-04-CN is designed for use with Bently Nevada 3300 NSv systems. It connects the proximity probe to the extension cable, which then interfaces with the Proximitor Sensor. This cable is not compatible with other sensor types unless explicitly specified by Bently Nevada.

When integrating this cable into an existing system, ensure that the total cable length (probe + extension) matches the Proximitor Sensor requirements. The linear range of the sensor is 1.5 mm (60 mils), starting at approximately 0.25 mm (10 mils) from the target. The recommended gap setting is 1.0 mm (40 mils).

Troubleshooting Common Issues

Signal loss or erratic readings often trace back to cable issues. Check for damaged armor, loose connectors, or moisture ingress. The FEP jacket provides excellent insulation, but physical damage can compromise performance.

If the system shows high capacitance readings, verify that the cable length is within the specified limit. The capacitance of 69.9 pF/m (21.3 pF/ft) is typical; longer runs increase capacitance and may affect frequency response.

For installations in extreme temperatures, ensure that the cable is not exposed to temperatures outside the -51°C to +177°C range. Exceeding these limits can cause insulation breakdown or conductor failure.

Product Support and Availability

The 330930-040-04-CN is available through AutoDCSTech. Please verify current lifecycle status and availability before ordering. Contact AutoDCSTech for pricing and lead times.
