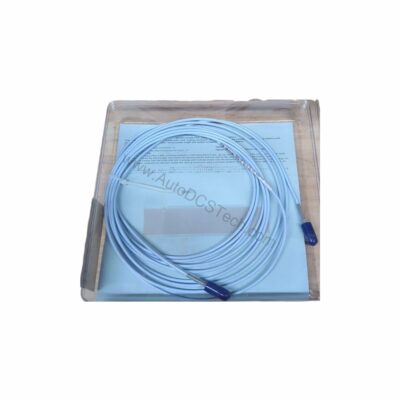

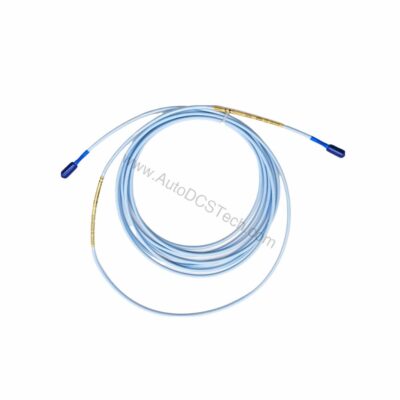

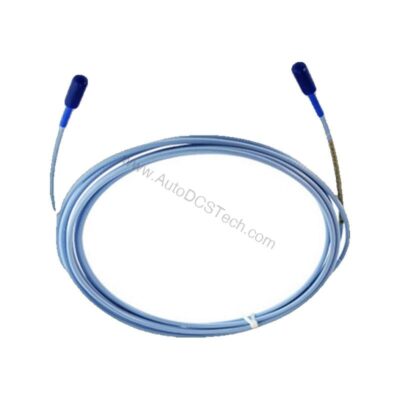

Introduction to the 330930-060-00-CN Extension Cable
When signal integrity matters in critical machinery monitoring, the 330930-060-00-CN from Bently Nevada delivers the precision you need. This 3300 NSv extension cable is designed to connect a proximity probe to a Proximitor Sensor, ensuring accurate vibration and position measurements. With a cable length of 6.0 meters (19.7 feet), it offers flexibility in installation while maintaining signal quality.
Key Features and Technical Specifications
The 330930-060-00-CN is built with a 75 Ω coaxial construction, insulated with fluoroethylene propylene (FEP) for durability. This material choice provides excellent thermal and electrical performance, making it suitable for demanding environments.
- Cable length: 6.0 meters (19.7 feet)
- Connector option: Without stainless steel armor
- Center conductor DC resistance: 0.220 Ω/m (0.067 Ω/ft)
- Shield DC resistance: 0.066 Ω/m (0.020 Ω/ft)
- Capacitance: 69.9 pF/m (21.3 pF/ft) typical
- Operating and storage temperature: -51°C to +177°C (-60°F to +351°F)
- Shipping weight: 1.5 kg
These specifications directly impact system reliability. For instance, the low DC resistance minimizes signal loss over the cable length, which is critical for accurate readings. The wide temperature range ensures the cable performs consistently in both cold and hot industrial settings, reducing the risk of downtime due to environmental stress.
Applications and Use Cases
The 330930-060-00-CN is commonly used in turbomachinery, compressors, and other rotating equipment where precise shaft vibration monitoring is essential. By maintaining signal integrity, it helps operators detect early signs of mechanical issues, preventing costly failures. For example, in a steam turbine train, this cable ensures that vibration data from the probe reaches the monitor without degradation, enabling timely maintenance decisions that save both time and money.
Installation and Setup
Proper installation is key to maximizing the performance of the 330930-060-00-CN. Ensure that the extension cable length and the probe length, when added together, equal the Proximitor Sensor total length. This is a critical requirement for accurate measurement. The cable supports field wiring of 0.2 to 1.5 mm² (16 to 24 AWG), with a recommendation for three-conductor shielded triad cable. The maximum field wiring length between the Proximitor Sensor and the monitor is 305 meters (1,000 feet). Always follow the manufacturer's guidelines for routing and securing the cable to avoid mechanical damage.
Maintenance and Reliability
The 330930-060-00-CN is designed for long-term reliability, but regular inspection is still recommended. Check the cable for any signs of wear, cuts, or abrasion, especially in areas where it may rub against machine surfaces. The FEP insulation is robust, but physical damage can compromise signal integrity. Periodically verify that the connectors are tight and free from corrosion. By incorporating these checks into your routine maintenance, you can extend the service life of the cable and avoid unexpected failures that lead to expensive downtime.
Troubleshooting and Common Issues
If you experience signal loss or erratic readings, first verify the cable length matches the system requirements. A mismatch between the extension cable and probe length can cause measurement errors. Also, check the DC resistance of the center conductor and shield; any significant deviation from the specified values (0.220 Ω/m and 0.066 Ω/m respectively) may indicate a damaged cable. Ensure that the field wiring is within the recommended length and uses the correct gauge. If problems persist, consult the Bently Nevada documentation or contact AutoDCSTech for support.
Why Choose AutoDCSTech for Your 330930-060-00-CN
AutoDCSTech is a trusted supplier of industrial automation parts, offering the 330930-060-00-CN with confidence. We understand that every component in your monitoring system must perform flawlessly. That's why we provide genuine Bently Nevada products, backed by our commitment to quality and customer service. Contact us to check availability and ensure your operations stay on track.
Availability & Condition at AutoDCSTech
| Part Number | 330930-060-00-CN |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
