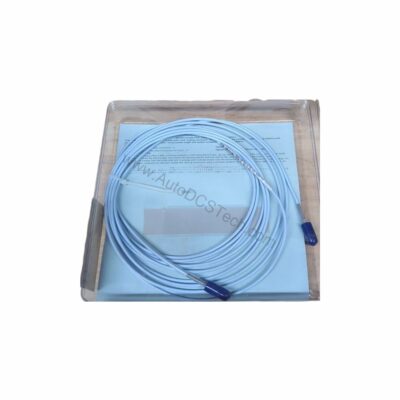

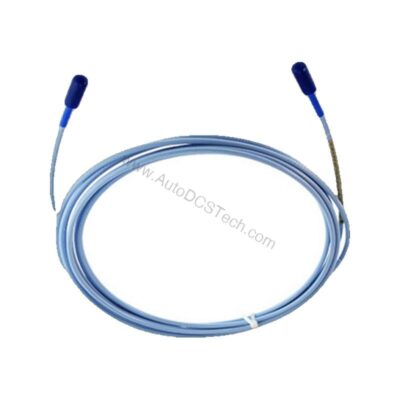

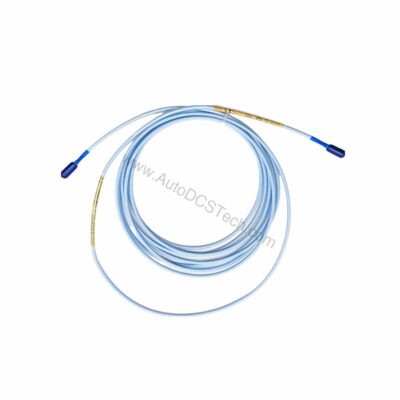

330930-060-02-00 6.0m Bently Nevada Extension Cable

330930-060-02-00 Overview: A Precision Extension Cable for 3300 NSv Systems

When your rotating machinery monitoring demands accuracy, the 330930-060-02-00 from Bently Nevada provides a critical link. This 3300 NSv extension cable ensures that vibration and position signals travel from the probe to the Proximitor Sensor without degradation. Engineered for industrial environments, this cable supports reliable data acquisition in turbines, compressors, and other critical assets.

The 330930-060-02-00 is manufactured in the U.S.A. and carries the Bently Nevada brand, a name synonymous with machine protection. Its 6.0-meter (19.7 feet) length offers flexibility in routing between the probe and the sensor. With stainless steel armor and no FEP jacket, this cable is built to withstand harsh conditions while maintaining signal integrity.

Key Features and Technical Specifications

This extension cable is designed to meet the rigorous demands of industrial vibration monitoring. Below are the core specifications that define its performance:

• Product Type: 3300 NSv Extension Cable
• Cable Length: 6.0 meters (19.7 feet)

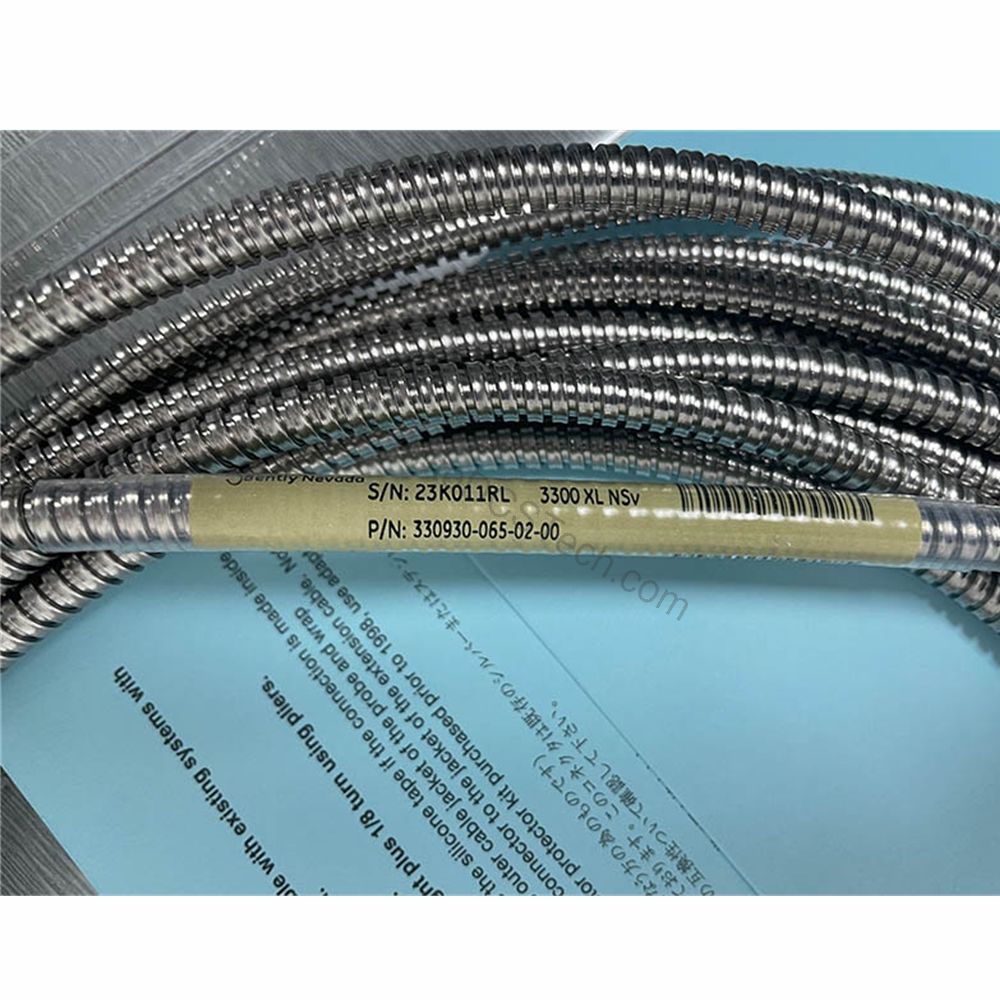

• Connector Option: Stainless steel armor, without FEP jacket
• Cable Material: 75 Ω coaxial, fluoroethylene propylene (FEP) insulated
• Operating Temperature: -51°C to +177°C (-60°F to +351°F)
• Shipping Weight: 1.5 kg
• Center Conductor DC Resistance: 0.220 Ω/m (0.067 Ω/ft)
• Shield DC Resistance: 0.066 Ω/m (0.020 Ω/ft)
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical

The cable's 75 Ω impedance matches the 3300 NSv system requirements, ensuring minimal signal reflection. The FEP insulation provides excellent dielectric properties and thermal stability, making it suitable for high-temperature environments.

Buyer's Guide: Evaluating the 330930-060-02-00

When selecting an extension cable for your proximity probe system, consider the following factors:

• Length Compatibility: Ensure the extension cable length plus the probe length equals the Proximitor Sensor total length. This is critical for accurate measurement.
• Environmental Resistance: The stainless steel armor protects against mechanical damage, while the FEP insulation resists chemicals and high temperatures.
• Signal Integrity: Low capacitance and resistance values minimize signal loss over the cable run, preserving measurement accuracy.

This cable is designed for use with 3300 NSv Proximitor Sensors. For field wiring, the recommended cable is a three-conductor shielded triad, with a maximum length of 305 meters (1,000 feet) between the sensor and the monitor. Refer to the frequency response graphs in the official documentation for signal rolloff at high frequencies with longer wiring.

Installation and Setup Considerations

Proper installation is essential for optimal performance. Follow these guidelines:

• Verify that the total length of probe plus extension cable matches the Proximitor Sensor specification.
• Route the cable away from high-voltage sources and sharp bends to avoid damage.
• Secure the cable with appropriate clamps to prevent movement due to vibration.
• Use the recommended field wiring (0.2 to 1.5 mm² / 16 to 24 AWG) with ferrules if needed.

Always consult the Bently Nevada installation manual for detailed instructions. Incorrect installation can lead to measurement errors or equipment damage.

Maintenance and Reliability

Regular inspection of the extension cable and its connectors is recommended to ensure long-term reliability. Check for signs of wear, corrosion, or damage to the armor. The operating temperature range of -51°C to +177°C allows use in extreme conditions, but verify that the cable is not exposed to temperatures beyond these limits.

Because the cable is passive, it requires minimal maintenance. However, periodic checks of the connector tightness and cable integrity can prevent intermittent signal issues. If the cable is damaged, replace it promptly to maintain system accuracy.

Compatibility and Integration

The 330930-060-02-00 is designed for Bently Nevada 3300 NSv systems. It connects the 3300 NSv probe to the Proximitor Sensor. The cable's 75 Ω impedance is matched to the system's requirements. For integration with monitors, use the recommended field wiring and adhere to the maximum length of 305 meters (1,000 feet) to avoid signal degradation.

This cable is not compatible with other systems unless explicitly stated by Bently Nevada. Always verify compatibility with your existing equipment before ordering.

Availability and Support

The 330930-060-02-00 is available through AutoDCSTech. Contact our team to confirm stock and lead times. We provide fast shipping and dedicated support for your industrial automation needs.
