Why Choose the 330930-060-02-CN Extension Cable?
When vibration monitoring systems fail, downtime escalates quickly. The 330930-060-02-CN from Bently Nevada provides a dependable 6.0-meter (19.7 feet) extension cable engineered for 3300 NSv proximity probe installations. With stainless steel armor and no FEP jacket, this cable withstands harsh industrial environments while maintaining signal integrity.
Key Features and Technical Specifications
Every parameter of the 330930-060-02-CN is designed for precision and durability.
- Product Type: 3300 NSv Extension Cable
- Cable Length: 6.0 meters (19.7 feet)

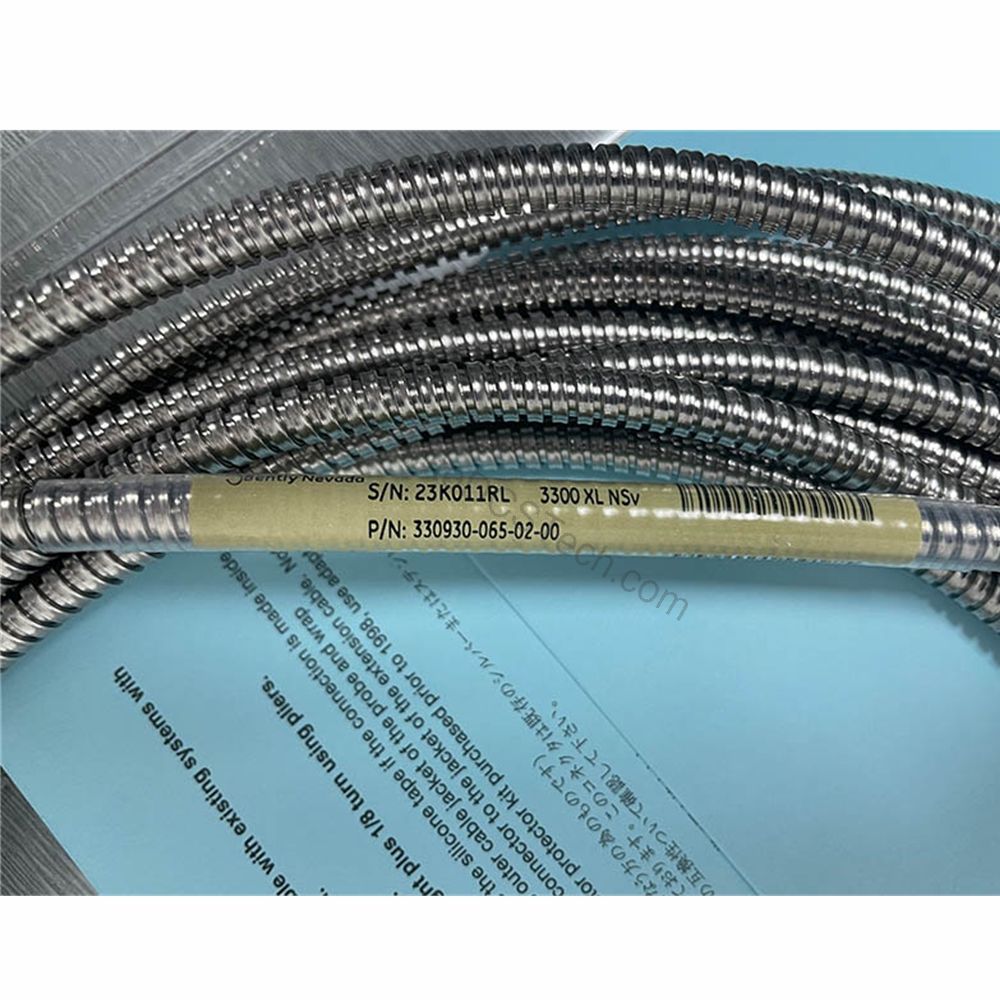

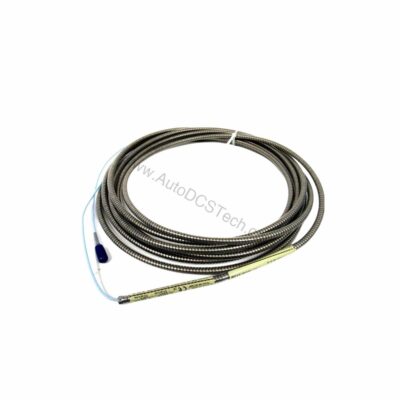

- Connector Option: Stainless steel armor, without FEP jacket
- Cable Material: 75 Ω coaxial, fluoroethylene propylene (FEP) insulated
- Operating Temperature: -51°C to +177°C (-60°F to +351°F)
- Shipping Weight: 1.5 kg
- Center Conductor Resistance: 0.220 Ω/m (0.067 Ω/ft)
- Shield Resistance: 0.066 Ω/m (0.020 Ω/ft)
- Capacitance: 69.9 pF/m (21.3 pF/ft) typical
- Connector Material: Gold-plated brass
The cable's low resistance and capacitance values minimize signal loss over the 6-meter run, ensuring accurate vibration data transmission to the monitor.
Installation and Setup
Proper installation is critical for optimal performance. Ensure the extension cable length and probe length together equal the Proximitor Sensor total length. Field wiring should use a three-conductor shielded triad cable with a maximum length of 305 meters (1,000 feet) between the sensor and monitor. For connections, use wire sizes from 0.2 to 1.5 mm² (16 to 24 AWG), or 0.25 to 0.75 mm² (18 to 23 AWG) with ferrules. Always follow the manufacturer's manual for torque and routing guidelines.
Maintenance and Reliability
Regular inspection of the cable and connectors helps prevent unexpected failures. Check for physical damage, corrosion, or loose connections. The stainless steel armor provides robust protection against abrasion and mechanical stress, extending service life. Operating within the specified temperature range ensures consistent performance.
Compatibility and Integration
This cable is specifically designed for Bently Nevada 3300 NSv systems. It connects the probe to the Proximitor Sensor, maintaining the correct total length for accurate measurements. The 75 Ω impedance matches standard Bently Nevada monitoring equipment, ensuring seamless integration.
Troubleshooting Common Issues
If signal quality degrades, first verify the cable length matches the required total. Check all connectors for tightness and cleanliness. Confirm that field wiring does not exceed 305 meters. Also, ensure the cable is not routed near high-voltage sources that could introduce interference.
Support and Availability
The 330930-060-02-CN is available through AutoDCSTech. Contact our team for current stock and lifecycle status. We provide fast, reliable service for industrial automation parts.
Availability & Condition at AutoDCSTech
| Part Number | 330930-060-02-CN |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
