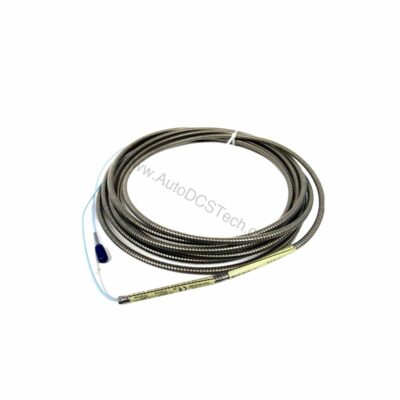

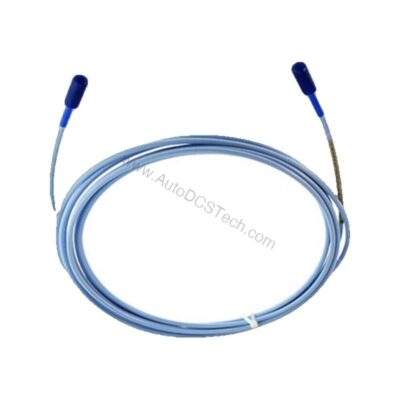

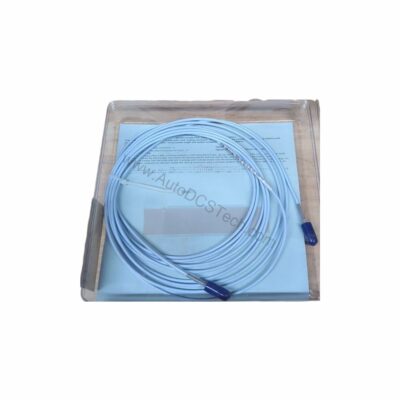

330930-065-02-00 6.5m Bently Nevada Extension Cable

Why Choose the 330930-065-02-00 for Your Vibration Monitoring?

When machinery vibration monitoring fails, unplanned downtime and costly repairs follow. The 330930-065-02-00 from Bently Nevada ensures your proximity probe connects reliably to the Proximitor sensor, even in extreme conditions. This 6.5-meter extension cable is engineered for precision and durability, making it a critical component in your predictive maintenance strategy.

Key Features & Technical Specifications

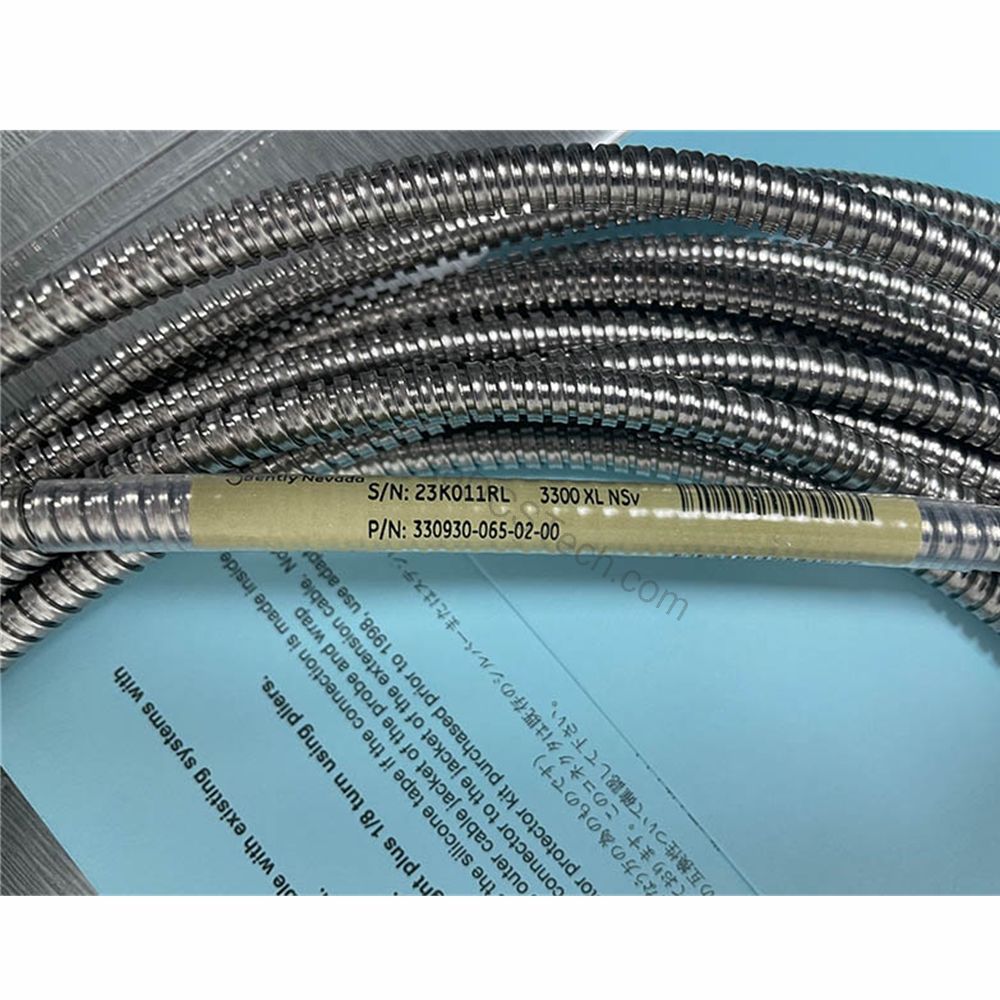

The 330930-065-02-00 is a 3300 NSv extension cable with a length of 6.5 meters (21.3 feet). It features stainless steel armor without an FEP jacket, providing robust mechanical protection. The cable uses 75 Ω coaxial construction with fluoroethylene propylene (FEP) insulation, ensuring stable signal integrity over its length.

• Cable Length: 6.5 meters (21.3 feet)
• Connector Option: Stainless steel armor, no FEP jacket
• Cable Material: 75 Ω coaxial, FEP insulated
• Operating Temperature: -51°C to +177°C (-60°F to +351°F)
• Shipping Weight: 1.5 kg
• Center Conductor DC Resistance: 0.220 Ω/m
• Shield DC Resistance: 0.066 Ω/m
• Capacitance: 69.9 pF/m typical

This cable is designed to work with the 3300 NSv Proximitor sensor. Ensure the extension cable length plus probe length equals the total sensor length for accurate readings.

Real-World Applications and Performance

In industries like power generation, oil and gas, and manufacturing, the 330930-065-02-00 excels in high-temperature or mechanically stressed environments. Its stainless steel armor resists abrasion and impact, while the FEP insulation maintains signal quality from -51°C to +177°C. This makes it ideal for turbines, compressors, and pumps where reliable vibration data is non-negotiable.

Installation and Setup Best Practices

Proper installation ensures optimal performance. When connecting the extension cable, verify that the total length (probe + extension) matches the Proximitor sensor specification. Use the recommended field wiring: a three-conductor shielded triad cable with 0.2 to 1.5 mm² (16 to 24 AWG) conductors. For connections with ferrules, use 0.25 to 0.75 mm² (18 to 23 AWG). Keep field wiring between the Proximitor and monitor under 305 meters (1,000 feet) to avoid signal rolloff at high frequencies.

Maintenance and Reliability

Regular inspection of the cable and connectors is essential. Check for physical damage to the armor or insulation, especially in high-vibration areas. Ensure connectors remain clean and securely tightened. The gold-plated brass connectors resist corrosion, but periodic verification of continuity and insulation resistance is recommended. Following these practices extends cable life and maintains measurement accuracy.

Compatibility and Integration

The 330930-065-02-00 is part of the Bently Nevada 3300 NSv system. It connects the 3300 NSv probe to the Proximitor sensor. The cable's 75 Ω impedance matches the system's requirements, ensuring consistent signal transmission. For integration with monitoring systems, refer to the 3300 NSv documentation for compatible monitors and field wiring guidelines.

Troubleshooting Common Issues

If you experience signal loss or erratic readings, first check the cable for breaks or kinks. Verify that all connectors are fully seated and free of debris. Measure DC resistance: the center conductor should read approximately 0.220 Ω/m, and the shield 0.066 Ω/m. If readings deviate significantly, the cable may be damaged. Also, confirm that the total cable length (probe + extension) matches the Proximitor specification.

Product Support and Availability

The 330930-065-02-00 is available through AutoDCSTech. Contact our team to confirm stock and lead times. We are ready to support your vibration monitoring needs with genuine Bently Nevada components.
