330980-50-05 5m NSv Proximitor Sensor

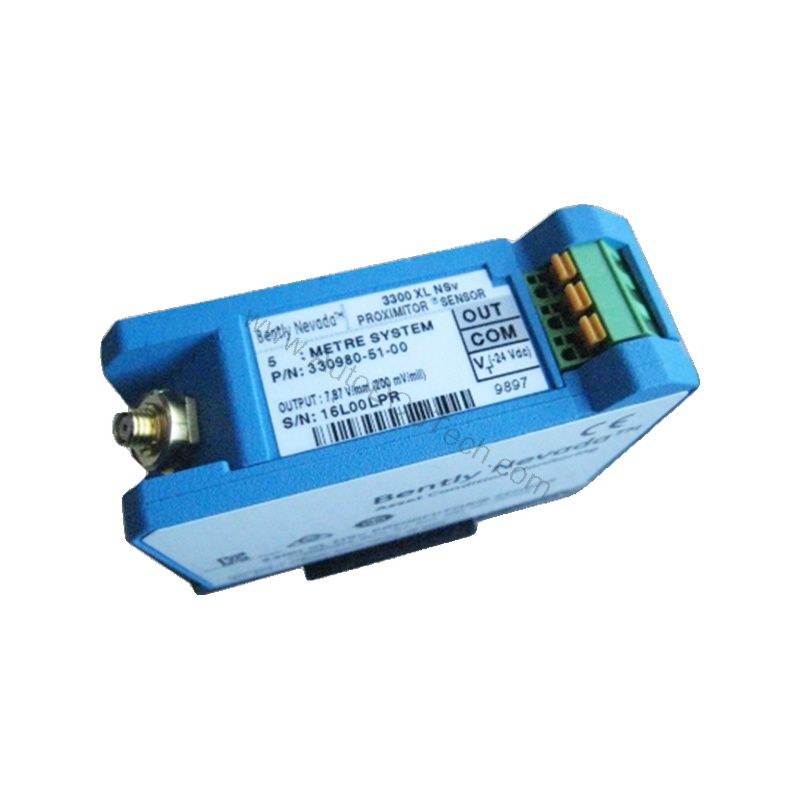

Introduction to the 330980-50-05

When machinery vibration threatens uptime, the 330980-50-05 from Bently Nevada provides precise, dependable measurement. This NSv Proximitor Sensor is engineered for high-density installations and traditional panel mount setups. Its thin design enables flexible mounting in DIN-rail or panel configurations, making it a versatile choice for industrial monitoring.

With a 5.0 metre (16.4 feet) system length, this sensor suits applications where the probe must be positioned away from the monitor. The panel mount option simplifies installation in existing cabinets. Multiple agency approvals (suffix 05) ensure compliance with international standards, reducing certification hurdles.

Key Features and Technical Specifications

The 330980-50-05 delivers robust performance in demanding environments. Below are the core specifications:

• System Length: 5.0 metres (16.4 feet) – total system length including probe and extension cable.
• Mounting: Panel mount – fits standard panels without special tools.
• Agency Approvals: Multiple approvals – simplifies global deployment.
• Proximitor Sensor Material: A380 aluminum – lightweight and corrosion-resistant.
• Weight: 255 g (9 oz) – easy to handle during installation.
• Input: Accepts one noncontacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable.
• Power Requirement: -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption; -23 Vdc to -26 Vdc with barriers.
• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.
• Output Resistance: 50 Ω – ensures signal integrity over long cable runs.
• Operating Temperature: -52°C to +100°C (-62°F to +212°F) – suitable for extreme conditions.
• Storage Temperature: -52°C to +105°C (-62°F to +221°F).
• Relative Humidity: 100% condensing, nonsubmersible when connectors are protected; tested to IEC 68-2-3 damp heat.

One standout feature is the improved RFI/EMI immunity. This allows the sensor to achieve European CE mark approvals without special mounting considerations. It also prevents nearby high-frequency radio signals from adversely affecting the transducer system, ensuring accurate readings in electrically noisy environments.

Applications and Use Cases

The 330980-50-05 is ideal for rotating machinery monitoring, including turbines, compressors, and pumps. Its compact design fits into tight spaces, making it suitable for retrofitting existing equipment. The 5.0 metre system length provides flexibility in probe placement, while the panel mount option integrates seamlessly into control panels.

For example, in a petrochemical plant, the sensor can monitor shaft vibration on a critical compressor. The RFI immunity ensures that nearby variable frequency drives do not corrupt the signal. This leads to more reliable data and fewer false alarms.

Installation and Setup

Installing the 330980-50-05 is straightforward. The SpringLoc terminal strips require no special installation tools, facilitating faster and highly robust field wiring connections. This reduces installation time and minimizes the risk of loose connections.

When mounting, ensure the sensor is securely attached to a stable surface. For panel mount, use the provided mounting holes. Connect the probe and extension cable to the sensor input, then wire the output to the monitoring system. Verify that the power supply meets the specified voltage range (-17.5 Vdc to -26 Vdc without barriers).

For optimal performance, maintain a probe gap of 1.0 mm (40 mils) when using a Bently Nevada supplied AISI 4140 steel target. The system accuracy specifications apply only with this target material and size (31 mm diameter or larger).

Maintenance and Reliability

Routine inspection of the 330980-50-05 ensures long-term reliability. Check the sensor and cables for physical damage, especially in high-vibration areas. Verify that the connectors are properly sealed to prevent moisture ingress, as the sensor is rated for 100% condensing humidity when connectors are protected.

Periodically test the output signal to confirm it remains within expected ranges. If the sensor is exposed to extreme temperatures, verify that it operates within the specified limits. The A380 aluminum housing resists corrosion, but regular visual checks are recommended.

Because the sensor operates over a wide temperature range, it is suitable for outdoor installations or areas with significant temperature fluctuations. Always follow the manufacturer's guidelines for maintenance and calibration.

Comparison with Similar Sensors

Compared to standard 8 mm Proximitor Sensors, the NSv model offers a thinner profile, enabling higher-density mounting. The 330980-50-05 provides a 5.0 metre system length, which is longer than many standard options, allowing greater flexibility in probe placement. The multiple approvals (suffix 05) simplify compliance for international projects.

In terms of power consumption, the sensor draws a maximum of 12 mA, making it energy-efficient. The output resistance of 50 Ω ensures compatibility with most monitoring systems. The RFI/EMI immunity is a significant advantage over older models that may require additional shielding.

Support and Availability

The 330980-50-05 is available through AutoDCSTech, a trusted supplier of industrial automation parts. We maintain a ready inventory to support your maintenance and upgrade needs. Contact our team for pricing and lead time information.

For technical assistance, refer to the official Bently Nevada documentation or reach out to AutoDCSTech for guidance. We are committed to helping you keep your machinery running smoothly.
