3500/53-03-00 Three-Channel Overspeed Detection System

Case Study: Protecting a Critical Turbine from Overspeed

Imagine a steam turbine in a power plant operating at 3,600 RPM. A sudden loss of load causes the rotor to accelerate rapidly. Without a reliable overspeed detection system, the turbine could reach a dangerous overspeed condition, leading to catastrophic failure. The 3500/53-03-00 from Bently Nevada is engineered to prevent such scenarios, providing continuous, accurate speed monitoring and alarm generation.

What Is the 3500/53-03-00?

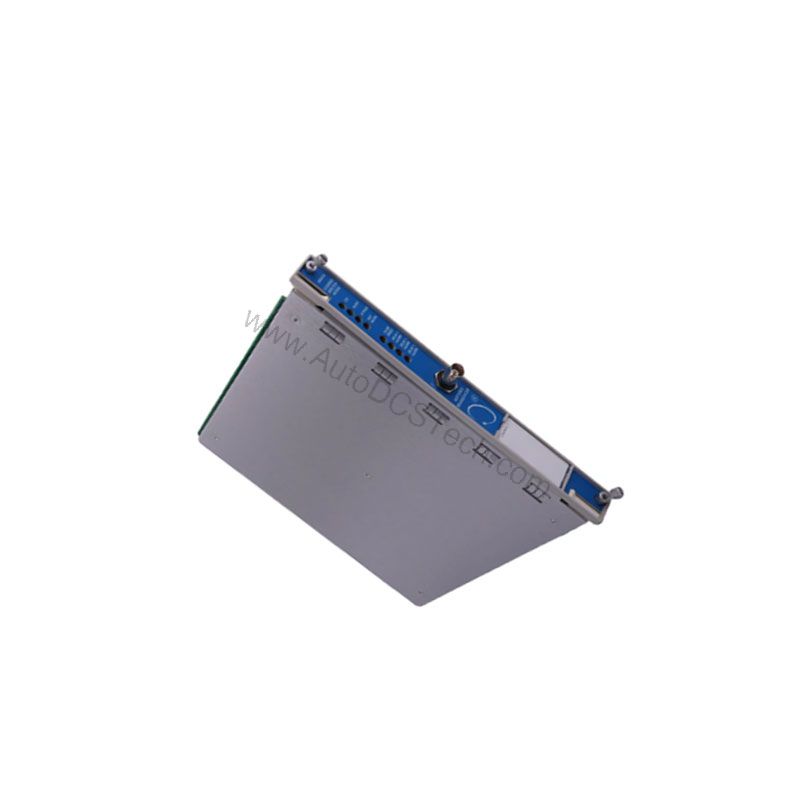

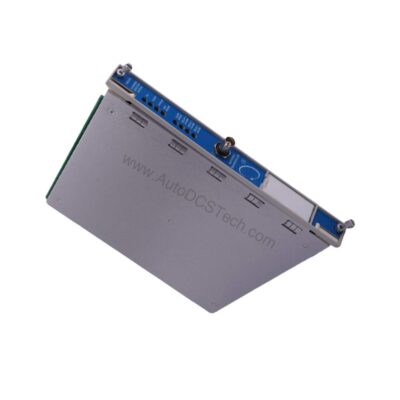

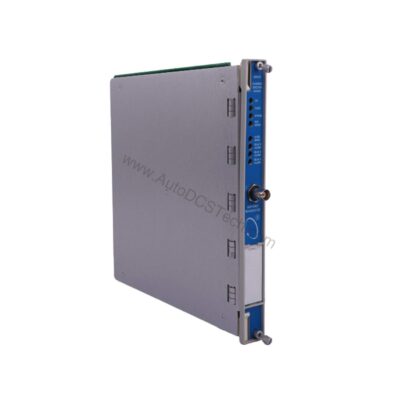

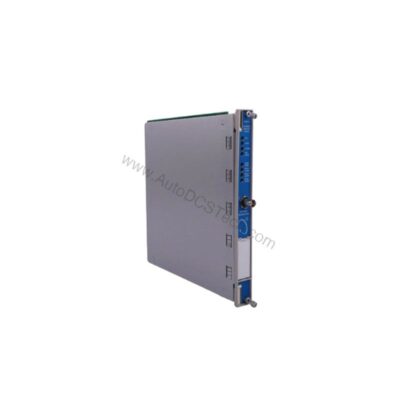

The 3500/53-03-00 is a three-channel electronic overspeed detection module designed for industrial rotating machinery. It is part of the Bently Nevada 3500 series, a trusted platform for machinery protection. This module accepts input from proximity probes or magnetic pickups, processes the signals, and activates alarms when speed exceeds setpoints. Its three-channel configuration provides redundancy, ensuring that a single channel failure does not compromise protection.

Key Features and Technical Specifications

The 3500/53-03-00 offers a range of features that make it suitable for demanding applications. Below are the key specifications extracted from the official datasheet:

• Input Signal Range: +10.0 V to -24.0 V, internally limited for protection.
• Input Impedance: 20 kΩ, ensuring minimal loading on the transducer.
• Power Consumption: 8.0 watts typical, efficient for continuous operation.
• Transducer Power Supply: -24 Vdc, 40 mA maximum, powering external transducers.
• Buffered Output Impedance: 550 Ω, providing a stable signal for diagnostics.
• Recorder Output: +4 to +20 mA proportional to full-scale RPM, with 0.3662 µA per bit resolution.
• Relay Outputs: SPDT relays with contact ratings up to 5 A, 30 Vdc or 250 Vac.
• Operating Temperature: -30 °C to +65 °C, suitable for harsh environments.
• Humidity: 95% non-condensing, robust against moisture.

One distinctive feature is the resolution of 0.3662 µA per bit, which allows precise proportional output for recording speed trends. This high resolution ensures that even small speed variations are captured, aiding in early fault detection.

Applications and Use Cases

The 3500/53-03-00 is primarily used in turbomachinery protection systems, including steam turbines, gas turbines, and large compressors. In a typical application, the module monitors rotor speed and triggers alarms or trips if overspeed occurs. For example, in a petrochemical plant, a centrifugal compressor driven by a gas turbine relies on this module to prevent overspeed during load rejection events. The three-channel design allows voting logic, where at least two channels must agree to initiate a trip, reducing spurious trips while maintaining safety.

Installation and Setup

Proper installation is critical for the 3500/53-03-00 to function correctly. The module occupies one full-height front slot per channel in a 3500 rack, with corresponding I/O modules in the rear. Each channel accepts a single transducer signal from a compatible proximity probe or magnetic pickup. Ensure that the input signal is within the +10.0 V to -24.0 V range; the module internally limits signals that exceed this range. The transducer power supply provides -24 Vdc at up to 40 mA, so verify that connected transducers do not exceed this current limit. The buffered transducer output is available on a coaxial connector, which is short-circuit and ESD protected, allowing safe connection to diagnostic equipment.

Maintenance and Reliability

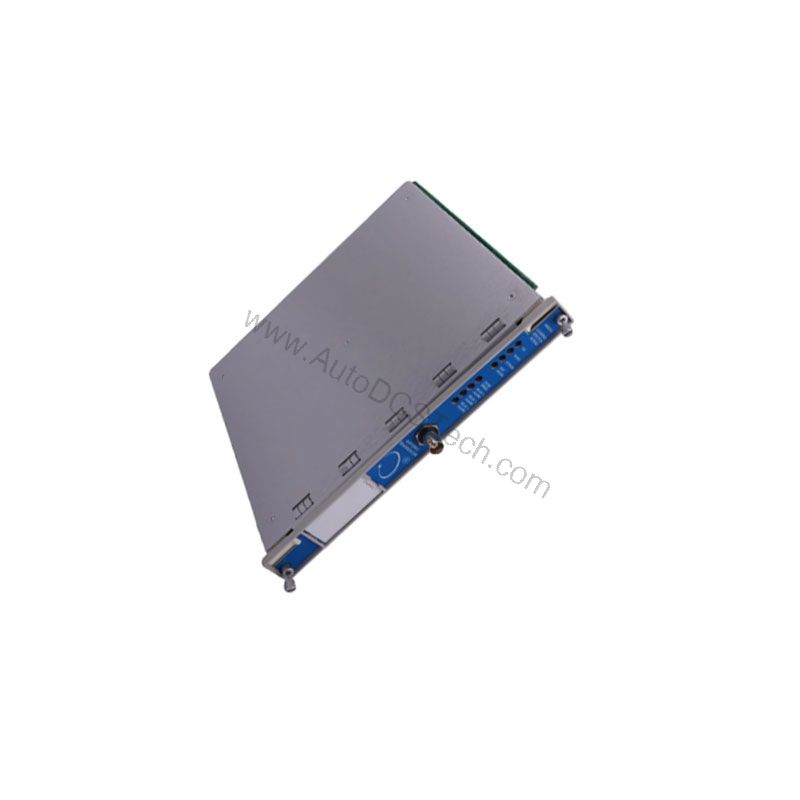

Regular inspection of the 3500/53-03-00 is essential to maintain its protective function. The module features front-panel LEDs for status indication: OK, TX/XR, Bypass, Test Mode, and Alarm. Periodically verify that the OK LED is lit, indicating normal operation. Check that the TX/XR LED blinks to confirm communication with other modules in the rack. If the Bypass LED is on, the module is in bypass mode, which should only be used during maintenance. The epoxy-sealed relays protect against environmental contaminants, but it is advisable to test relay operation periodically by simulating an alarm condition. Always follow the manufacturer's safety manual for detailed procedures.

Compatibility and Integration

The 3500/53-03-00 is designed to work within the Bently Nevada 3500 rack system, communicating with other modules via the rack's internal bus. It is compatible with a range of Bently Nevada transducers, including 3300 8 mm Proximitor, 3300 16 mm HTPS, 7200 5 mm, 8 mm, 11 mm, and 14 mm Proximitor, 3300 RAM Proximitor, and magnetic pickups. This flexibility allows integration into existing monitoring systems without extensive modifications.

Troubleshooting Common Issues

If the 3500/53-03-00 does not operate as expected, consider these common issues:

• No OK LED: Check power supply and rack seating. Ensure the module is fully inserted.
• Alarm LED lit: Verify that the speed is within setpoints; if not, investigate the cause of overspeed.
• Recorder output inaccurate: Check the load resistance; it must be between 0 and 600 Ω to maintain voltage compliance.
• Communication failure (TX/XR LED off): Inspect the rack backplane and module contacts.

For persistent issues, consult the official Bently Nevada documentation or contact AutoDCSTech for technical support.

Product Support and Availability

The 3500/53-03-00 is available from AutoDCSTech. Please verify current lifecycle status and availability before ordering. Our team can assist with product selection and technical inquiries.
