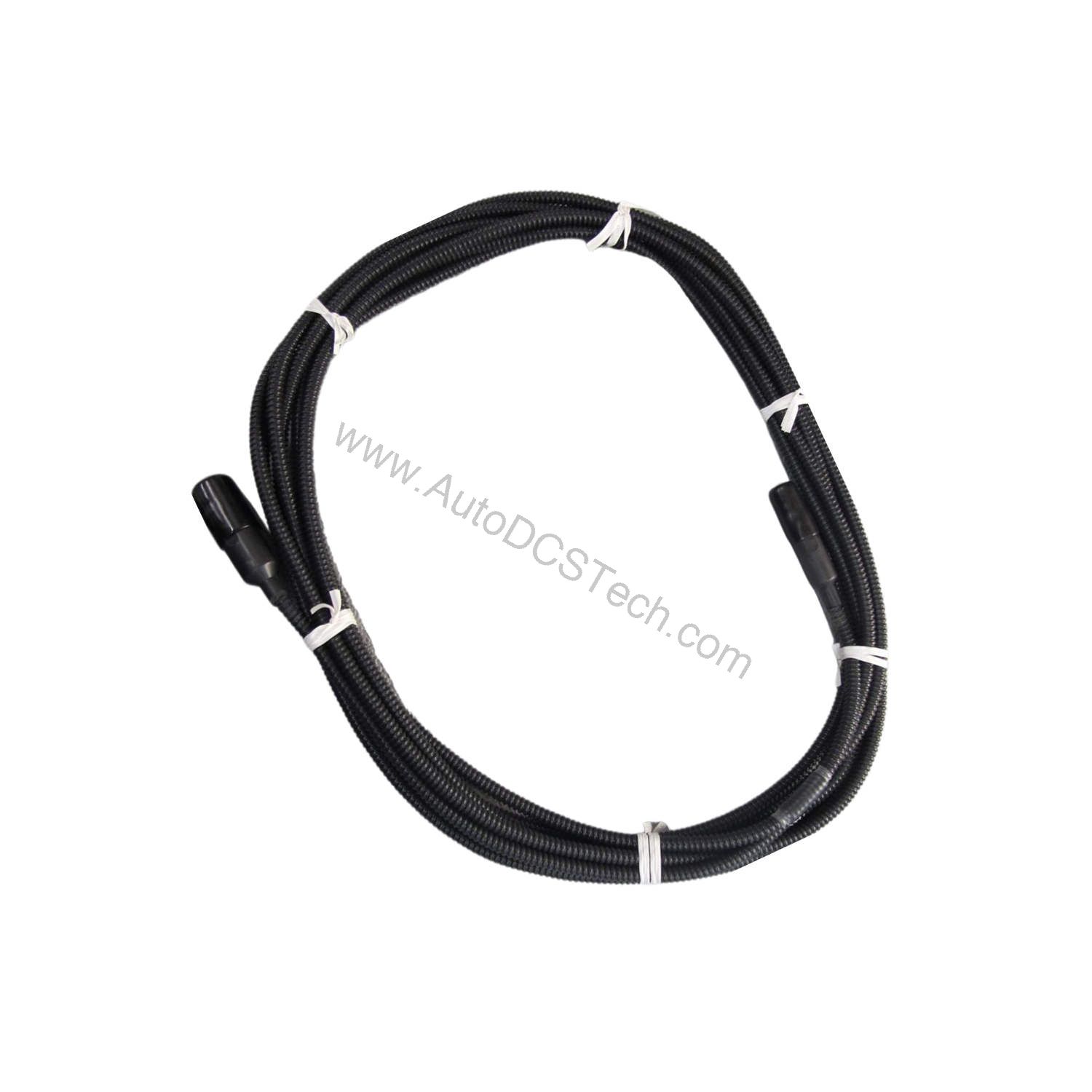

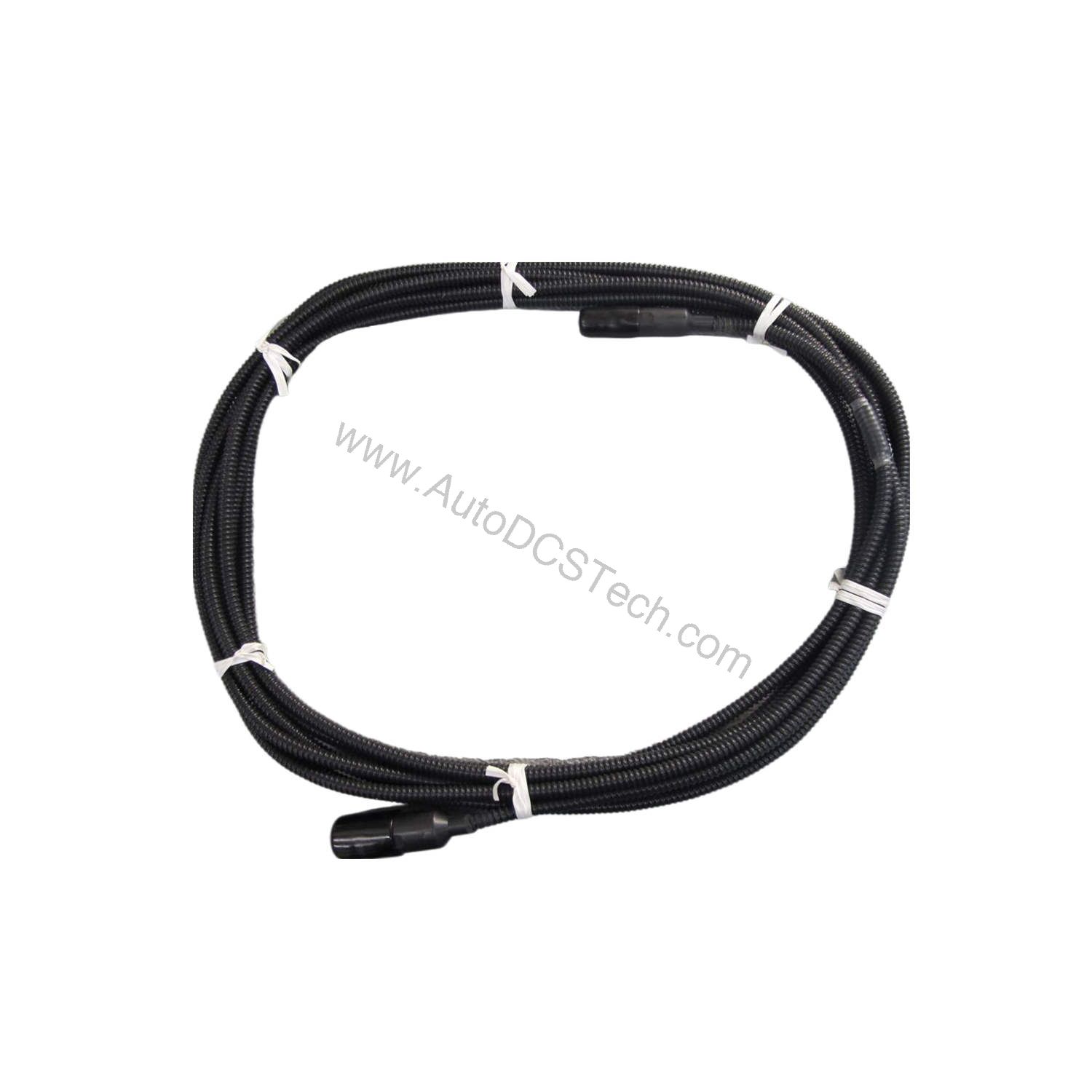

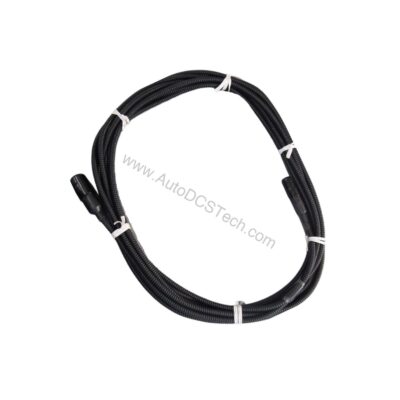

45358-07 Bently Nevada Extension Cable

45358-07 Bently Nevada Extension Cable Overview

This extension cable is engineered for industrial environments where signal integrity and durability are non-negotiable. As a 7m softline cable, it provides the flexibility needed for routing in tight spaces while maintaining the low-noise performance your monitoring system requires.

Part of Bently Nevada's line of extension cables, the 45358-07 is designed to mate with MS-style connectors, ensuring a secure and reliable interface. Whether you are upgrading an existing system or installing new machinery, this cable helps you get accurate vibration data from your rotating equipment.

Key Features of the 45358-07 Extension Cable

The 45358-07 stands out due to its robust construction and attention to signal quality. Here are the primary features you can expect:

• Low-noise twisted shielded pair: This design minimizes electromagnetic interference, preserving signal fidelity.
• Convoluted Teflon tubing protection: The cable is shielded by rugged Teflon tubing, offering excellent resistance to harsh environments.
• Potted connector rear: The rear of the connectors are potted, providing additional strain relief and environmental sealing.
• Viton insert in accelerometer connector: This material choice ensures chemical resistance and a secure fit.
• Wide operating temperature range: The cable operates from -65°F to +400°F (-54°C to +204°C), making it suitable for extreme conditions.

These features make the 45358-07 a reliable choice for connecting accelerometers to interface modules in demanding industrial settings.

Technical Specifications

For engineers who need precise data, the following specifications are critical:

• Model: Extension Cable
• Manufacturer: Bently Nevada
• Condition: New & Original in Factory Packing
• Factory Warranty: 12 Months
• Cable Type: Softline, 7 meters
• Accelerometer Mating Connector: Mates to MS 3100R-10SL-4P receptacle with Viton insert
• Interface Module Mating Connector: Mates to MS 3112-8-3P
• Cable Construction: Twisted shielded pair with low noise construction
• Operating Temperature (Cable): -65°F to +400°F (-54°C to +204°C)
• Operating Temperature (Accelerometer Connector): -65°F to +392°F (-54°C to +200°C)
• Operating Temperature (Interface Module Connector): -50°F to +200°F (-45°C to +93°C)

These parameters ensure the 45358-07 performs reliably across a broad range of operating conditions.

Installation and Setup

Proper installation is key to getting the most out of your 45358-07 cable. Begin by verifying that the connectors match your accelerometer and interface module. The accelerometer connector mates to an MS 3100R-10SL-4P receptacle, while the interface module connector mates to an MS 3112-8-3P. Ensure the connectors are clean and free of debris before mating.

Route the cable away from high-heat sources and sharp edges to prevent damage to the Teflon tubing. Although the cable is robust, avoiding excessive bending or pulling during installation will extend its service life. Secure the cable with appropriate clamps or ties, but do not overtighten, as this could compress the internal twisted pair.

After installation, verify that the connectors are fully seated and locked. A loose connection can lead to intermittent signals, which may be misinterpreted as machine faults. Following these steps will help you achieve reliable, accurate measurements.

Maintenance and Reliability

The 45358-07 is built for long-term reliability, but routine inspection is still recommended. Periodically check the cable for cuts, abrasions, or signs of heat damage, especially in areas where it may come into contact with moving parts or hot surfaces. Inspect the connectors for corrosion or wear, and ensure the potting material remains intact.

Because the cable is designed for harsh environments, it can withstand significant temperature extremes. However, continuous exposure to temperatures near the upper limit may accelerate aging. Therefore, it is wise to route the cable away from direct heat sources whenever possible.

By incorporating these simple maintenance practices into your routine, you can maximize the lifespan of the 45358-07 and avoid unexpected downtime.

Compatibility and Integration

The 45358-07 is designed to work with Bently Nevada accelerometers and interface modules that use the specified MS-style connectors. It is a direct replacement for original equipment, ensuring seamless integration into your existing monitoring system. The cable's low-noise construction is particularly beneficial in environments with high electromagnetic interference, as it helps maintain signal integrity.

When integrating the 45358-07, confirm that your accelerometer and interface module are compatible with the connector types listed. This will ensure a proper fit and optimal performance. If you have questions about compatibility, consult the product documentation or contact AutoDCSTech for assistance.

Product Support and Availability

The 45358-07 is available through AutoDCSTech, a trusted supplier of industrial automation parts. We maintain a stock of new, original units in factory packaging to ensure fast delivery. Our team is ready to assist you with any questions about the product's specifications, compatibility, or ordering process.

Contact AutoDCSTech today to place your order or to learn more about how the 45358-07 can enhance your monitoring system. With our support, you can keep your operations running smoothly and efficiently.
