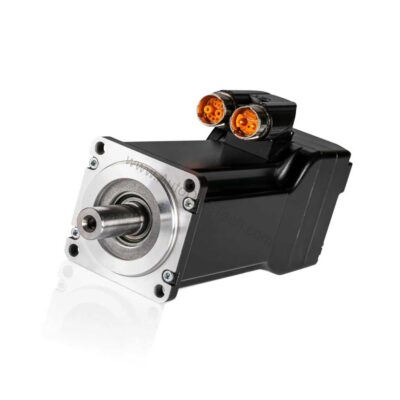

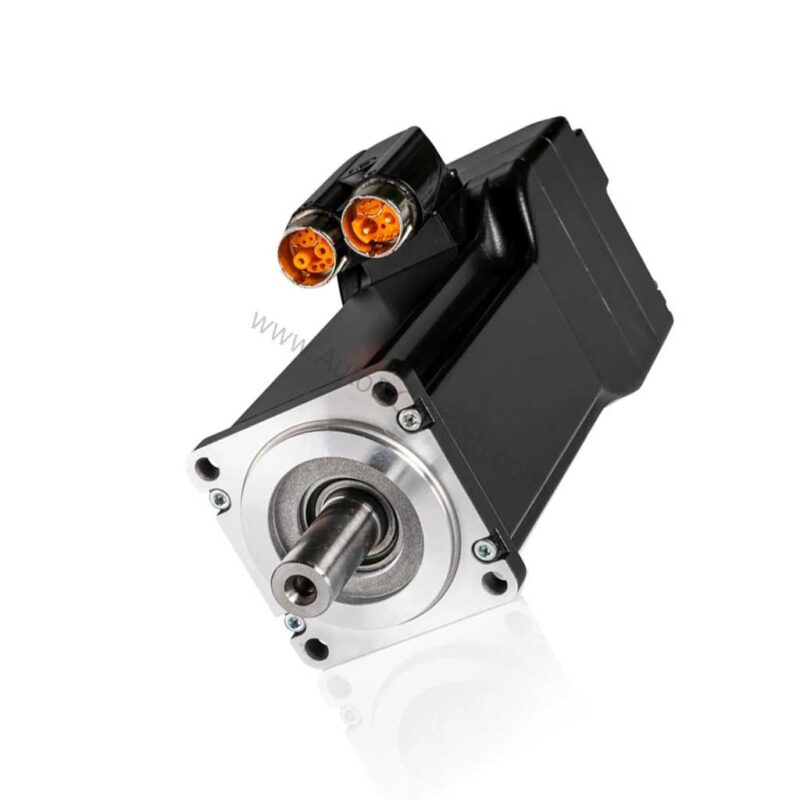

8LSC46.ee060ff00-4: B&R 6000 rpm Servo Motor
The 8LSC46.ee060ff00-4 is the B&R 6000 rpm Servo Motor covered on this page. The attribute that decides whether it fits the existing installation without modification is 4807 W.
What separates this variant from its siblings is b&r 6000 rpm servo motor. Selecting this unit comes down to confirming the configuration against the installation it is being fitted to. b&r 6000 rpm servo motor is the attribute that decides fit and function, and verifying 4807 W against the existing equipment is the check that prevents a part that installs but does not perform.
| Feature | Specification |
|---|---|
| Manufacturer | B&R |
| Brand | B&R |
| Part Number | 8LSC46.ee060ff00-4 |
| Nominal speed | 6000 rpm |
| Nominal torque | 7.7 Nm |
| Nominal power | 4807 W |
| Nominal current | 9.4 A |
| Maximum torque | 38.0 Nm |
| Maximum current | 72.9 A |
| Torque constant | 0.81 Nm/A |
| Voltage constant | 49.22 V/1000rpm |
| Stator resistance | 0.53 Ohm |
| Moment of inertia | 4.0 kg·cm² |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | 8LSC46.ee060ff00-4 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
