Key Features and Technical Specifications
The 9200-02-01-10-00 offers a compact design with a height of 102 mm (4 in) and a diameter of 41 mm (1.6 in), fitting easily into existing installations. Key specifications include:

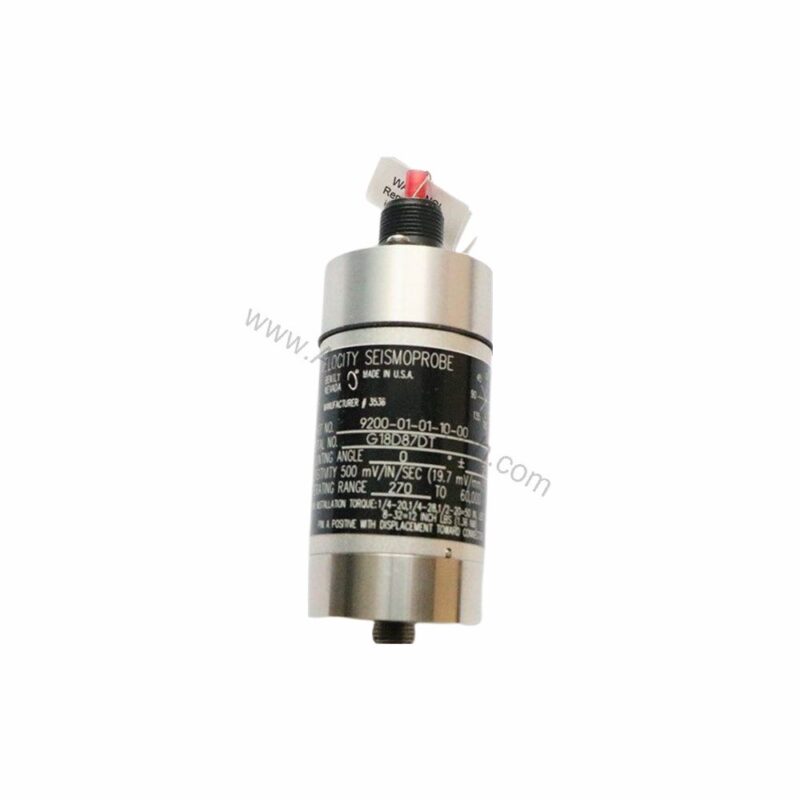

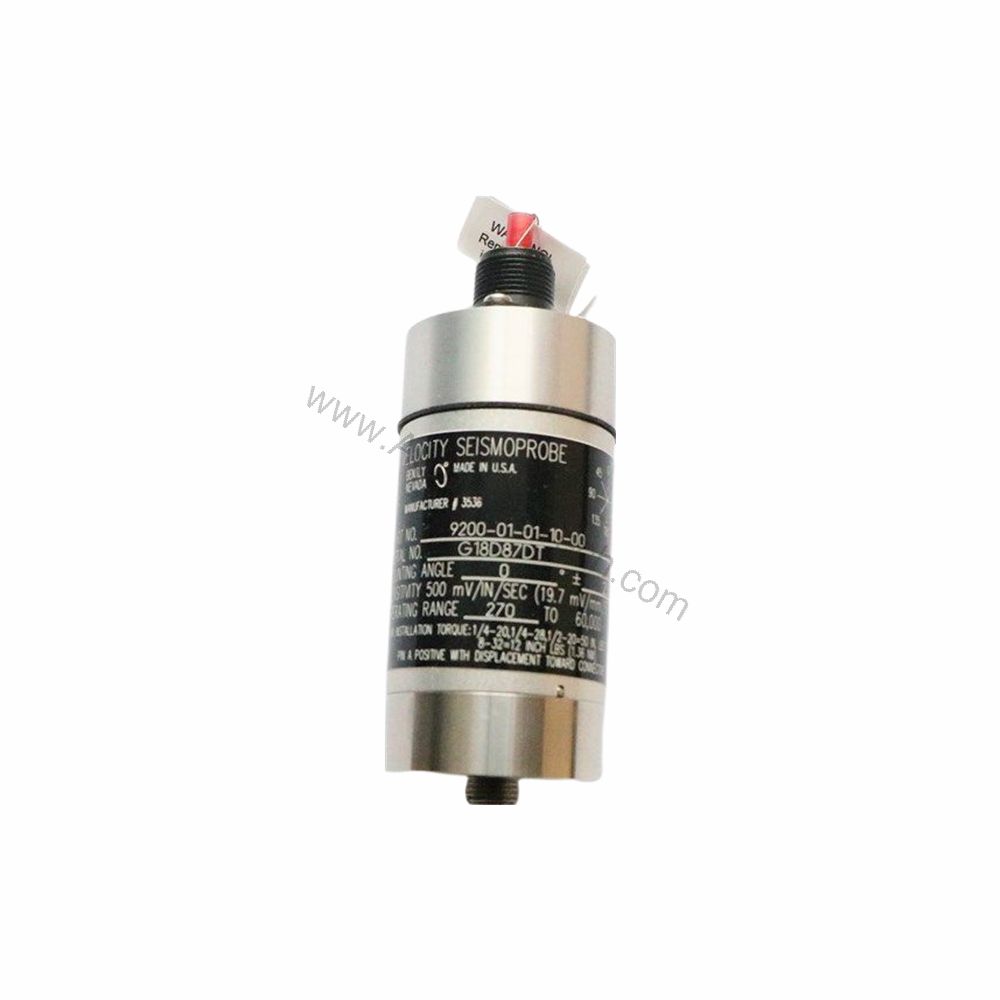

- Model: Two-Wire Velocity Seismoprobe Transducer
- Manufacturer: Bently Nevada
- Condition: New & Original in Factory Packing
- Factory Warranty: 12 Months
- Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5% when properly terminated
- Calibration Load: 10 kΩ Terminal "A" to "B"
- Dynamic Operating Range: 2.54 mm (0.100 in) peak-to-peak maximum displacement
- Velocity Range: 25 mm/s (1 in/s) at +22 °C
- Coil Resistance: 1.25 kΩ ±5%
- Locked Coil Inductance: 125 mH, typical
- Operating and Storage Temperature: -29°C to +121°C
- Relative Humidity: To 95%, noncondensing
- Case Material: Anodized aluminum A204
- Gasket Material: Neoprene
- Weight: 300 grams (10.5 ounces) typical
Installation and Mounting Considerations
Proper installation is critical for accurate vibration measurement. The 9200-02-01-10-00 features a mounting angle option of 45 ±2.5 degrees with a minimum operating frequency of 4.5 Hz (270 cpm). It uses a circular mounting base with an M10X1 stud, ensuring a secure fit. The connector option is top mount with no cable, simplifying wiring in tight spaces.
When installing, ensure the transducer is oriented at the angle of calibration to achieve the specified sensitivity. Use a 10 kΩ load across terminals "A" and "B" for correct output. Avoid over-torquing the mounting stud to prevent damage to the housing.
Maintenance and Reliability
Regular inspection of the transducer and its mounting is recommended to maintain measurement accuracy. Check for any signs of physical damage or corrosion on the anodized aluminum case. The neoprene gasket helps seal against moisture, but verify its integrity periodically. Since the transducer is dust and moisture resistant, it can operate in challenging environments, but routine checks ensure long-term reliability.
Compatibility and Integration
The 9200-02-01-10-00 is designed for use with Bently Nevada monitoring systems. Its two-wire configuration simplifies integration with existing vibration monitoring equipment. The output is taken across pins "A" and "B", providing a direct signal for analysis. For detailed integration guidance, consult the official Bently Nevada documentation.
Availability and Support
The 9200-02-01-10-00 is available from AutoDCSTech, a trusted supplier of industrial automation parts. It is in stock and ready to ship. For technical assistance or to confirm lifecycle status, contact AutoDCSTech.
Availability & Condition at AutoDCSTech
| Part Number | 9200-02-01-10-00 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
