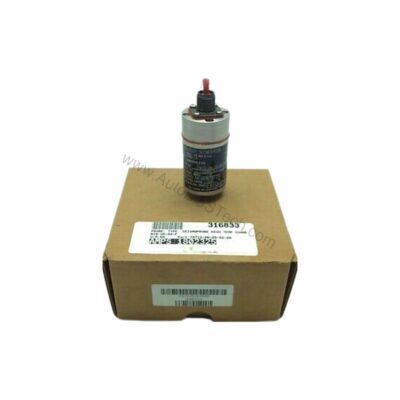

9200-06-05-01-00 Two-Wire Velocity Seismoprobe Transducer

Introduction to the 9200-06-05-01-00

When machinery vibration threatens uptime, the 9200-06-05-01-00 from Bently Nevada provides precise, dependable measurement. This two-wire velocity seismoprobe transducer is engineered for industrial environments where accurate vibration data is critical. With a sensitivity of 20 mV/mm/s (±5%) and a dynamic operating range of 2.54 mm peak-to-peak, it captures the subtle movements that indicate bearing wear, imbalance, or misalignment.

As a new, factory-packed unit with a 12-month warranty, the 9200-06-05-01-00 offers immediate integration into your condition monitoring system. Its robust design, including an anodized aluminum case and neoprene gasket, ensures long-term reliability in harsh conditions.

Key Features and Technical Specifications

The 9200-06-05-01-00 is built for accuracy and durability. Below are the core specifications extracted directly from the datasheet:

• Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5% when properly terminated and oriented at the angle of calibration.
• Calibration Load: 10 kΩ, output taken across pins A and B.
• Dynamic Operating Range: 2.54 mm (0.100 in) peak-to-peak maximum displacement.
• Velocity Range: 25 mm/s (1 in/s) at +22 °C casing vibration at 100 Hz with a 10 kΩ load.
• Coil Resistance: 1.25 kΩ ±5%.
• Locked Coil Inductance: 125 mH typical.
• Temperature Range: -29°C to +121°C (-20°F to +250°F) for the 9200 model.
• Relative Humidity: Up to 95% noncondensing; 100% non-submerged when ordered with integral cable.
• Case Material: Anodized aluminum A204.
• Gasket Material: Neoprene.
• Dimensions: Height 102 mm (4 in) typical, diameter 41 mm (1.6 in) typical.
• Weight: 300 grams (10.5 ounces) typical.

One distinctive spec is the sensitivity temperature coefficient of 0.2%/°C. This ensures minimal drift in output across temperature variations, making the transducer suitable for environments where thermal fluctuations are common.

Installation and Mounting

Proper installation is key to accurate readings. The 9200-06-05-01-00 features a circular mounting base with a 1/4-20 UNC stud, allowing secure attachment to machinery. The terminal block top mount connector simplifies wiring. When mounting, orient the transducer at the angle of calibration to maintain the specified sensitivity. Ensure the load resistance is 10 kΩ across terminals A and B for correct output.

For best results, mount the transducer on a flat, clean surface to avoid signal distortion. Use a torque wrench to tighten the stud to the manufacturer's recommended value (refer to the manual). Avoid mounting on thin panels that may resonate.

Maintenance and Reliability

The 9200-06-05-01-00 is designed for minimal maintenance. Its dust and moisture-resistant construction protects internal components. Periodically inspect the cable and connector for damage, and verify that the mounting stud remains tight. The neoprene gasket should be checked for wear; replace if cracked or compressed. Calibration should be verified annually or per site procedures to ensure accuracy.

Given the wide operating temperature range, the transducer can be deployed in demanding locations without concern. The anodized aluminum case resists corrosion, extending service life.

Compatibility and Integration

The 9200-06-05-01-00 is a two-wire velocity transducer that outputs a signal proportional to vibration velocity. It is compatible with Bently Nevada monitoring systems that accept such signals. For integration details, consult the system's manual or contact AutoDCSTech for guidance.

Troubleshooting Common Issues

If you encounter erratic readings, check the following:

• Verify that the load resistance is exactly 10 kΩ; mismatched loads can affect sensitivity.
• Inspect the cable for breaks or shorts, especially near the connector.
• Ensure the transducer is mounted at the correct angle; deviation reduces accuracy.
• Check for loose mounting; vibration can loosen the stud over time.

If problems persist, consult the official Bently Nevada documentation or contact AutoDCSTech for technical support.

Availability and Support

The 9200-06-05-01-00 is available now at AutoDCSTech. As a new, original factory-packed unit, it comes with a 12-month warranty. For ordering or technical inquiries, contact our team. We are ready to help you integrate this reliable transducer into your monitoring system.
