Introduction to the Bently Nevada 991-06-70-03-01

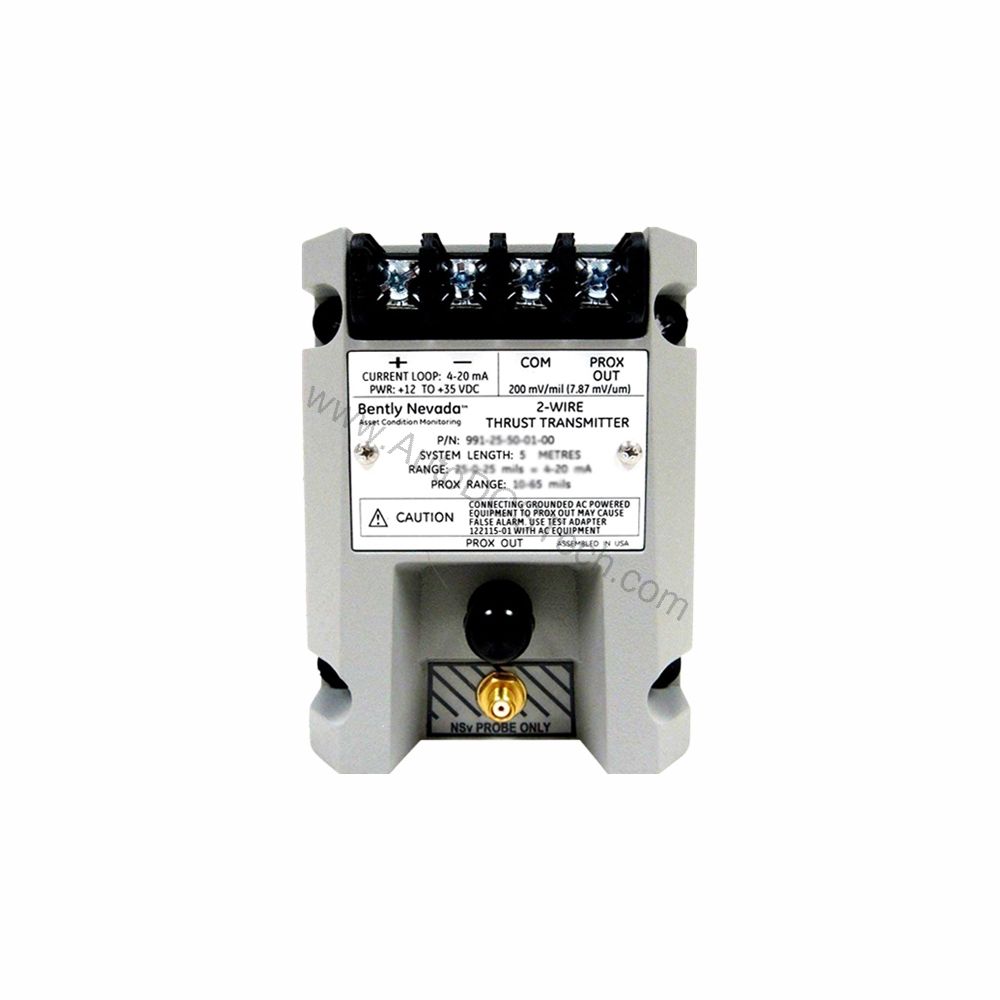

In the evolving landscape of industrial rotating machinery, precise axial position monitoring has become essential for protecting critical assets. The Bently Nevada 991-06-70-03-01 is a Probe Vibration Transmitter engineered to deliver reliable thrust measurement. It is part of the 991 series, specifically configured as a Thrust Transmitter. This unit provides a 4-20 mA output signal, making it straightforward to integrate into existing control systems. Its DIN rail mounting simplifies installation in standard industrial cabinets.
Key Features and Technical Specifications
The 991-06-70-03-01 offers a full-scale option of 0.6-0-0.6 mm, providing a bipolar measurement range for axial displacement. It accepts one non-contacting 3300 NSv proximity probe and extension cable, which is a common configuration in vibration monitoring. The transmitter requires a +12 to +35 Vdc input at the transmitter terminal, offering flexibility in power supply selection. Its linear range is 0.25 to 1.65 mm for Prox Out, suitable for 0.6-0-0.6 mm or 25-0-25 mils current loop linear ranges.
- Output Signal: 4-20 mA over specified full-scale range in 2-wire configuration.
- Accuracy: Within ±1.5% over specified full scale (typical), rated from TEST signal input to voltage across a 250 Ω loop resistance.
- Maximum Loop Resistance: 1,000 Ω including cable at 35 Vdc.
- Current Limiting: 23 mA typical.
- Zero and Span: Non-interacting external adjustments.
- Not OK/Signal Defeat: Output goes to less than 3.6 mA within 100 µs after a Not OK condition, restored within 0.1 seconds after removal.
Applications and Use Cases
This transmitter is designed for axial position monitoring in turbo machinery, compressors, and other rotating equipment. Its 4-20 mA output allows direct connection to PLCs, DCS, or SCADA systems, enabling continuous condition monitoring. The DIN rail mounting option (Option 03) facilitates installation in standard control panels, reducing setup time. The CSA Division 2 approval (Option 01) makes it suitable for hazardous area installations, enhancing its versatility in industrial environments.
Installation and Setup
Mount the 991-06-70-03-01 on a standard DIN rail using the provided clips and screws. Ensure the power supply is within +12 to +35 Vdc at the transmitter terminal. Connect the 3300 NSv proximity probe and extension cable to the input. The 4-20 mA output should be wired in a 2-wire configuration, with loop resistance not exceeding 1,000 Ω at 35 Vdc. Use the non-interacting external adjustments for zero and span calibration. Always follow the manufacturer's manual for detailed wiring and configuration.
Maintenance and Reliability
Regular inspection of the transmitter and probe is recommended to ensure accurate readings. Check the mounting integrity and cable connections periodically. Operate within the specified temperature limits: -35°C to +85°C for operating, and -51°C to +100°C for storage. The transmitter weight is 0.43 kg (0.9 lbm), which is lightweight for easy handling. Verify the Not OK/Signal Defeat function periodically to ensure safety interlocks operate correctly. For any maintenance, refer to the official Bently Nevada documentation.
Compatibility and Integration
The 991-06-70-03-01 is compatible with Bently Nevada 3300 NSv proximity probes and extension cables. Its 4-20 mA output can interface with any standard analog input module. The DIN rail mounting option (Option 03) is widely used in industrial control panels. The CSA Division 2 approval (Option 01) allows installation in hazardous locations, but always verify local codes and standards.
Troubleshooting and Common Issues
If the output signal is not within the expected range, check the power supply voltage at the transmitter terminal. Ensure the loop resistance is within the maximum of 1,000 Ω. If the output goes to less than 3.6 mA, a Not OK condition may be present; check the probe and cable integrity. Use the zero and span adjustments to recalibrate if necessary. For persistent issues, consult the official Bently Nevada troubleshooting guide or contact AutoDCSTech for support.
Product Support and Availability
The 991-06-70-03-01 is available from AutoDCSTech, an industrial automation parts supplier. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with technical inquiries and provide documentation. Contact us for pricing and lead times.
