Product Overview

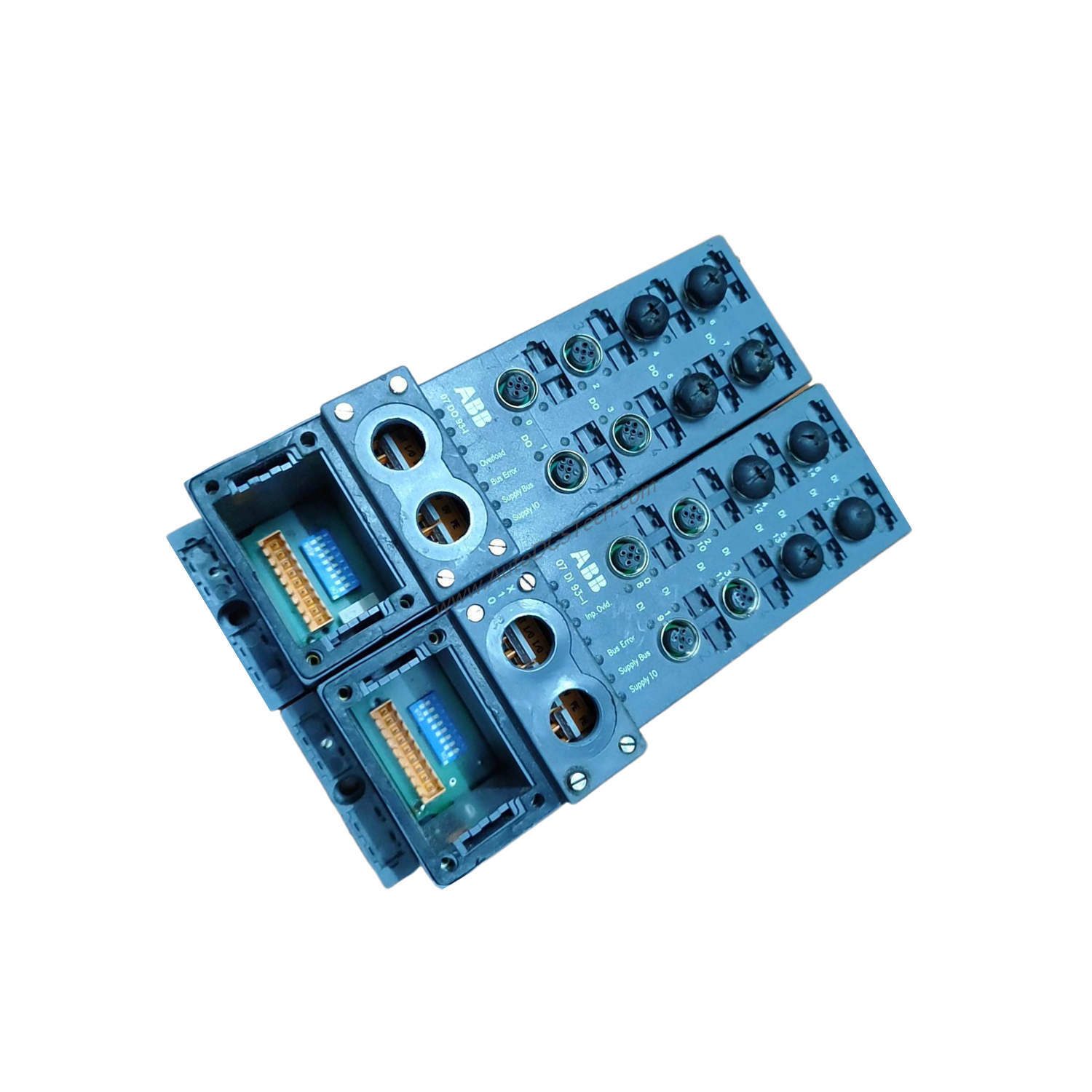

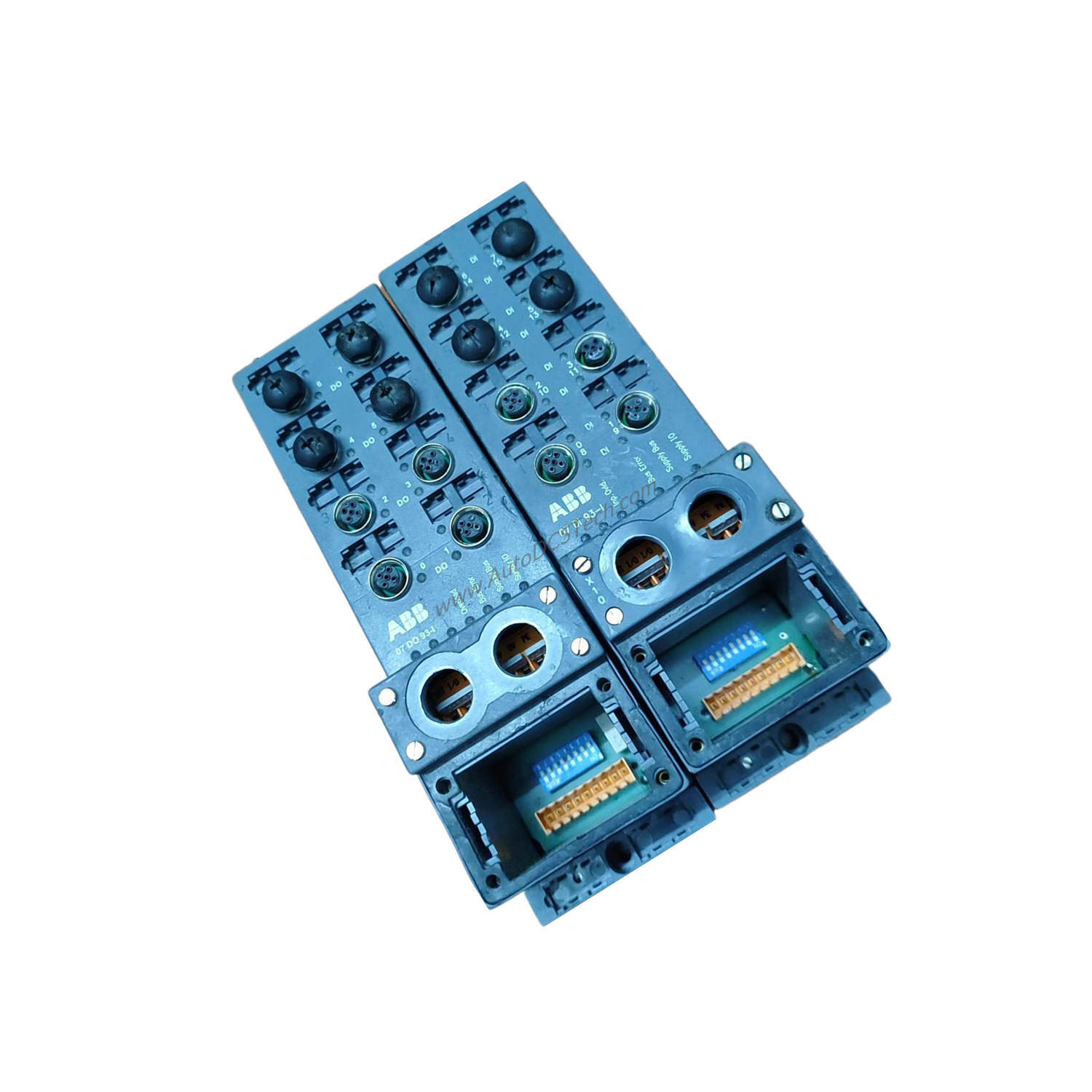

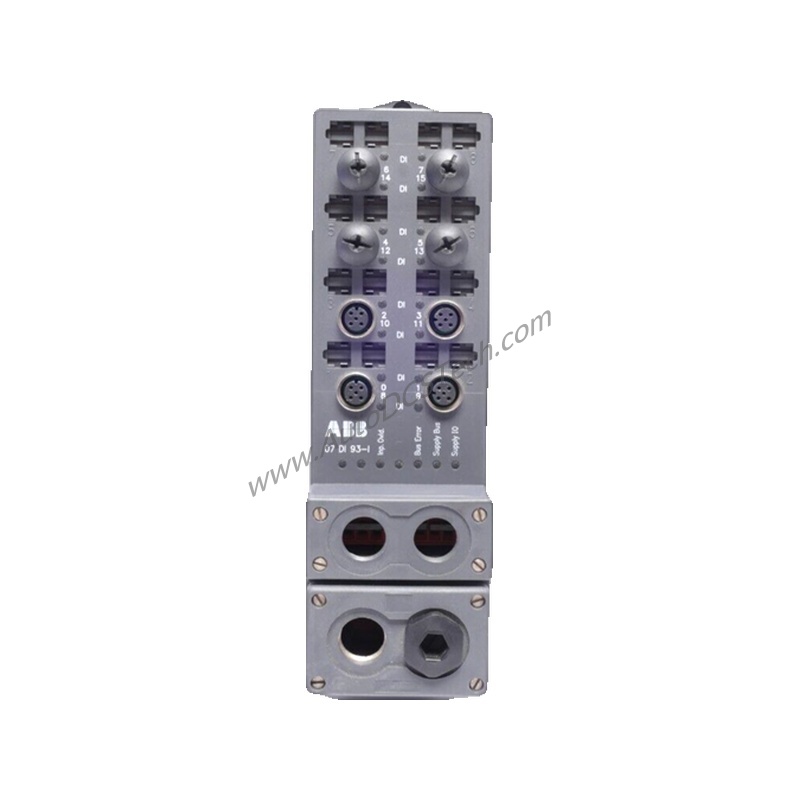

When harsh environments demand reliable signal acquisition, the ABB 07 DI 93-I digital input module delivers robust performance. This Advant Controller 31 input unit provides 16 input channels at 24 V DC, housed in an IP67-rated enclosure. It connects via the CS31 system bus, ensuring electrically isolated communication. Designed for remote mounting, this module withstands dust and water ingress, making it a solid choice for demanding industrial settings.
Technical Specifications Breakdown
The 07 DI 93-I offers key specifications that matter to engineers. Its 16 input channels accept signals from 11 V to 30 V for logic 1 and 0 V to 5 V for logic 0. Each input draws approximately 8 mA, with a signal delay of about 1 ms. The module provides short-circuit and overload protection for connected sensors via PTC fuses, with a trip current above 1.6 A. Power supply requirements include a rated 24 V DC, with a maximum current consumption of 80 mA without output loads. The CS31 bus transmission time is 387 µs, ensuring fast data exchange.
Industry Applications
In manufacturing lines, the 07 DI 93-I connects proximity sensors and limit switches, reliably capturing machine states. Its IP67 protection allows installation in washdown zones or dusty environments without additional enclosures. For material handling systems, the module's 16 inputs monitor conveyor belt positions and safety interlocks, reducing downtime through its diagnostic LEDs that indicate bus errors and input overloads.
Installation & Setup Guidance
Mount the 07 DI 93-I using screws through its bore holes. Connect the 24 V DC power supply via screw-type terminals (1.5 mm²) inside the housing, using the PG9 gland for cable entry. Loop the CS31 bus line through the module using the provided PG9 entries. Each pair of inputs uses a separate 5-pole M12 connector (female), allowing individual disconnection. Ensure the conductor cross-section does not exceed 2.5 mm² without a jumper, or 1.5 mm² with one.
Maintenance & Reliability
Regularly inspect the module's LED indicators: the green Supply Bus and Supply I/O LEDs should remain lit when voltage exceeds 18 V. A red Bus Error LED signals communication issues, while the red Input Overload LED indicates sensor supply faults. The IP67 housing requires no special cleaning; simply wipe with a dry cloth if needed. The module's robust design minimizes maintenance, contributing to long-term cost savings.
Compatibility & Integration
The 07 DI 93-I integrates seamlessly with ABB's Advant Controller 31 system via the CS31 system bus, using EIA RS-485 as the transmission standard. It communicates with central units and other I/O modules, supporting up to 16 inputs per module. The electrically isolated bus connection ensures reliable data transfer even in noisy environments.
Selection Guide & Purchasing Advice
Before ordering, verify your system's compatibility with the CS31 bus and 24 V DC power supply. The module requires M12 connectors for inputs and screw terminals for power and bus connections. SpareTechPLC stocks the ABB 07 DI 93-I (Order No. GJV3 0756 13 R0202) and can advise on availability. For current lifecycle status, contact SpareTechPLC before purchasing.
Frequently Asked Questions
Q: What is the degree of protection for the 07 DI 93-I?
A: The module has an IP67 rating per DIN 40040 and IEC 529, protecting against dust and temporary water immersion.
Q: How many inputs does the 07 DI 93-I have?
A: It features 16 input channels, organized as 8 pairs, each with a separate M12 connector.
Q: What is the input signal voltage range for logic 1?
A: For signal 1, the input voltage ranges from 11 V to 30 V DC.
Q: Does the module provide sensor short-circuit protection?
A: Yes, it includes PTC short-circuit protection with a trip current above 1.6 A.
Q: What communication protocol does the CS31 bus use?
A: The CS31 system bus uses EIA RS-485 as the transmission standard.
