Product Overview

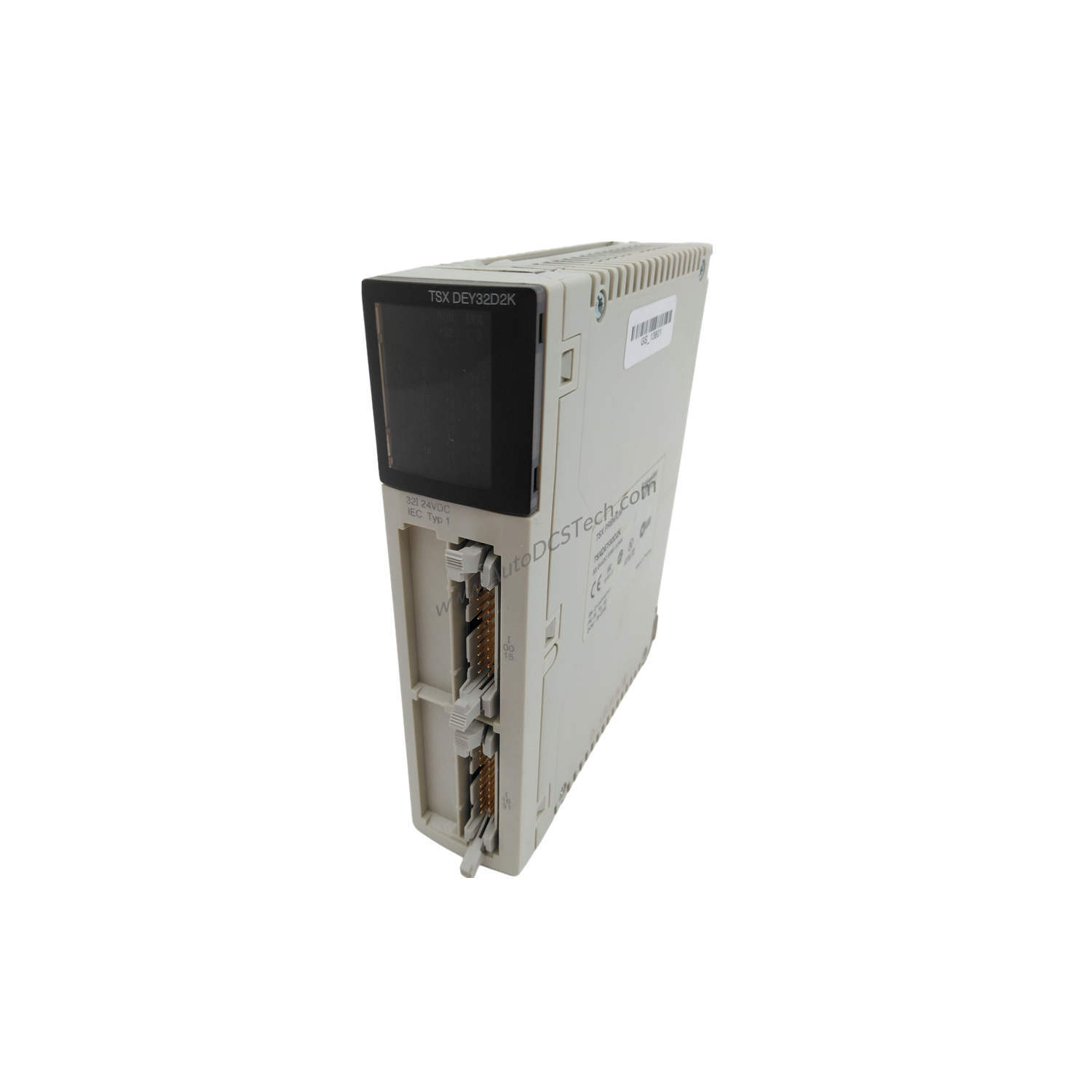

When your automation system demands reliable signal acquisition from sensors, limit switches, or pushbuttons, the Schneider TSXDEY32D2K Digital Input Module delivers consistent performance. Part of the TSX Micro PLC series, this module handles 32 discrete inputs at a nominal 24 V DC, making it a standard choice for industrial control panels. Its compact DIN rail design simplifies installation in crowded enclosures.
Technical Specifications Breakdown
The TSXDEY32D2K offers several key parameters that define its operation:
- Inputs and Voltage: 32 inputs at 24 V DC, each drawing 7 mA. This low current per channel reduces overall power consumption.
- Response Time: 1 ms, enabling real-time data capture for fast processes.
- Isolation: 500 V AC between channels and logic, protecting against electrical noise and ground loops.
- Power Consumption: Only 2.5 W, minimizing heat buildup in the panel.
- Environmental Range: Operates from -25°C to +70°C and stores from -40°C to +85°C, with 5% to 95% non-condensing humidity tolerance.
These specs make the module suitable for harsh industrial environments where temperature and humidity fluctuate.
Industry Applications
The 32-input capacity suits applications like packaging lines, conveyor systems, and material handling. For example, in a bottling plant, the TSXDEY32D2K can monitor multiple proximity sensors and photocells simultaneously, ensuring precise bottle positioning. Its 1 ms response time catches fast-moving objects without missing signals. Compared to 16-input modules, this unit reduces the number of modules needed, saving panel space and wiring costs.
Installation & Setup Guidance
Mount the TSXDEY32D2K on a standard DIN rail. Ensure the power supply provides stable 24 V DC to the module's input terminals. Use shielded cables for long runs to minimize electromagnetic interference. The module's isolation rating of 500 V AC helps maintain signal integrity even in noisy environments. Verify that the PLC backplane supplies adequate current (the module draws 2.5 W) before commissioning.
Maintenance & Reliability
Periodically inspect the DIN rail mounting and terminal connections for tightness. Check the ambient temperature stays within -25°C to +70°C to avoid thermal stress. The module's low power consumption (2.5 W) reduces internal heating, extending component life. No special cleaning is required; simply keep the enclosure free of dust and moisture.
Compatibility & Integration
The TSXDEY32D2K integrates directly with TSX Micro PLCs via the backplane connector. It is compatible with Schneider's PL7 Pro software for configuration. No additional adapters are needed for standard digital inputs. For systems requiring higher input counts, multiple modules can be daisy-chained on the same rack.
Buying Guide & Purchasing Advice
Before ordering, confirm your PLC model supports the TSXDEY32D2K. Verify the input voltage matches your field devices (24 V DC). SpareTechPLC stocks this module with fast shipping and competitive pricing. Contact our team for bulk discounts or to check stock availability.
Frequently Asked Questions
What is the input voltage for the TSXDEY32D2K?
The module operates at 24 V DC nominal. Each input draws 7 mA.
How many inputs does the TSXDEY32D2K have?
It features 32 digital inputs, all isolated from each other and the logic side.
What certifications does the TSXDEY32D2K hold?
It carries CE, UL, and CSA certifications, ensuring compliance with North American and European standards.
Can the TSXDEY32D2K be used in high-temperature environments?
Yes, it operates from -25°C to +70°C and stores from -40°C to +85°C.
What is the response time of the TSXDEY32D2K?
The response time is 1 ms, suitable for most industrial automation applications.
