Product Overview

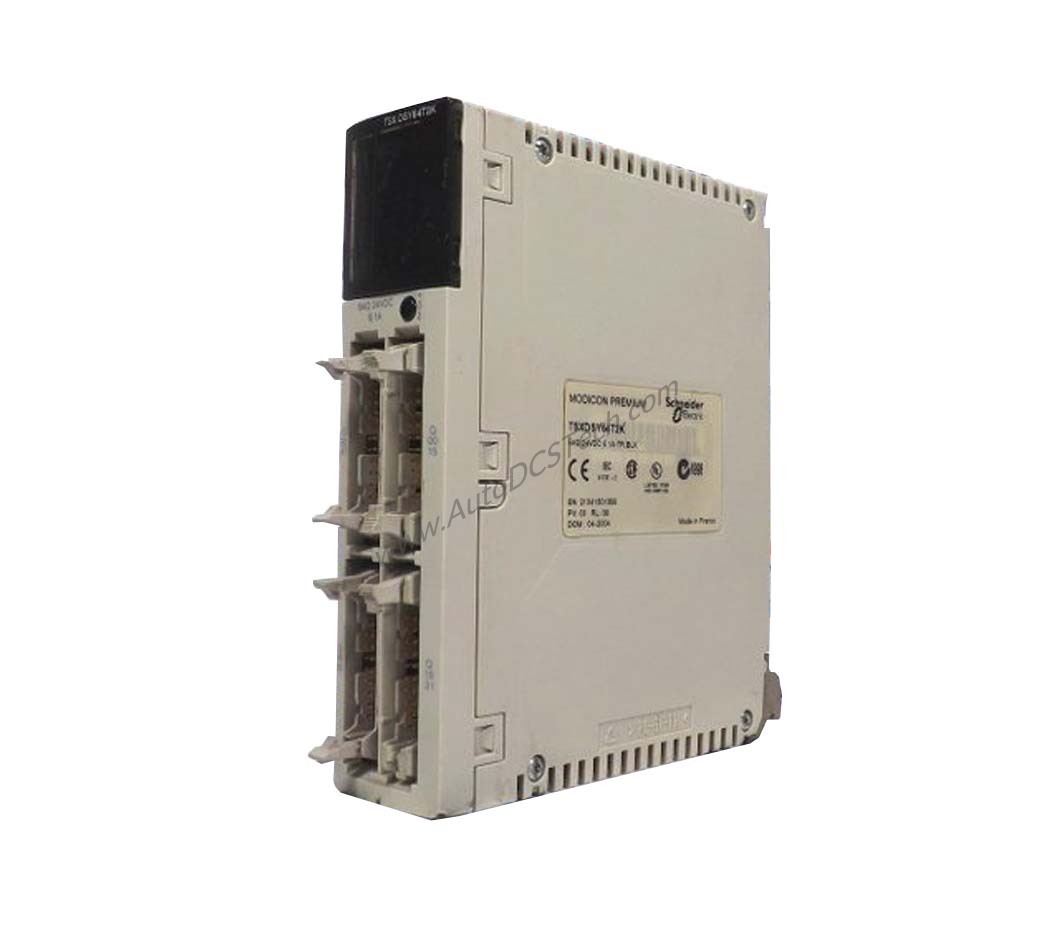

When your automation system demands reliable switching of multiple discrete loads, the Schneider Electric TSXDSY32T2K solid state protected output module delivers consistent performance. Part of the TSX Micro PLC series, this module integrates 32 discrete solid-state outputs designed to operate efficiently within industrial environments. Each channel manages a current of up to 0.1 A, with a voltage specification of 24 V DC, ensuring compliance with the EN/IEC 61131-2 standards.
Technical Specifications Breakdown
The TSXDSY32T2K offers several key parameters that matter for real-world applications. The module supports a total current of up to 3.2 A across all outputs, with each channel limited to 0.1 A. Response time is a fast 1.2 ms, enabling quick actuation in time-sensitive processes. Residual voltage stays below 1.5 V, reducing power loss and heat generation. Leakage current is less than 0.1 mA at 30 V, making it suitable for sensitive electronic loads. Load impedance must exceed 220 Ω at state 1 to ensure proper switching.
Industry Applications
In manufacturing lines where numerous solenoid valves, indicator lights, or small relays need control, the TSXDSY32T2K provides a compact, high-density solution. For example, in a packaging machine, 32 outputs can drive multiple actuators and sensors simultaneously. The solid-state design eliminates mechanical wear, increasing uptime in high-cycle applications. The ability to parallel up to three outputs allows driving slightly higher loads without additional hardware.
Installation & Setup Guidance
Mount the TSXDSY32T2K in a standard TSX Micro PLC rack. Connect using the two HE-10 connectors provided. Ensure the 24 V DC supply is positive and within the 19...30 V range specified by EN/IEC 61131-2. Verify that each load impedance exceeds 220 Ω at state 1 to avoid false triggering. The module automatically trips on overload or short circuit, so no external fuses are required for basic protection.
Maintenance & Reliability
The solid-state protected outputs eliminate contact wear, reducing maintenance intervals. Inspect the module periodically for dust accumulation, especially in environments with pollution degree 2. The IP20 enclosure protects against solid objects but not moisture; ensure the cabinet maintains proper environmental conditions. The automatic overload and short-circuit protection minimize damage risk, extending service life.
Compatibility & Integration
This module integrates seamlessly with TSX Micro PLCs from Schneider Electric. It works with standard 24 V DC discrete loads and is certified under multiple marine standards (ABS, RINA, GL, DNV, RMRS, LR, BV), making it suitable for shipboard automation. The CE marking confirms compliance with European directives. Always verify compatibility with your specific PLC base unit before ordering.
Selection Guide & Purchasing Advice
Before purchasing the TSXDSY32T2K, confirm your PLC rack has a free slot and that your power supply can handle the additional 140 mA at 5 V DC consumed by the module. If you need higher current per channel, consider paralleling up to three outputs. For replacement or new projects, SpareTechPLC offers this module with fast shipping and expert support to ensure you get the right part for your automation needs.
