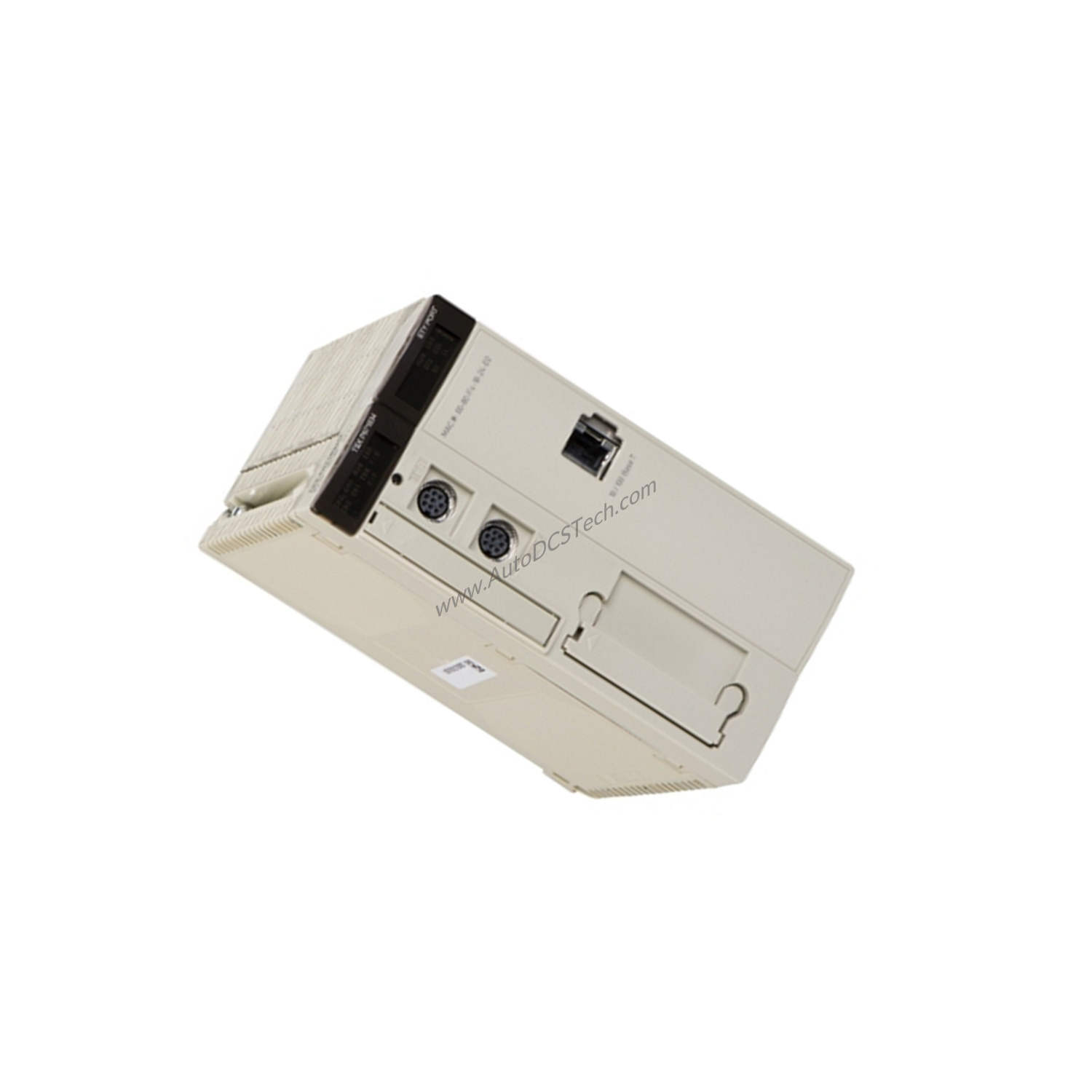

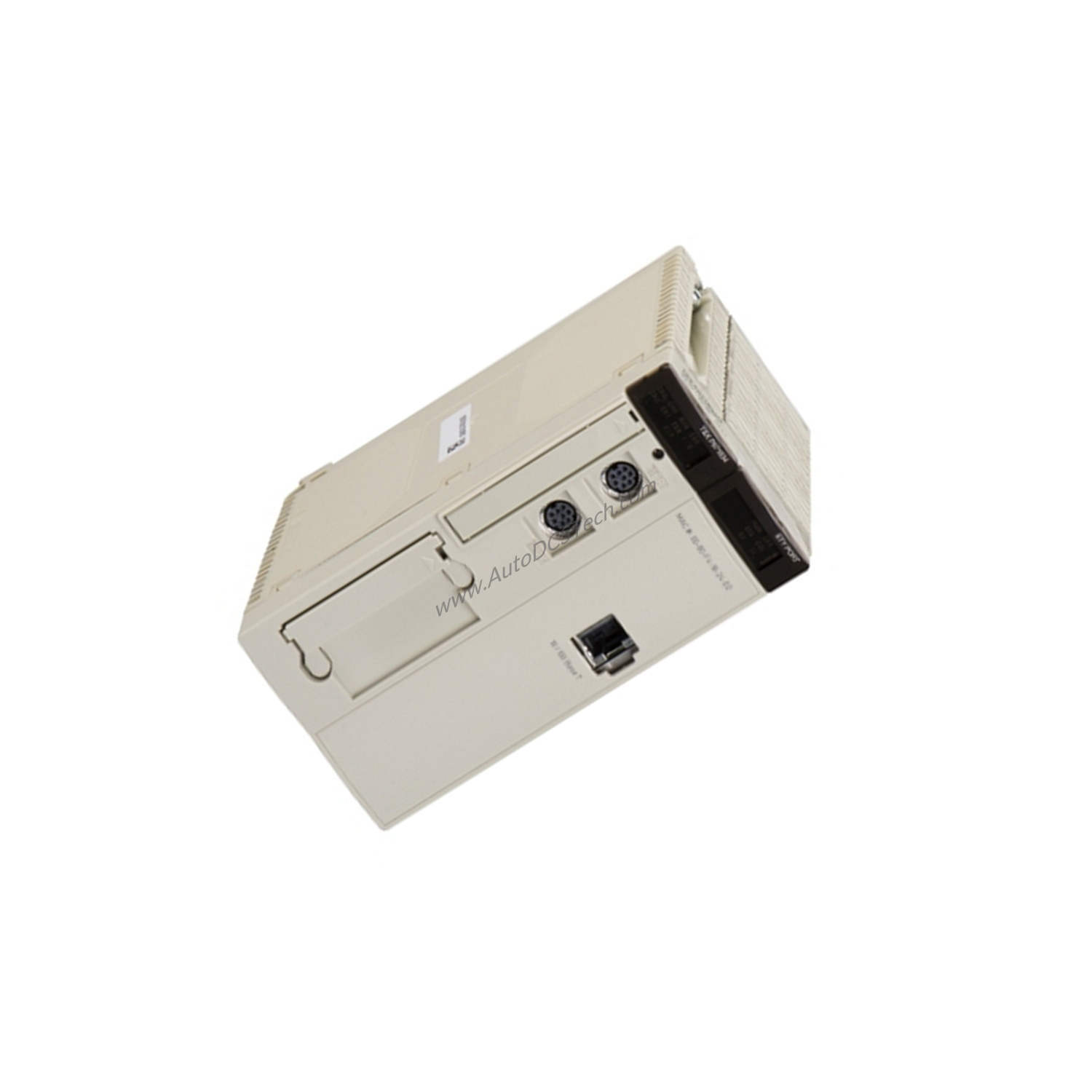

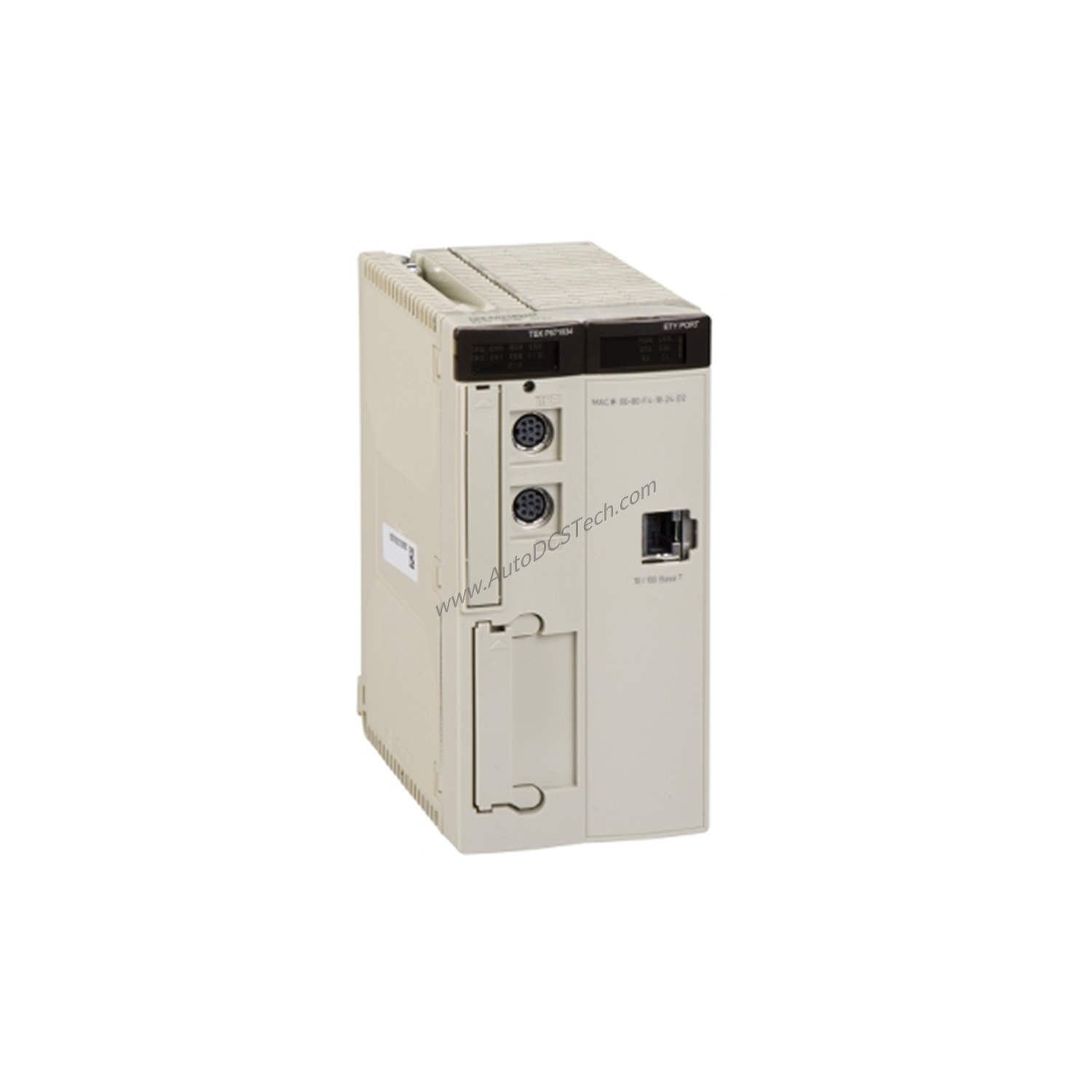

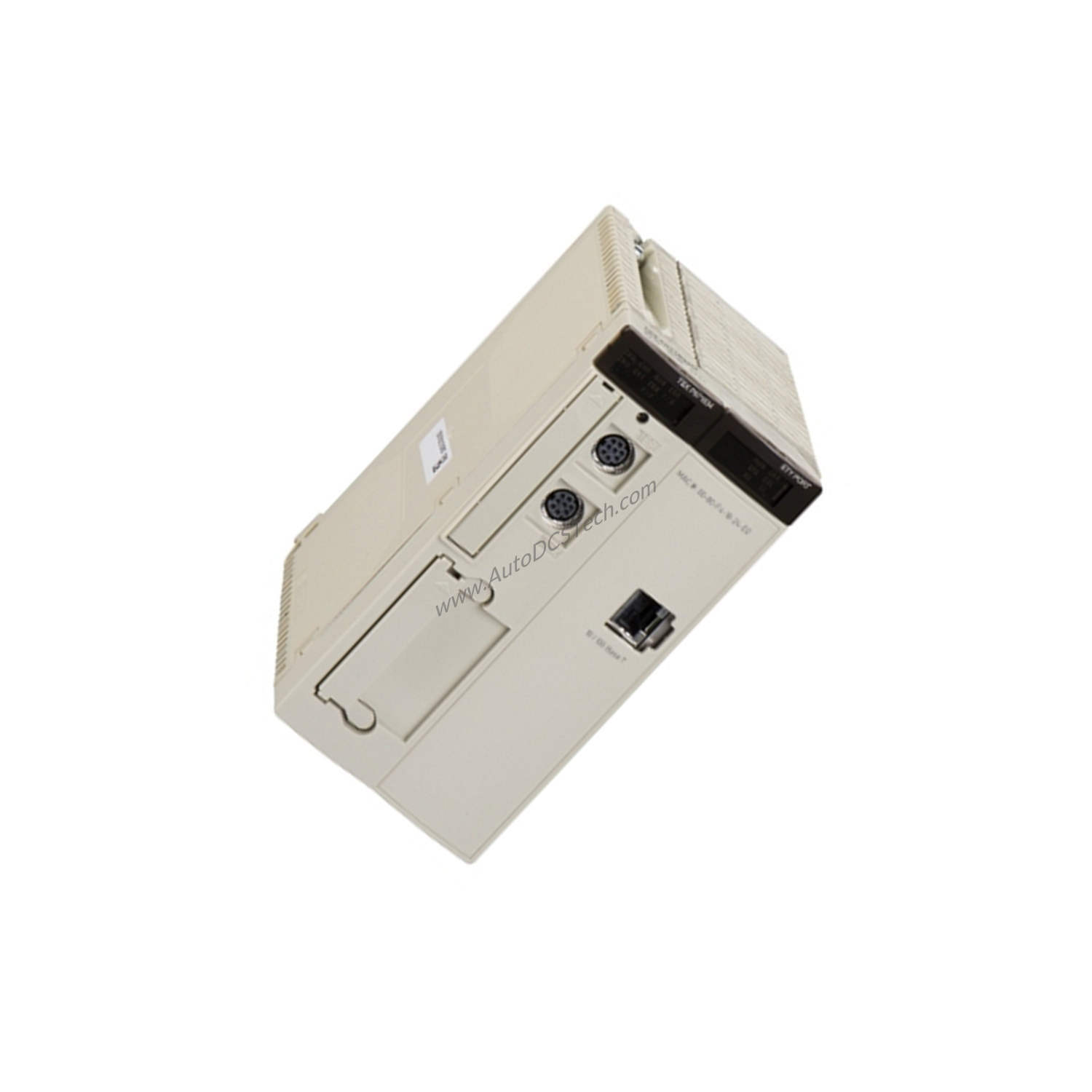

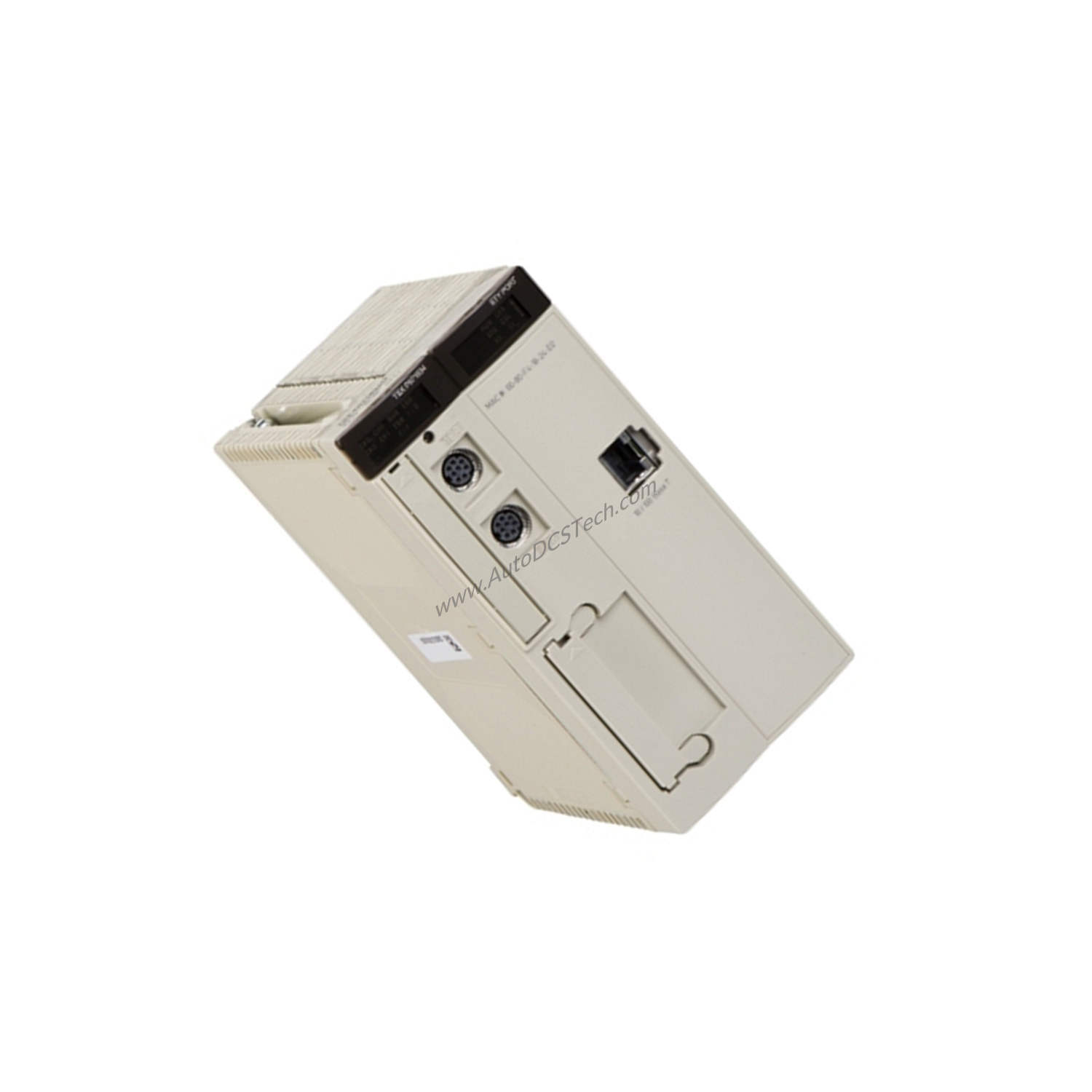

What Is the Schneider TSXP57453AM?
When your automation system demands reliable and fast control, the TSXP57453AM from Schneider Electric delivers. This double-format PL7 processor is part of the TSX Micro PLCs series, designed to handle complex tasks with minimal overhead. With a system overhead of just 0.22 ms for fast tasks and 1.15 ms for master tasks, it ensures rapid response times for critical processes.
Performance Metrics That Matter
Execution Speed
Boolean instructions execute in only 0.06 µs, while word or fixed-point arithmetic takes 0.08 µs. Floating-point calculations require 1.7 µs. This speed translates to up to 13.82 K instructions per millisecond for 100% Boolean operations, making the TSXP57453AM ideal for high-speed control loops.
Memory and Capacity
Internal RAM provides 96 Kwords for program and data without a PCMCIA card, expanding to 176 Kwords data with the card. The PCMCIA card adds 2048 Kwords for data storage and 992 Kwords for programs. The processor supports up to 2040 discrete I/O points and 256 analog I/O points across 16 racks, offering scalability for growing systems.
Communication Options
Integrated Fipio manager (127 agents), non-isolated serial links, CANopen, and support for fieldbus and AS-Interface modules provide flexible connectivity. This allows seamless integration into existing networks without additional gateways.
Real-World Applications
Packaging Lines
In high-speed packaging, the TSXP57453AM's fast task time of 0.22 ms ensures precise timing for labeling, sealing, and cutting operations. Its ability to handle 256 analog I/O points makes it suitable for temperature and pressure monitoring in heat-sealing stations.
Water Treatment Plants
For water treatment, the processor manages multiple racks with up to 2040 discrete I/O points, controlling pumps, valves, and sensors. The CANopen interface simplifies communication with variable frequency drives, reducing wiring complexity.
Installation and Setup Guidance
Mount the TSXP57453AM in a TSX Micro rack using the double-format slot. Ensure the 5 V DC supply can deliver 1080 mA. Connect the Fipio bus via the SUB-D 9 connector, and use the non-isolated serial link for programming with PL7 Junior/Pro software. Verify that the ambient temperature stays between 32 and 140 °F (0–60 °C) and relative humidity below 95% without condensation.
Maintenance and Reliability
The TSXP57453AM features protective treatment TC, enhancing resistance to harsh industrial environments. Routine inspection of LEDs (RUN, FIP, I/O, ERR, TER) helps identify faults early. Keep the IP20 enclosure clean and ensure proper ventilation. For long-term reliability, follow the manufacturer's guidelines for periodic testing.
Compatibility and Integration
This processor integrates with TSX Micro racks (up to 16 racks, 4/6/8 or 12 slots). It supports network modules, fieldbus modules, and AS-Interface bus modules. Communication with other devices is straightforward via Fipio, CANopen, or serial links. The processor is certified to UL 508, CSA C22.2 No 142, and IEC 61131-2, ensuring compliance with global standards.
Buying Guide
Before purchasing the TSXP57453AM, verify your rack configuration and power supply capacity. Confirm that your software (PL7 Junior/Pro) is compatible. For current lifecycle status and availability, contact SpareTechPLC. We offer genuine Schneider parts with fast shipping.
Frequently Asked Questions
Q: What is the current consumption of the TSXP57453AM?
A: The processor consumes 1080 mA at 5 V DC.
Q: How many I/O points can the TSXP57453AM handle?
A: It supports up to 2040 discrete I/O points and 256 analog I/O points.
Q: What communication protocols are supported?
A: It includes Fipio manager, non-isolated serial links, CANopen, network modules, fieldbus modules, and AS-Interface bus modules.
Q: Does the TSXP57453AM require a PCMCIA card?
A: No, it operates without one, but adding a PCMCIA card expands memory (2048 Kwords data, 992 Kwords program).
Q: What is the operating temperature range?
A: The ambient air temperature for operation is 32 to 140 °F (0 to 60 °C).
