Product Overview

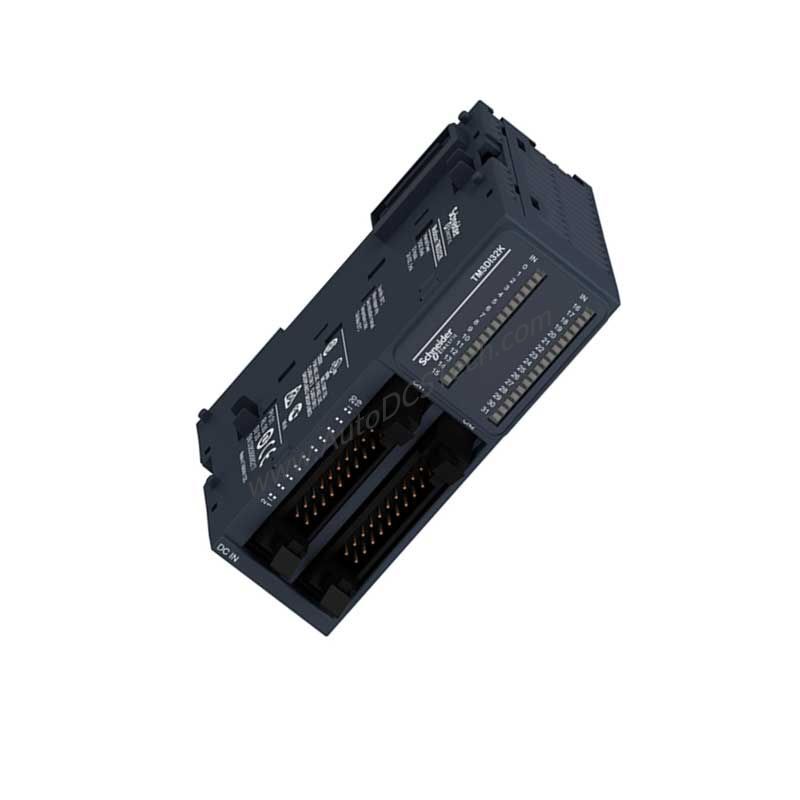

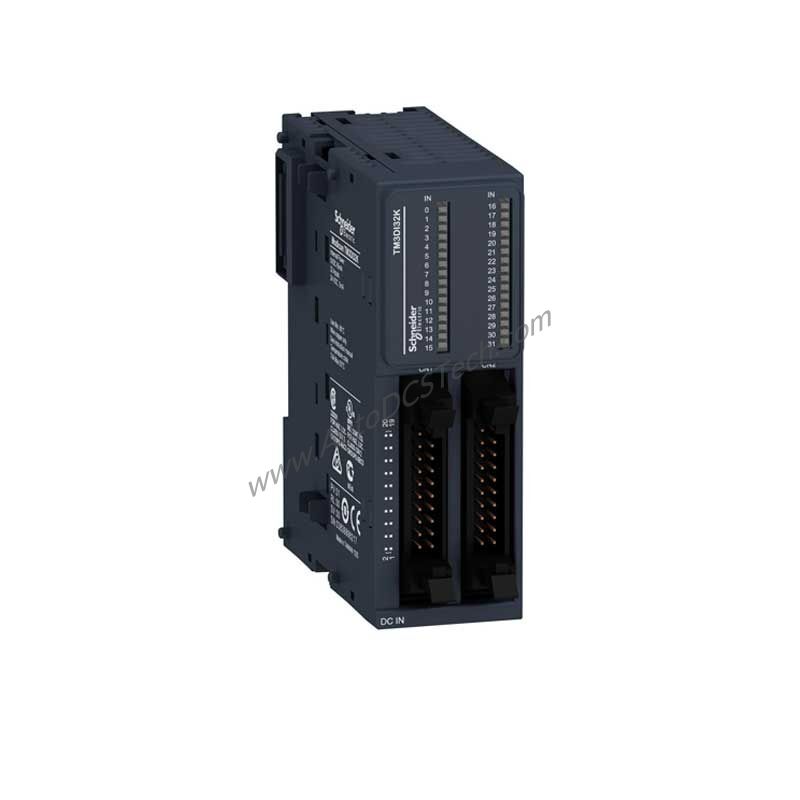

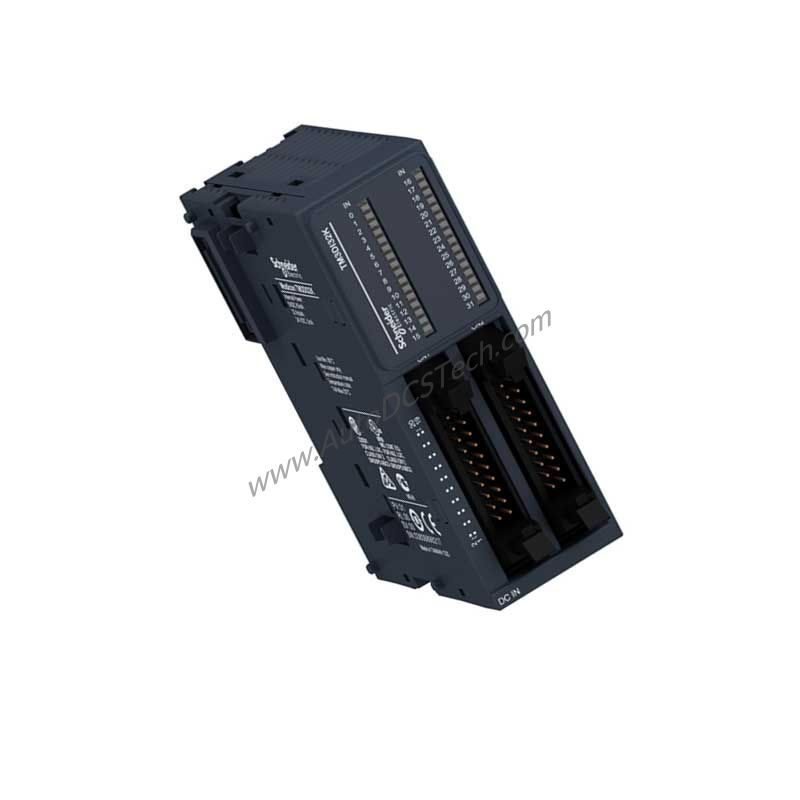

When you need reliable digital signal acquisition in your Modicon control system, the Schneider Electric TM3DI32K discrete input module delivers consistent performance. This 32-point input module is part of the Modicon TM3 family and is designed for use with Modicon M221, M241, M251, and M262 controllers. It accepts 24V DC signals with both sink and source (positive/negative) logic, making it flexible for various sensor and switch configurations.
Technical Specifications Breakdown
The TM3DI32K provides 32 discrete inputs conforming to IEC 61131-2 Type 1 standards. Each input draws 5 mA at 24V DC and offers a guaranteed voltage state 1 range of 15 to 28.8V. The guaranteed voltage state 0 range is 0 to 5V, with a current state 1 guaranteed at ≥2.5 mA and current state 0 at ≤1 mA. Input impedance is 4.4 kOhm, and response times are 4 ms for both turn-on and turn-off. The module consumes 65 mA at 5V DC via the bus connector when inputs are on, and 5 mA at 5V DC when off.
Industry Applications
In manufacturing lines, the TM3DI32K reliably reads limit switches, proximity sensors, and pushbutton states. Its 32 inputs allow for monitoring multiple machine zones from a single module, reducing wiring complexity. In packaging machinery, the module's fast 4 ms response time ensures accurate detection of product positions at moderate speeds. The IP20 protection with a protective cover makes it suitable for control cabinets in dry industrial environments.
Installation & Setup Guidance
Mount the TM3DI32K on a standard TH35-15 or TH35-7.5 DIN rail per IEC 60715. Panel mounting is also possible with a fixing kit. Use HE-10 connectors for input wiring and keep unshielded cable runs under 30 meters for reliable signal integrity. Ensure the ambient temperature remains between -10°C and 55°C for horizontal installation, or -10°C to 35°C for vertical mounting. The module automatically powers through the bus connector from the controller.
Maintenance & Reliability
From a maintenance engineer's perspective, the TM3DI32K offers excellent reliability with minimal upkeep. The LED per channel provides immediate visual status of each input, simplifying troubleshooting. Regularly inspect the DIN rail mounting and connector tightness during routine cabinet checks. The module withstands 15 gn shock for 11 ms and vibration up to 3 gn, ensuring longevity in harsh industrial settings. Its CE, CULus, and UKCA certifications confirm compliance with international safety standards.
Compatibility & Integration
The TM3DI32K integrates seamlessly with Modicon M221, M241, M251, and M262 controllers via the TM3 bus. No additional wiring for power is needed—the module draws its operating current from the controller's bus connector. The sink/source logic accommodates both NPN and PNP sensors without extra components. For larger systems, multiple TM3 modules can be daisy-chained to expand I/O capacity.
Buying Guide
Before purchasing the TM3DI32K, verify your controller model compatibility (M221, M241, M251, or M262). Confirm the required input voltage is 24V DC and that your sensors match the sink/source configuration. SpareTechPLC stocks this module with fast shipping and expert technical support to help you select the right components for your automation project.
Frequently Asked Questions
Q: Can the TM3DI32K be used with both NPN and PNP sensors?
A: Yes, the module supports both sink and source logic, so it works with NPN (sinking) and PNP (sourcing) sensors without external converters.
Q: What is the maximum cable length for inputs?
A: For standard inputs, use unshielded cable up to 30 meters to maintain reliable signal integrity.
Q: How do I know if an input is active?
A: Each channel has a green LED that lights up when the input is in the ON state, providing immediate visual feedback.
Q: Is the TM3DI32K compatible with Modicon M221?
A: Yes, it is compatible with Modicon M221, M241, M251, and M262 controllers.
Q: What is the response time of the inputs?
A: Both turn-on and turn-off response times are 4 ms, suitable for most industrial sensing applications.
