Product Overview

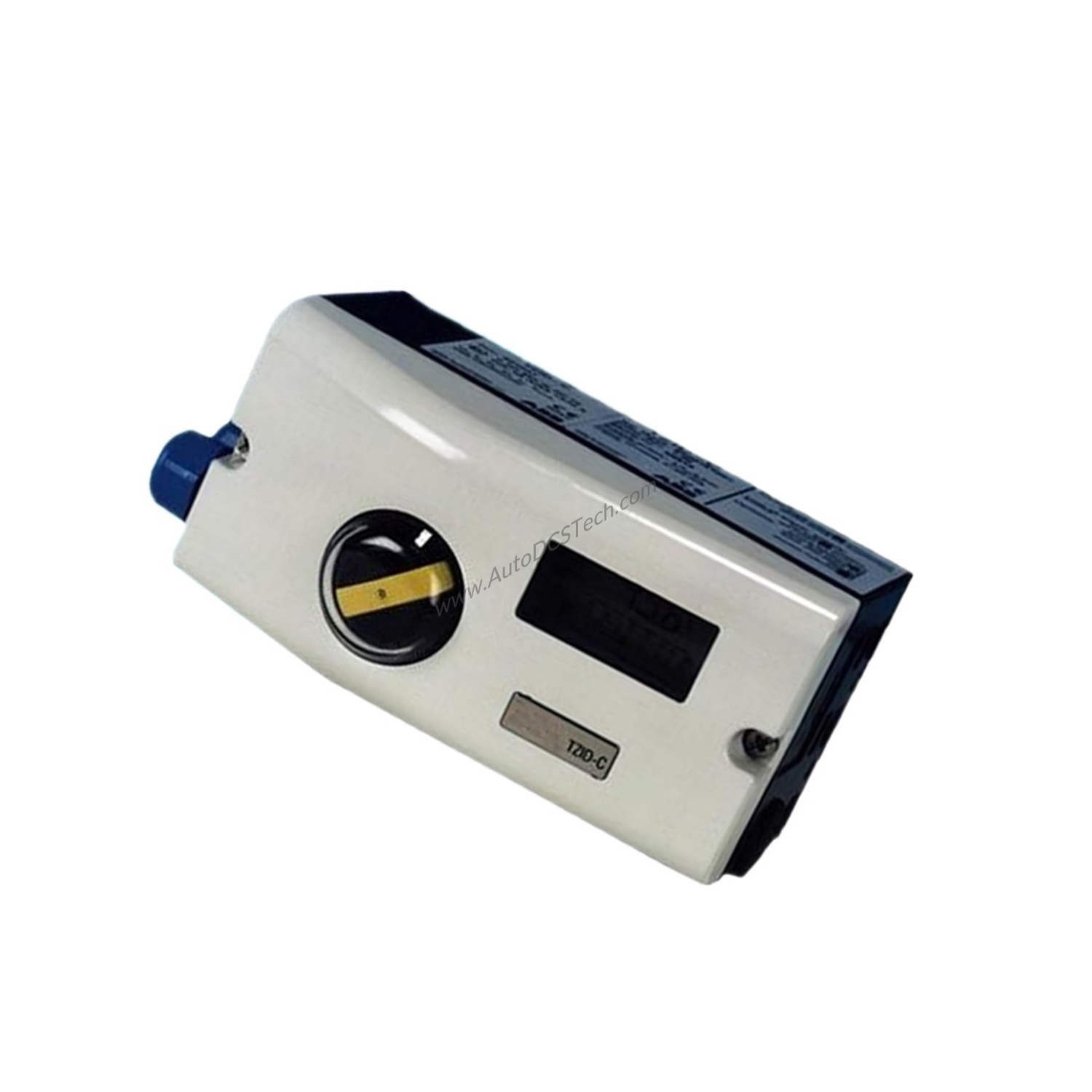

When precise valve control is critical in industrial processes, the ABB V18345-1020521001 TZIDC Electro-Pneumatic Positioner delivers reliable performance. This device translates a 4…20 mA input signal into a proportional pneumatic output to position actuators accurately. Part of the TZIDC series, it is designed for both linear and rotary actuators, offering flexibility across various applications.
Technical Specifications Breakdown
Understanding key specifications helps you evaluate if this positioner meets your process requirements. Here are the critical parameters from the product data:
- Input Signal: 4…20 mA, two-wire FSK module for HART communication. This allows integration with modern control systems and remote configuration.
- Output Action: Double acting, fail freeze. In case of electrical power failure, the output pressure remains at its last value, ensuring a safe position.
- Characteristic Deviation: ≤ 0.5 %. This ensures high accuracy in positioning, reducing process variability.
- Resolution: > 4000 steps from A/D conversion, providing fine control over valve position.
- Sample Rate: 20 msec, enabling fast response to changing process conditions.
- Ambient Temperature Influence: ≤ 0.5 % for every 10 °C change, maintaining performance across temperature variations.
- Vibration Influence: ≤ ± 1 % up to 10 g and 80 Hz, suitable for demanding industrial environments.
- Seismic Requirements: Meets DIN/IEC 68-3-3 Class III for strong earthquakes, adding reliability in seismic zones.
- Weight: 1.7 kg, making it relatively lightweight for installation.
These specs indicate a robust, accurate positioner suitable for critical control loops.
Industry Applications
This electro-pneumatic positioner fits into many industries where precise valve modulation is essential:
- Chemical Processing: In chemical plants, maintaining accurate flow or pressure is vital. The V18345-1020521001's ≤ 0.5 % characteristic deviation and HART communication enable precise control and diagnostics.
- Oil & Gas: For upstream and downstream operations, the fail freeze action ensures safety during power loss, while the vibration resistance up to 10 g handles pump and compressor environments.
- Power Generation: In steam and water systems, the positioner's seismic qualification and temperature stability support reliable operation in power plants.
Installation & Setup Guidance
Proper installation ensures optimal performance. Follow these guidelines based on the product configuration:
- Mounting: The case is made of aluminium with IP 65 (NEMA 4X) protection. Mount it on linear actuators per DIN/IEC 534 / NAMUR or on rotary actuators per VDI/VDE 3845. Ensure the mounting surface is stable.
- Connections: Use cable thread 1/2-14 NPT for electrical entry and air pipe thread 1/4-18 NPT for pneumatic connections. Tighten securely to maintain IP rating.
- Wiring: Connect the 4…20 mA two-wire loop with HART. Observe polarity and use shielded cable for noisy environments.
- Configuration: The characteristic curve can be set as linear, equal percentage (1:25, 1:50, 25:1, 50:1), or freely configured with 20 reference points. Adjust dead band (0.1…10 %) and tolerance band (0.3…10 %) to match process dynamics.
Maintenance & Reliability
Routine care extends the life of your positioner and reduces unplanned downtime. Consider these practices:
- Inspect pneumatic connections for leaks periodically. Clean air supply filters to prevent contamination.
- Verify calibration annually or after process changes. The analog position feedback module (4…20 mA) can be used to confirm output position accuracy.
- Monitor ambient conditions. Although the positioner tolerates temperature changes (≤ 0.5 % per 10 °C), avoid extreme condensation or corrosive atmospheres beyond IP 65 protection.
- Check vibration levels. The unit withstands up to 10 g at 80 Hz, but prolonged exposure near limits may accelerate wear.
Compatibility & Integration
The V18345-1020521001 integrates easily with common control systems:
- HART Communication: The two-wire FSK module enables digital communication over the 4…20 mA loop. Use a HART modem or multiplexer to configure parameters, read diagnostics, and monitor position.
- Analog Feedback: The plug-in module provides analog position feedback (4…20 mA) to the DCS or PLC, allowing closed-loop verification.
- Actuator Types: Works with linear actuators (DIN/IEC 534 / NAMUR) and rotary actuators (VDI/VDE 3845). Double acting output suits spring-return or double-acting actuators.
Selection Guide & Purchasing Advice
Before purchasing, verify these aspects to ensure the V18345-1020521001 fits your application:
- Input Signal: Confirm your control system provides 4…20 mA with HART capability if needed.
- Fail Safe Action: The double acting, fail freeze behavior means the valve stays in its last position on power loss. Ensure this aligns with your safety philosophy.
- Explosion Protection: This model comes without explosion protection (code 0). If hazardous areas are present, select a version with appropriate certification.
- Accessories: The unit includes an analog position feedback module. If digital feedback is required, consider the optional mechanical kit (code 0 indicates none included).
SpareTechPLC stocks the ABB V18345-1020521001 and can advise on availability and alternatives. Contact our team for current lead times and pricing.
Please verify current lifecycle status and availability with SpareTechPLC before ordering.
