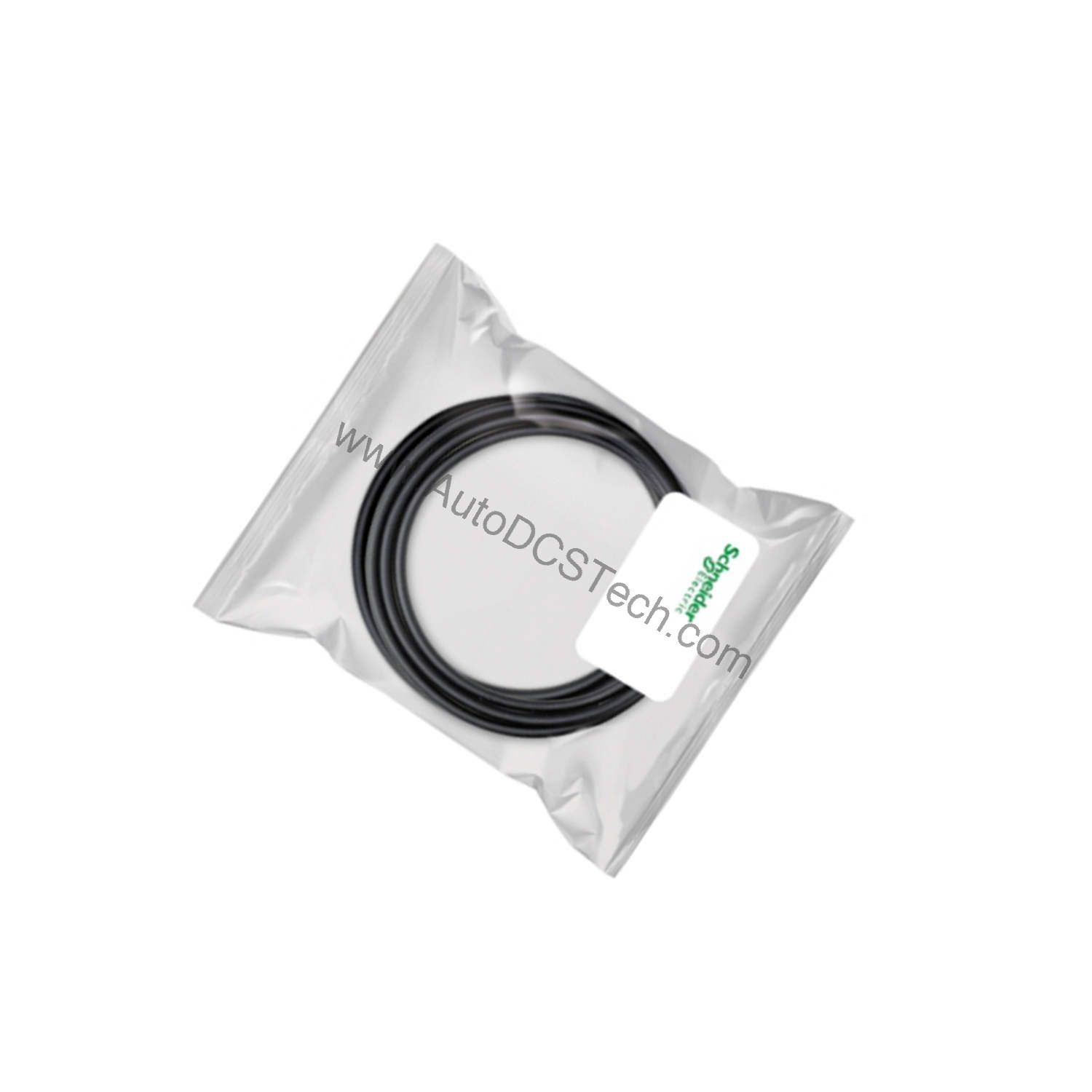

ABFS08H202 Schneider Modicon Quantum Analog I/O Cable Module 2m

Technical Specifications Breakdown

Key parameters for the ABFS08H202 are listed below for quick reference:

Industry Applications

Process Control in Humid Environments

In industries such as food and beverage or wastewater treatment, where humidity can reach 95% relative humidity (non-condensing), the ABFS08H202 maintains reliable analog I/O connections. Its shielded cable resists moisture ingress and electrical noise, ensuring accurate sensor readings for temperature, pressure, or flow.

Discrete Manufacturing with Limited Space

For machine builders needing a compact 2-meter cable to connect analog modules to remote I/O racks, the ABFS08H202 provides a plug-and-play solution. The HE-08 connector simplifies wiring, reducing installation time compared to custom-cut cables.

Retrofit Projects Replacing Older Quantum Cables

When upgrading legacy Modicon Quantum systems, this cable module offers a direct replacement with known specifications (250V/2A rating, AWG 22 conductors). Engineers can confidently swap out aging cables without redesigning the wiring scheme.

Installation & Setup Guidance

Before connecting the ABFS08H202, ensure the Modicon Quantum analog I/O module is powered off. Align the HE-08 connector with the module's port and press firmly until it clicks into place. The plug-and-play design requires no special tools. Route the 2-meter cable away from high-voltage power lines to minimize electromagnetic interference. Secure the cable using tie wraps at intervals to prevent strain on the connector. After installation, power on the system and verify analog signal continuity using the PLC's diagnostic software.

Maintenance & Reliability

Inspect the ABFS08H202 cable module periodically for physical damage, especially at the connector ends and along the PVC jacket. In environments with high humidity or temperature swings (–20 °C to +60 °C), check for signs of condensation inside the connector housing. Clean the HE-08 contacts with a dry cloth if needed. The shielded construction reduces the need for frequent replacements, but any cable showing cracks or bent pins should be replaced immediately to maintain signal integrity.

Compatibility & Integration

The ABFS08H202 is designed specifically for the Modicon Quantum series analog I/O modules. It uses an HE-08 connector with 8 conductors (AWG 22) and a 2.54 mm pitch, ensuring pin-to-pin compatibility with Schneider's Quantum analog input/output modules. The cable is RoHS compliant, meeting environmental standards for global installations.

Selection Guide & Purchasing Advice

When ordering the ABFS08H202, verify that your Modicon Quantum analog module uses the HE-08 connector type. This cable module suits new installations, replacements, or spare inventory. AutoDCSTech stocks genuine Schneider Electric ABFS08H202 units, ready for immediate shipment. Please verify current lifecycle status and availability with AutoDCSTech before ordering. For bulk or urgent needs, contact our sales team for lead times.

Troubleshooting & Common Issues

If analog signals appear noisy or erratic, first check that the ABFS08H202 connector is fully seated. Loose connections can introduce noise. Verify that the cable is not routed parallel to high-current AC lines. If the system reports an open circuit, inspect the 8 conductors for breaks, especially near the connector strain relief. The cable's 250V/2A rating should not be exceeded; overloading may damage the insulation. For persistent issues, test with a known-good cable module to isolate the fault.

Competitive Comparison: Why the ABFS08H202 Stands Out for Analog I/O Connectivity

When selecting a cable module for analog I/O applications in a Modicon Quantum system, the ABFS08H202 from Schneider Electric offers a balanced combination of signal integrity, environmental resilience, and straightforward installation. Compared to generic or third-party alternatives, this dedicated cable module ensures consistent performance through its multi-conductor shielded construction and precise connector pitch of 2.54 mm. Engineers often face signal degradation or noise interference with non-shielded or mismatched cables, especially in electrically noisy industrial environments. The ABFS08H202 mitigates these risks with its PVC-insulated shielded cable, providing reliable analog signal transmission over a 2-meter reach.
