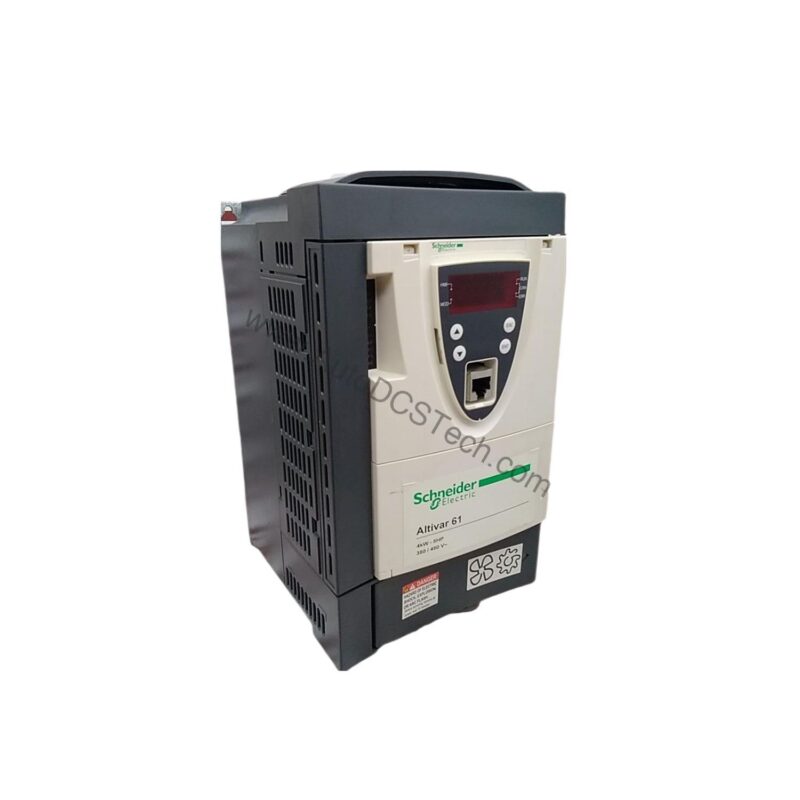

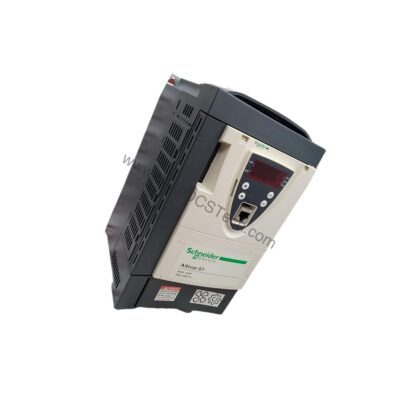

ATV61HU40N4: Variable Speed Drive
The ATV61HU40N4 is the Variable Speed Drive covered on this page. The attribute that decides whether it fits the existing installation without modification is 25.00 lbs (11.34 kg).
The reason to specify this exact variant is variable speed drive. A variable-speed or soft-start device is specified by the motor it must control and the starting or speed regime it must deliver. variable speed drive sets the current or power rating, the control method and the enclosure or network option — the things that decide whether the device starts the load without tripping and integrates with the existing control. Verifying 25.00 lbs (11.34 kg) against the motor nameplate and the control architecture prevents a drive that fits the panel but cannot carry the load.
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Brand | Schneider |
| Part Number | ATV61HU40N4 |
| Product Type | Variable Speed Drive |
| Product Line | Altivar 61 |
| Part Number | ATV61HU40N4 |
| EAN | 3389118080188 |
| Weight | 25.00 lbs (11.34 kg) |
| Line Current | 5.4 A |
| EMC Filter | Integrated |
| Apparent Power | 5.5 kVA |
| Protection Rating | IP20 |
| Supply Voltage | 380-480 V, 3-phase |
| Nominal Switching Frequency | 12 kHz |
| Power Rating | 4 kW / 5 HP |
| Supply Frequency | 50/60 Hz |
| Switching Frequency Range | 1-16 kHz adjustable |
| Assembly Style | With heat sink |
| Maximum Transient Current | 7.5 A (60 seconds) |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| schneider-atv61hc11n4-variable-speed-drive-150-hp-460-v | confirm the configuration against your installation |
| schneider-atv61hd37n4z-variable-speed-drive-37kw-50hp-380-480v-ip20 | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | ATV61HU40N4 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
