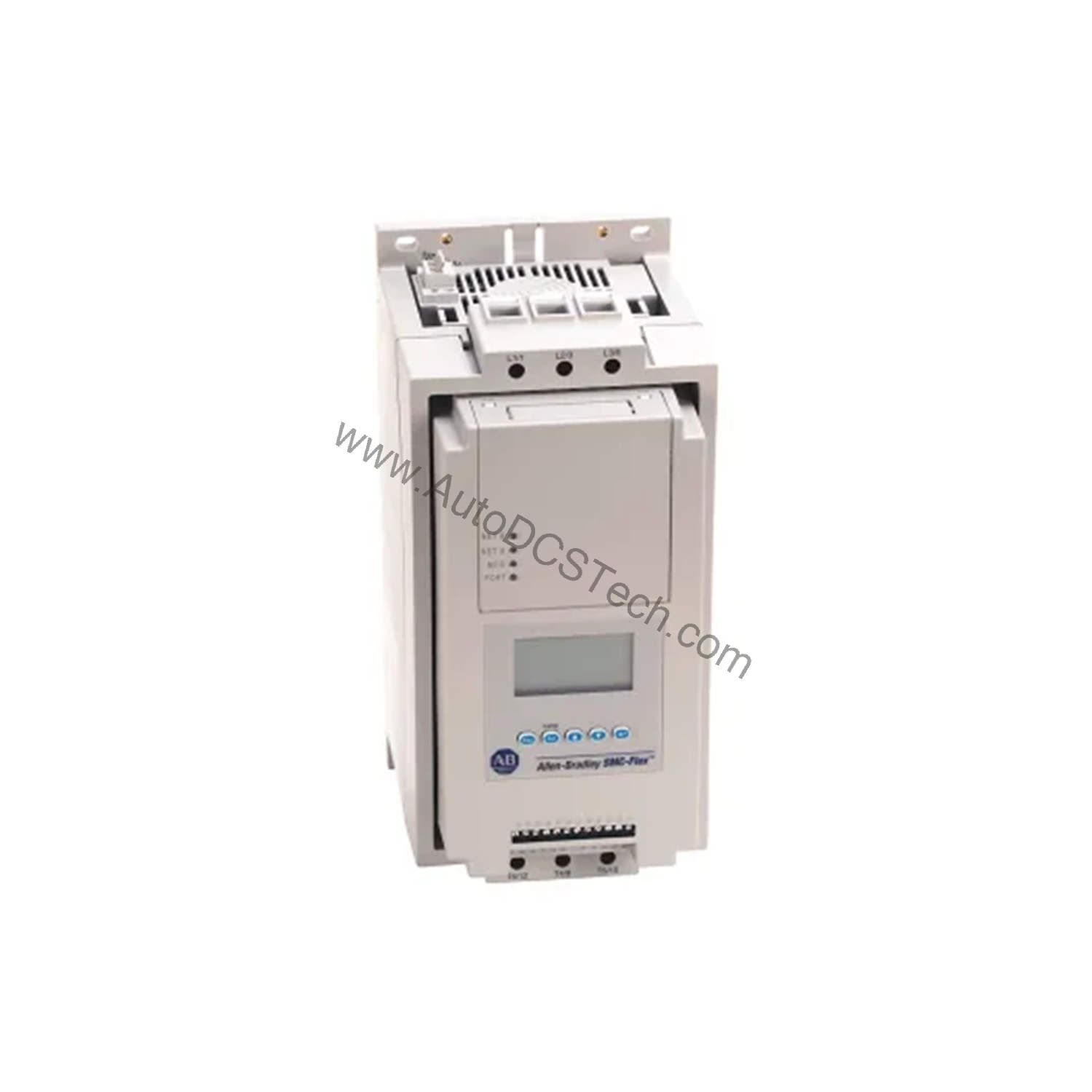

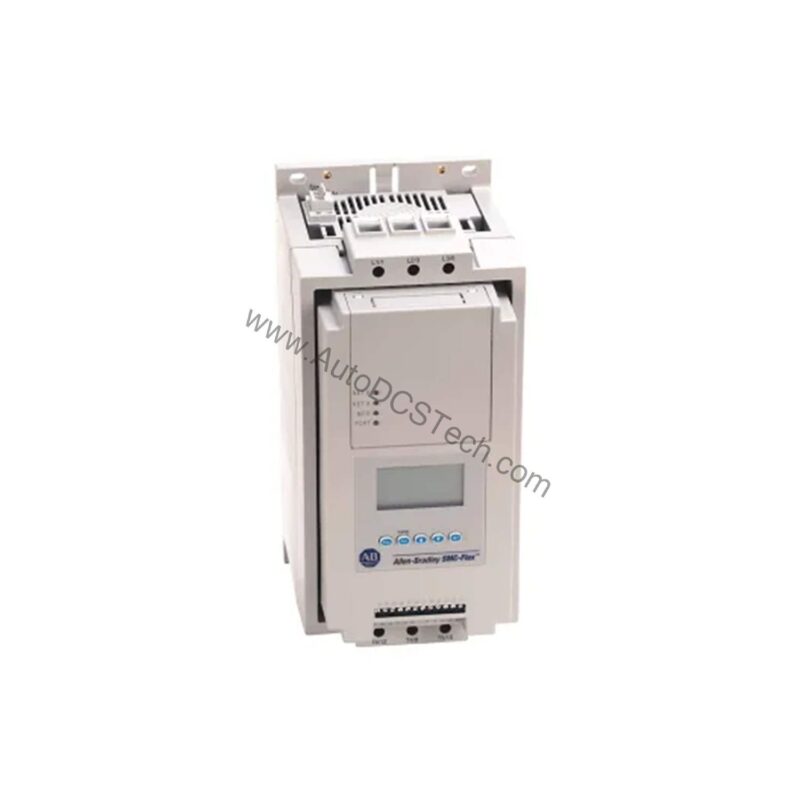

Allen-Bradley 150-F108NZD SMC-Flex Solid State Controller 108A

Cost-Effective Motor Control with the Allen-Bradley 150-F108NZD

Industrial facilities face constant pressure to lower operational costs while maintaining reliability. The Allen-Bradley 150-F108NZD SMC-Flex solid-state controller delivers a proven solution: it reduces energy consumption during motor starts and stops, directly lowering your electricity bills. With a controller rating of 108 Amps and 75 Horsepower at 460 Volts AC, this unit handles medium-duty applications without overspending on oversized equipment.

Technical Specifications Breakdown

Key parameters for the 150-F108NZD are listed below for quick reference:

Real-World Applications That Lower Total Cost

This controller is designed for squirrel cage induction and wye-delta motors, common in pumps, fans, and conveyors. By using the 150-F108NZD, you can reduce inrush current by up to 600% compared to across-the-line starting. Less current stress means longer motor life and fewer unplanned replacements — a direct cost saving. The open enclosure suits panel-mounted installations where ambient conditions are controlled, avoiding the premium of a NEMA-rated box.

Installation Guidance for Maximum ROI

Mount the 150-F108NZD in a clean, dry electrical enclosure with adequate ventilation. The control voltage of 100-240V AC simplifies integration with existing PLC or relay logic. Use the electromechanical motor starter (sold separately) to eliminate extra control wiring, reducing installation labor costs. The unit supports three standard operating modes: full voltage start, soft start, and current limit start. Select soft start for gentle acceleration of conveyors to reduce mechanical wear; use current limit start for pumps to prevent pressure surges.

Maintenance and Reliability

The electronic motor overload protection and SCR bypass reduce the risk of costly downtime. Inspect the open enclosure quarterly for dust accumulation. No special tools are required. The solid-state design has no moving contacts to wear out, lowering spare parts inventory costs over the long term.

Compatibility and Integration

The 150-F108NZD is part of the SMC-Flex line, which includes non-combination and combination models. It works with standard three-phase power systems at 50 or 60 Hz. For advanced control, optional modules support motor braking or Accu-Stop functions, adding precision without replacing the entire unit.

Selection Guide and Purchasing Advice

Before ordering, verify your motor full-load current does not exceed 108A. The open enclosure is best for indoor panel use. AutoDCSTech stocks the 150-F108NZD and can confirm current lifecycle status and availability. Contact our team to discuss your application and ensure the right fit for your budget.

Troubleshooting Common Issues

If the controller fails to start, check the control voltage (100-240V AC) and input line voltage (230-690V AC). Verify that the three-phase supply is balanced. If overload trips occur, confirm the motor current is within the 108A rating. For persistent faults, inspect the SCR bypass for signs of overheating. Always consult the manual before making adjustments.
