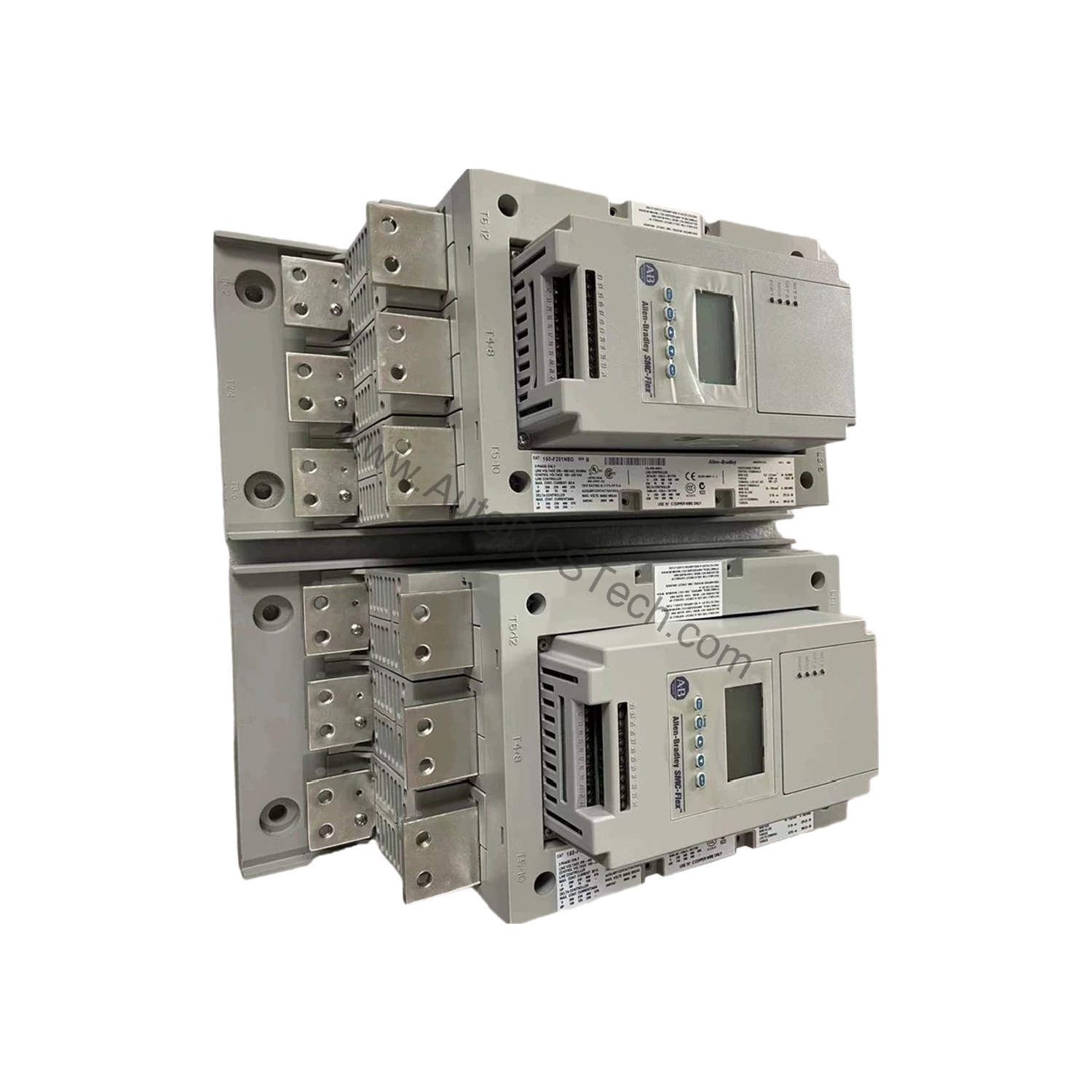

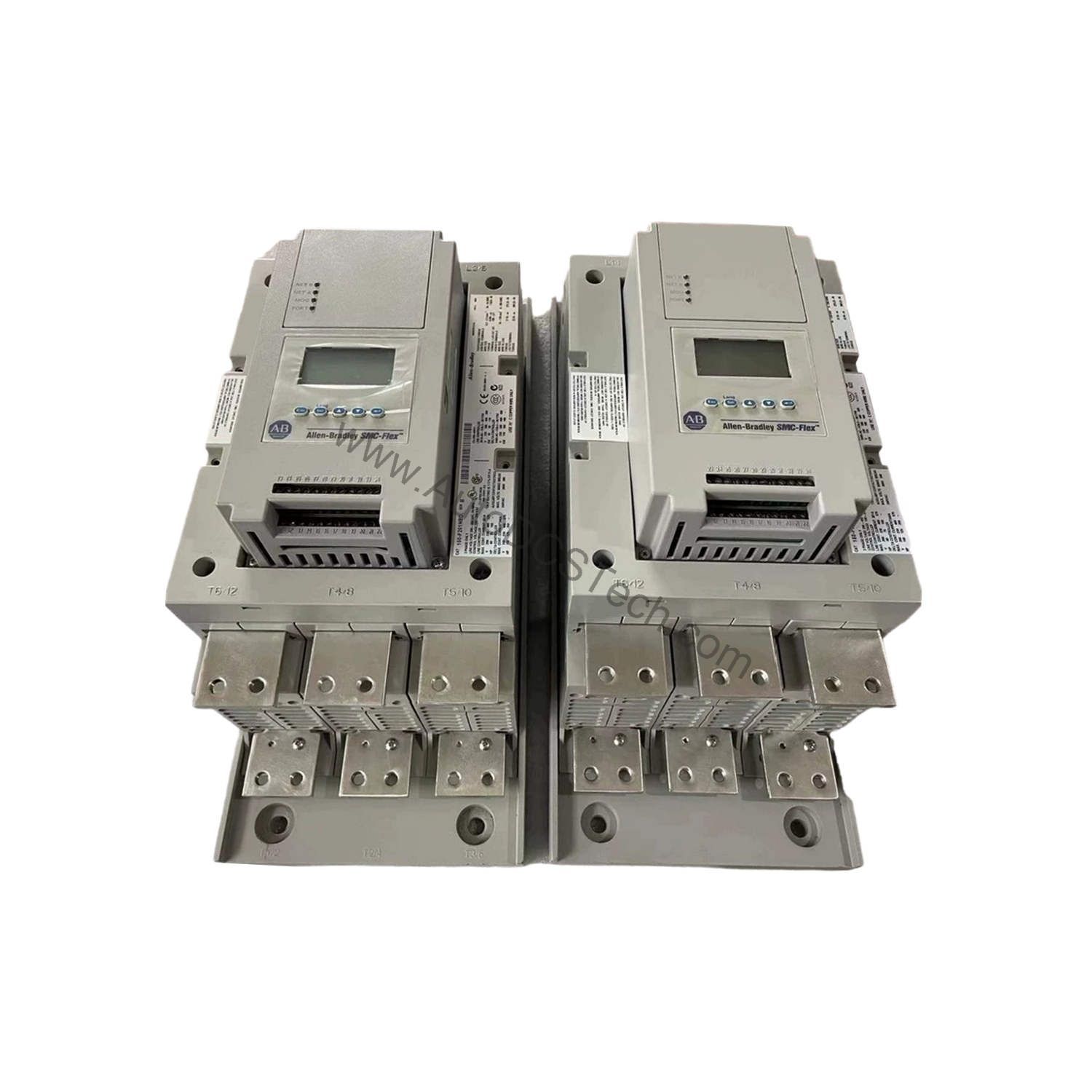

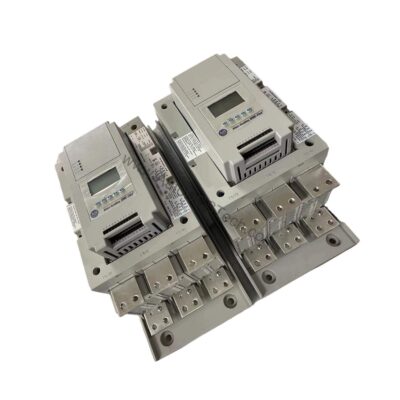

Allen-Bradley 150-F135NBR SMC-Flex Solid State Controller 135A

Technical Specifications Breakdown

Key parameters for the 150-F135NBR are listed below for quick reference:

Industry Applications and Cost Savings

Pump and Fan Systems

In pumping stations and HVAC fan arrays, the 150-F135NBR reduces peak demand charges by limiting inrush current during startup. The soft-start algorithms minimize water hammer and mechanical stress on valves, lowering repair frequency and water damage risk. Over a year, these savings often offset the controller's initial investment.

Conveyor and Material Handling

For conveyors handling heavy loads, the Accu-stop method provides precise stopping without load shift. This reduces product damage and improves line efficiency. The braking current range of 150 to 400% of full-load current allows fine-tuning for different load inertias.

Installation and Setup Guidance

Mount the open enclosure in a clean, dry cabinet with adequate airflow. The operating temperature range of -5 to 50 degree Celsius ensures reliable performance in most industrial environments. Connect the 200-460V AC, 3-phase input line to the main terminals. Use the 24V AC/DC control voltage for logic inputs. Configure the starting mode via the built-in keypad or software. Ensure all braking options are not used as emergency stop—this device is not safety-rated for that purpose.

Maintenance and Reliability

Periodically inspect the controller for dust accumulation and loose connections. The open enclosure design requires a clean environment to prevent overheating. Check the ambient temperature stays within -5 to 50 degree Celsius. Storage temperature range is -20 to 75 degree Celsius. No internal adjustments are needed; firmware updates can be applied via the manufacturer's tool.

Optimize Motor Starting with the Allen-Bradley 150-F135NBR

Industrial motor startups cause mechanical shock, voltage sags, and increased maintenance costs. The Allen-Bradley 150-F135NBR SMC-Flex solid state controller addresses these challenges directly. By applying seven distinct starting algorithms, this device reduces inrush current and torque spikes, extending motor and driven equipment life. For operations running large pumps or fans, this translates to lower total cost of ownership and fewer unplanned downtime events.

Compatibility and Integration

The SMC-Flex line integrates with most Allen-Bradley PLCs via discrete I/O or optional communication modules. The 24V AC/DC control voltage simplifies wiring with existing control systems. The controller supports multiple starting modes—soft start, kickstart, current limit, and more—making it adaptable to diverse motor types.

Selection Guide and Purchasing Advice

When selecting a motor controller, match the full-load current and voltage to your motor nameplate. The 150-F135NBR handles up to 135A and 100 HP at 460V AC. For higher ratings, consider other SMC-Flex models. AutoDCSTech stocks this unit and can advise on lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
