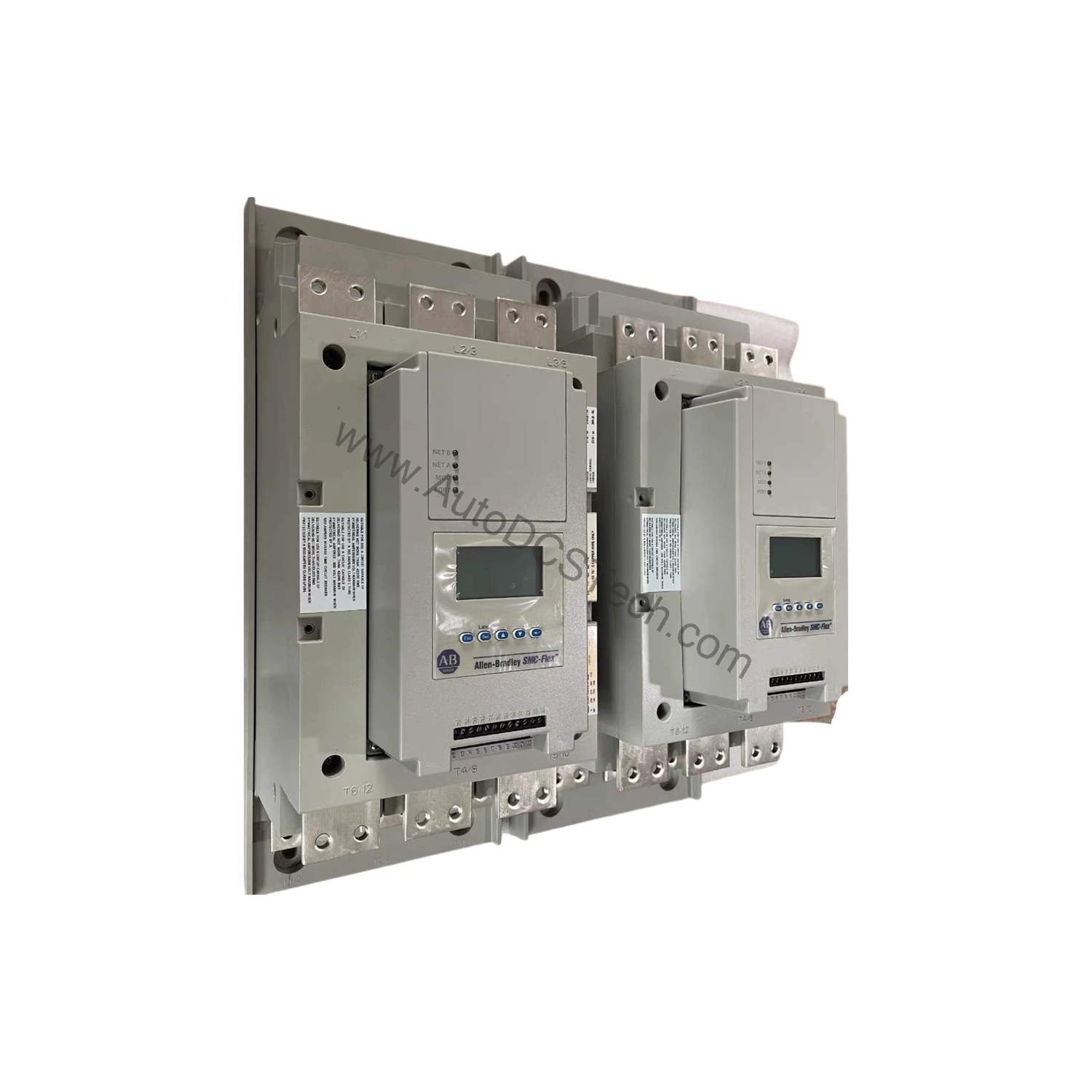

Allen-Bradley 150-F251FBD SMC-Flex Solid State Controller 251A IP65

Technical Specifications Breakdown

Key parameters for the 150-F251FBD are listed below for quick reference:

Application-Specific Benefits

Pump Control and Soft Starting

For centrifugal pumps, the 150-F251FBD offers optional pump control to reduce pressure surges during start and stop sequences. Its three standard operating modes—soft start, full voltage start, and current limit start—allow engineers to tailor acceleration to the load. The energy saver feature automatically reduces motor voltage under light load conditions, lowering power consumption without affecting process uptime.

Conveyor and Material Handling Systems

In conveyor applications, the controller's embedded motor overload protection and stall protection safeguard against jams and excessive currents. The ability to configure braking and accu stop options provides precise deceleration control, reducing product spillage and mechanical wear.

Installation and Setup Guidance

Mount the controller in a clean, dry environment free from conductive dust. The IP65 enclosure permits outdoor or washdown installation, but ensure ambient temperature does not exceed 50°C to maintain reliable operation. Wiring can be performed with or without a separate motor starter by configuring the rotary digital switches and DIP switches on the unit. Use two-wire or three-wire control schemes as required by the application. The built-in auxiliary contacts support instantaneous status feedback to the PLC or DCS.

Maintenance and Reliability

Periodically inspect the enclosure seals and cooling vents to maintain IP65 integrity. The internal thermostat helps regulate temperature; if the unit frequently trips on overtemperature, verify ambient conditions and load profile. No internal adjustments are required beyond the initial configuration. The LED indicators provide clear status: run mode, stop mode, and temperature fault, enabling quick diagnostics.

Optimizing Motor Start-Up in Harsh Environments

Industrial facilities often face the challenge of starting large induction motors under heavy load while minimizing electrical stress and mechanical shock. The Allen-Bradley 150-F251FBD solid state controller from the SMC-Flex series directly addresses this need. With a rugged IP65 (Type 4/12) enclosure, this controller is built to withstand washdown environments and dusty locations, making it suitable for applications in food processing, water treatment, and material handling.

Selection Guide and Purchasing Advice

When selecting a solid state controller for a 200 Hp, 460V AC motor, the 150-F251FBD offers a compact, self-protected solution. Verify that the available short-circuit current rating and branch circuit protection are compatible with the installation. Our team can confirm stock, lead times, and recommend compatible accessories.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
