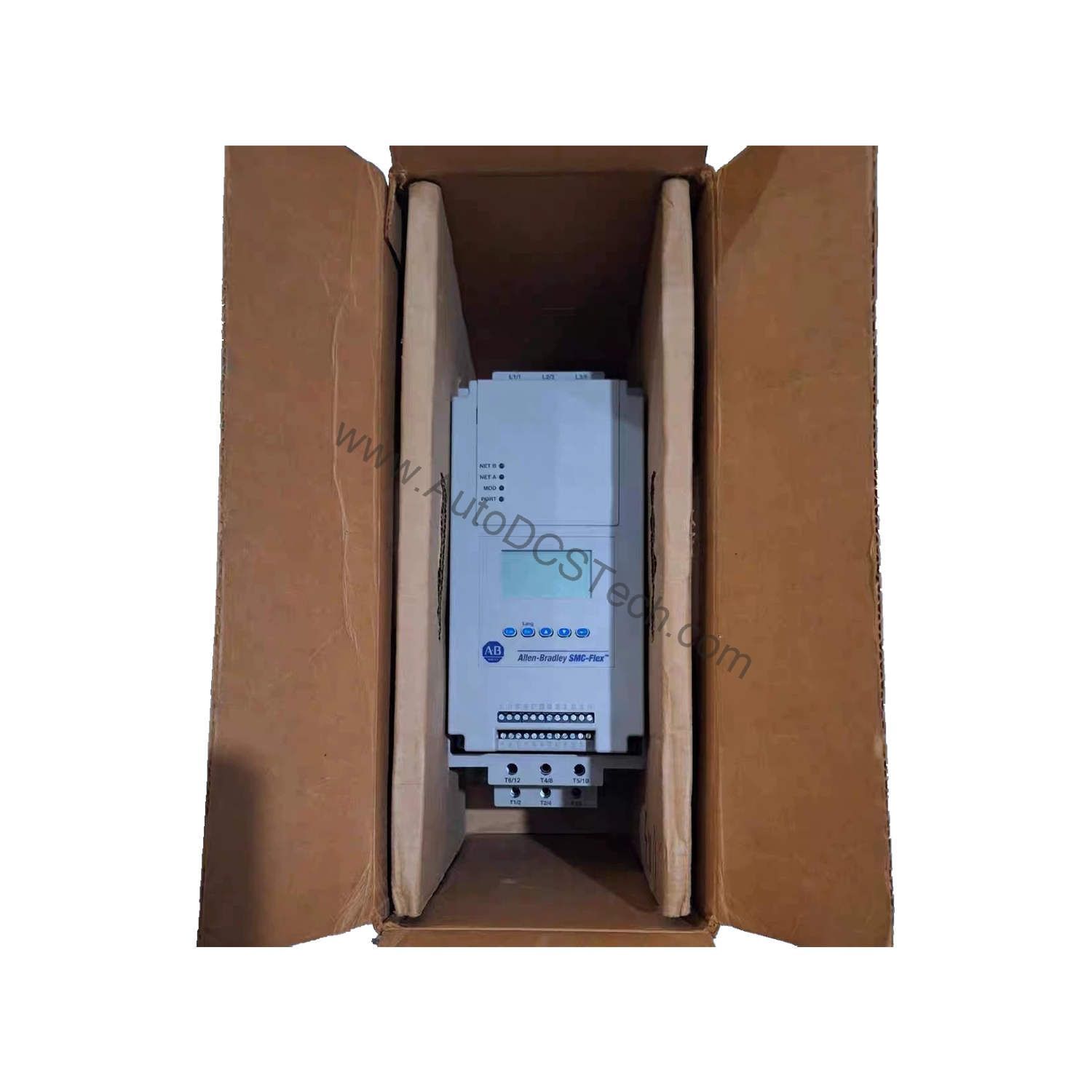

Allen-Bradley 150-F43NBRB SMC Flex Smart Motor Controller, 43A

Optimize Motor Control with the Allen-Bradley 150-F43NBRB SMC Flex

Industrial operations demand precise motor management to reduce downtime and energy costs. The Allen-Bradley 150-F43NBRB SMC Flex Smart Motor Controller delivers advanced soft-start functionality with a 43 A rating, designed for three-phase motors up to 30.0 Hp at 460V AC. Its integrated pump control option minimizes mechanical stress and water hammer, directly lowering maintenance expenses and extending equipment life.

Technical Specifications Breakdown

Key parameters for the 150-F43NBRB are listed below for quick reference:

Cost-Effective Applications Across Industries

By using adjustable trip classes (10, 15, 20, or 30), engineers can match protection to specific motor loads, avoiding nuisance trips and unplanned production stops. The pump control feature directly cuts water hammer damage, saving thousands in pipeline repairs annually.

Installation and Setup Guidance

Mount the open-type controller in a clean, dry cabinet with adequate airflow. Connect line power to terminals sized for 2.5...95 mm² (14...3 AWG) and load cables from 2.5...50 mm² (14...1 AWG). Tighten power terminals to 14.7 Nm (130 in-lb) to ensure reliable connections. Set the control voltage to 24V AC/DC and configure trip class based on motor starting characteristics. Use the built-in display to verify status: stopped, starting, at speed, alarm, or fault.

Maintenance and Reliability

The 150-F43NBRB operates reliably from -5 to 50 °C with 5...95% noncondensing humidity. Its heatsink thyristor modular design dissipates 81 W steady-state heat, so ensure ventilation to prevent thermal derating. Inspect annually for dust buildup on the heatsink and verify that the RC snubber network remains intact. The integrated motor overload protection eliminates the need for separate relays, reducing component count and potential failure points.

Compatibility and Integration

This controller accepts PTC thermistor inputs (up to 6 sensors) for direct motor thermal protection. The control circuit includes four programmable auxiliary contacts (19/20, 29/30, 31/32, 33/34) rated at 3A @ 120V AC and 1.5A @ 240V AC. It works with standard fuses, circuit breakers, or high-capacity time-delay Class CC/J/L fuses for short-circuit protection, simplifying panel design.

Selection Guide and Purchasing Advice

When selecting a soft starter, match the controller rating to your motor's full-load current. The 150-F43NBRB handles line-connected motors up to 40 Hp at 575V AC and delta-connected motors up to 60 Hp at 575V AC. For applications requiring rapid stopping, the optional SMB smart motor braking control provides adjustable braking current from 0...400% of motor full-load current. Contact AutoDCSTech for lifecycle status and availability before ordering.

Troubleshooting Common Issues

If the controller displays a fault, first check the trip class setting—starting a high-inertia load on trip class 10 may cause nuisance trips. Verify that the control voltage (24V AC/DC) is stable and within tolerance. For PTC input errors, measure the cold resistance of the sensor chain (should be below 1500 Ω). If the motor fails to start, inspect the short-circuit protection device and ensure the input ON-state voltage exceeds 85V AC.
