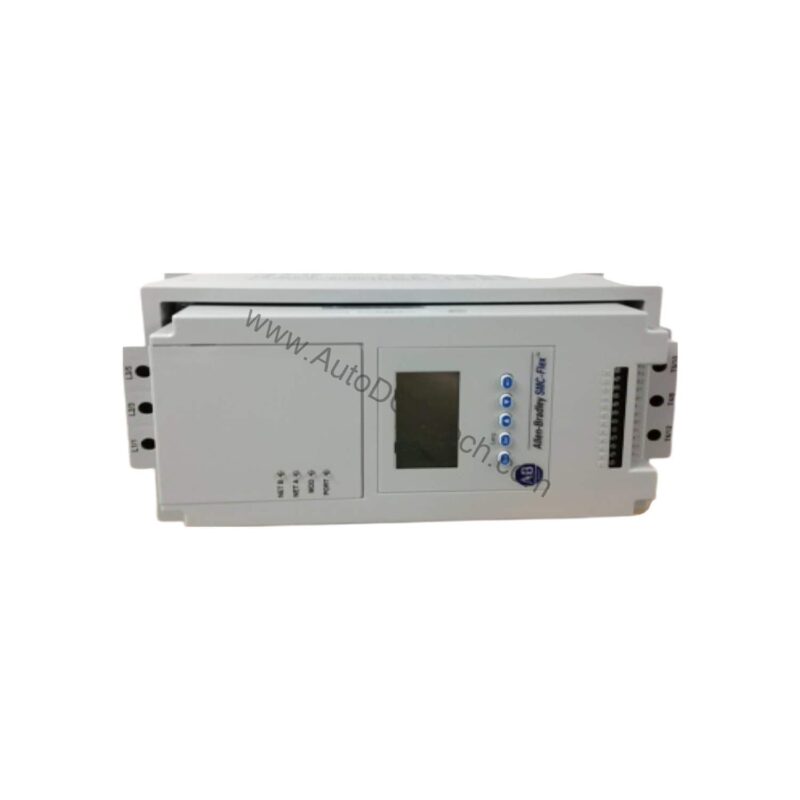

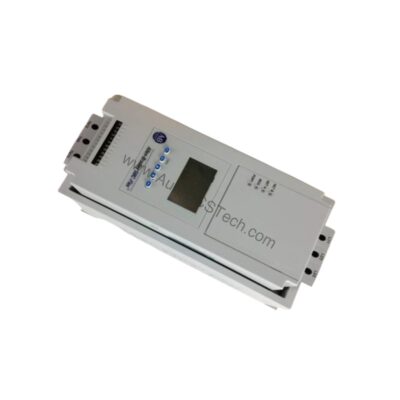

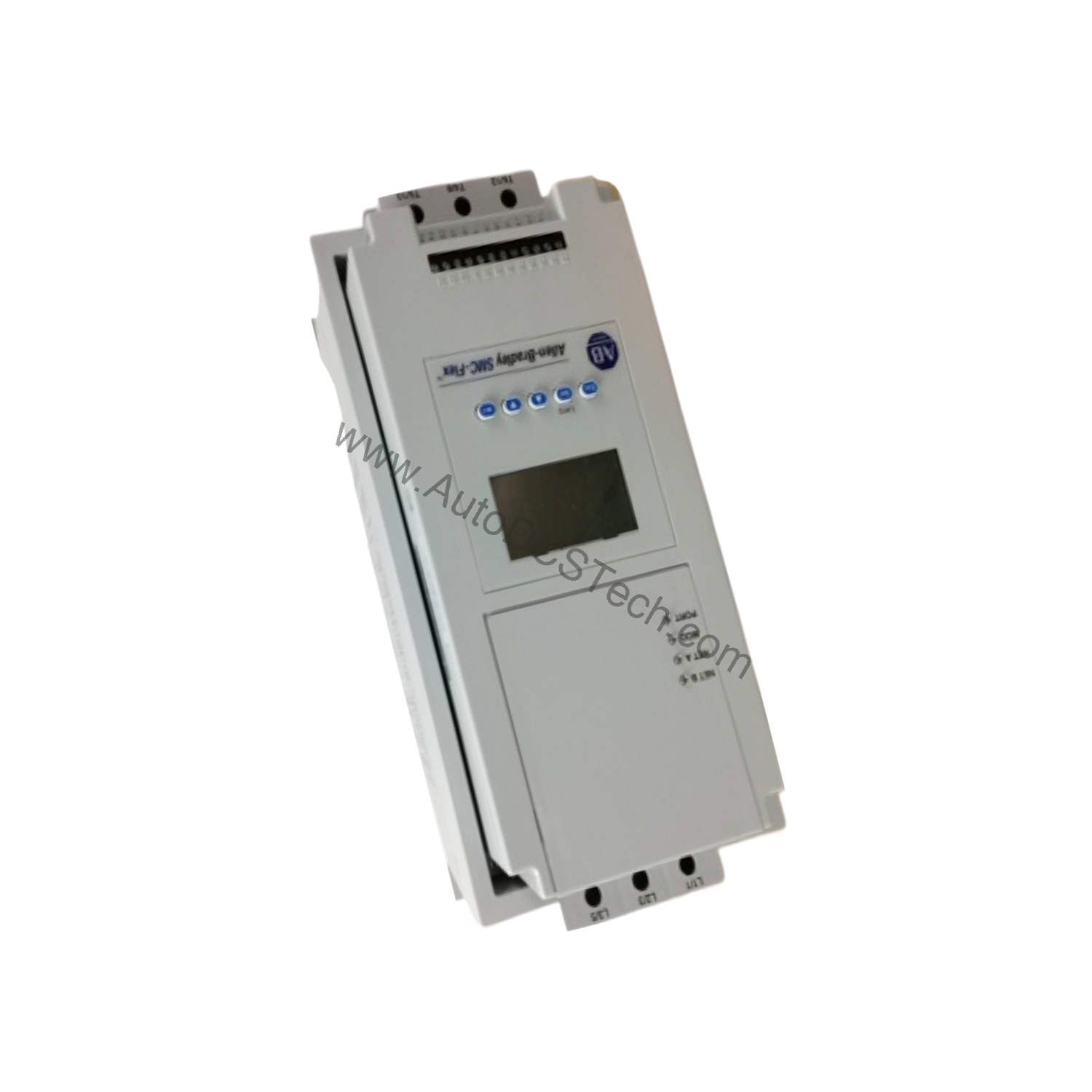

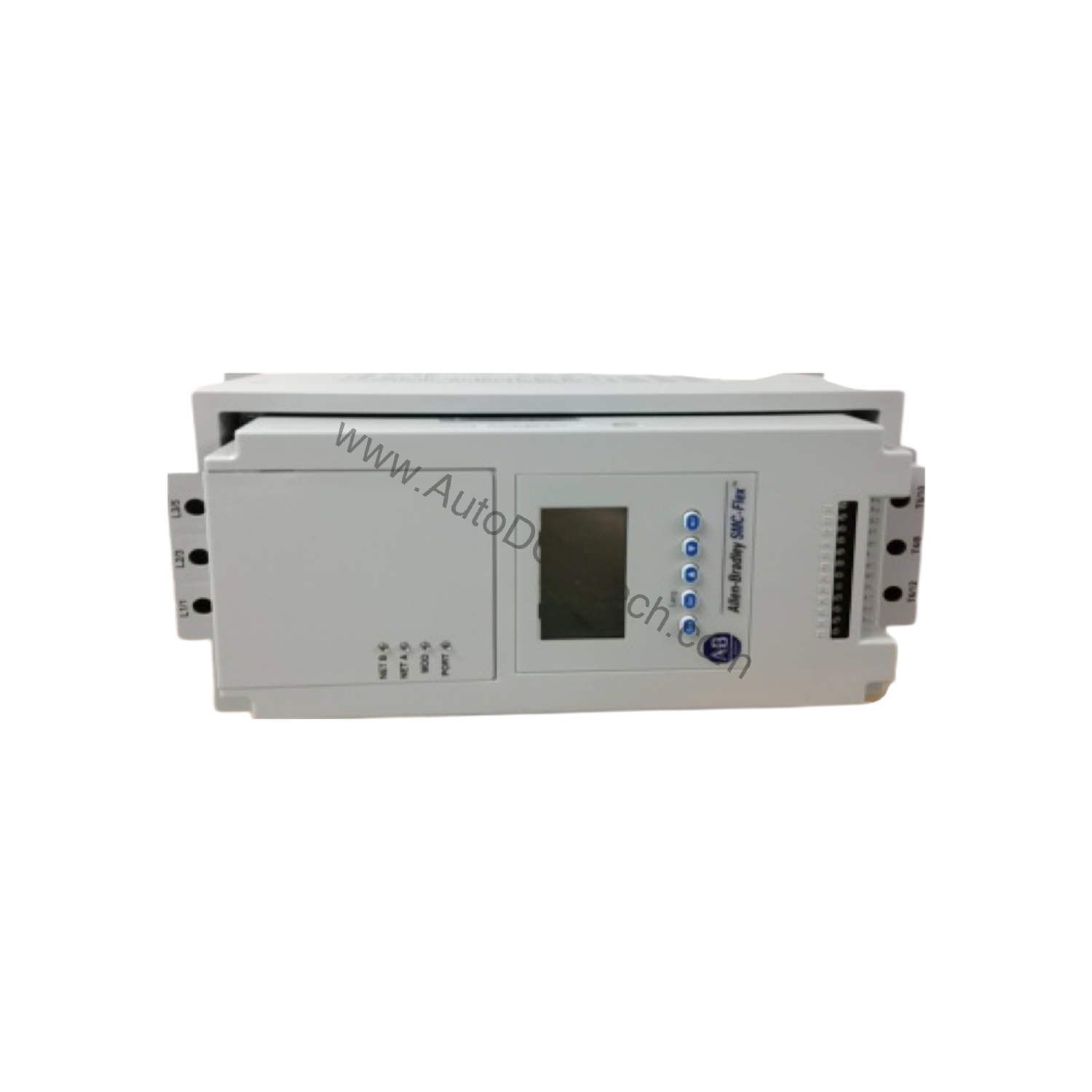

Allen-Bradley 150-F60NBD SMC Flex Smart Motor Controller

Technical Specifications Breakdown

Key parameters for the 150-F60NBD are listed below for quick reference:

Industry Applications

This controller is well-suited for applications requiring controlled motor starting and stopping, such as conveyor systems, pumps, and fans. By limiting inrush current and torque, it reduces mechanical stress on driven equipment. The 150-F60NBD also supports energy savings by minimizing unnecessary electrical parameters during light load conditions.

Installation and Setup Guidance

Mount the controller in a clean, dry location with adequate ventilation. Connect the three-phase input line voltage (200-460V AC) and control voltage (120/240 VAC) per the wiring diagram. Use the embedded LCD screen and keypad for local configuration. For network integration, install optional communication adapters (RS485, ControlNet, Ethernet, ProfiBus, HVAC).

Maintenance and Reliability

Periodically inspect the controller for dust accumulation and ensure proper airflow. Check all electrical connections for tightness. The built-in electronic motor overload protection and SCR bypass/run contactor enhance reliability. Monitor the status indicators for fault conditions such as phase reversal, voltage unbalance, or overload.

The Evolution of Motor Control

Industrial motor control has advanced from simple electromechanical starters to intelligent solid-state systems. The Allen-Bradley 150-F60NBD SMC Flex Smart Motor Controller represents this evolution, offering programmable starting and stopping modes that protect motors from operational stress while maximizing lifespan. This controller is part of the SMC Flex family, designed for three-phase squirrel cage induction motors.

Compatibility and Integration

The 150-F60NBD interfaces with PLCs via control terminals (Start Input, Stop Input, Option Input #1 and #2). It provides four programmable auxiliary contacts for feedback to monitoring systems like HMI or SCADA. The DPI port allows connection of optional human interface modules and communication modules.

Selection Guide and Purchasing Advice

When selecting this controller, verify that the motor rating does not exceed 60 A and 40 HP at 460V AC. Confirm the input line voltage matches your facility's supply. AutoDCSTech offers this component for industrial automation needs.
