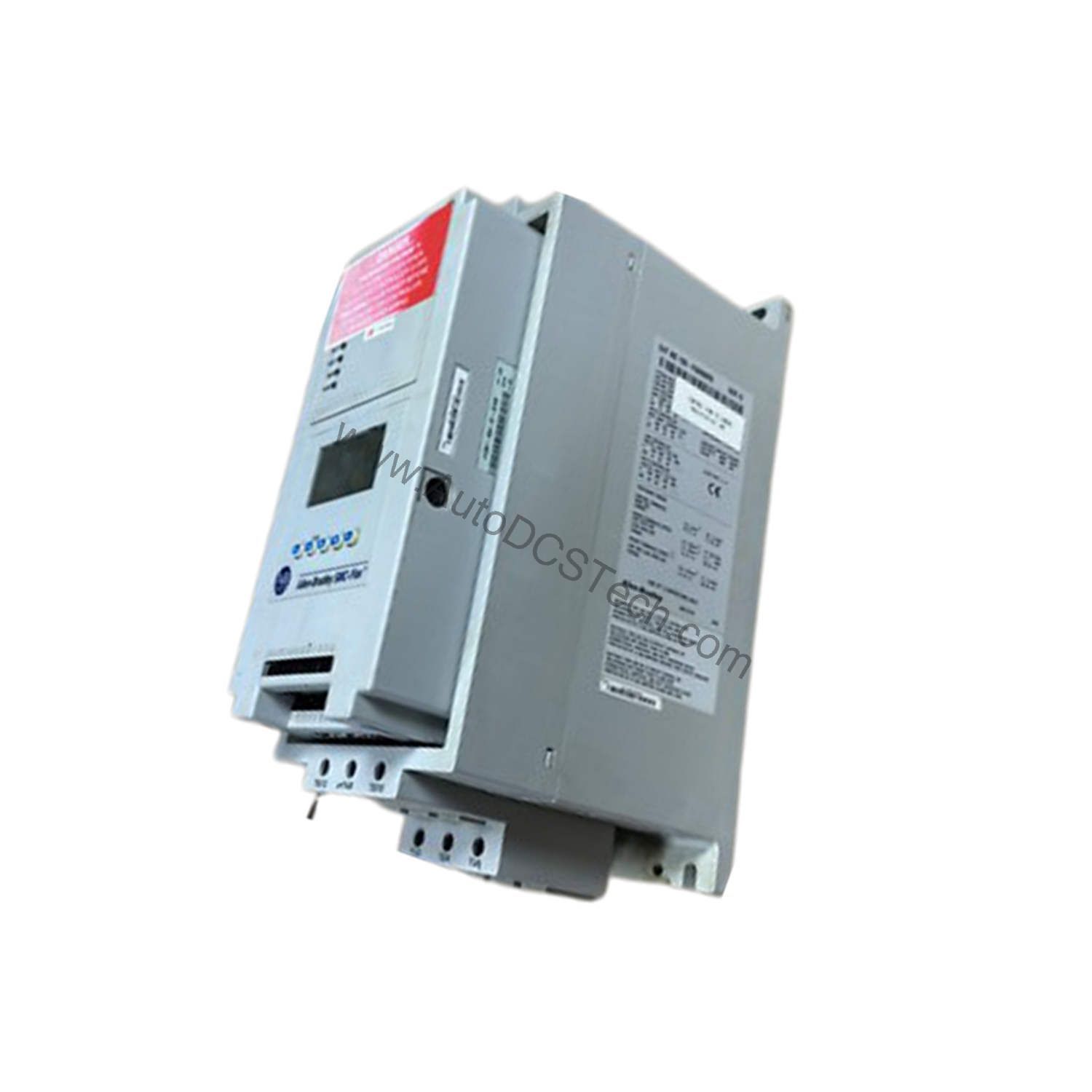

Allen-Bradley 150-F60NBRD SMC Flex Smart Motor Controller 40 HP

Optimize Motor Protection with the Allen-Bradley 150-F60NBRD

Industrial motor starting and stopping can cause mechanical stress, electrical surges, and premature wear. The Allen-Bradley 150-F60NBRD SMC Flex smart motor controller addresses these challenges by providing programmable starting and stopping modes that reduce inrush current and protect connected equipment. This solid-state controller is designed for three-phase squirrel cage induction motors, offering a robust solution for applications requiring reliable motor management.

Technical Specifications Breakdown

Key parameters for the 150-F60NBRD are listed below for quick reference:

Real-World Applications for the SMC Flex Controller

This smart motor controller is well-suited for conveyors, pumps, fans, and compressors where controlled acceleration and deceleration reduce mechanical shock. In material handling systems, the 150-F60NBRD enables smooth starting of belt conveyors, preventing product spillage and belt stretch. For pumping applications, it minimizes water hammer by gradually ramping up motor speed. The controller's 60 A rating and 40 HP capacity at 460V AC make it a fit for medium-duty industrial machinery.

Installation and Setup Guidance

Mount the open-type controller in a clean, dry enclosure with adequate ventilation. Ensure the input line voltage matches the 200-460V AC, 3-phase supply and that the control voltage is set to 120 or 240 VAC. Connect the motor leads to the load terminals provided. Use the embedded LCD and keypad to configure starting modes such as soft start, current limit start, or dual ramp. For remote operation, wire the Start and Stop inputs to a PLC or other control system.

Maintenance and Reliability

Periodically inspect the controller for dust accumulation, loose connections, and signs of overheating. Keep the ambient environment within the specified operating temperature range. The built-in electronic motor overload protection and fault detection (including phase reversal, undervoltage, and overvoltage) help extend motor life. No internal adjustments are required beyond initial configuration.

Compatibility and Integration

The 150-F60NBRD integrates with automation systems via its control terminals and optional communication modules. It supports RS485, ControlNet, Ethernet, ProfiBus, HVAC, and other protocols through DPI adapters. The four programmable auxiliary contacts provide feedback to HMIs, SCADA, or annunciators. This flexibility allows seamless integration into existing Allen-Bradley or third-party control architectures.

Selection Guide and Purchasing Advice

When selecting a smart motor controller, verify that the motor's full-load current does not exceed 60 A and that the supply voltage is within the 200-460V AC range. The 150-F60NBRD is an open-type unit, so plan for a suitable enclosure. AutoDCSTech stocks this controller and can assist with lifecycle status and availability. Contact our team to confirm your application requirements before ordering.
