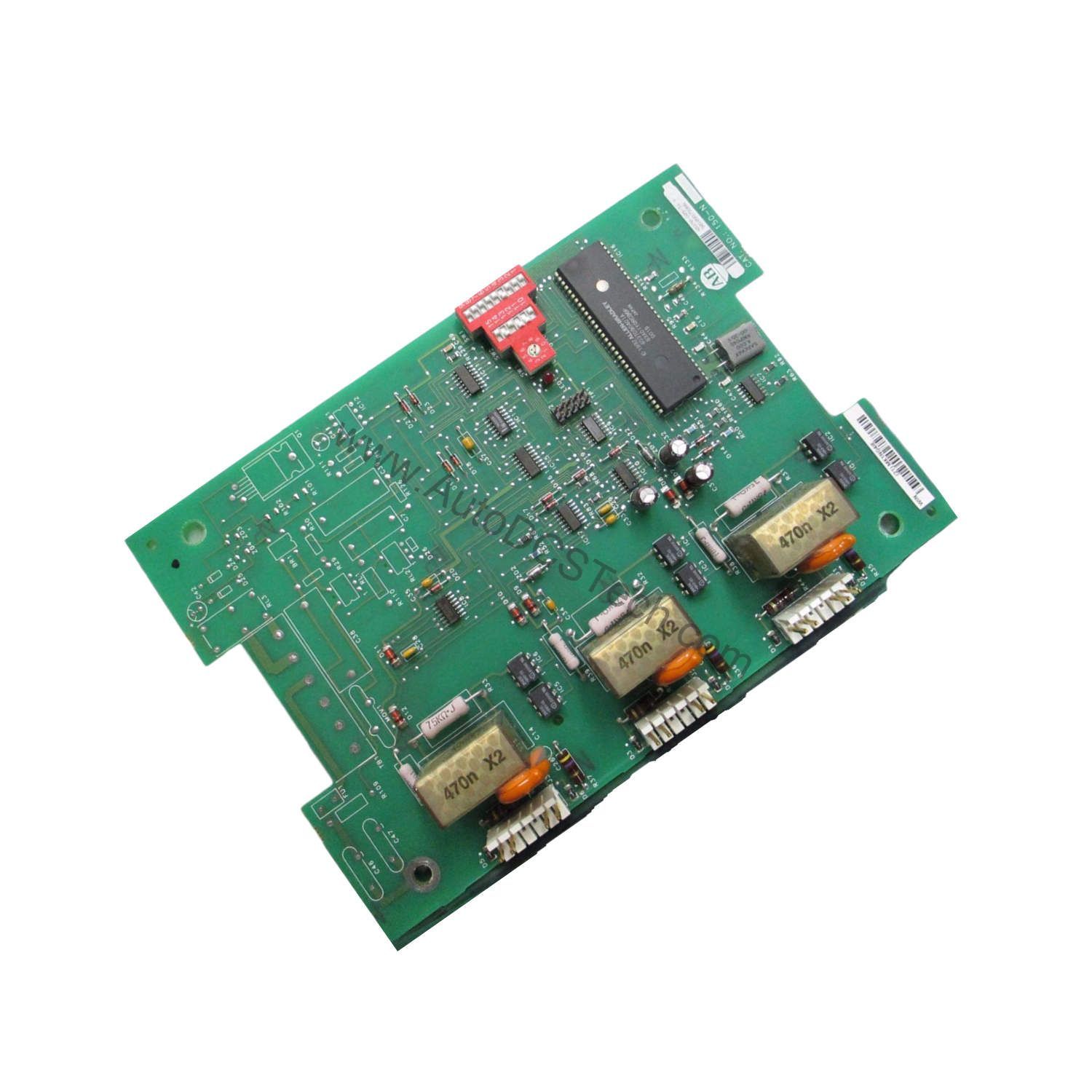

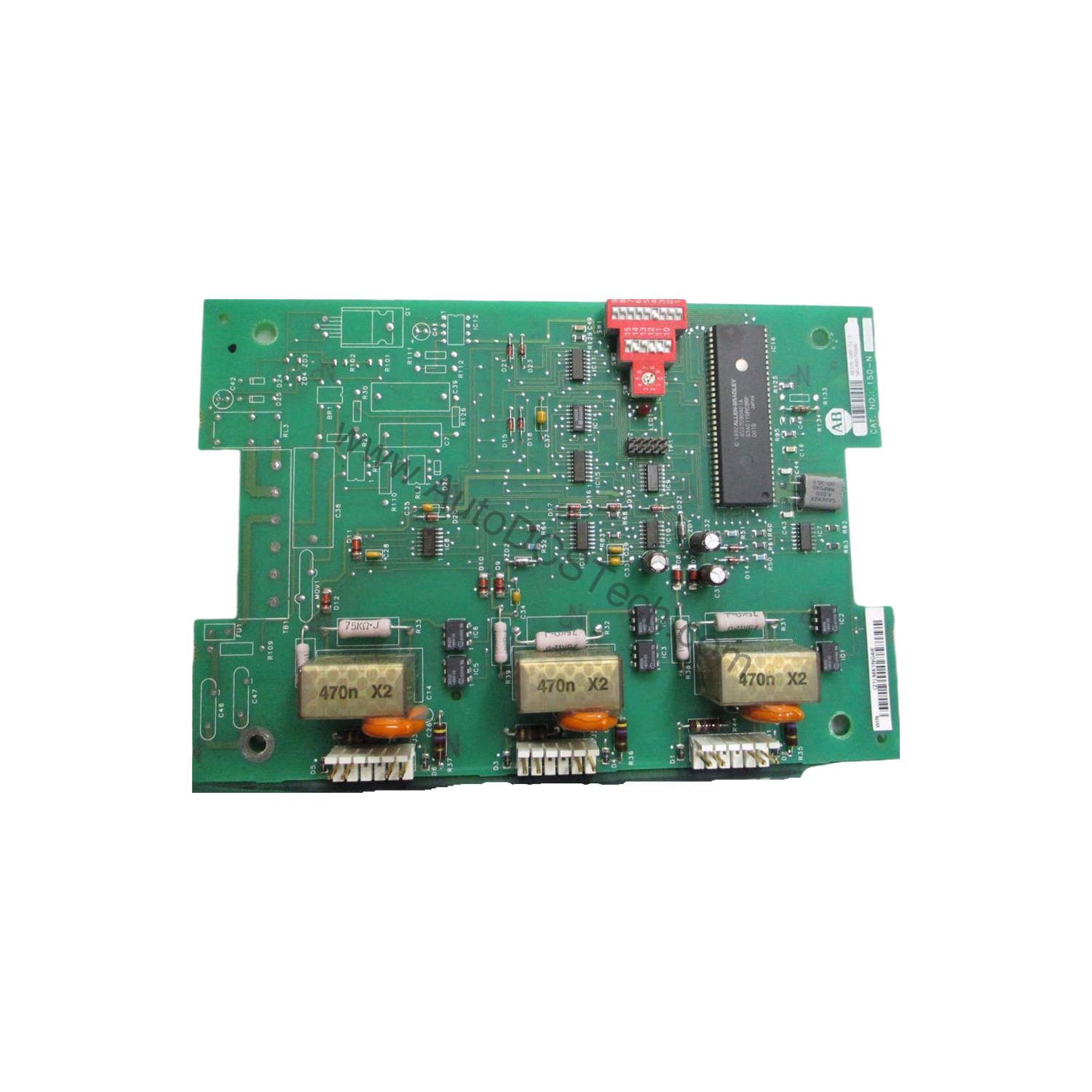

Allen-Bradley 150-N2D SMC Flex Soft Starter Controller

Technical Specifications Breakdown

Key parameters for the 150-N2D are listed below for quick reference:

Industry Applications for the SMC Flex Controller

Pump and Fan Control

In water treatment and HVAC systems, the 150-N2D provides controlled acceleration to reduce water hammer and mechanical shock. The 0 to 90% starting torque range allows operators to match motor torque to load requirements, extending equipment life.

Conveyor Systems

For material handling, the soft starter enables smooth starts and stops, minimizing product spillage and belt wear. The 9 start and stop modes give engineers flexibility to tune performance for varying loads.

Compressor Applications

The 480V AC rating and 50/60 Hz frequency support global compressor installations. The built-in motor overload protection safeguards against thermal damage during repeated start cycles.

Installation and Setup Guidance

Qualified personnel with electrical terminology and safety training must install this controller. Ensure the AC power supply matches the rated operation voltage of 480V AC. The control module requires 75 VA for operation. Mount the unit in a clean, dry environment with adequate ventilation. Use the three expansion ports to install optional modules for enhanced functionality. Each phase includes voltage and current sensors for parameter configuration.

Maintenance and Reliability

Periodically inspect the soft starter for dust accumulation and loose connections. Monitor ambient temperature to prevent overheating. The internal solid-state or bypass control design reduces wear on mechanical components. Always follow the recommended guidelines for installation and maintenance to avoid damage from under-sizing or poor power quality.

The Evolution of Motor Control: Allen-Bradley 150-N2D

Industrial motor control has evolved from simple across-the-line starters to sophisticated soft starters that reduce mechanical stress and electrical disturbances. The Allen-Bradley 150-N2D SMC Flex soft starter represents this advancement, offering a microprocessor-based control module for precise acceleration and deceleration of standard squirrel-cage induction motors.

Compatibility and Integration

The 150-N2D supports the DPI communication protocol and optional network communication for integration into automation systems. It is compatible with standard squirrel-cage induction motors and power structures available with or without integral bypass contactors.

Selection Guide and Purchasing Advice

When selecting a soft starter, verify the motor current rating (5 to 1250 Amps) and voltage compatibility. The 150-N2D is a reliable choice for demanding applications. Contact AutoDCSTech for current lifecycle status and availability before ordering.
