Allen-Bradley 1766-L32BWAA MicroLogix 1400 Controller Overview

Streamlining Industrial Control with the Allen-Bradley 1766-L32BWAA

Product Overview

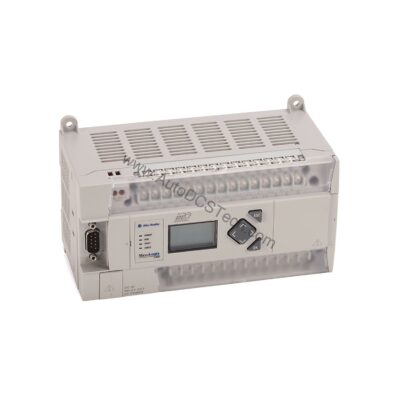

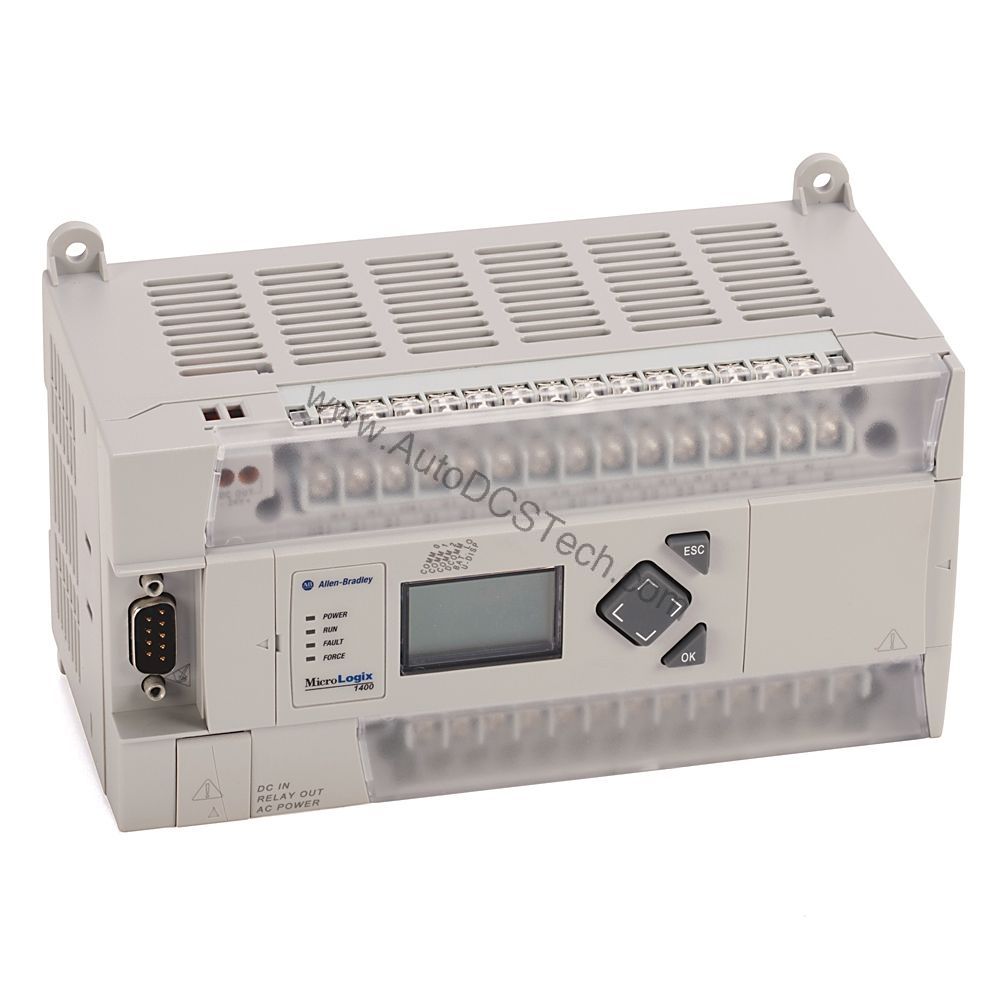

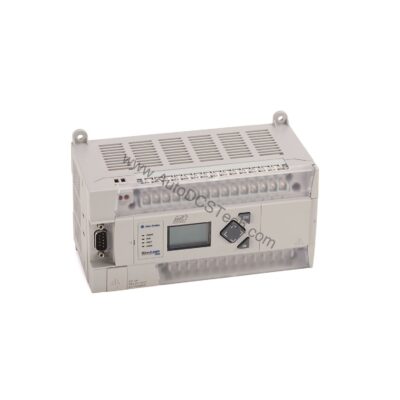

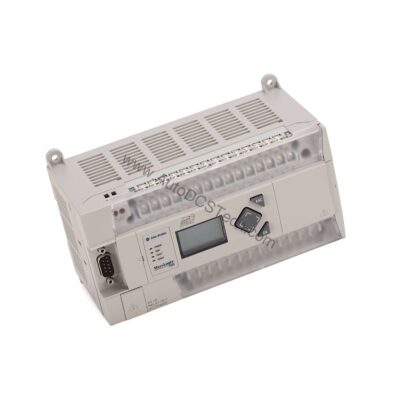

The 1766-L32BWAA is a MicroLogix 1400 Controller from the Bulletin 1766 family by Allen-Bradley (Rockwell Automation). This compact controller combines 38 I/O points, including 12 fast 24V DC inputs, 8 normal 24V DC inputs, 12 relay outputs, 4 analog inputs (0-10V DC), and 2 analog outputs (0-10V DC). It features a built-in real-time clock (RTC) and 20 KB memory (10 KB user program + 10 KB data). The controller supports Ethernet/IP, DNP3, Modbus TCP/IP, and serial protocols (DF1, ASCII, Modbus RTU, DNP3, DH485). With an operating power of 110-240V AC and a power consumption of 120 VA, it is suitable for a wide range of industrial environments.

Technical Specifications Breakdown

Key parameters for the 1766-L32BWAA are listed below for quick reference:

Industry Applications

Water and Wastewater Treatment:Its analog inputs (0-10V DC) handle sensor feedback, while relay outputs manage motor starters. The built-in RTC enables time-based dosing and data logging.

Material Handling Systems: With 12 fast 24V DC inputs for high-speed sensors and 12 relay outputs for actuators, this controller manages conveyor sorting and packaging lines. Ethernet/IP communication integrates with SCADA for real-time tracking.

Building Automation: The controller's DNP3 and Modbus TCP/IP support allow seamless connection to HVAC systems, lighting controls, and energy monitoring. Its compact size (3.5 x 7.08 x 3.43 inches) fits in tight electrical enclosures.

Installation & Setup Guidance

Mount the 1766-L32BWAA on a panel or DIN rail using the provided slots. Ensure the power supply is 110-240V AC and within the operating frequency range of 47-63 Hz. Connect the Ethernet port to your network for programming via RSLogix 500 or Connected Components Workbench. Use the isolated RS232/485 port for serial communication with drives or HMI. The LCD and backlight simplify network configuration and I/O status viewing.

Maintenance & Reliability

Periodically inspect the controller for dust or moisture in the enclosure. The battery-backed RAM preserves user programs during power loss; replace the battery every 5 years or as indicated by the controller status. Keep ambient temperature within the rated range (not specified, but typical for industrial controllers). The open enclosure design requires a clean, dry environment with circuits not exceeding Over-Voltage Category II.

Compatibility & Integration

The 1766-L32BWAA supports up to seven 1762 expansion I/O modules for additional points. It communicates via Ethernet/IP, DNP3, Modbus TCP/IP, DF1, ASCII, Modbus RTU, and DH485. This flexibility allows integration with Allen-Bradley drives, PanelView terminals, and third-party devices. The embedded RTC synchronizes time-stamped data for event logging.

Selection Guide & Purchasing Advice

When selecting the 1766-L32BWAA, verify your I/O count and communication needs. For current pricing and availability, contact AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

• Controller not powering on: Check the 110-240V AC power supply and ensure the power consumption does not exceed 120 VA. Verify the power supply inrush current (25 A at 120V AC for 8 ms, 40 A at 240V AC for 4 ms) does not trip breakers.
• Communication failures: Confirm Ethernet cable integrity and IP address settings. For serial ports, verify DF1 or Modbus RTU parameters match the connected device.
• Analog input reading errors: Ensure the signal is within 0-10V DC range and wiring is shielded. Check the 12-bit resolution conversion in the user program.
• RTC losing time: Replace the battery if the RTC resets after power loss. The battery-backed RAM should maintain data.
