Technical Specifications Breakdown
Key parameters for the 1783-BMS20CGN are listed below for quick reference:
| Feature | Specification |
|---|---|
| Total Ports | 20 |
| Fast Ethernet Copper Ports | 16 (RJ45) |
| Gigabit Combo Ports | 2 (copper or SFP) |
| SFP Fiber Ports | 2 (FE type) |
| Supply Voltage | 12-24 VDC |
| Power Consumption | 30 Watts |
| Power Dissipation | 30 Watts |
| Weight | 5.56 lbs (2.52 kg) |
| Mounting | DIN Rail |
| Enclosure Type | None (open-style) |
Installation and Setup Guidance
Mount the switch on a DIN rail inside a protective enclosure, as it has an open-style rating. Ensure at least 2 inches of clearance around the unit for airflow. Use Category 5e or better shielded Ethernet cables for optimal noise immunity. Connect the power supply (12-24 VDC, Class 2/SELV) to the dual inputs for redundancy.
Maintenance and Reliability
Inspect the switch periodically for dust accumulation and verify that ambient temperature stays within -40 to 60°C (-40 to 140°F). Check alarm relay connections and SFP module seating. No internal user-serviceable parts; contact AutoDCSTech for replacement units if needed.
Reliable Industrial Networking with the Stratix 5700

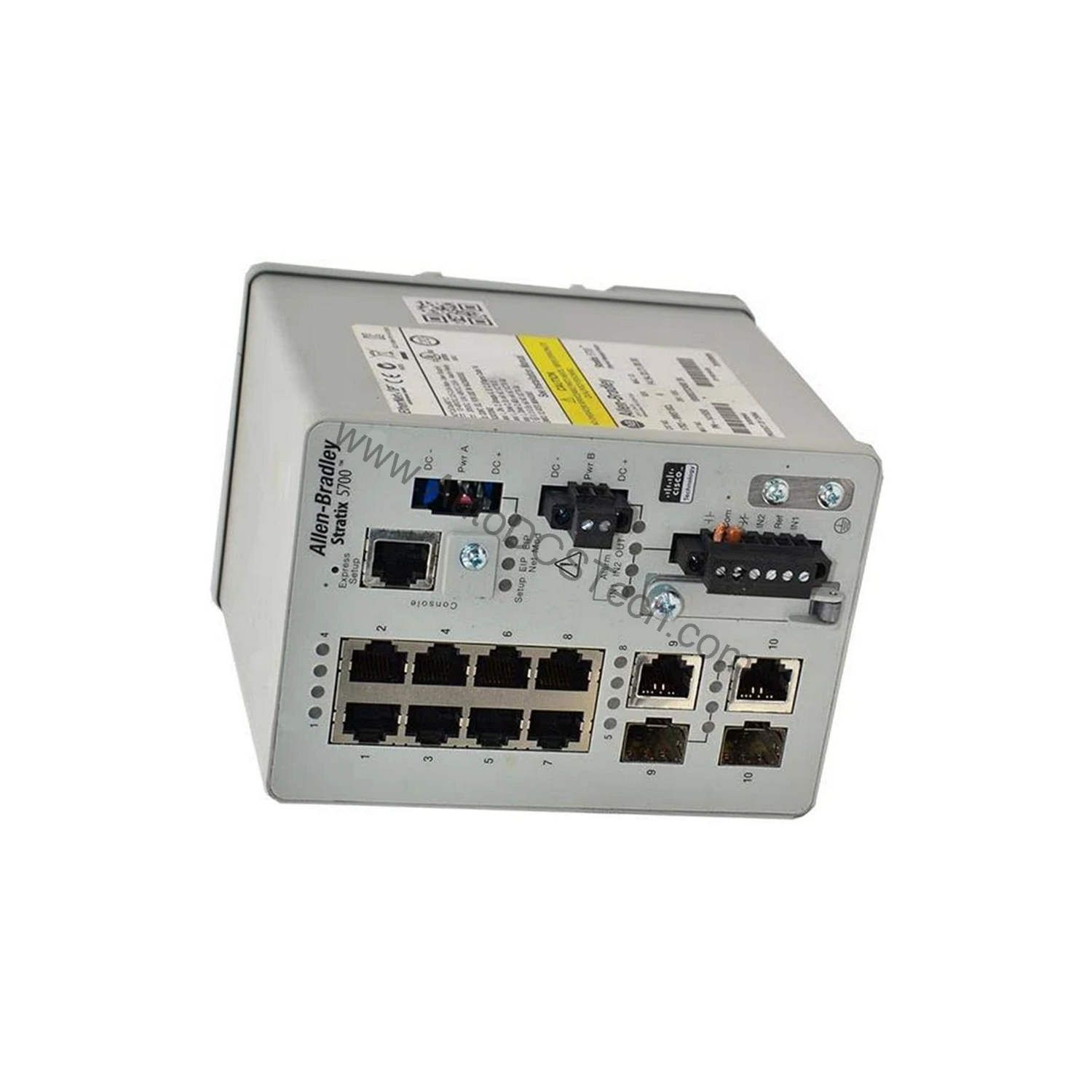

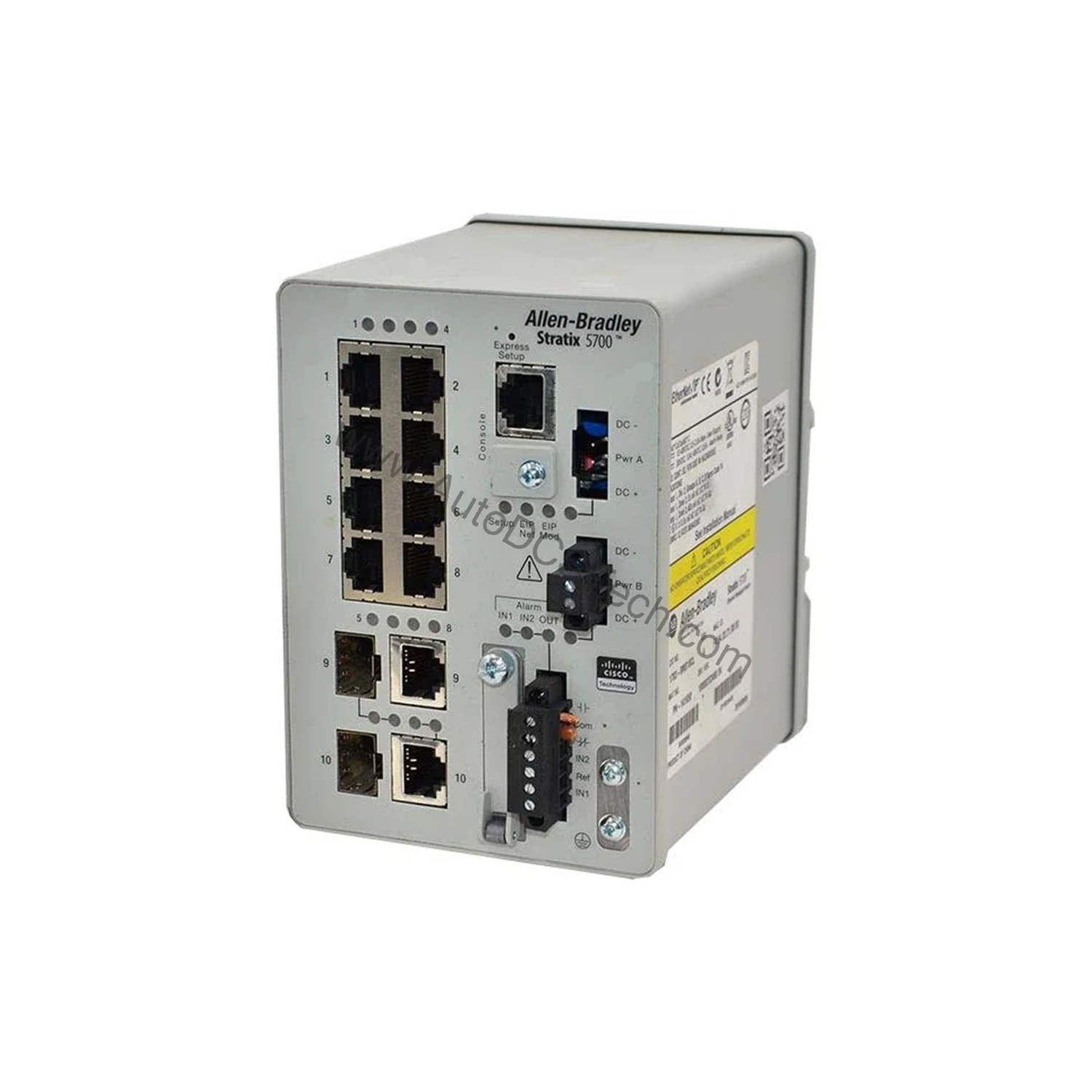

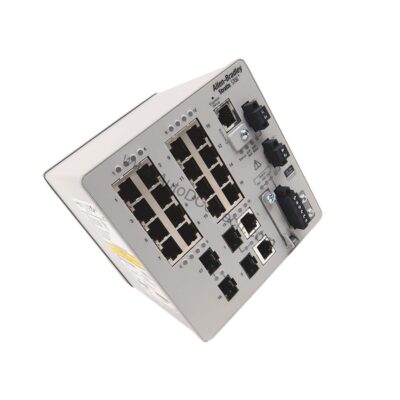

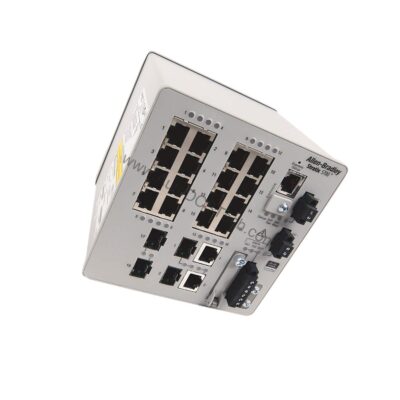

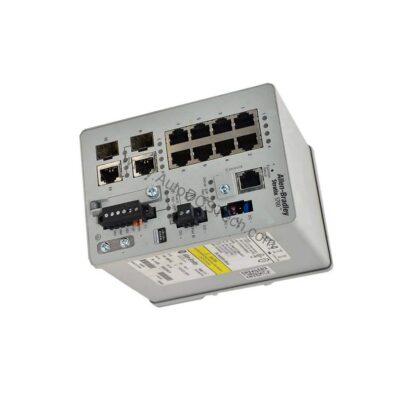

The Allen-Bradley 1783-BMS20CGN is a managed Ethernet switch from the Stratix 5700 series, designed for demanding industrial environments. With 20 total ports, including 16 Fast Ethernet (FE) copper ports, 2 Gigabit Ethernet (GE) combo ports, and 2 SFP fiber slots, it provides flexible connectivity for control networks. This switch supports dual power inputs, alarm relays, and a console port for easy management.
Optimized for Factory Automation
Its support for Device Level Ring (DLR) and Network Address Translation (NAT) simplifies network design and reduces downtime.
Compatibility and Integration
This switch supports CIP Sync for time synchronization and is compatible with Allen-Bradley SFP modules such as 1783-SFP100FX and 1783-SFP1GSX. It also accepts a 1784-SD1 SD card for expanded memory. The 1783-BMS20CGN works with Logix controllers and FactoryTalk software for seamless deployment.
Selection Guide and Purchasing Advice
When selecting a managed switch for your industrial network, the 1783-BMS20CGN offers a balanced mix of copper and fiber ports with advanced features like NAT and DLR. AutoDCSTech stocks this model and can assist with lifecycle status and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 1783-BMS20CGN |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
