Product Overview

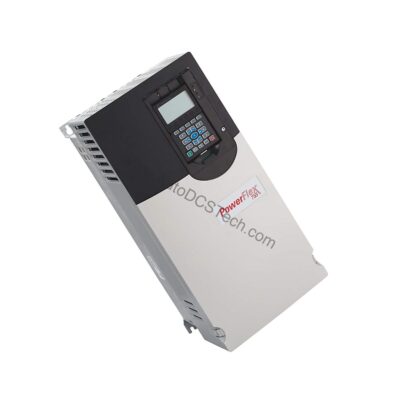

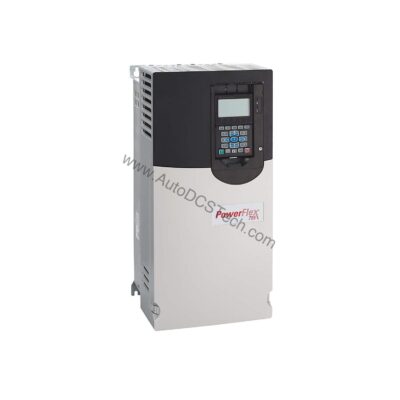

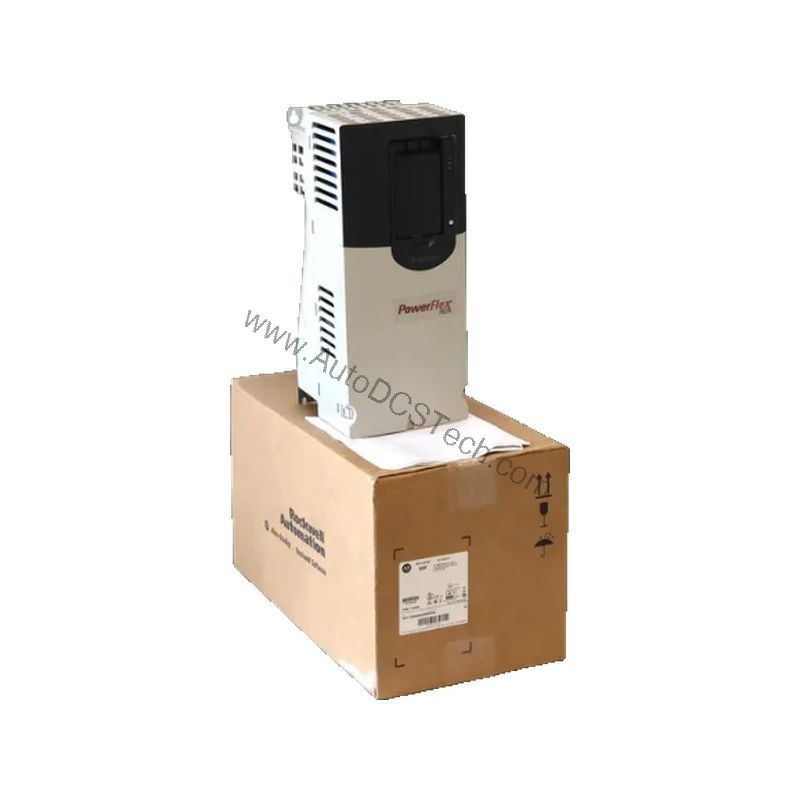

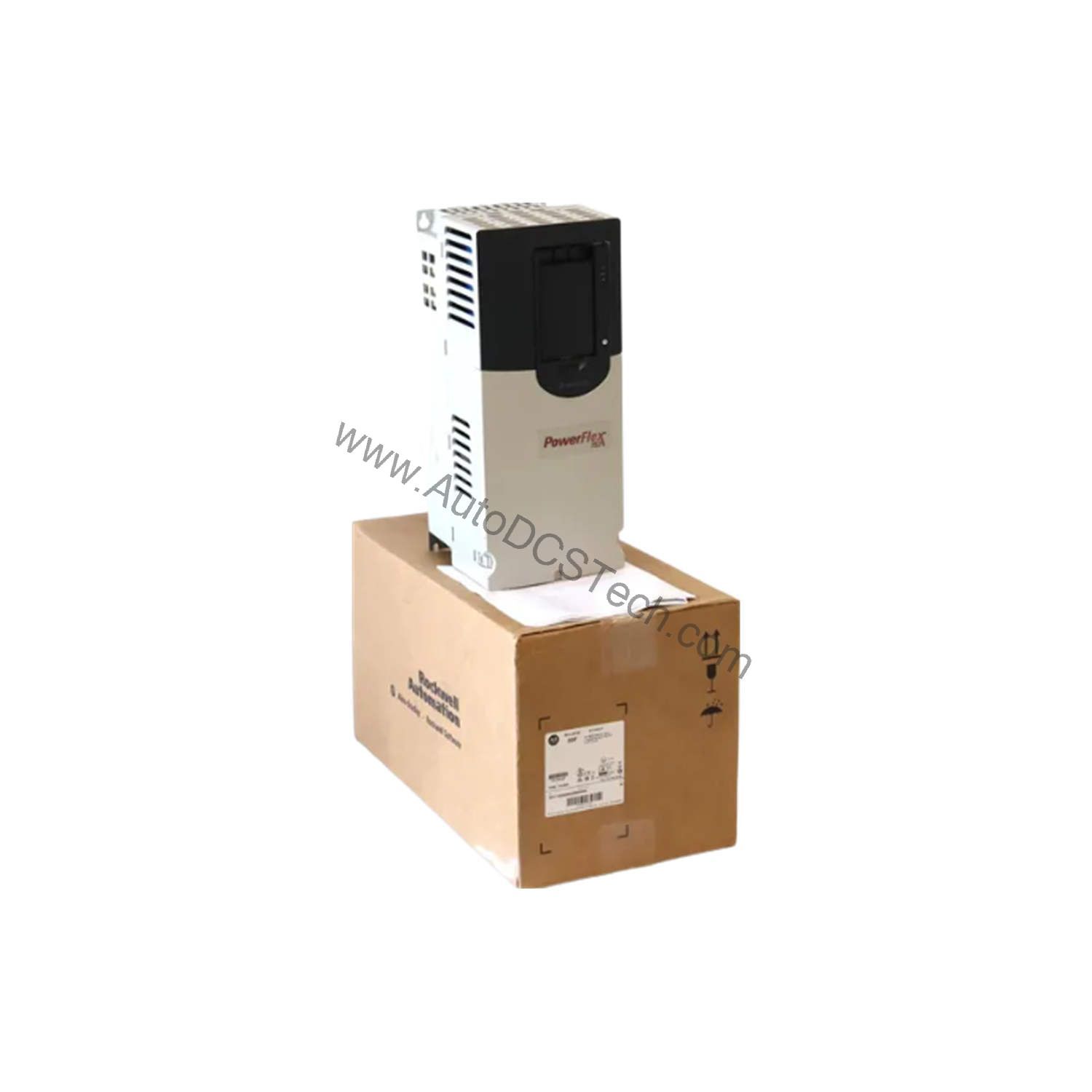

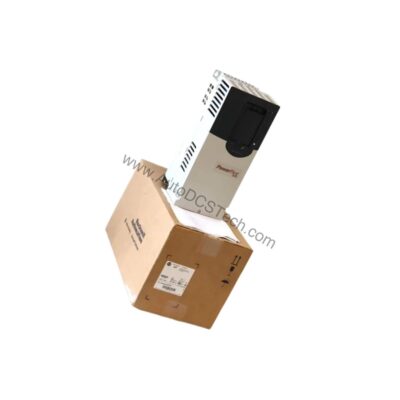

The Allen-Bradley 20F11ND040JA0NNNNN is a three-phase AC drive from the PowerFlex 753 series, engineered for demanding industrial motor control. This unit delivers reliable performance with a current rating of 40 Amperes and an output power rating of 22.3 kilowatts, making it suitable for pumps, fans, and conveyors. Its robust design includes an internal braking transistor and a built-in filter to enhance power quality, ensuring smooth operation in harsh environments.
Technical Specifications Breakdown
Key parameters for the 20F11ND040JA0NNNNN are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Product Type | AC Drive |
| Product Line | PowerFlex 753 |
| Part Number | 20F11ND040JA0NNNNN |
| Rated Phase | 3-phase |
| Voltage Rating | 480 Volts AC and 650 Volts DC |
| Current Rating | 40 Amperes |
| Output Power Rating | 22.3 kilowatts |
| Horsepower Rating | 30 horsepower |
| Weight | 50.00 lbs (22.68 kg) |
| Ambient Operating Temperature | 0 to 40°C (in a non-condensing environment) |
| Storage Temperature | -40 to 70°C (in a non-condensing environment) |
| Filtering | Filter included |
| Braking Unit | Internal transistor included |
| Cooling Method | Air cooling |
Industry Applications
The 40 Ampere rating and 22.3 kilowatts output support medium-duty applications such as conveyor belts, mixers, and industrial fans. Its three-phase input with precharge and DC terminals simplifies integration into existing systems, reducing downtime during retrofits.
Installation & Setup Guidance
Mount the drive in a clean, dry location with ambient temperature between 0 to 40°C. Ensure adequate airflow for the air cooling method. The AC input includes precharge circuitry and DC terminals for flexible wiring. A default common mode (CM) cap connection jumper is included for easy installation adjustments. Verify that the input voltage matches the 480 Volts AC or 650 Volts DC rating before powering up.
Maintenance & Reliability
Periodically inspect the air cooling vents for dust buildup to maintain thermal performance. The internal braking transistor enhances control during deceleration, reducing wear on mechanical brakes. Store the unit between -40 to 70°C in non-condensing conditions when not in use. Always follow standard safety procedures before servicing.
Selection Guide & Purchasing Advice
When selecting a replacement or new drive, confirm that the 40 Ampere current rating and 30 horsepower output meet your load requirements. The PowerFlex 753 series offers flexibility for various industrial networks. AutoDCSTech stocks the 20F11ND040JA0NNNNN and can assist with lifecycle status verification. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 20F11ND040JA0NNNNN |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
