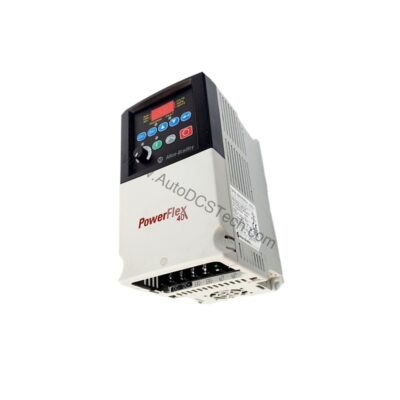

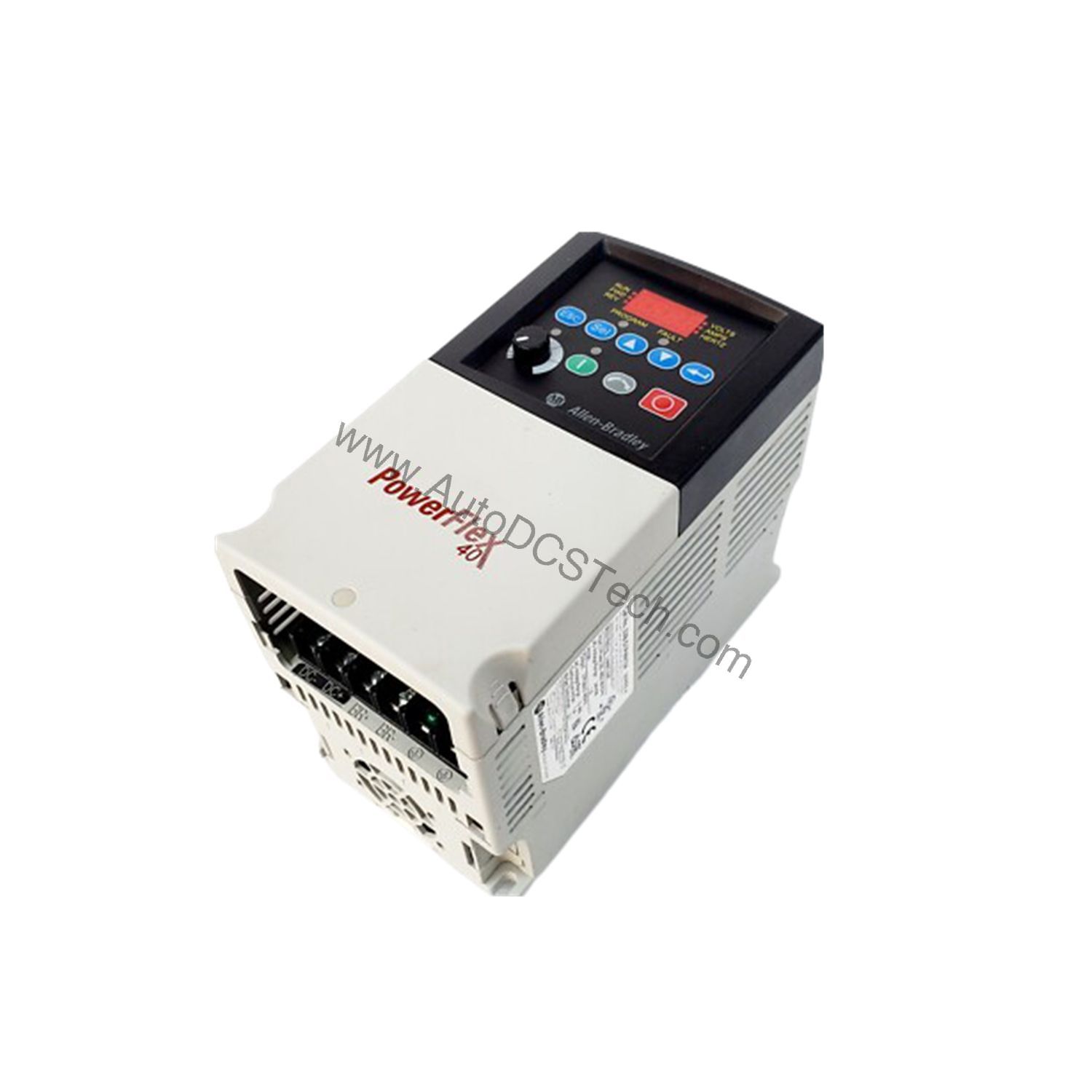

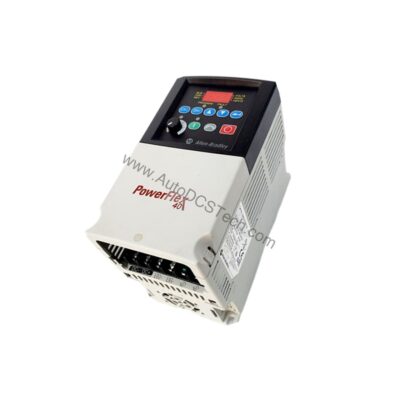

Allen-Bradley 22B-D1P4H204 PowerFlex 40 Drive 0.5 HP, 480V AC

Technical Specifications Breakdown

Key parameters for the 22B-D1P4H204 are listed below for quick reference:

Industry Applications

Conveyor Systems

In material handling, consistent speed control is critical. The 22B-D1P4H204 provides smooth acceleration and deceleration, reducing mechanical stress on belts and gears. Its compact IP20 enclosure fits well in control cabinets where space is limited.

Pump and Fan Control

For HVAC or water treatment, the drive's adjustable frequency allows precise flow and pressure regulation. The 0.5 HP rating suits small pumps and fans, while the RS-485 communication enables integration with building management systems.

Packaging Machinery

With 1.4 A current capacity and 3-phase input, this unit handles light-duty packaging equipment. The keypad input type simplifies on-site parameter adjustments without needing external programming tools.

Installation & Setup Guidance

Mount the drive using DIN rail (A and B frame models) or flange mounting to reduce enclosure size. Ensure ambient temperature does not exceed 40°C to allow zero stacking of drives. The unit includes a relay pre-charge to limit inrush current and an integral brake transistor for dynamic braking. Connect the 480V AC 3-phase supply to the input terminals, and configure motor parameters via the keypad. The removable MOV to ground ensures trouble-free operation on ungrounded distribution systems.

Maintenance & Reliability

Inspect the drive periodically for dust buildup on the enclosure. The IP20, NEMA/UL Type Open (without heatsink) design requires clean, dry environments. Verify that all connections remain tight and that the RS-485 communication cable is properly terminated. The absence of a CE compliant filter means external filtering may be needed in sensitive installations.

Compatibility & Integration

The 22B-D1P4H204 uses RS-485 communication, allowing connection to PLCs or HMIs via Modbus RTU protocol. The keypad input type provides local control, while remote operation is possible through the communication port.

Selection Guide & Purchasing Advice

When selecting a replacement or new drive, verify that your motor matches the 0.5 HP and 1.4 A ratings. This unit is part of the PowerFlex 40 series, known for cost-effective performance in the 0.2 kW to 11 kW range. AutoDCSTech stocks the 22B-D1P4H204 and can advise on availability and lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If the drive fails to start, check the input voltage (480V AC) and phase sequence. An overcurrent fault may indicate a motor short circuit or incorrect parameter settings. Communication errors over RS-485 often stem from wiring polarity or termination resistor issues. The keypad displays fault codes for quick diagnosis. Always consult the user manual for specific error code definitions.
