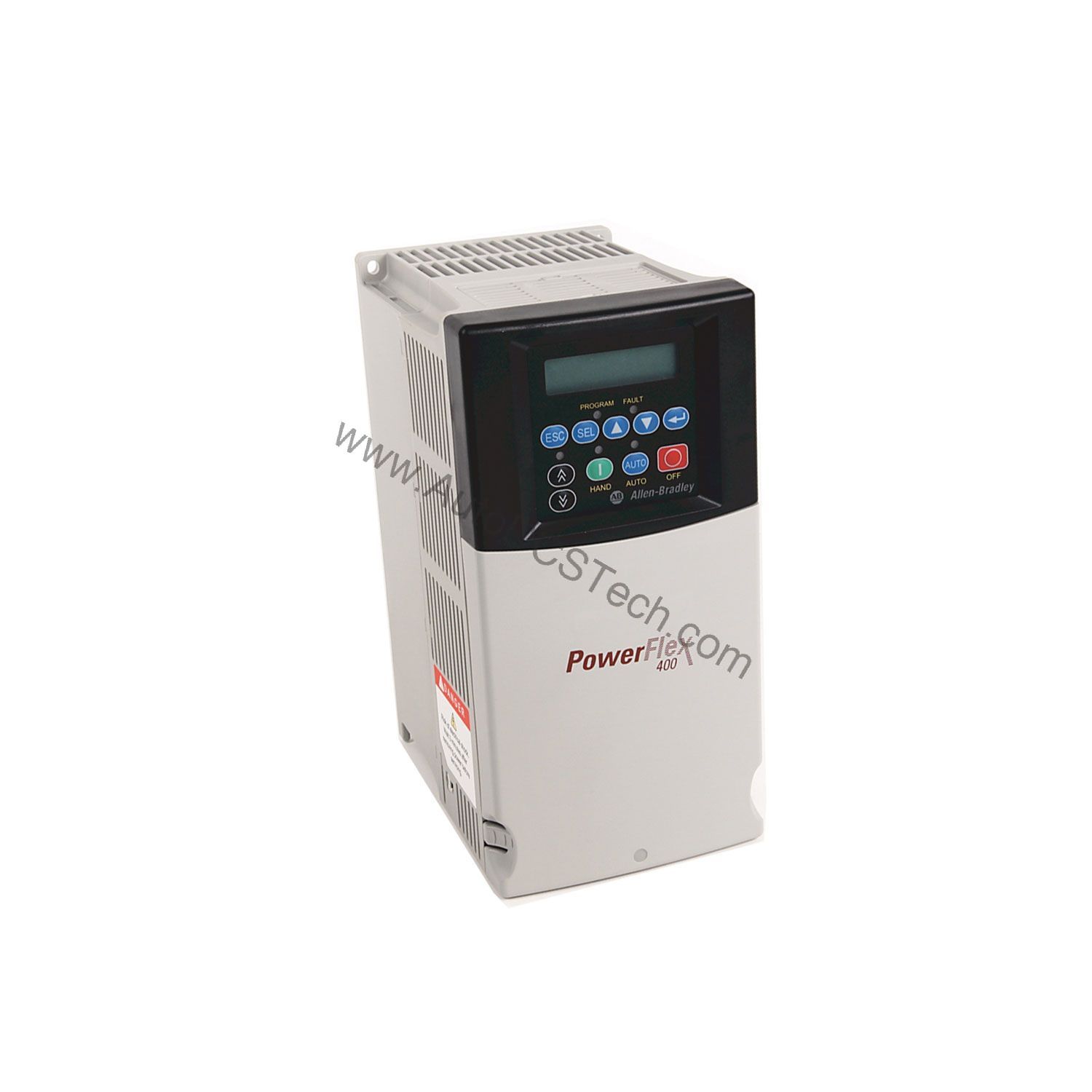

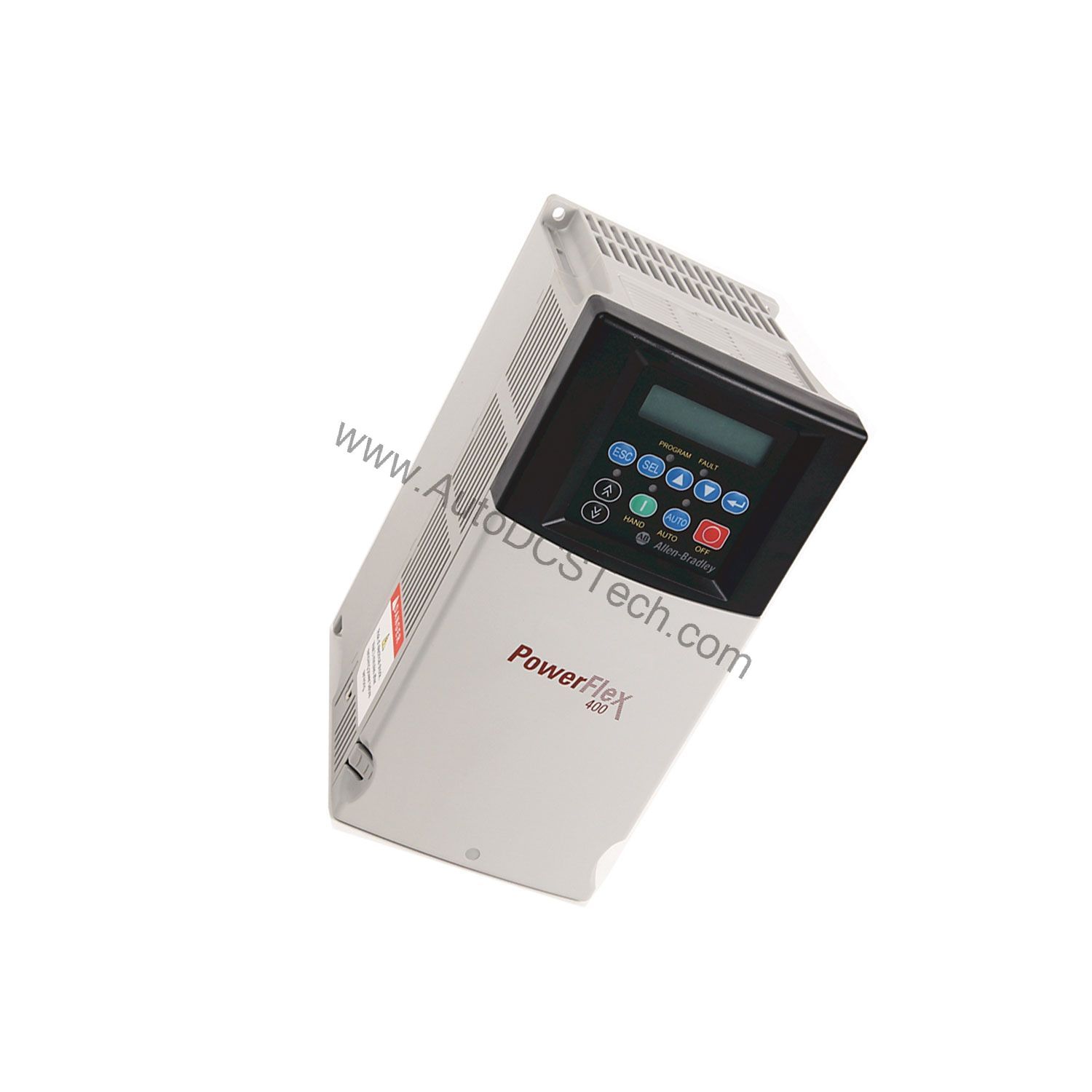

Allen-Bradley 22C-B024N103 PowerFlex 400 Drive for Fan & Pump Control

Technical Specifications Breakdown

Key parameters for the 22C-B024N103 are listed below for quick reference:

Built for Variable Torque Applications

The 22C-B024N103 is not just another VFD; it is a purpose-built solution for fan and pump systems. Its design focuses on delivering cost-effective speed control while handling the unique demands of variable torque loads. The drive provides an output rating of 24A and 5.5KW (7.5HP), with an input rating of 10.9KVA and 26.1A at an input range of 180 to 265V AC. This ensures that your equipment operates efficiently across a wide range of conditions.

Installation and Setup Guidance

Mounting this drive is straightforward thanks to its panel-mount design with an IP20, NEMA/UL Type Open enclosure. Before installation, verify that the input voltage matches your facility's supply—the drive accepts 240V AC three-phase. For branch circuit protection, you can use either a 35A Class CC fuse or a 100-C37 IEC rated AC contactor. The drive also provides motor overload protection, so you can connect your motor with confidence. Remember to follow local electrical codes and the manufacturer's manual for wiring details.

Maintenance and Reliability

To keep your PowerFlex 400 running smoothly, perform periodic inspections of the enclosure and connections. The drive is designed to operate in temperatures from 14 to 122 °F and humidity from 5 to 95% non-condensing. It can withstand 15G of shock for up to 11ms and 1G of vibration at 5 to 2000Hz, making it robust for industrial environments. At altitudes up to 1000m, no derating is required. Regularly check for dust buildup on the heatsink and ensure proper airflow to maintain thermal performance.

Compatibility and Integration

The 22C-B024N103 includes an integral RS-485 serial communication port, allowing programming via a host PC. For advanced networking, it supports DSI communication modules for DeviceNet, EtherNet/IP, and PROFIBUS DP. This flexibility makes it easy to integrate into existing automation systems. The drive also features 7 digital inputs (3 semi-programmable, 4 programmable) with 24V DC sink/source control selectable via a DIP switch, plus 2 analog voltage or current 10-bit control inputs. Two programmable Form C relay outputs and two non-isolated analog outputs provide feedback and control options.

Selection Guide and Purchasing Advice

When selecting a drive for your fan or pump application, consider the horsepower, voltage, and enclosure requirements. The 22C-B024N103 fits most standard three-phase systems. For availability and lifecycle status, please verify with AutoDCSTech before ordering. AutoDCSTech is your trusted source for industrial automation parts, offering genuine Allen-Bradley products and expert support.

Troubleshooting and Common Issues

If the drive trips on overvoltage or undervoltage, check the incoming line voltage against the specified range. The drive has BUS overvoltage and undervoltage trips at 405V DC and 510V DC respectively. For overcurrent trips, the microprocessor-controlled protection triggers at 200% and 300% of rated output hardware and instantaneous fault limits. If you experience ground faults, the built-in MOV provides protection. Always consult the manual for fault codes and follow safe troubleshooting procedures.
