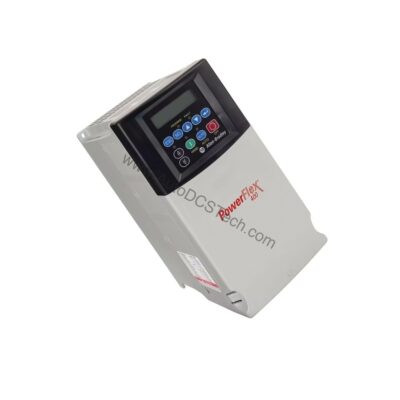

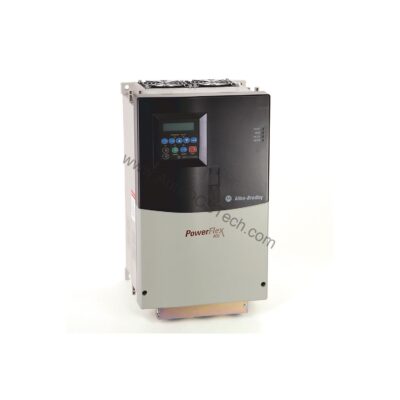

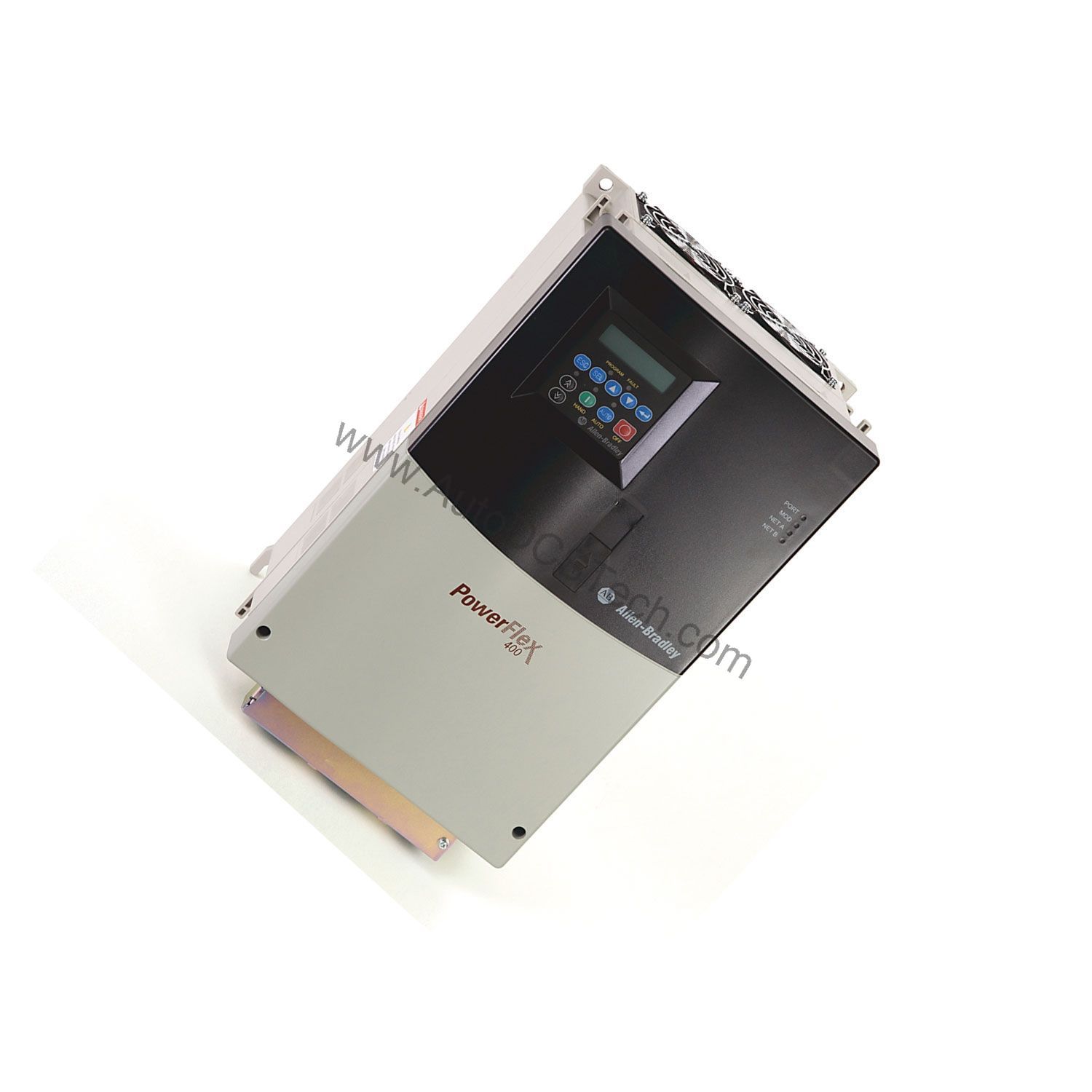

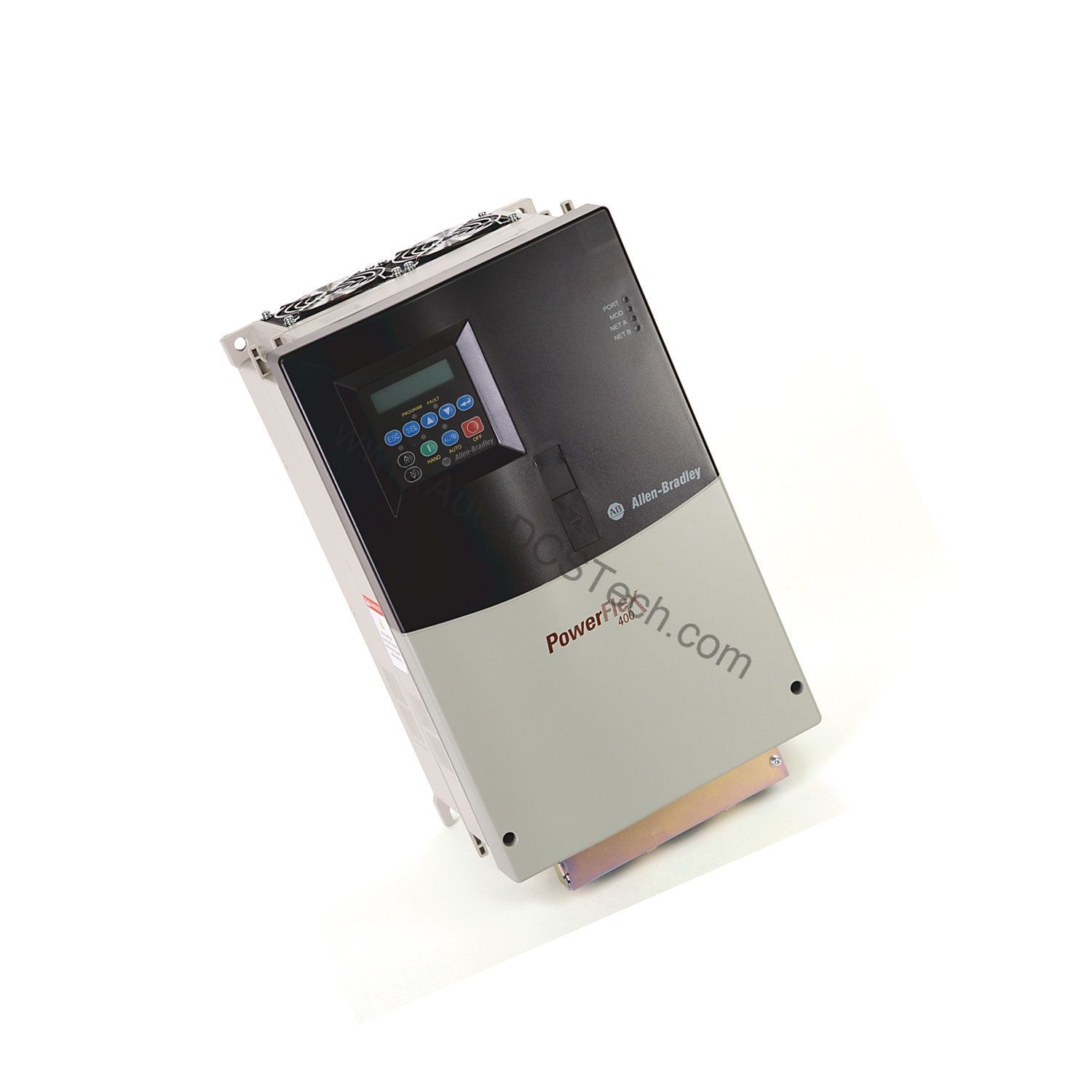

Allen-Bradley 22C-D022N103 PowerFlex 400 VFD, 15 HP, 22A

Technical Specifications Breakdown

Key parameters for the 22C-D022N103 are listed below for quick reference:

Industry Applications for the 22C-D022N103

Common applications include:

• HVAC Systems: The drive modulates supply and return fans, maintaining comfort while reducing energy consumption. The built-in PID loop can respond to duct pressure sensors.
• Water and Wastewater Treatment: Pumps for transfer, filtration, and dosing benefit from smooth start-up and adjustable flow, reducing water hammer and pipe stress.
• Power Plants and Manufacturing: Cooling towers, blowers, and process pumps can be precisely controlled, improving process stability and reducing wear.

Installation and Setup Guidance

Proper installation is key to reliable operation. The drive is panel mount with an IP20 / NEMA UL Open Type enclosure, meaning it is intended for indoor use in a clean, dry environment. Install it in a well-ventilated cabinet to dissipate heat effectively. Allow adequate clearance above and below the drive for airflow. The input voltage range is 342-528VAC, so verify your site supply matches. Use the integral keypad and LCD display to configure parameters such as acceleration, deceleration, and PID setpoints. The RS485 port allows remote monitoring and control via a network.

Maintenance and Reliability

Regular maintenance ensures long service life. Periodically inspect the drive for dust buildup on heatsinks and fans, and clean with dry compressed air if needed. Check all power and control connections for tightness. Verify that the ambient temperature stays within the rated range. The drive's enclosure can be upgraded to IP30 / NEMA Type 1 with optional kits, but this does not change the maintenance requirements. Always follow safe electrical practices and disconnect power before servicing.

Compatibility and Integration

The 22C-D022N103 is designed to work with standard three-phase induction motors. Its built-in RS485 port supports Modbus RTU, allowing easy connection to PLCs and SCADA systems. For more advanced networking, optional communication modules are available for PROFIBUS, DeviceNet, ControlNet, Ethernet, BACnet, and LonWorks. This flexibility makes the drive suitable for both new installations and retrofits. The embedded discrete I/O includes seven sink/source inputs and one open output, plus two Form C contacts, providing local control and status feedback.

Selection Guide and Purchasing Advice

When selecting a VFD, match the drive's output current and voltage to your motor's full-load current and voltage. The 22C-D022N103 provides 22 A output and 0-460VAC, suitable for a 15 HP (11 kW) motor. Consider the control method you need: V/Hz for simple speed control, or Process PID for closed-loop regulation. Also, verify the enclosure type and communication requirements. For a reliable supply, contact AutoDCSTech to confirm availability and lifecycle status. They offer genuine Allen-Bradley parts and can advise on alternatives if needed.
