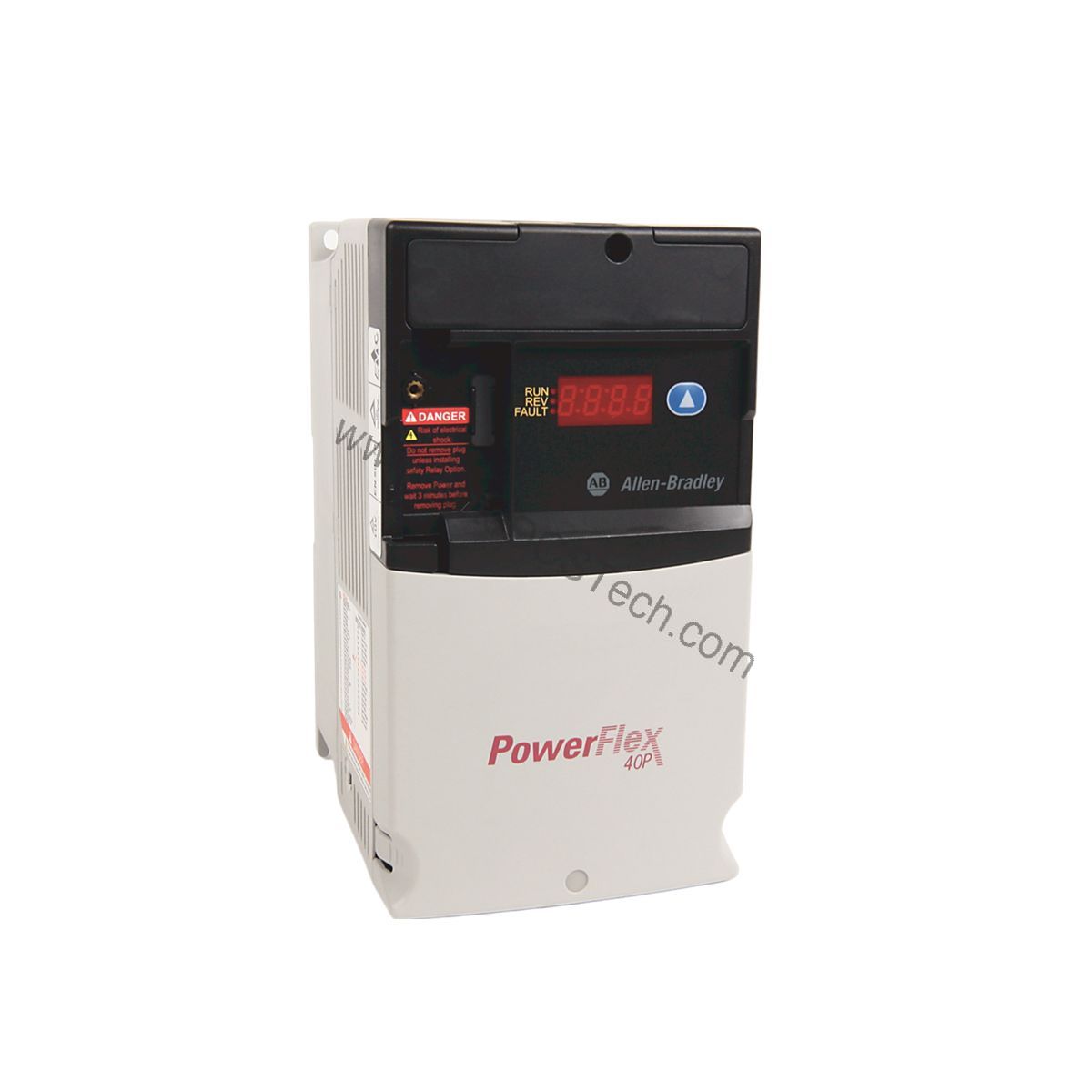

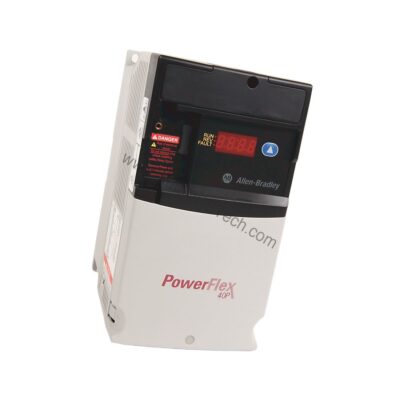

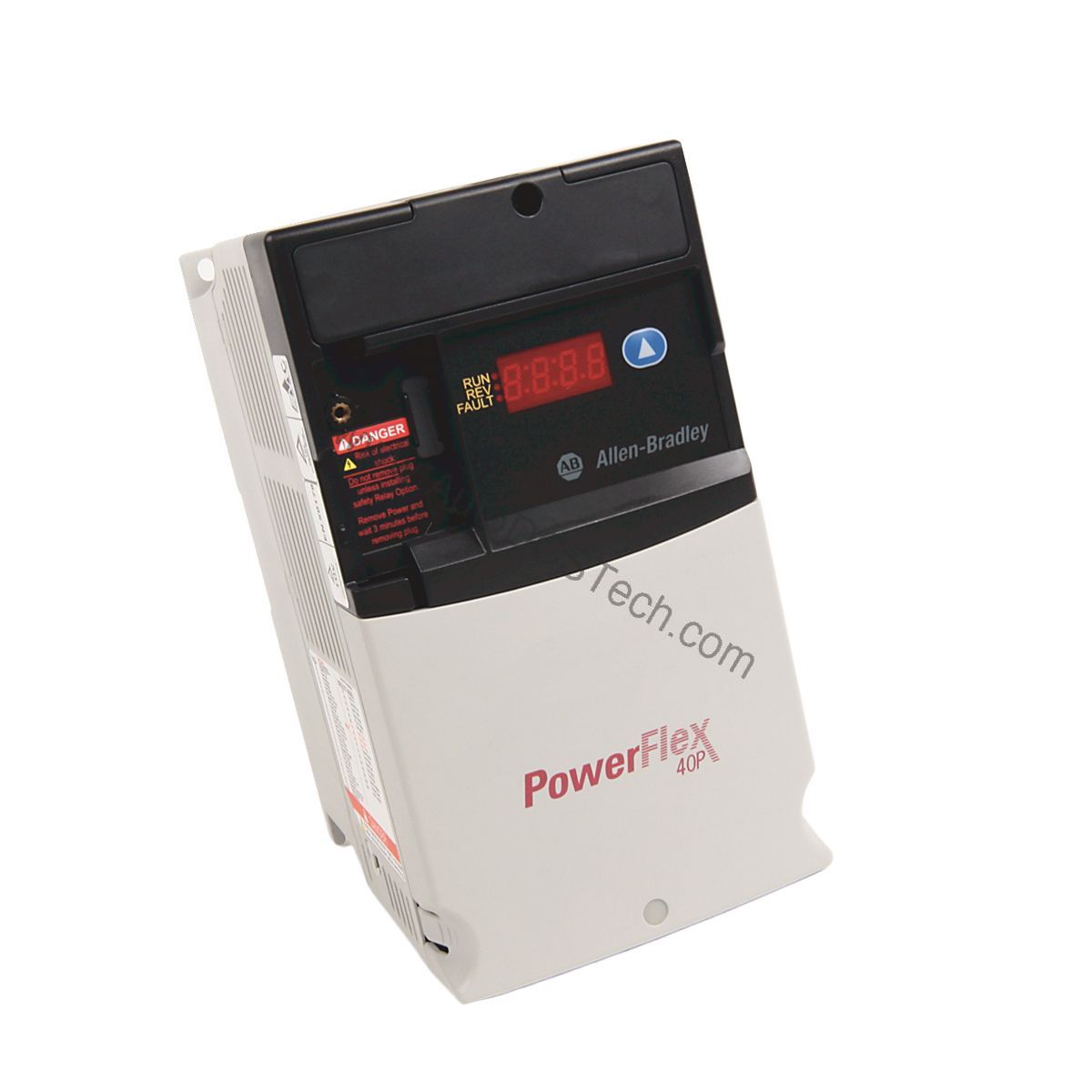

Allen-Bradley 22D-D017H204 PowerFlex 40P Drive 10HP 480V

Technical Specifications Breakdown

Key parameters for the 22D-D017H204 are listed below for quick reference:

These specifications directly influence operational costs. The 480V AC three-phase input allows for efficient power distribution, reducing line losses compared to lower voltage systems. The 17.0 A rating and 10 HP output match typical conveyor and packaging loads, ensuring you don't pay for unused capacity.

Industry Applications: Where the 22D-D017H204 Saves Money

The 22D-D017H204 shines in applications where speed control directly impacts product quality and energy consumption. In smart conveyor systems, precise speed regulation minimizes product damage and reduces mechanical wear, cutting maintenance costs. For packaging machines, the drive's basic position control ensures accurate indexing, reducing waste and rework.

In spinning machines, the sensorless vector control maintains consistent torque across the speed range, which is critical for thread tension and product uniformity. This consistency reduces scrap rates and improves throughput. By providing only the power needed for each operation, the drive helps lower energy bills—a key cost factor in continuous production environments.

Installation and Setup Guidance

Proper installation is essential for maximizing the 22D-D017H204's performance and lifespan. The drive's Open NEMA Type -Plate Mount (IP20) enclosure requires mounting in a clean, dry location. If a higher degree of protection is needed, consider the UL Type 1 conversion kit (available separately). Ensure adequate clearance around the drive for airflow; the frame size C dictates specific spacing—refer to the user manual for exact dimensions.

During wiring, verify that the input voltage matches the 480V AC rating. Use properly sized conductors and torque connections to manufacturer specifications. The drive includes an integral RS485 communication port, enabling multi-drop network configurations. For initial setup, use the autotune feature to adapt the drive to the connected motor's characteristics. This simple step improves speed regulation and torque accuracy, reducing energy waste.

Maintenance and Reliability

Regular inspection of the 22D-D017H204 helps prevent unplanned downtime. Check the cooling fan and heat sink for dust accumulation every six months, as blocked airflow can cause overheating. Inspect all power terminals for signs of loosening or corrosion annually. The IP20 enclosure does not protect against moisture or dust ingress, so keep the surrounding environment clean.

Because the drive has no CE-compliant filter, external filtering may be required to meet EMC standards in your region. This is a critical consideration for installations that must comply with European directives. Consult with AutoDCSTech to determine if an external filter is necessary for your application.

The 22D-D017H204: A Cost-Effective PowerFlex 40P Drive for Precision Speed Control

When production lines demand precise speed regulation without inflating capital budgets, the Allen-Bradley 22D-D017H204 delivers a balanced solution. This adjustable frequency drive from the PowerFlex 40P series combines closed-loop control with a compact, cost-effective design. It is engineered for global OEM specifications, making it a practical choice for machine builders who need flexibility, space savings, and ease of use.

The 22D-D017H204 provides a Category 3 Safe Torque-Off feature, enhancing operator safety during maintenance and emergency stops. This feature alone can reduce the need for external safety components, lowering overall system cost. For applications like smart conveyors, packaging machines, and spinning machines, this drive offers reliable speed and basic position control.

Compatibility and Integration

The 22D-D017H204 is designed to integrate with Rockwell Automation's Logix control system, simplifying parameter and tag programming. It supports integral communication cards for DeviceNet, EtherNet/IP, PROFIBUS, and ControlNet, allowing flexible network connectivity. For wireless monitoring, a DSI wireless interface module is available. The drive also supports RTU Master devices and standard 03, 06, and 16 RTU commands, making it compatible with many legacy systems.

This broad compatibility reduces integration costs and allows you to standardize on one drive type across multiple lines. The remote HMI with LCD, remote panel mounting, digital speed control, and CopyCat capability (IP66) provides convenient operator interface options.

Selection Guide and Purchasing Advice

When selecting a replacement or new drive, verify that the 22D-D017H204 matches your motor's voltage, current, and horsepower requirements. The 480V AC, 17A, 10 HP rating is suitable for many industrial motors. If your application requires a CE-compliant filter, note that this model does not include one—you may need to source an external filter or choose a different variant.

AutoDCSTech offers the Allen-Bradley 22D-D017H204 and can provide guidance on compatibility and lifecycle status. Before ordering, confirm the current availability and whether this model is still in production. AutoDCSTech's team can help you source the right drive for your needs, ensuring minimal downtime and cost-effective operation.
