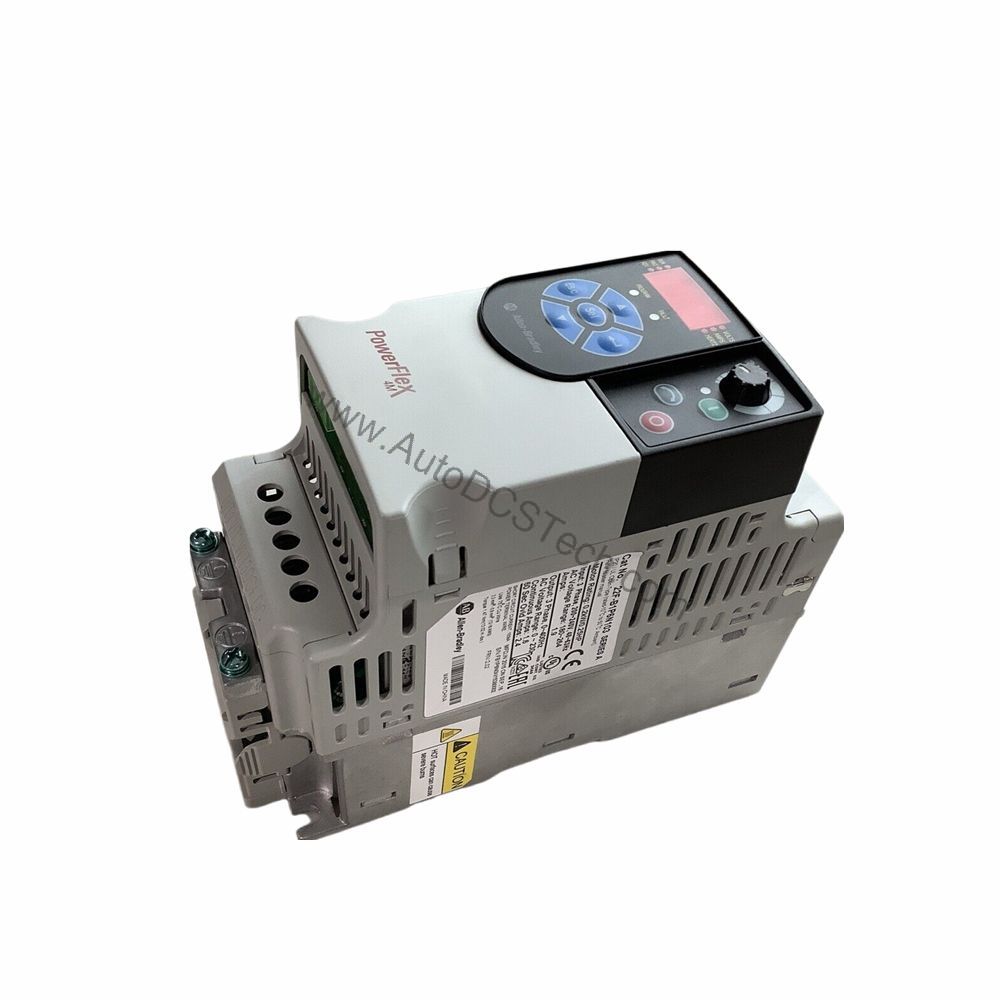

Allen-Bradley 22F-D8P7N103 PowerFlex 4M VFD, 3.7 kW, 5 HP

Technical Specifications Breakdown

Key parameters for the 22F-D8P7N103 are listed below for quick reference:

The 22F-D8P7N103 is engineered for global OEM requirements, particularly in machine-level speed control. The drive's 3.75 kW (5.0 HP) output and 8.7 A current capability are well-suited for typical AC induction motors in these applications. The optional communication protocols, including EtherNet/IP and DeviceNet, allow seamless integration into modern control architectures, reducing hardwiring and simplifying diagnostics.

Installation & Setup Guidance

This PowerFlex 4M drive supports panel mounting and offers a feed-through wiring system that simplifies retrofits. The integral keypad and LED display enable out-of-the-box operation, allowing basic configuration without external programming tools. For optimal performance, maintain an ambient temperature of 50 degrees Celsius and ensure adequate spacing between drives for airflow. The IP20 / NEMA UL Type Open enclosure is suitable for indoor, clean environments; protect it from dust and moisture.

Maintenance & Reliability

Regular inspection of the drive's cooling fans and air passages is recommended to prevent overheating. Check all power and control wiring terminations periodically for tightness. The drive includes drive overload protection and ramp regulation, which help extend motor and drive life. Because this model does not include a CE-compliant filter or brake drive, verify that your application does not require these features. For safety, always disconnect power before servicing.

Solving the Space and Cost Challenge in Machine-Level Speed Control

Industrial machines often demand precise speed control, but panel space is tight and budgets are lean. The Allen-Bradley 22F-D8P7N103 PowerFlex 4M Variable Frequency Drive (VFD) directly addresses this challenge. It delivers robust motor control in a compact, cost-effective package, making it a practical choice for OEMs and panel builders who need reliable performance without sacrificing valuable real estate.

Compatibility & Integration

The 22F-D8P7N103 features a built-in RS485 communication port, enabling connection to PLCs and HMIs. For advanced integration, optional communication modules support BacNet, LonWorks, ProfiBus, Ethernet, DeviceNet, and ControlNet. With Allen-Bradley's Premiere Integration, parameters can be linked directly to Logix controllers like CompactLogix and ControlLogix, eliminating hardwired I/O and streamlining commissioning. The embedded I/O—five sink/source discrete inputs, one Form C contact output, and one analog input (0-10VDC or 0-20mA)—provides flexible local and remote control options.

Selection Guide & Purchasing Advice

The 22F-D8P7N103 is a compact, cost-effective solution for variable speed control in OEM applications. When selecting a drive, confirm that the input voltage range (340-528 VAC) matches your facility's power supply and that the output current (8.7 A) meets your motor's requirements. Consider the enclosure rating and available communication options. For availability and lifecycle status, contact AutoDCSTech, your trusted supplier of industrial automation parts. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
