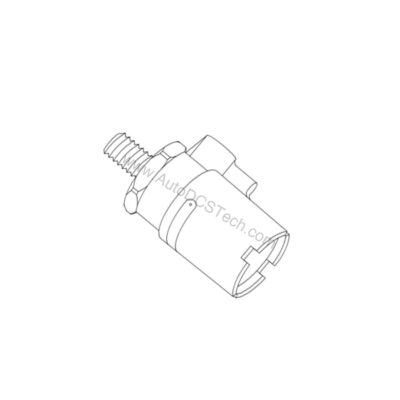

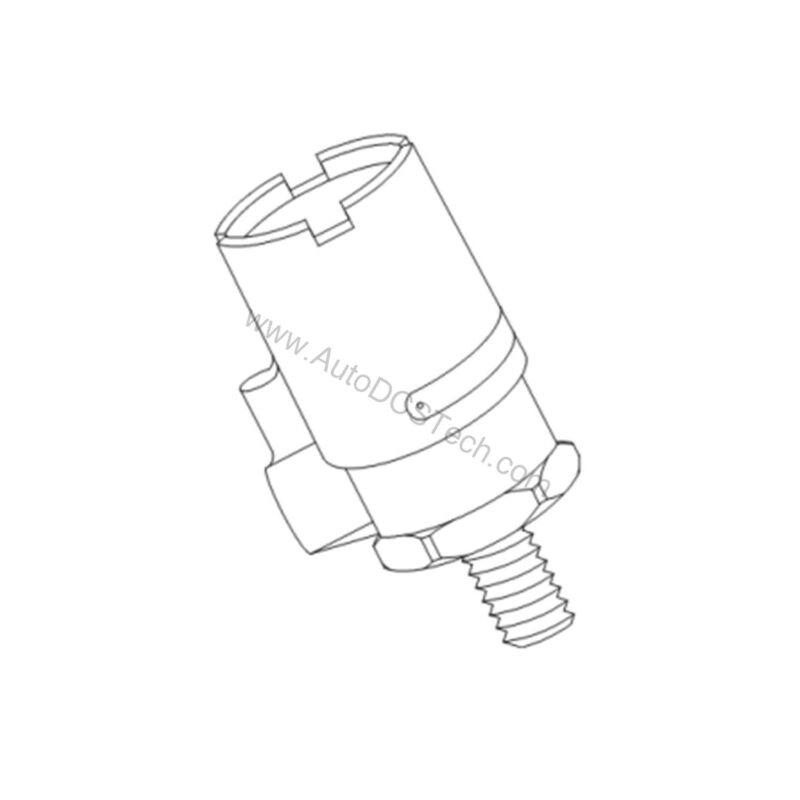

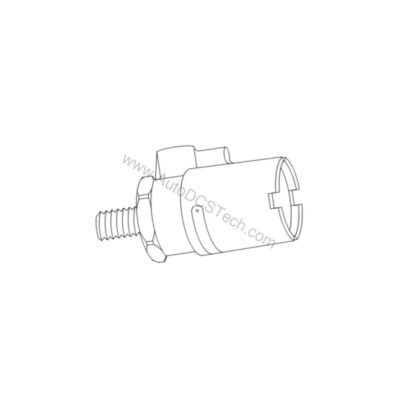

BA42608-03-01: IP65 Water and Dust resistant Velocity Transducer
The BA42608-03-01 is the IP65 Water and Dust resistant Velocity Transducer covered on this page. The attribute that decides whether it fits the existing installation without modification is 1.6 kg (3.55 lb).
On this unit ip65 water and dust resistant velocity transducer is the figure that decides fit and function. In a machine protection or condition-monitoring installation ip65 water and dust resistant velocity transducer is the attribute that decides whether the sensor reaches the target and reads it on the correct gap. A probe or transducer specified to the wrong case length, thread or sensitivity either cannot reach the measured surface or returns vibration values that do not line up with the rest of the train. Confirming 1.6 kg (3.55 lb) against the existing mount is therefore the first check before a replacement, not an afterthought.
| Feature | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Brand | Bently Nevada |
| Part Number | BA42608-03-01 |
| Model | BA42608 - IP65 Water and Dust-resistant Velocity Transducer Housing |
| Mounting Thread and Cap Option | 03 = 1/2-in 14 NPT |
| Cable Exit Fitting Option | 01 = 1/2-in NPT plug |
| Outlet Port Size | 1/2-in NPT |
| Internal Mounting Thread | 5/8-in 18 UNF-2B |
| Weight | 1.6 kg (3.55 lb) |
| Temperature Rating | -29°C to +121°C (-20°F to +250°F) |
| O-ring Material | Neoprene |
| Compliance | RoHS Directive 2011/65/EU |
Datasheet & Downloads
Specification sheet for BA42608-03-01. For lead time, condition and price, contact our team.
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
Availability & Condition at AutoDCSTech
| Part Number | BA42608-03-01 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
