Product Overview

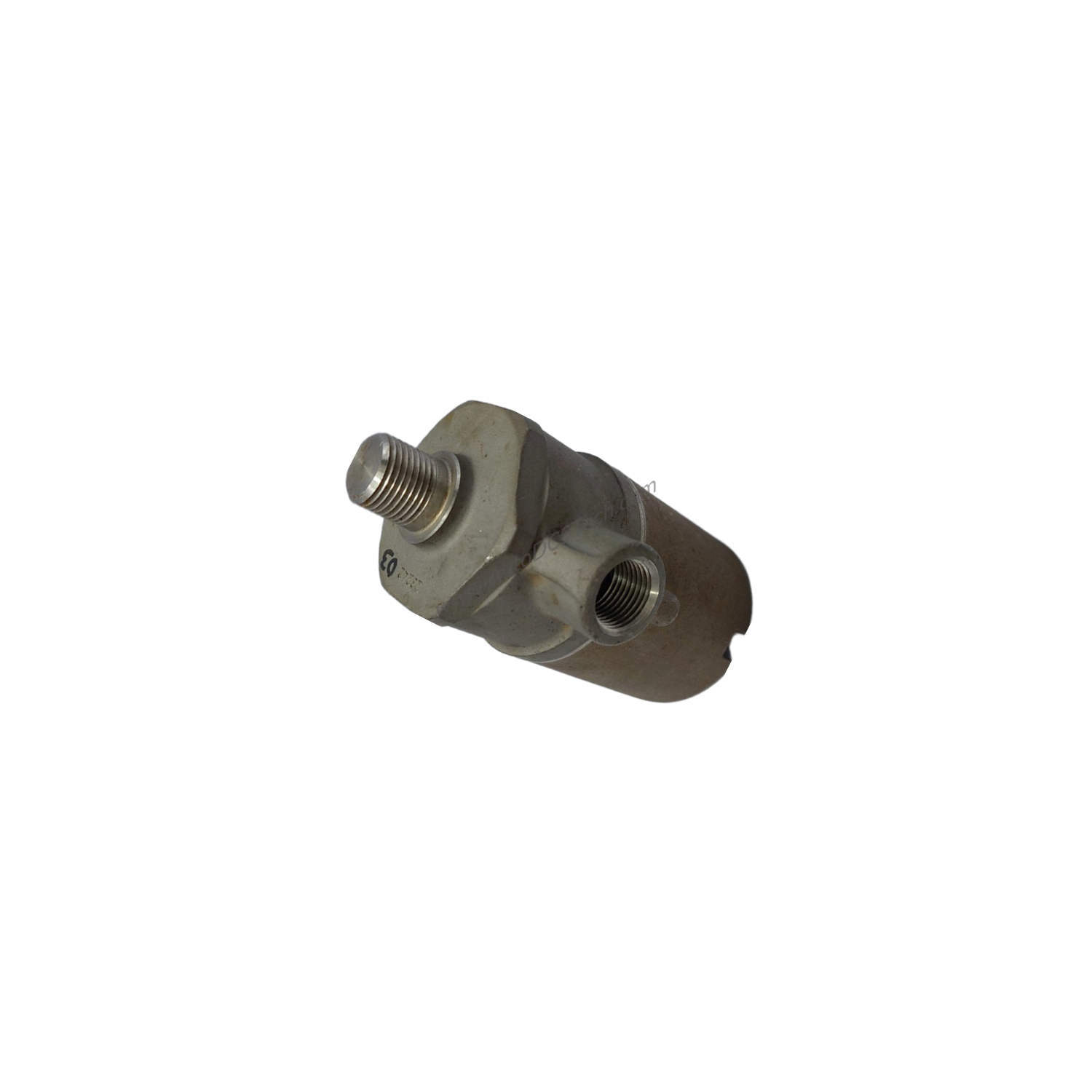

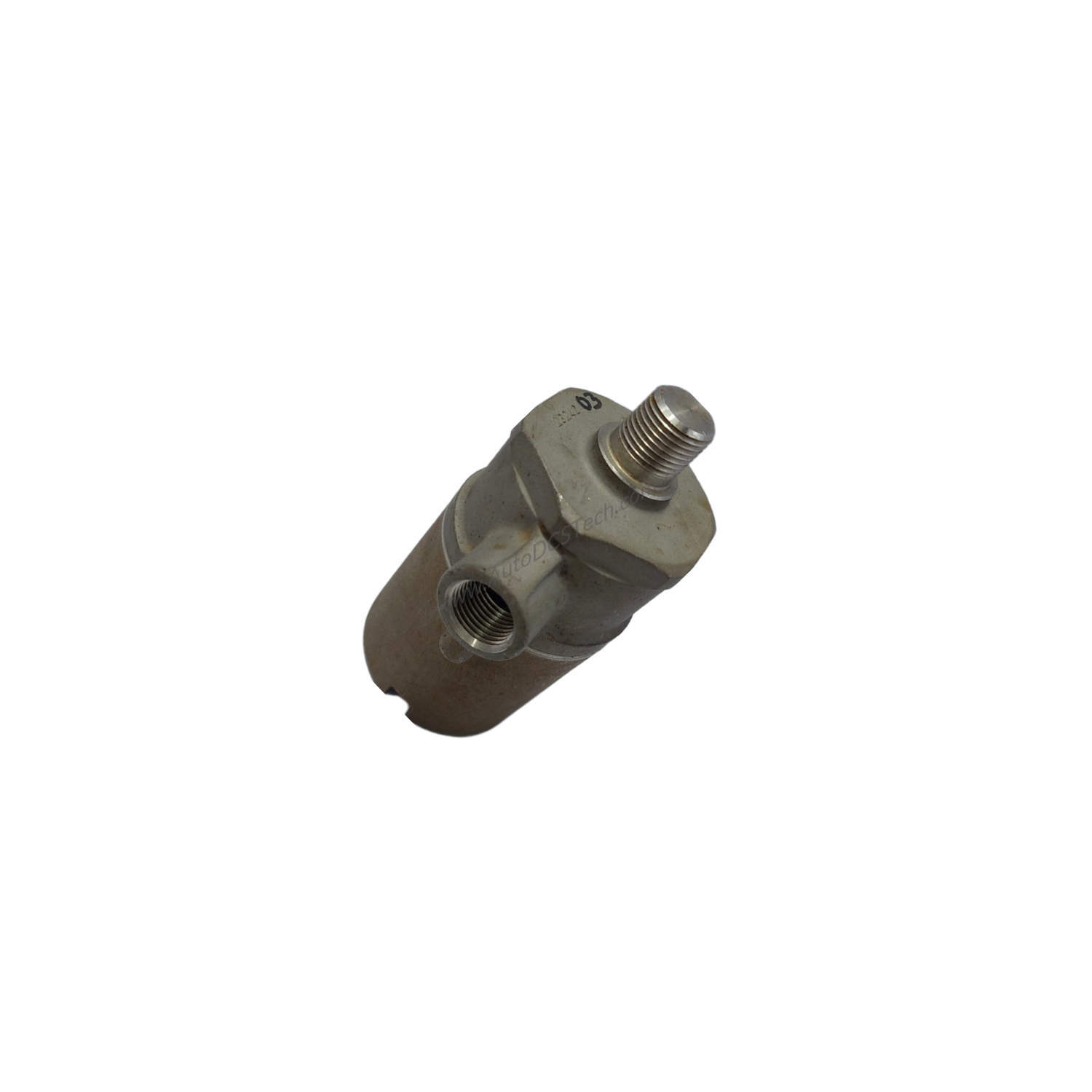

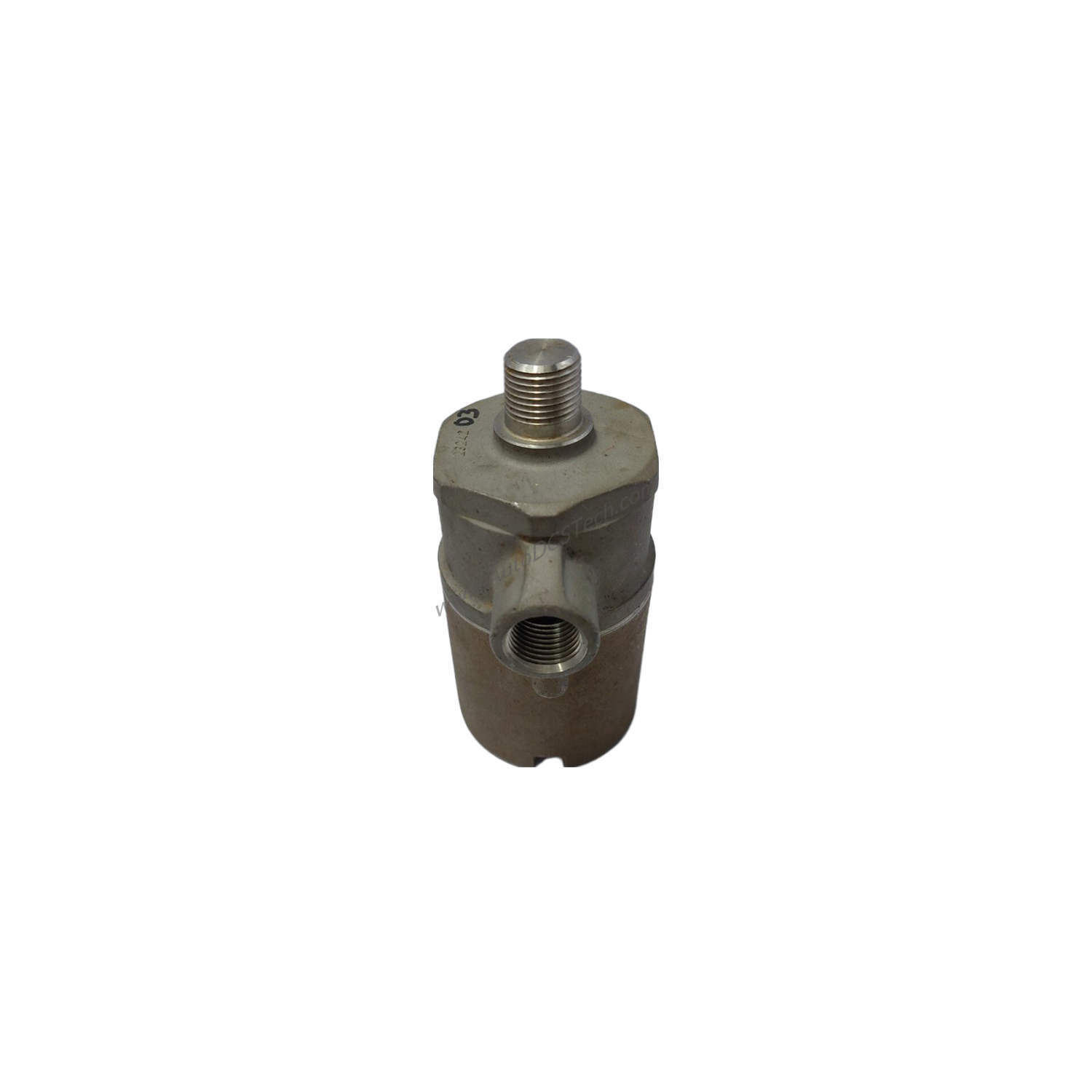

When vibration monitoring in hazardous environments demands uncompromised safety and reliability, the Bently Nevada 107770-04-03 delivers a factory-integrated solution. This velocity transducer housing combines the proven 330500 Velomitor sensor with a 21128 housing, preassembled and tested to reduce installation time and eliminate field wiring errors. Rated for CENELEC Zone 1, Group IIC hazardous areas, it ensures compliance without sacrificing performance—directly lowering your project risk and commissioning costs.
Technical Specifications Breakdown
The 107770-04-03 is defined by two critical ordering options that directly impact installation compatibility and safety compliance. The mounting thread option "04" specifies a 1/2-14 BSP thread, a common industrial standard that simplifies retrofitting into existing machine housings. Choosing the correct thread avoids costly adapter purchases and reduces downtime during installation. The cable exit fitting option "03" provides a 1/2-14 NPT explosion-proof connection with a cable gland seal, ensuring a gas-tight seal that meets Zone 1 requirements. This pre-configured assembly eliminates the need for separate seal fittings, cutting material costs and labor hours on each installation.
Industry Applications
In petrochemical refineries, rotating equipment such as compressors and pumps must be monitored continuously for early signs of bearing wear or imbalance. The 107770-04-03 mounts directly on the machine casing, converting mechanical vibration into an electrical signal for analysis. Its CENELEC Zone 1, Group IIC rating allows safe operation in hydrogen-rich or other explosive gas atmospheres, reducing the need for expensive purged enclosures. By using a factory-integrated sensor and housing, you avoid the cost and complexity of field-assembling components, which can introduce leak paths and increase maintenance expenses over the equipment life.
Installation & Setup Guidance
Mount the 107770-04-03 using the 1/2-14 BSP thread into a tapped hole on the machine housing. Ensure the mounting surface is clean and flat to achieve proper metal-to-metal contact for reliable vibration transmission. Tighten to the manufacturer's recommended torque to prevent loosening under machine vibration. Route the cable through the 1/2-14 NPT explosion-proof fitting and tighten the cable gland seal to maintain the hazardous area integrity. Verify that the cable type A or B per EN 60079-25 is used and that the entity parameters of the connected equipment match those listed for the transducer. Proper installation prevents false readings and avoids costly shutdowns from incorrect wiring.
Maintenance & Reliability
Periodically inspect the cable gland seal and mounting thread for signs of corrosion or loosening. The pre-assembled design reduces potential leak points compared to field-assembled units, lowering the frequency of maintenance interventions. Because the 107770-04-03 is a passive sensor (no moving parts), its primary wear mechanism is environmental degradation of the cable jacket or seal. Regular visual checks during scheduled outages help extend service life and prevent unplanned downtime—directly improving your overall equipment effectiveness (OEE) and reducing total cost of ownership.
Compatibility & Integration
The 107770-04-03 is designed to interface with Bently Nevada monitoring systems that accept velocity transducer inputs. Its 1/2-14 BSP mounting thread and 1/2-14 NPT cable exit are industry-standard connections, making it compatible with most junction boxes and conduit systems used in hazardous areas. The factory integration of the 330500 Velomitor sensor ensures consistent signal output, simplifying system calibration and reducing commissioning time. When upgrading from older vibration probes, this drop-in replacement minimizes wiring changes and associated engineering costs.
Selection Guide & Purchasing Advice
Before ordering the 107770-04-03, verify that your application requires a velocity transducer housing for CENELEC Zone 1, Group IIC areas. Confirm that the mounting thread (1/2-14 BSP) matches your machine's tapped hole; if not, consult SpareTechPLC for alternative options. The cable exit fitting (1/2-14 NPT explosion-proof with gland seal) is suitable for rigid conduit or armored cable installations. SpareTechPLC stocks this model as new and original in factory packing, backed by a 12-month warranty—ensuring you receive a genuine, fully compliant component without procurement delays.
Frequently Asked Questions
Q1: What is the difference between the 107770-04-03 and a standard Velomitor sensor?
A1: The 107770-04-03 is a factory-assembled housing that includes the 330500 Velomitor sensor inside a 21128 housing, pre-wired and sealed for CENELEC Zone 1 hazardous areas. This eliminates field assembly and testing.
Q2: Can I use this transducer in a Zone 0 area?
A2: The 107770-04-03 is rated for CENELEC Zone 1, Group IIC. For Zone 0 applications, you must ensure the connected equipment meets the entity parameters and cable requirements listed in the conditions of safe use.
Q3: What cable type should I use with this housing?
A3: Use cable type A or B in compliance with EN 60079-25, ensuring the cable parameters do not exceed the entity parameters specified for the transducer.
Q4: Is the 107770-04-03 RoHS compliant?
A4: Yes, it complies with RoHS Directive 2011/65/EU.
Q5: How do I verify the mounting thread is correct for my machine?
A5: The mounting thread option "04" is 1/2-14 BSP. Check your machine's tapped hole specification; if it differs, contact SpareTechPLC for the correct variant.
