Product Overview

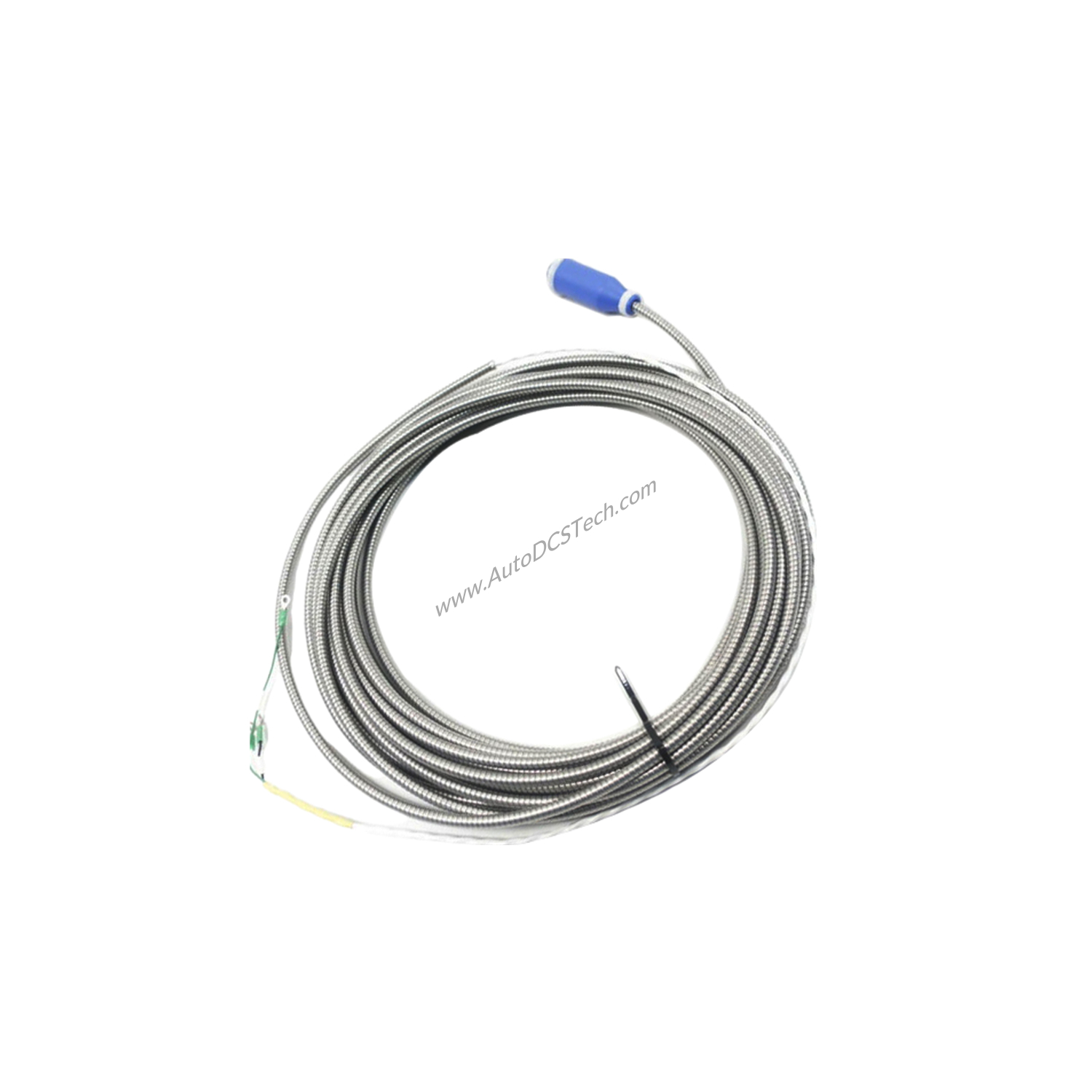

When signal integrity and mechanical protection matter in harsh industrial environments, the Bently Nevada 125065-NN delivers a robust cabling solution. This two-conductor 18 AWG twisted, shielded cable comes with a two-socket plug and a fluorosilicone elastomer boot at one end, and terminal lugs at the other. Designed for reliable data transmission and resistance to extreme conditions, it supports lengths from a minimum of 2.0 ft (0.6 m) up to 99 ft (30 m). By using a cost-effective, pre-assembled cable assembly, you reduce installation labor and avoid field-wiring errors that lead to downtime.
Technical Specifications Breakdown
The 125065-NN features a two-conductor 18 AWG twisted, shielded construction. Twisted pairs minimize electromagnetic interference, preserving signal quality over long runs up to 99 ft. The 18 AWG gauge balances flexibility with low resistance, ensuring minimal voltage drop even at maximum length. The fluorosilicone elastomer boot provides high-temperature and chemical resistance, extending service life in demanding settings. Each cable includes a two-socket plug for quick connection and terminal lugs for secure termination. These specs directly reduce maintenance costs and replacement frequency, offering long-term value.
Industry Applications
In vibration monitoring systems for rotating machinery, the 125065-NN connects proximity probes to monitoring modules. The shielded twisted pair protects sensitive signals from electrical noise in motor control centers or turbine halls. For example, in a refinery, using this cable between a Bently Nevada 3300 XL probe and a 3500 rack ensures reliable data, minimizing false alarms and unplanned shutdowns. The fluorosilicone boot withstands oil and heat, extending cable life and reducing replacement costs.
Installation & Setup Guidance
Before installation, verify the required cable length between 2.0 ft and 99 ft. Route the cable away from high-voltage lines to preserve shielding effectiveness. Secure the two-socket plug firmly into the mating receptacle until it clicks. At the terminal lug end, use a torque screwdriver to tighten connections per manufacturer specifications. Avoid sharp bends that could damage the twisted pair. Proper installation prevents signal degradation and costly rework.
Maintenance & Reliability
Periodically inspect the fluorosilicone elastomer boot for cracks or hardening, especially in high-temperature areas. Check the terminal lugs for corrosion or loosening. Clean the plug contacts with a dry cloth if needed. Replacing a worn cable proactively avoids intermittent signal loss and unplanned downtime. The shielded design reduces noise-related issues, lowering troubleshooting costs.
Selection Guide & Purchasing Advice
Choose the Bently Nevada 125065-NN based on the exact distance between your sensor and monitoring module. Measure the path carefully, including any service loops. SpareTechPLC stocks this cable in various lengths to match your application. Verify compatibility with your Bently Nevada system before ordering. Contact SpareTechPLC for current lifecycle status and availability.
Frequently Asked Questions
Q: What is the maximum length available for the 125065-NN?
A: The maximum length is 99 ft (30 m). The minimum is 2.0 ft (0.6 m).
Q: What type of connector is on one end?
A: It has a two-socket plug with a fluorosilicone elastomer boot.
Q: What is on the other end of the cable?
A: The other end has terminal lugs for secure wiring.
Q: Is this cable shielded?
A: Yes, it is a twisted, shielded cable for noise immunity.
Q: Can I use this cable in high-temperature areas?
A: The fluorosilicone boot provides resistance to heat and chemicals, making it suitable for demanding environments.
