Introduction

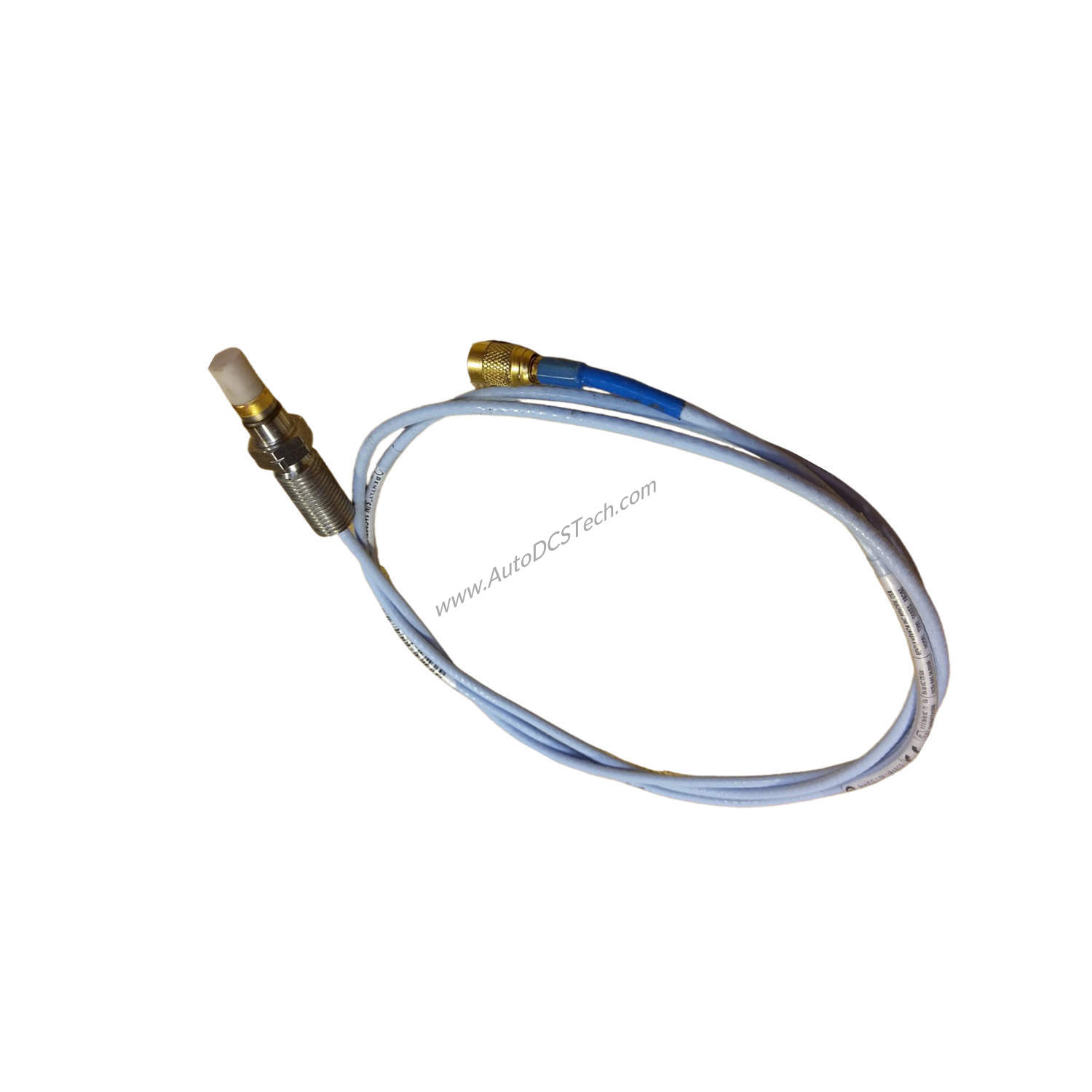

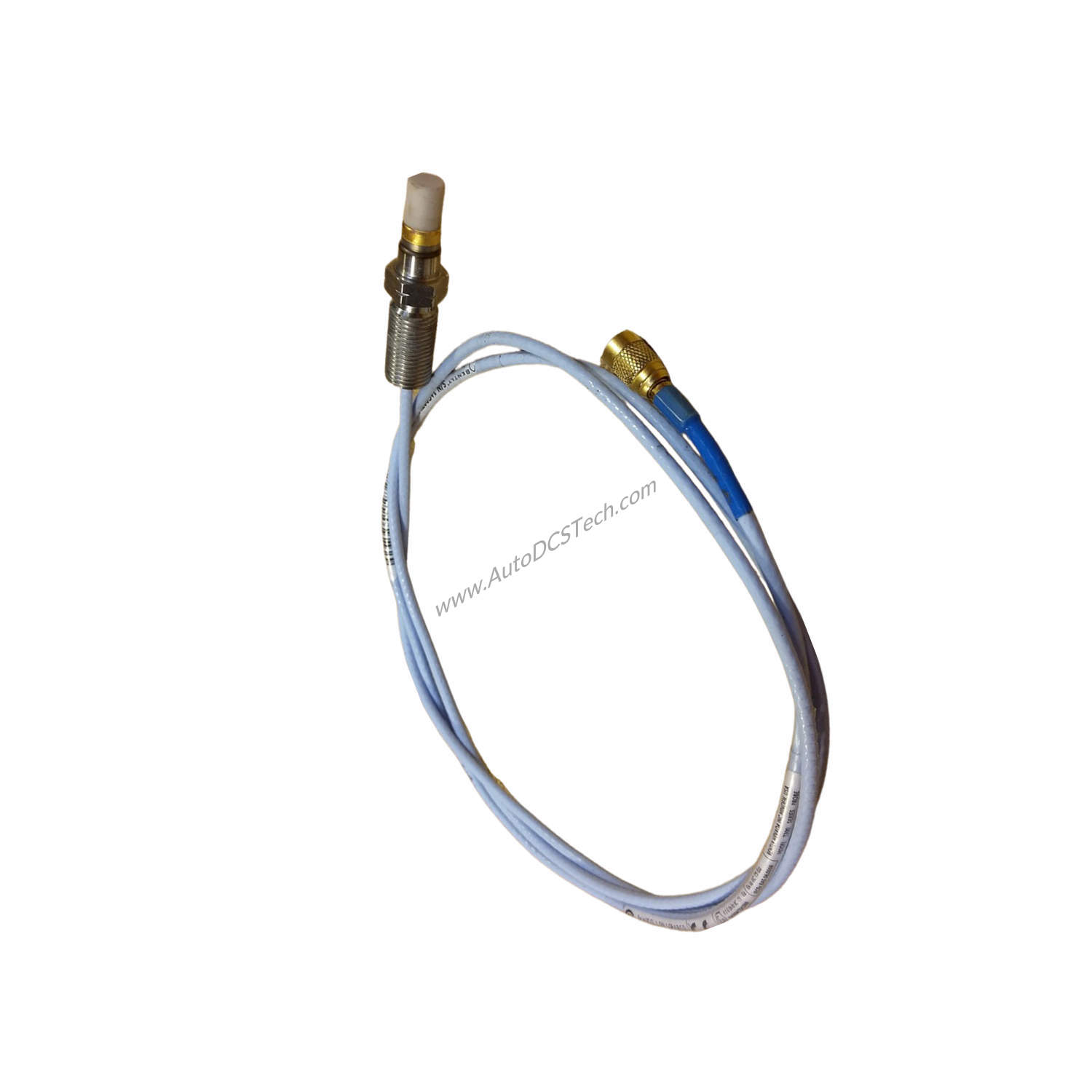

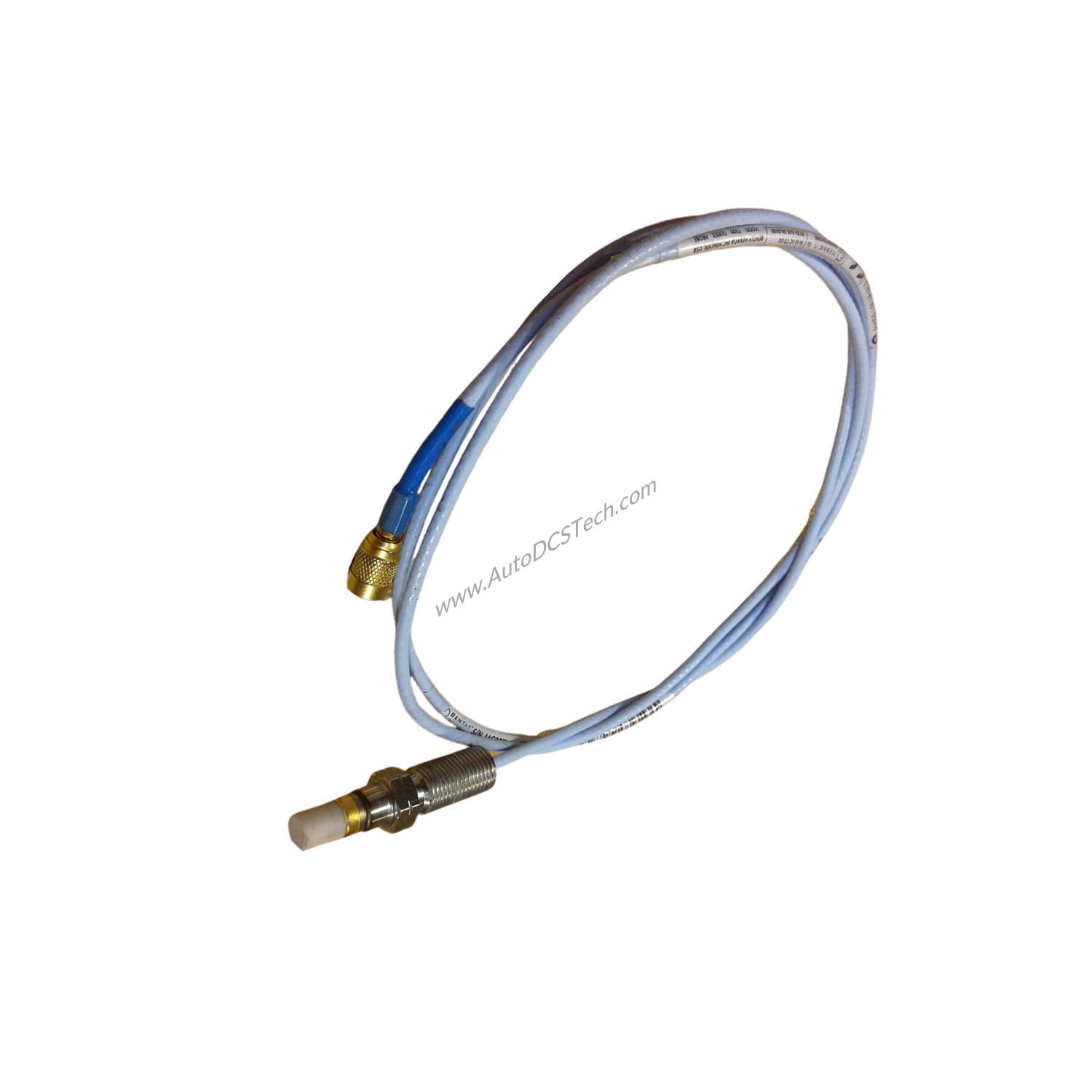

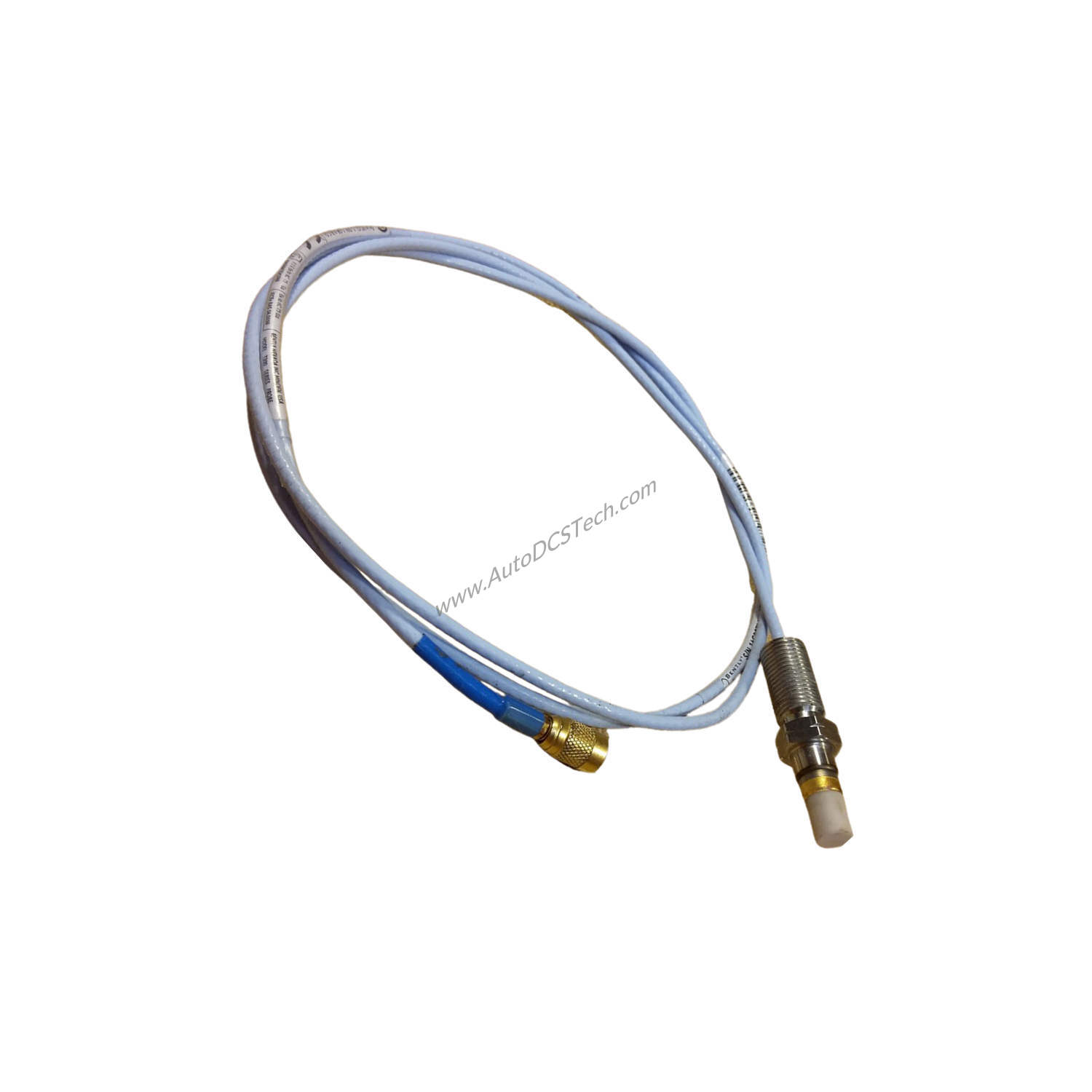

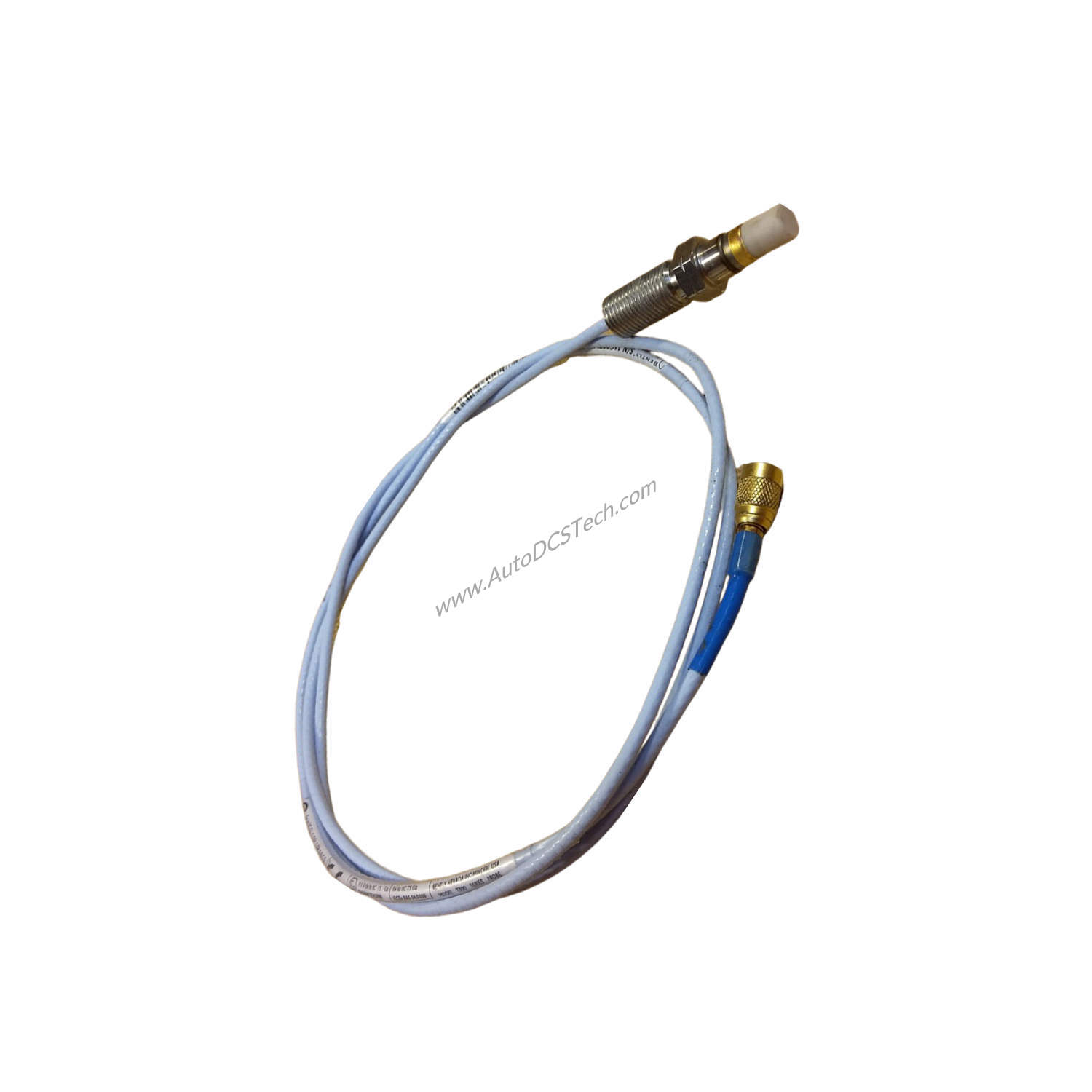

In the world of industrial machinery, vibration monitoring has evolved from a reactive maintenance task to a predictive cornerstone. The Bently Nevada 146055-90-02-05 3300 Ceramic Capped Reverse Mount Probe represents this evolution, offering precision measurement for rotating equipment in demanding environments. Designed for reliability, this probe helps operators detect early signs of bearing wear, imbalance, and misalignment before they lead to costly downtime.
Technical Specifications Breakdown
The 146055-90-02-05 probe delivers a linear range of 1.52 mm (60 mils), starting at approximately 0.25 mm (10 mils) from the target. This range covers typical vibration amplitudes in large rotating machinery. The incremental scale factor (ISF) is 7.87 V/mm (200 mV/mil) with ±6.5% interchangeability error over the full linear range from 0°C to +45°C (+32°F to +113°F). The probe tip is made of alumina ceramic (Al2O3), and the case is AISI 304 stainless steel, ensuring durability in harsh conditions.
Industry Applications
This probe excels in steam turbines, compressors, and pumps where precise shaft vibration measurement is critical. For example, in a petrochemical plant, the 146055-90-02-05 monitors radial vibration on a high-speed centrifugal compressor. Its ceramic tip resists wear from oil mist and particulate, while the 9-meter cable allows flexible placement away from the machine. The reverse mount design simplifies installation in confined spaces.
Installation & Setup Guidance
Mount the probe using the 3/8-24 UNF threads with a maximum thread engagement of 0.563 inches. Ensure the target is AISI 4140 steel for calibrated accuracy. The system operates with a -24 Vdc power supply and a 10 kW load. For best results, maintain ambient temperature between +18°C and +27°C (+64°F to +80°F) during initial setup. The miniature ClickLoc coaxial connector provides secure, quick cable attachment.
Maintenance & Reliability
Regularly inspect the probe cable for cuts or abrasions, especially near the connector. The probe is rated to seal 34 Bar (500 psi) nitrogen, making it suitable for pressurized environments. For high-pressure applications, contact the custom design department. The operating and storage temperature range is -51°C to +177°C (-60°F to +351°F), ensuring reliable performance in extreme conditions. Periodic verification of the DC resistance (9.87 ± 0.90 ohms from center conductor to outer conductor) confirms cable integrity.
Selection Guide & Purchasing Advice
When ordering the 146055-90-02-05, verify the total length option (-90 = 9.0 meters) and connector type (Option: 0 2= with miniature ClickLoc coaxial connector). The agency approval option -05 indicates multiple approvals. SpareTechPLC stocks this probe in new, original factory packaging with a 12-month warranty. Please verify current lifecycle status and availability before ordering.
Frequently Asked Questions
Q: What is the linear range of the 146055-90-02-05 probe?
A: The linear range is 1.52 mm (60 mils), starting at approximately 0.25 mm (10 mils) from the target.
Q: What is the incremental scale factor?
A: The ISF is 7.87 V/mm (200 mV/mil) with ±6.5% interchangeability error over the 60 mil range from 0°C to +45°C.
Q: What materials are used in the probe tip and case?
A: The tip is alumina ceramic (Al2O3), and the case is AISI 304 stainless steel.
Q: What is the maximum operating temperature?
A: The operating and storage temperature range is -51°C to +177°C (-60°F to +351°F).
Q: What is the thread size for mounting?
A: The probe case thread is 3/8-24 UNF with a maximum thread engagement of 0.563 inches.
