Bently Nevada 177230-01-01-05 Seismic Transmitter Buyer's Guide
Product Overview

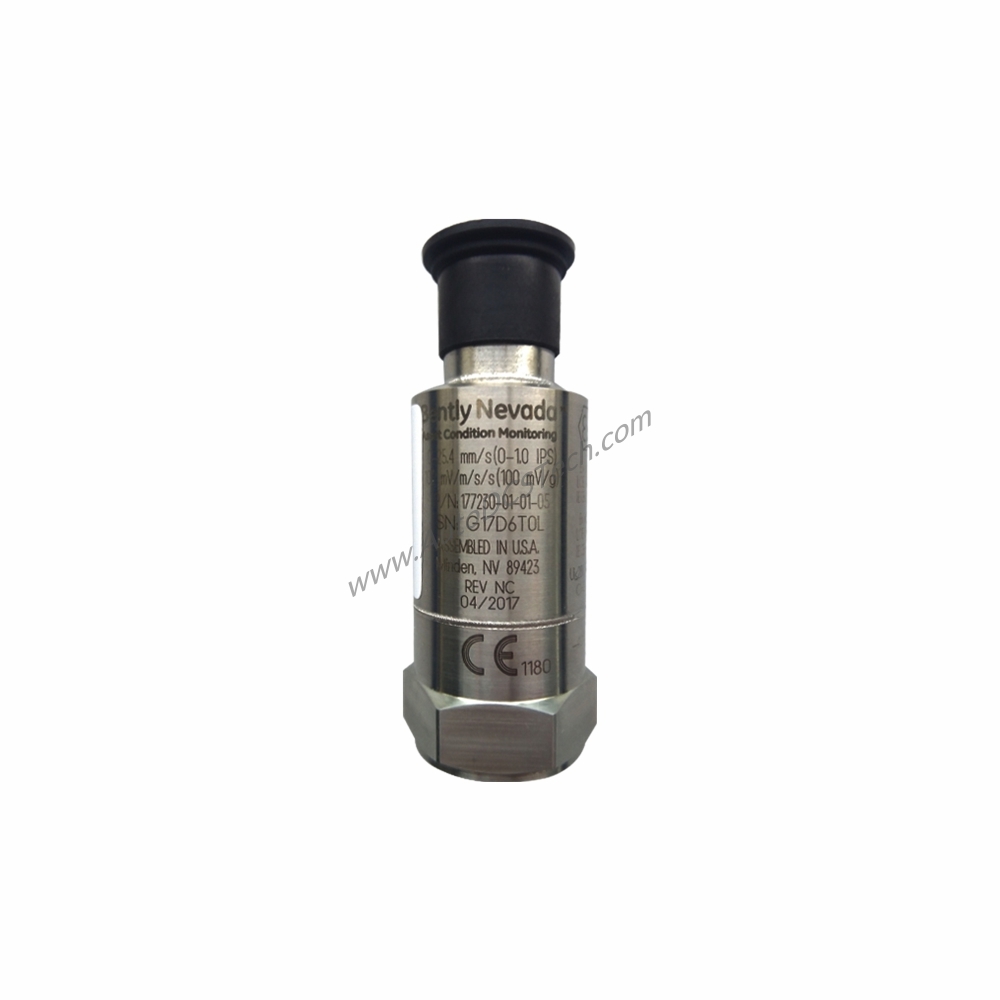

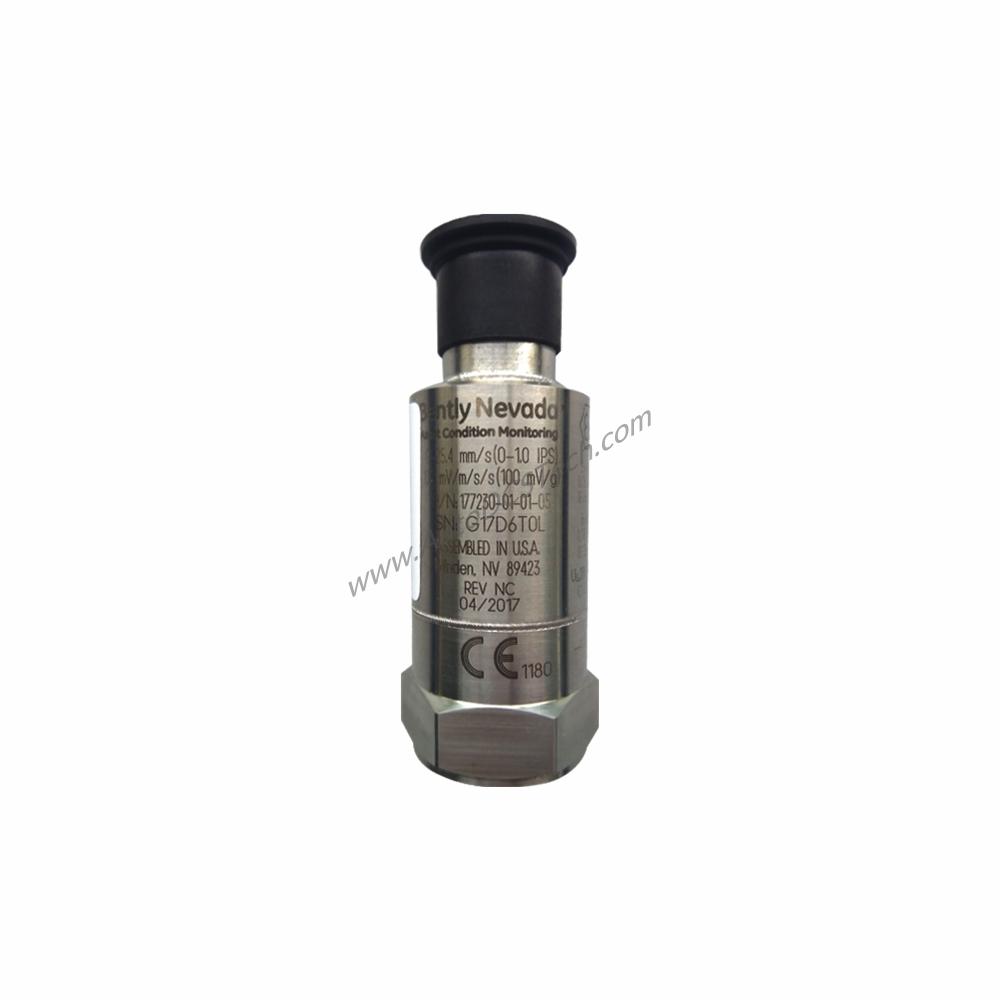

When machinery vibration threatens uptime, the Bently Nevada 177230-01-01-05 Seismic Transmitter delivers precise, real-time data. This compact device converts vibration into a 4 to 20 mA current loop signal, integrating seamlessly with PLC, DCS, and SCADA systems. Its rugged 316L stainless steel case and hermetically sealed sensor withstand harsh industrial environments. Whether you monitor pumps, fans, or compressors, this transmitter provides the reliability you need.
Technical Specifications Breakdown
Key performance metrics define the 177230-01-01-05. It measures vibration velocity from 0 to 25.4 mm/s (0 – 1.0 in/s) over a frequency range of 10 Hz to 1 kHz (600 to 60 kcpm) RMS. The 4-20 mA output loop sensitivity is calibrated so 4 ± 0.3 mA equals 0.0 mm/s and 20 ± 2 mA equals full scale range. This ensures accurate proportional representation of RMS vibration levels. The transmitter operates on an excitation voltage of 12 to 30 Vdc (current limited to 40 mA) and settles within 15 seconds to within 2% of final value. Its mounted resonant frequency exceeds 12 kHz, and transverse sensitivity remains below 5% of sensitivity.
Industry Applications
This transmitter excels in continuous vibration monitoring for rotating machinery. In a petrochemical plant, it tracks pump bearing health, alerting operators to early wear. In a power generation facility, it monitors fan and compressor vibration, preventing unplanned outages. The 177230-01-01-05's ability to operate in 100% non-submerged humidity and temperatures from -40°C to +85°C makes it suitable for outdoor and washdown areas.
Installation & Setup Guidance
Mount the transmitter securely using the 1/4-28 UNF mounting hole or optional M6 x 1 or M8 x 1.25 threads. Apply a mounting torque of 4 to 7 N-m (35.4 to 62.0 in-lbf) to ensure proper coupling. Wire the 3-pin MIL-C-5015 connector as follows: Pin A connects to the 4-20 mA positive loop, Pin B to the loop return (negative), and Pin C provides an unbuffered dynamic acceleration signal referenced to Pin B. Verify the excitation voltage (12 to 30 Vdc) and current limit (30-35 mA typical for PLC/DCS supplies) before powering.
Maintenance & Reliability
The hermetically sealed sensor and 316L stainless steel construction minimize maintenance needs. Regularly inspect the connector and cable for damage. The transmitter's electrical isolation exceeds 108 ohms, with an isolation breakdown voltage of 600 Vrms, protecting against ground loops. Its shock survivability of 9.810 m/s² (1.000 g peak) ensures durability during handling. For long-term reliability, verify the operating environment stays within -40°C to +85°C and avoid submersion.
Compatibility & Integration
The 177230-01-01-05 is designed for use with PLCs, DCS, and SCADA systems that have internal power supplies. Its 4-20 mA output loop directly interfaces with analog input modules, simplifying integration. The dynamic acceleration signal (Pin C) can be used for additional analysis if your system supports it. Multiple approvals (CSA/NRTL/C, ATEX/IECEx) ensure compliance in hazardous locations.
Selection Guide & Purchasing Advice
Before ordering, confirm your system's power supply can provide 12 to 30 Vdc with current limiting around 30-35 mA. Verify the mounting thread compatibility (1/4-28 UNF, M6 x 1, or M8 x 1.25). The full-scale range option (-AA) 01 covers 0-25.4 mm/s (1.0 in/s). For vibration monitoring needs, the Bently Nevada 177230-01-01-05 offers proven performance. Contact SpareTechPLC for current availability and pricing. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
