Product Overview

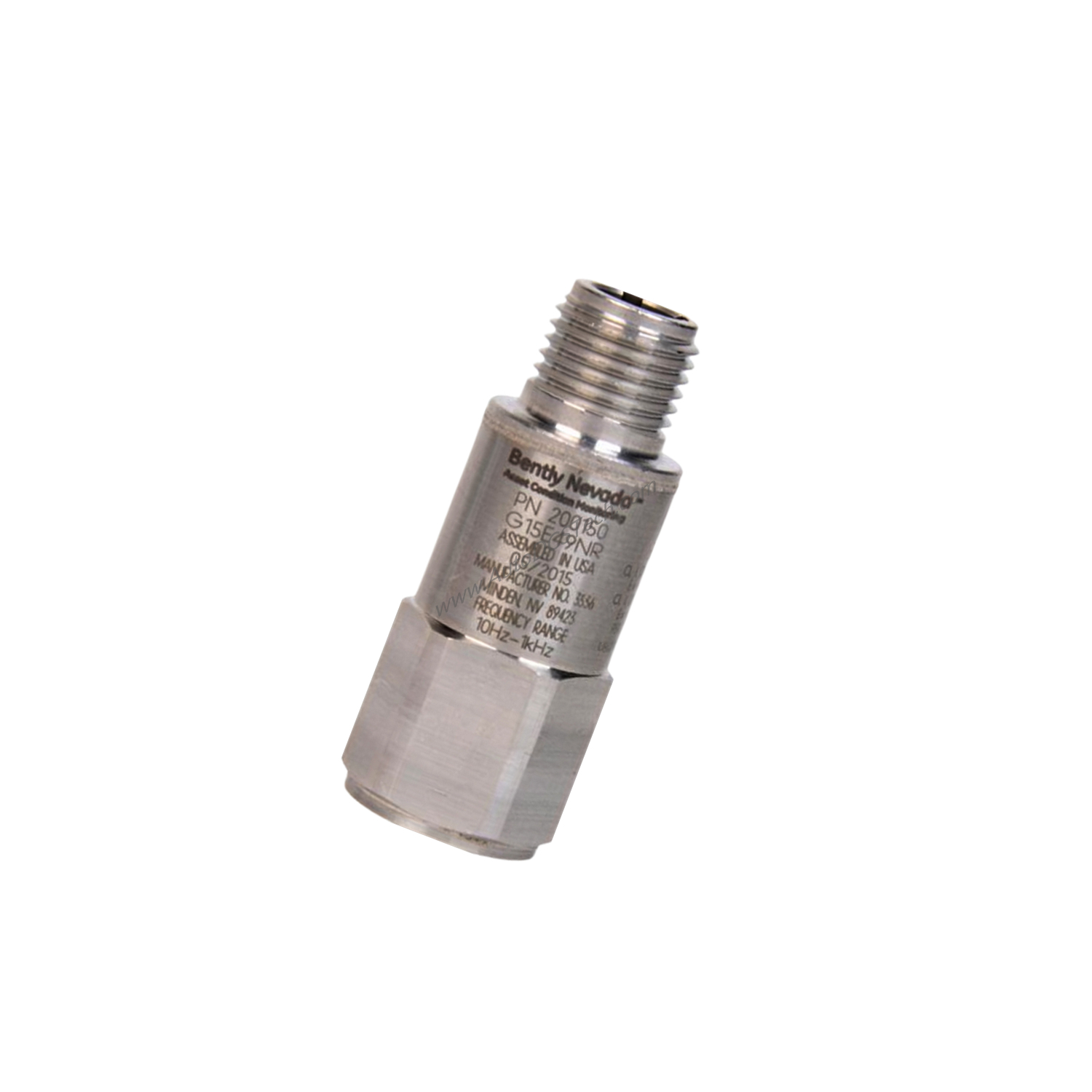

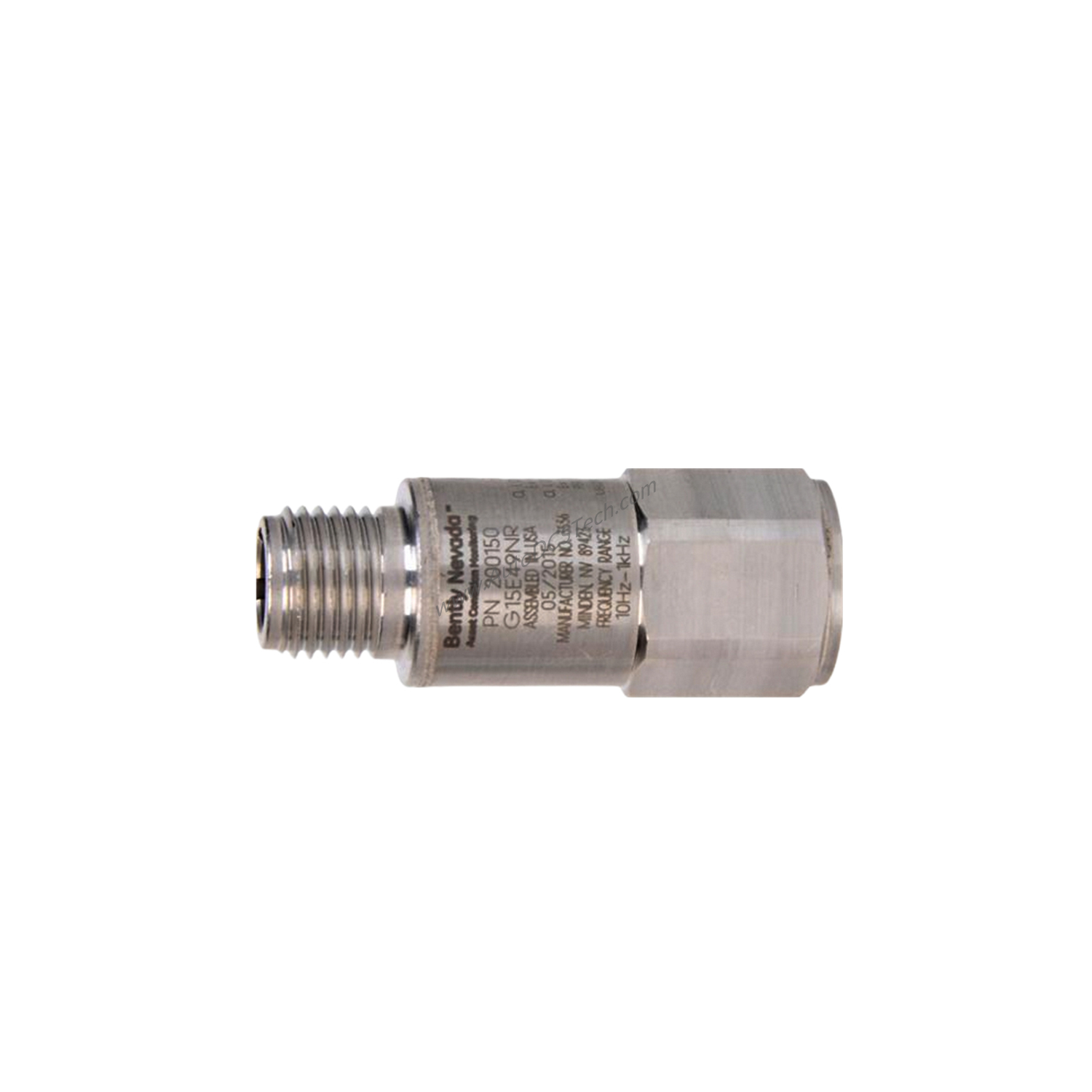

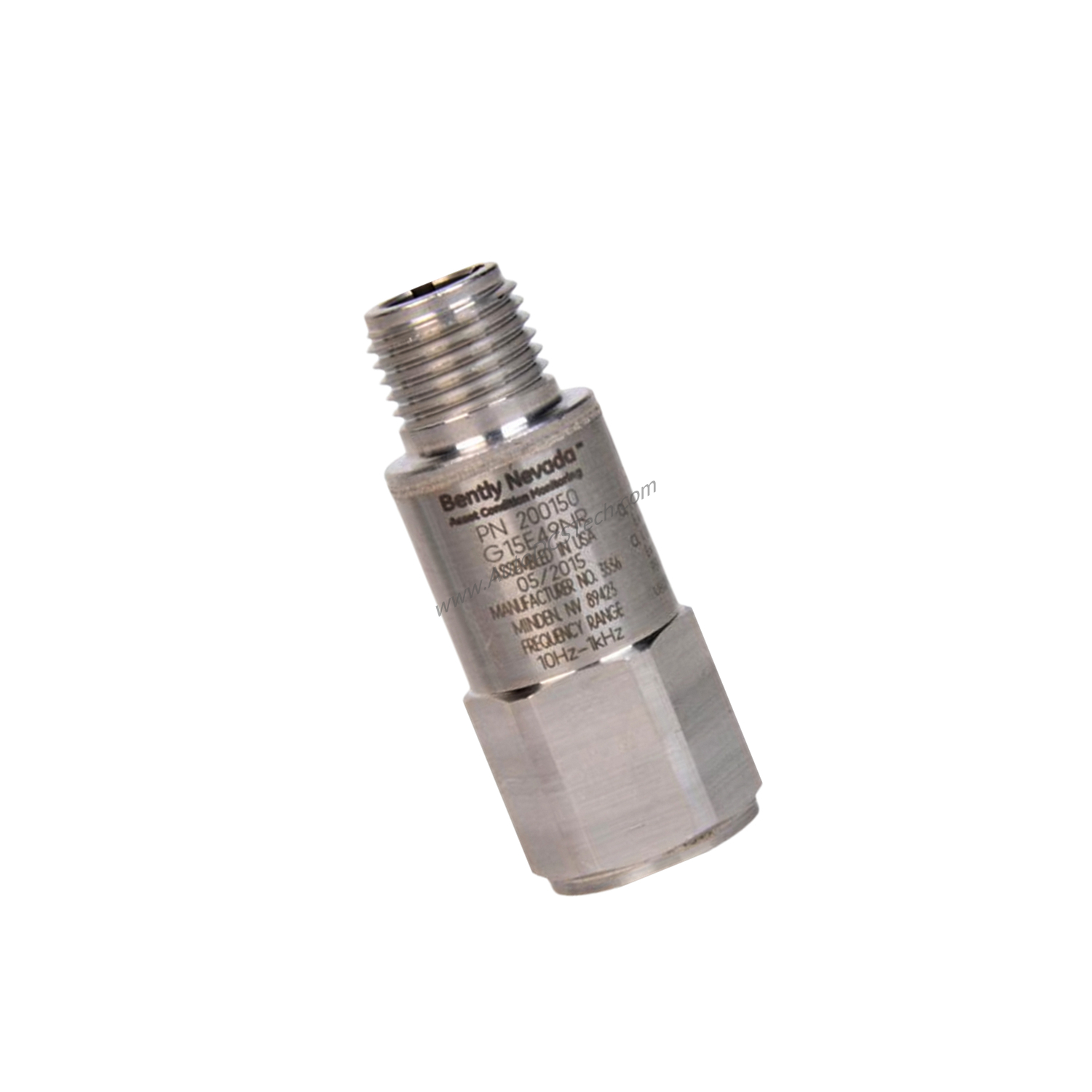

The Bently Nevada 200150-03-05 is a General Purpose Trendmaster 2000 or Trendmaster Pro Accelerometer designed for reliable vibration monitoring in industrial environments. Manufactured in the U.S.A., this accelerometer delivers accurate measurements for predictive maintenance and machinery protection.
Technical Specifications
Electrical Performance
- Sensitivity @ 80 Hz (±12%): 10.2 mV/(m/s²) (100 mV/g)
- Measurement Range: ±245 m/s² (±25 g)
- Frequency Range (±10%): 10 to 1000 Hz (600 to 60,000 cpm)
- Mounted Resonant Frequency: >20 kHz (>1200 kcpm)
- Amplitude Linearity (1 to 10g pk): ±2%
- Transverse Sensitivity: ≤7%
- Settling Time (Within 5% of Bias): ≤300 ms
- Excitation Voltage: 4.7 to 5.5 Vdc
- Quiescent Current: <800 µA
- Output Bias Voltage: +2.5 ± 0.23 Vdc
Environmental Ratings
- Axial Shock Limit: 49,050 m/s² pk (5,000 g pk)
- Temperature Range: -40 ºC to +105 ºC (-40 ºF to +221 ºF)
- Sealing (Hermetic): 5X10⁻⁸ atm•cc/s (3.1X10⁻⁹ atm•in³/s), maximum
- Relative Humidity: 100% relative, condensing, non-submerged
Physical Characteristics
- Size (Hex x Height): 17.5 mm x 45.7 mm (11/16 in x 1.8 in)
- Weight: 58 g (2.0 oz), typical

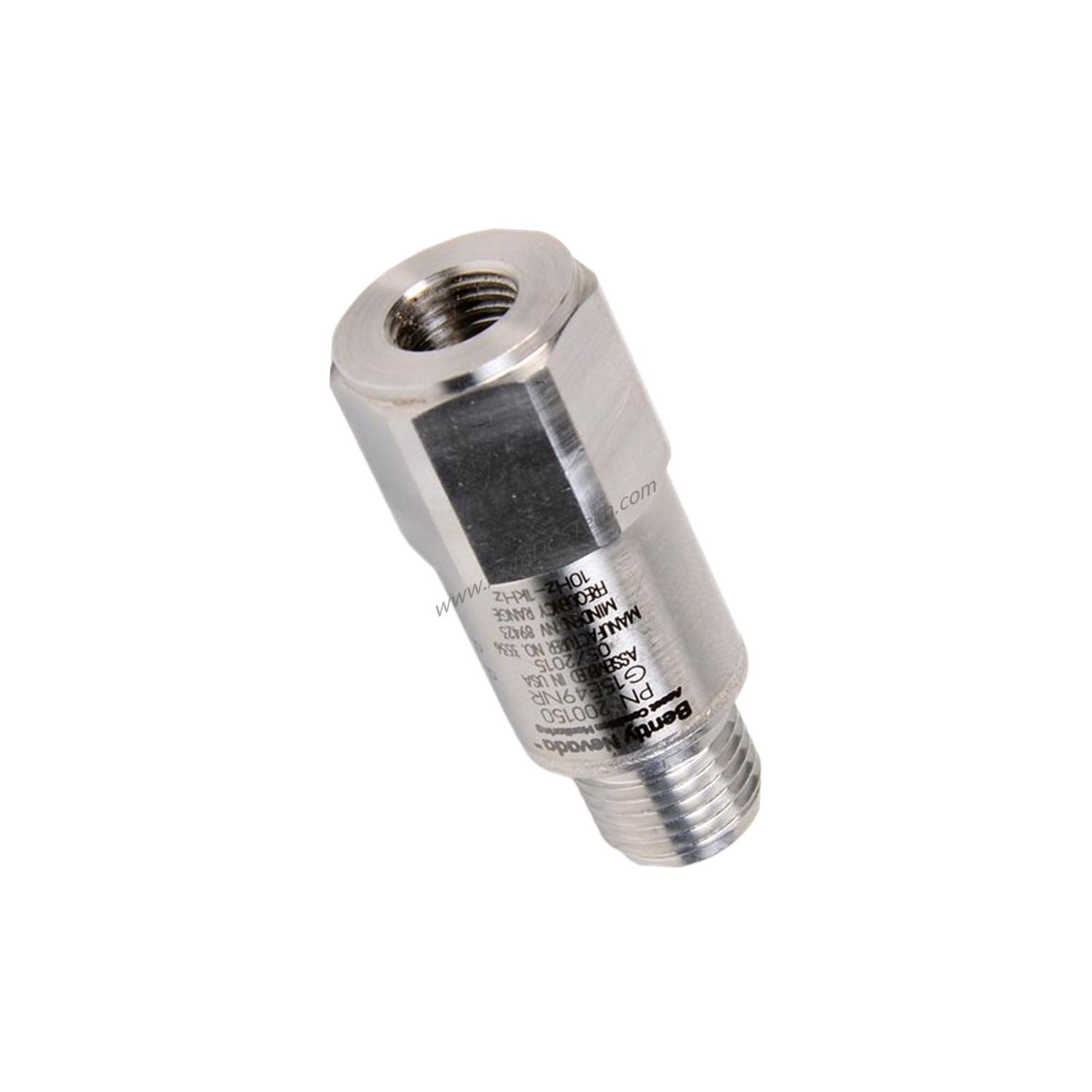

- Mounting Thread: 3/8-24 female
- Mounting Torque: 2.7 to 6.8 N•m (2 to 5 ft•lbf)
- Sensing Element: Ceramic, Shear geometry
- Housing and Connector Material: 316L stainless steel
Industry Applications
The 200150-03-05 accelerometer suits general applications requiring precise vibration measurement. Use it for monitoring rotating machinery such as pumps, motors, fans, and compressors. Its wide frequency range (10 to 1000 Hz) captures both low-speed and high-speed vibration signatures, enabling early fault detection. The hermetic sealing and 316L stainless steel construction allow deployment in harsh environments with high humidity or corrosive conditions.
Installation & Setup Guidance
Mount the accelerometer using the 3/8-24 female thread. Apply a mounting torque between 2.7 to 6.8 N•m (2 to 5 ft•lbf) to ensure proper coupling. The mounting stud option 03 provides a 3/8-24 to 1/2-20 UNF 1-3/8 inch hex plate stud for flexible attachment. After installation, allow a cure time of 24 hours before taking critical measurements. Connect the excitation voltage of 4.7 to 5.5 Vdc and verify the output bias voltage of +2.5 ± 0.23 Vdc.
Maintenance & Reliability
Inspect the accelerometer periodically for physical damage or contamination. The hermetic sealing (5X10⁻⁸ atm•cc/s maximum) protects internal components from moisture and contaminants. The ceramic shear sensing element provides stable performance over the temperature range of -40 ºC to +105 ºC. Regular calibration checks ensure measurement accuracy. Replace the unit if output bias voltage drifts outside the specified range.
Compatibility & Integration
This accelerometer works with Bently Nevada monitoring systems that accept standard accelerometer inputs. It is commonly paired with the ProTIM option for standard acceleration-to-velocity channel type (-01). The multiple approvals (CSA, ATEX, and IECEx) allow integration into hazardous area installations. Verify system compatibility before ordering.
Selection Guide & Purchasing Advice
Before purchasing the 200150-03-05, confirm the mounting thread requirement (3/8-24 female) and the approval class needed (05 = Multiple Approvals). Check that the excitation voltage (4.7 to 5.5 Vdc) matches your monitoring system. SpareTechPLC stocks this accelerometer and can advise on availability and lead times. Contact our team for assistance with your specific application.
Frequently Asked Questions
Q: What is the sensitivity of the 200150-03-05 accelerometer?
A: The sensitivity at 80 Hz is 10.2 mV/(m/s²) (100 mV/g) with a tolerance of ±12%.
Q: What temperature range can this accelerometer withstand?
A: It operates from -40 ºC to +105 ºC (-40 ºF to +221 ºF) and can survive storage temperatures from -55 ºC to +121 ºC.
Q: Does this accelerometer have hazardous area approvals?
A: Yes, the 200150-03-05 with approval option 05 includes CSA, ATEX, and IECEx certifications.
Q: What is the mounting thread size?
A: The accelerometer has a 3/8-24 female mounting thread. The included stud option 03 adapts to 1/2-20 UNF with a 1-3/8 inch hex plate.
Q: How long does it take for the accelerometer to settle after power-up?
A: The settling time is ≤300 ms (within 5% of bias).
