Why Choose the Bently Nevada 200151-60-02-10 for Your Vibration Monitoring Needs?
When harsh industrial environments threaten signal integrity in your critical machinery monitoring, the Bently Nevada 200151-60-02-10 accelerometer interface standard cable delivers the robust connection you need. Designed specifically for accelerometer applications, this 6.0-meter cable ensures reliable data transmission from sensor to monitoring system, even in challenging conditions.
Product Overview

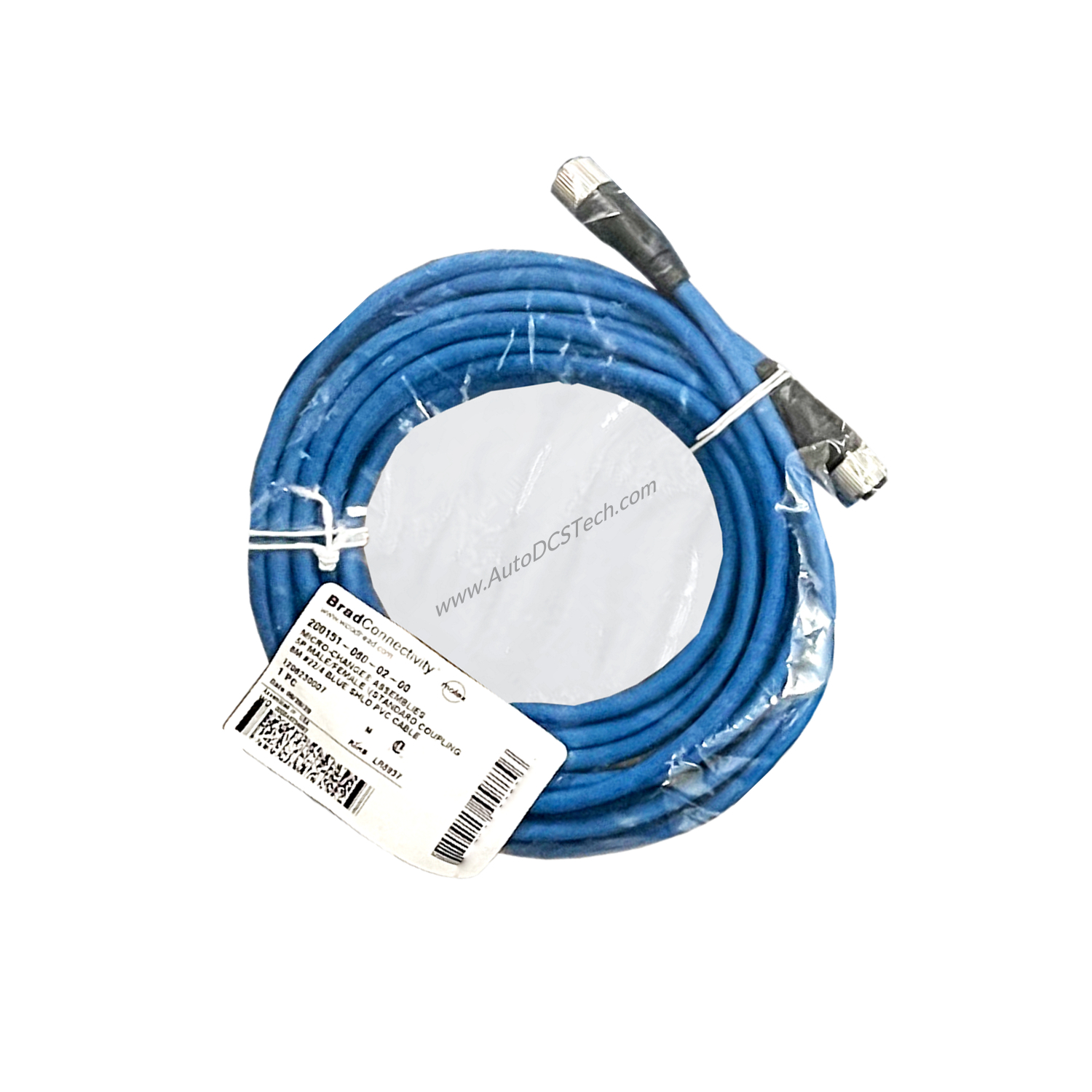

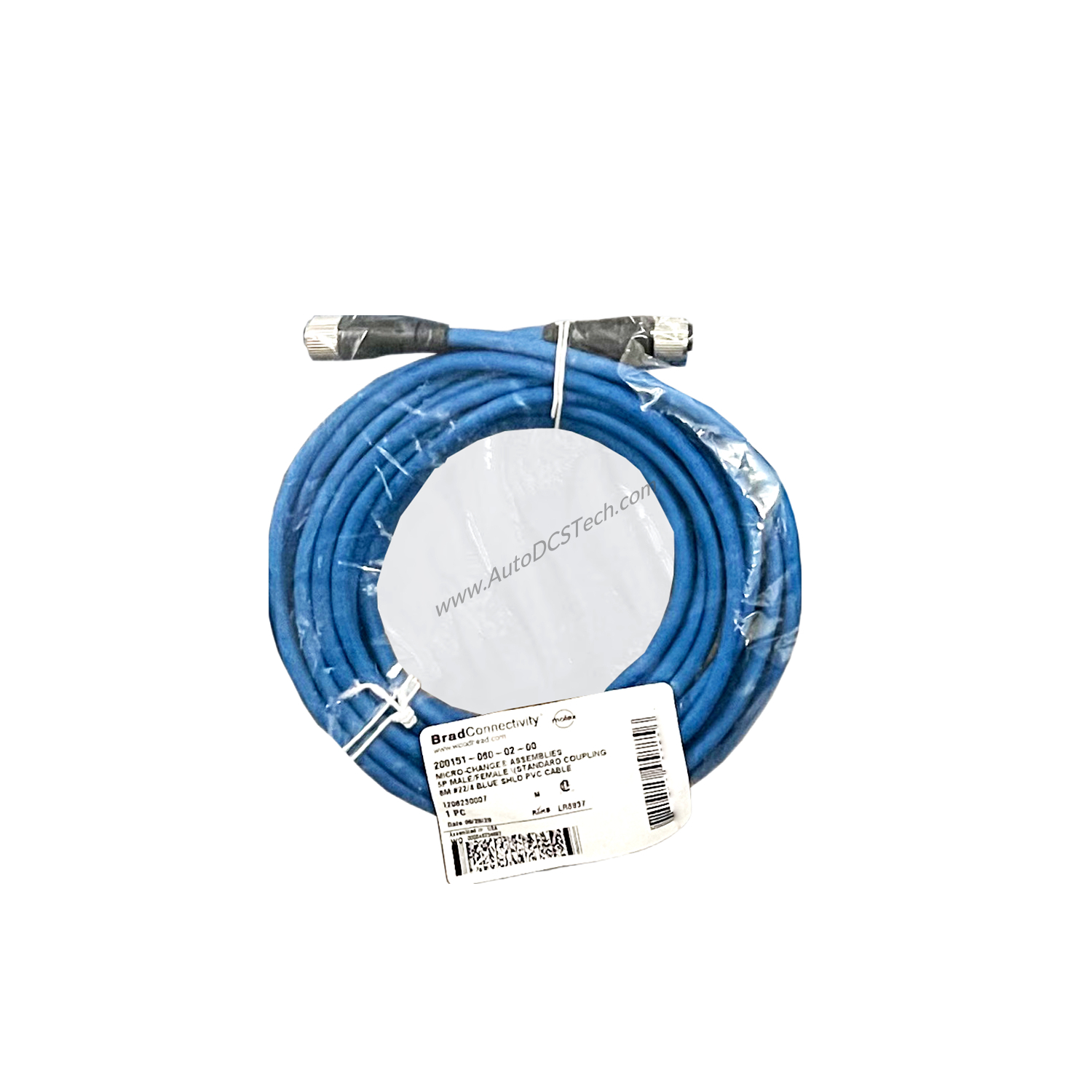

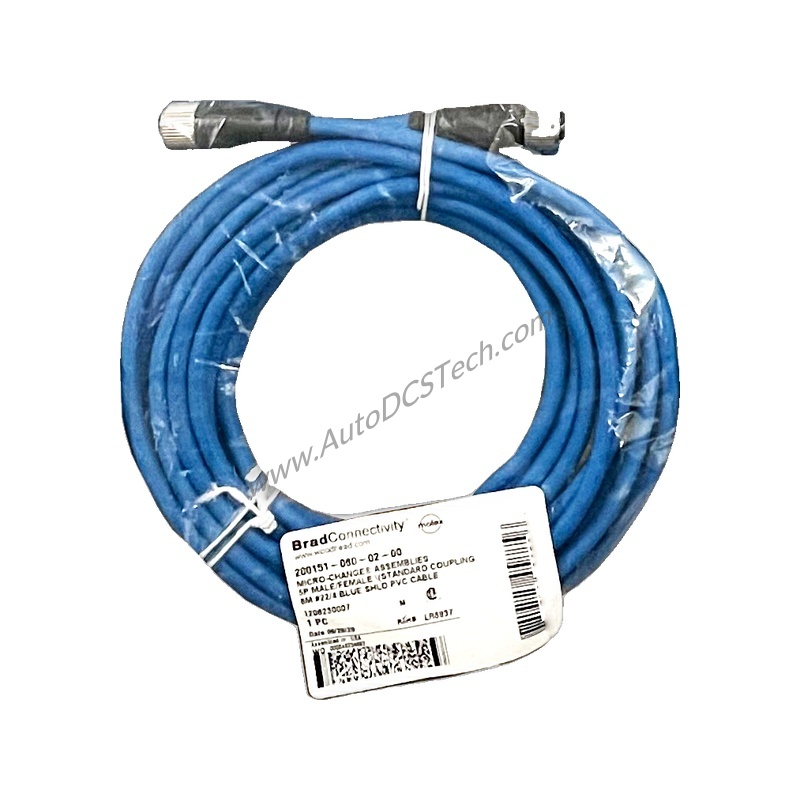

The 200151-60-02-10 is part of the trusted 200151 series from Bently Nevada, a leader in vibration monitoring and protection. This standard cable features connectors on both ends, simplifying installation and ensuring a secure, consistent connection. The model includes an enhanced coupling nut option (code 10) that provides a better grip for tightening the cable to the accelerometer, applied on both ends for improved handling and reliability.
Technical Specifications Breakdown
- Cable Length: -60 = 6.0 meters – provides ample reach for typical machinery installations.
- Armor Option: 02 = Blue cable without armor – suitable for standard environments where mechanical protection is not required.
- Coupling Nut: 10 = Enhanced coupling nut – offers superior grip for secure tightening to the accelerometer.
- Minimum Bend Radius: 63.5 mm (2.5 in) – allows flexible routing in tight spaces without damaging the cable.
- Operating Temperature Range: -20 ºC to +100 ºC (-4 ºF to +212 ºF) – suitable for a wide range of industrial conditions. Note: flexing below -20 ºC may damage the cable.
- Construction: 4-conductor, 22 AWG with braided shield and drain wire (85% coverage, minimum), PVC outer jacket, nickel-plated coupling nuts.
- Seal: Connectors provide an IP67 seal to transducers and mating hardware, with molded connectors and DC4 electrical insulating compound for moisture protection during thermal shock.
Industry Applications
This cable excels in continuous vibration monitoring for rotating machinery such as pumps, compressors, turbines, and motors. The IP67 seal and robust construction make it ideal for applications exposed to moisture, dust, or temperature variations. Whether in a refinery, power plant, or manufacturing facility, the 200151-60-02-10 ensures your accelerometer data remains accurate and uninterrupted.
Installation & Setup Guidance
When installing, ensure the cable is routed with a bend radius no smaller than 63.5 mm (2.5 in) to prevent internal damage. The enhanced coupling nuts allow easy hand-tightening to the accelerometer and mating hardware. For installations in environments below -20 ºC, avoid flexing the cable until it reaches a warmer temperature to prevent damage. The IP67 seal is maintained when connectors are properly mated.
Maintenance & Reliability
Regularly inspect the cable for cuts, abrasions, or damage to the PVC jacket, especially in high-traffic areas. Verify that the coupling nuts remain tight and the IP67 seal is intact. The braided shield with 85% minimum coverage provides excellent noise immunity, reducing signal degradation over time. Following these simple checks extends cable life and maintains measurement accuracy.
Compatibility & Integration
The 200151-60-02-10 is designed for use with Bently Nevada accelerometers and compatible monitoring systems. The standard connectors on both ends ensure straightforward integration into existing vibration monitoring setups. Always verify connector compatibility with your specific sensor and junction box before installation.
Selection Guide & Purchasing Advice
Before ordering, confirm your required cable length and armor option. The -60 code specifies 6.0 meters; other lengths are available in the 200151 series. The 02 armor option indicates blue cable without armor – select an armored variant if mechanical protection is needed. For enhanced grip, the 10 coupling nut option is included. Contact SpareTechPLC to verify current lifecycle status and availability, as this model may be subject to lifecycle changes. SpareTechPLC offers genuine Bently Nevada products and expert support for your automation needs.
Frequently Asked Questions
Q: What is the operating temperature range of the 200151-60-02-10?
A: The cable operates from -20 ºC to +100 ºC (-4 ºF to +212 ºF). Flexing below -20 ºC may damage the cable.
Q: Does this cable come with connectors on both ends?
A: Yes, the 200151-60-02-10 features connectors on both ends with enhanced coupling nuts for secure attachment.
Q: What is the minimum bend radius for this cable?
A: The minimum bend radius is 63.5 mm (2.5 in). Avoid tighter bends to prevent internal damage.
Q: Is the cable suitable for outdoor or wet environments?
A: Yes, the connectors provide an IP67 seal when mated, and the DC4 insulating compound adds moisture protection during thermal shock.
Q: What is the conductor configuration?
A: The cable uses 4-conductor, 22 AWG with braided shield and drain wire (85% coverage, minimum) and a PVC outer jacket.
