The Evolution of Industrial Vibration Monitoring
Industrial machinery has grown more complex over the decades, demanding precise and reliable condition monitoring. Early vibration sensors often suffered from signal degradation due to inadequate cabling, leading to false readings and unplanned downtime. The Bently Nevada 200152-04-10 Accelerometer Interface Standard Cable addresses this challenge head-on, providing a robust connection that preserves signal integrity even in harsh environments.
Product Overview

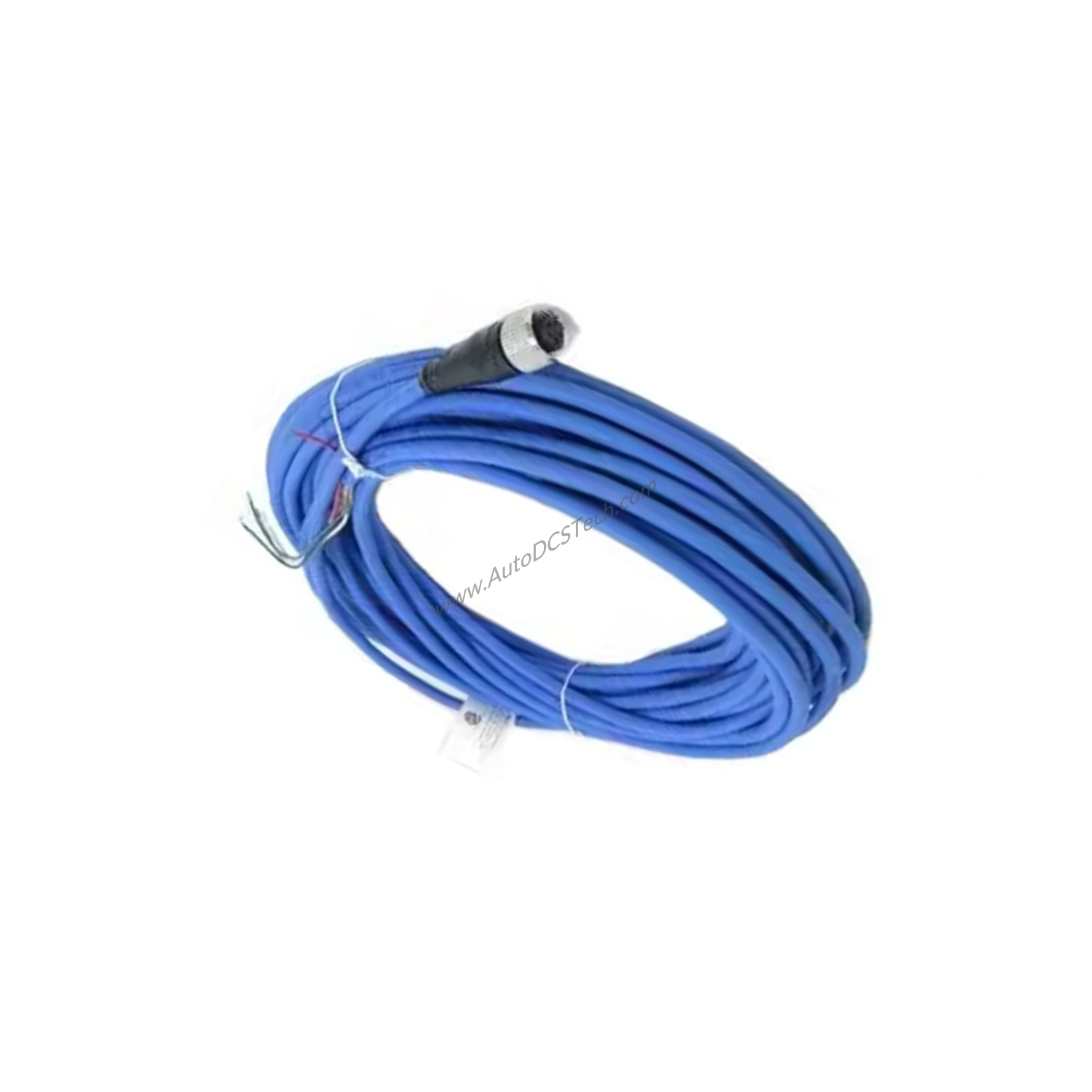

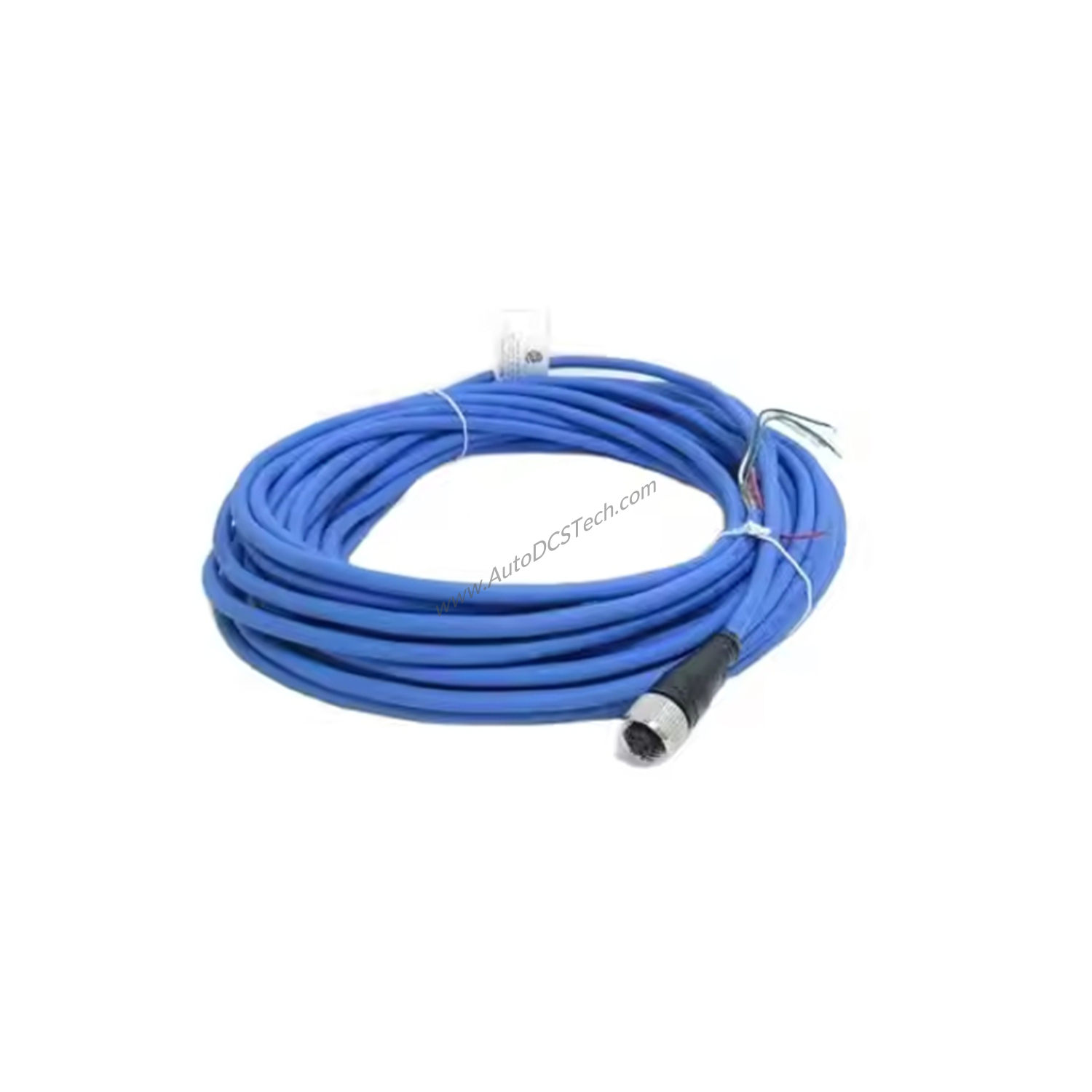

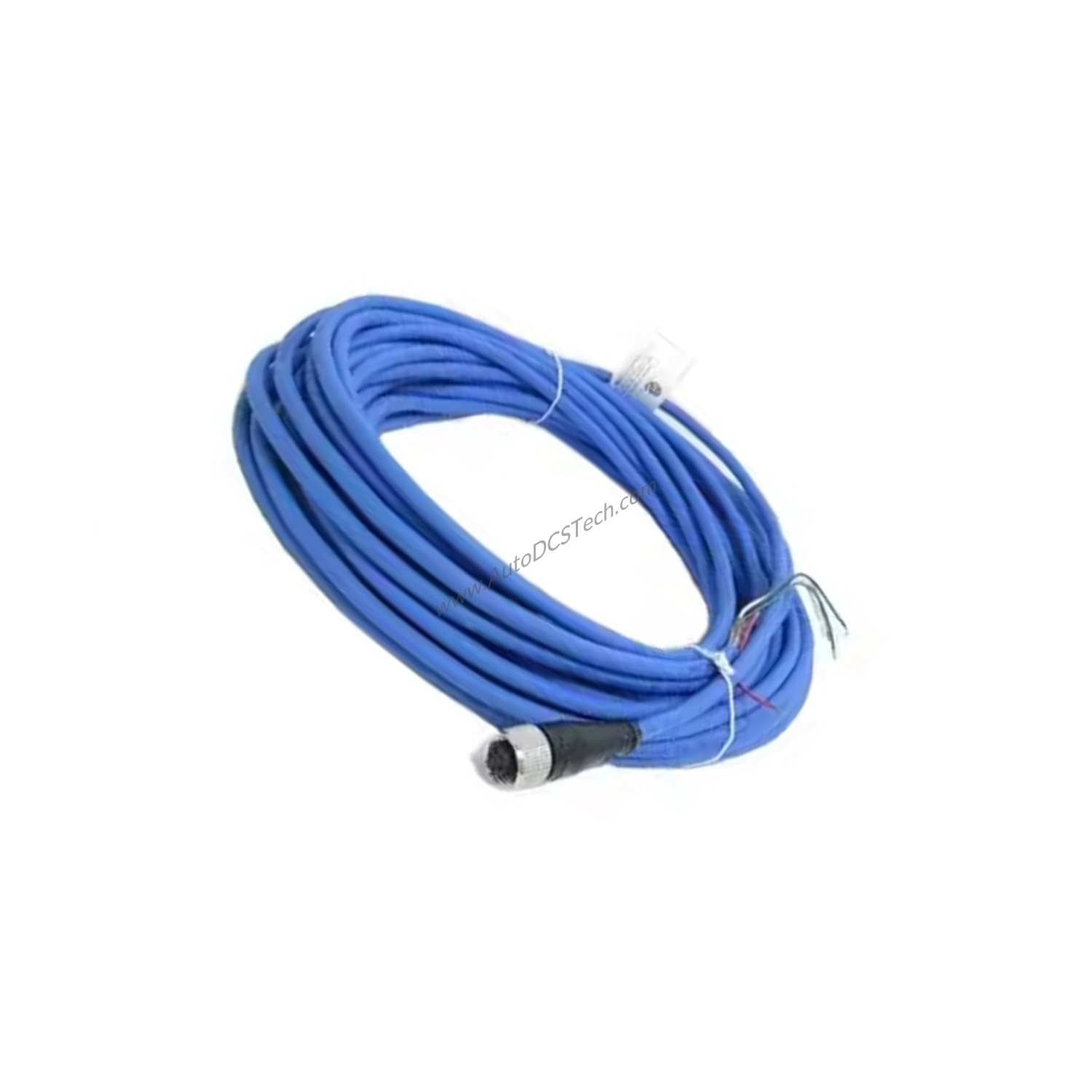

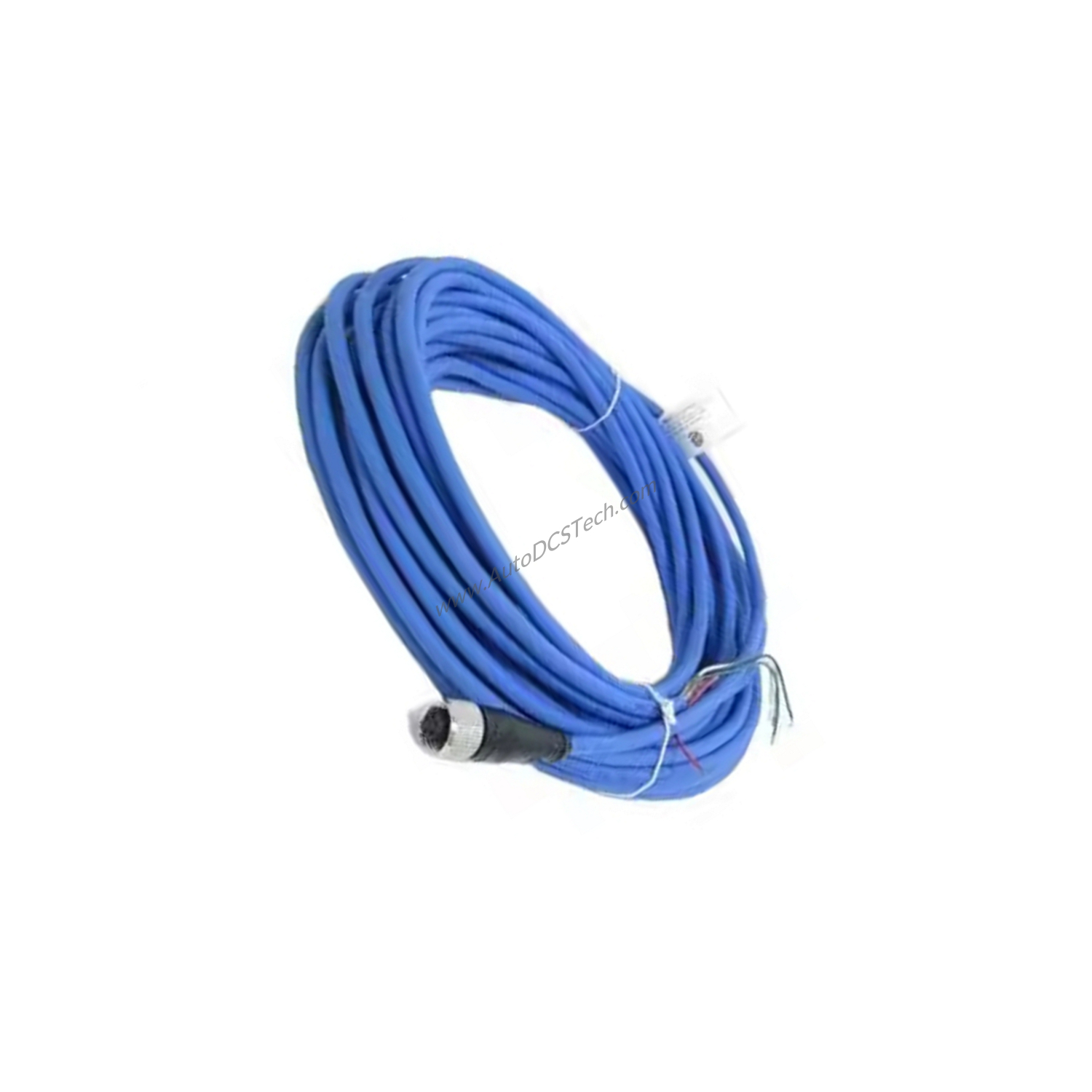

The Bently Nevada 200152-04-10 is part of the 200151 series of Accelerometer Interface Standard Cables. This 4.0-meter cable features a connector on the accelerometer end only, with an enhanced coupling nut (-10 option) that offers a better grip for tightening to the accelerometer. Designed for permanent installation in industrial settings, it ensures a secure and reliable interface between the accelerometer and monitoring system.
Technical Specifications
- Cable Length: 4.0 meters (specified by -04 in the part number)
- Coupling Nut: Enhanced coupling nut (-10) on accelerometer end only
- Minimum Bend Radius: 73.7 mm (2.9 in)
- Operating Temperature Range: -20 °C to +100 °C (-4 °F to +212 °F)
- Construction: 4-conductor, 22 AWG with braided shield and drain wire (85% coverage, minimum), PVC outer jacket, nickel-plated coupling nuts
- Seal: Connectors provide an IP67 seal to transducers and mating hardware; connectors are molded to the cable
- Additional Protection: DC4 electrical insulating compound in connectors provides extra protection against moisture during thermal shock
Industry Applications
This cable is ideal for vibration monitoring in rotating machinery such as turbines, compressors, pumps, and motors. The IP67 seal and robust construction make it suitable for use in wet or dusty environments, such as oil and gas facilities, power plants, and chemical processing units. The enhanced coupling nut ensures a tight connection even in high-vibration applications, reducing the risk of signal loss.
Installation Guidance
When installing the 200152-04-10, ensure the cable is routed with a bend radius no smaller than 73.7 mm (2.9 in) to prevent damage. The connector end with the enhanced coupling nut should be attached to the accelerometer, tightening firmly by hand or with a wrench on the nut. Avoid flexing the cable at temperatures below -20 °C (-4 °F), as this may cause damage. For best results, secure the cable along its length to minimize movement.
Maintenance and Reliability
The molded connector design and IP67 seal provide excellent protection against moisture and contaminants, reducing the need for frequent maintenance. However, periodic inspection of the cable jacket and connectors for cuts, abrasion, or corrosion is recommended. The DC4 insulating compound inside the connectors helps maintain performance during thermal cycling, extending service life in demanding applications.
Compatibility and Integration
This cable is designed for use with Bently Nevada accelerometers that accept a 4-conductor interface. It is compatible with the 200151 series accelerometers and can be integrated into most Bently Nevada monitoring systems. Verify connector compatibility with your specific accelerometer model before ordering.
Selection Guide and Purchasing Advice
Before purchasing the 200152-04-10, confirm the required cable length (4.0 meters) and coupling nut option (-10 enhanced). If a different length is needed, other options in the 200152 series may be available. SpareTechPLC stocks this cable and can assist with compatibility questions. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
