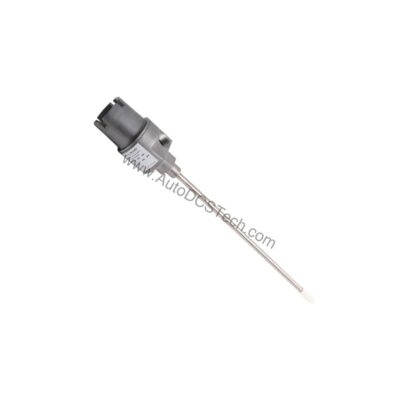

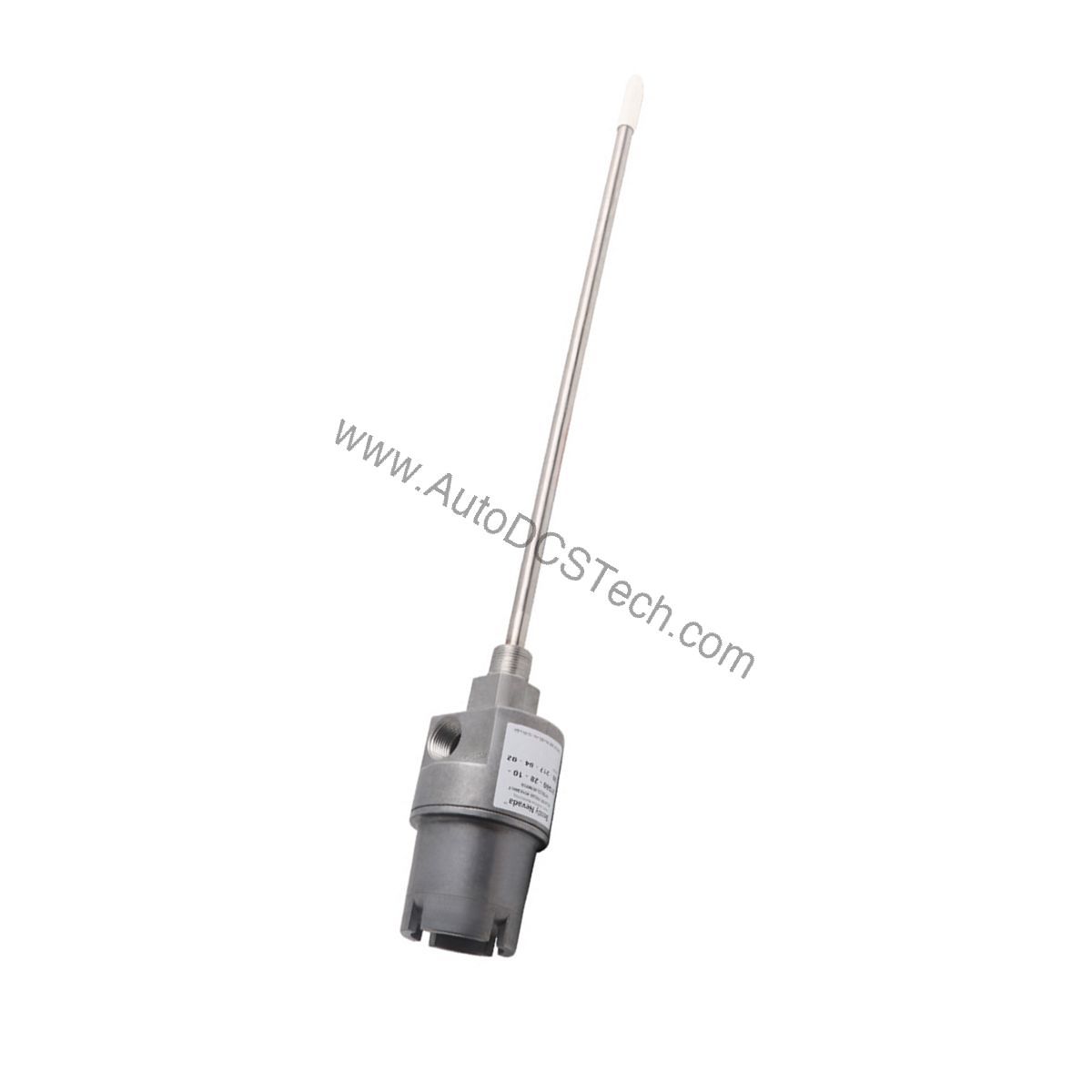

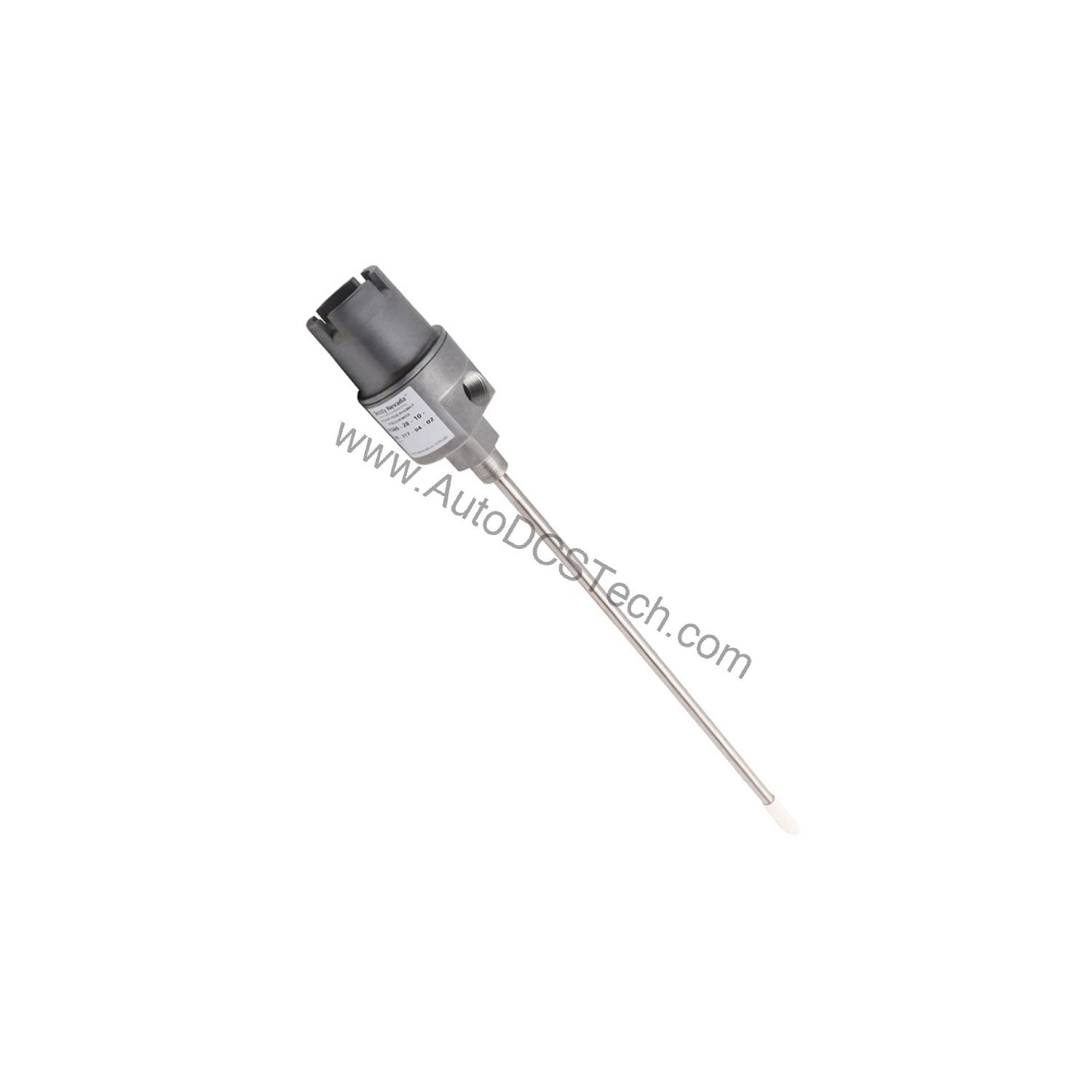

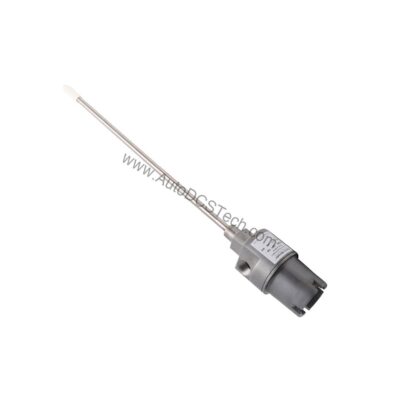

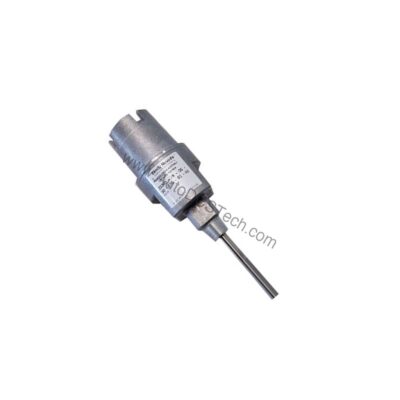

Bently Nevada 21000-16-10-00-256-01-02 Proximity Probe Housing Assembly

Technical Specifications Breakdown

Key parameters for the 21000-16-10-00-256-01-02 are listed below for quick reference:

Industry Applications

The CSA Type 4 enclosure rating and Class I, Division 1 & 2 approvals (Groups C, D, E, F, G) make it a trusted choice for critical rotating machinery such as compressors, turbines, and pumps.

Installation & Setup Guidance

For probe penetration lengths between 1.0 and 2.0 inches, counter boring the machine case may be necessary to reduce side view or rear view effects. If the combined probe cable length (C + D) exceeds 300 mm (12 in), sleeve support near the probe is required to prevent resonance. The adjustment range for probe penetration option D is 13 mm (±0.5 in).

Maintenance & Reliability

The aluminum body with 304 stainless steel sleeve provides corrosion resistance in harsh industrial settings. O-rings and thread seals ensure a tight, explosion-proof fit. Periodically inspect the housing for signs of wear or damage, especially in high-vibration or extreme temperature environments. The assembly is rated for ambient temperatures from -50 °C to +80 °C (T4) or -50 °C to +40 °C (T5).

Robust Protection for Critical Vibration Monitoring

When machinery reliability is non-negotiable, the Bently Nevada 21000-16-10-00-256-01-02 Proximity Probe Housing Assembly delivers the robust enclosure your hazardous area requires. Designed for externally mounted proximity probes, this assembly meets the stringent API 670 Standard and carries CSA explosion-proof certification, ensuring safe and accurate vibration measurement in the most demanding environments.

Compatibility & Integration

The 21000-16-10-00-256-01-02 is designed to work with Bently Nevada 3300 XL 8 mm proximity probes. It includes one explosion-proof fitting and one plug, and mounts using a 3/4-14 NPT thread. The assembly is fully compliant with API 670 for externally mounted proximity probe housings.

Selection Guide & Purchasing Advice

When selecting a probe housing, verify the required probe penetration length (C + D) and cable length. For the 21000-16-10-00-256-01-02, the probe cable length is 1.0 m (39 in) and the probe penetration is 25.6 in. AutoDCSTech stocks this assembly as new and original in factory packing with a 12-month warranty. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
