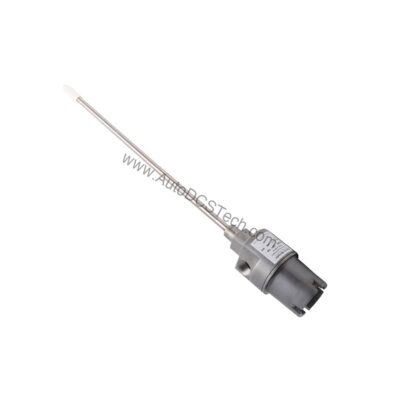

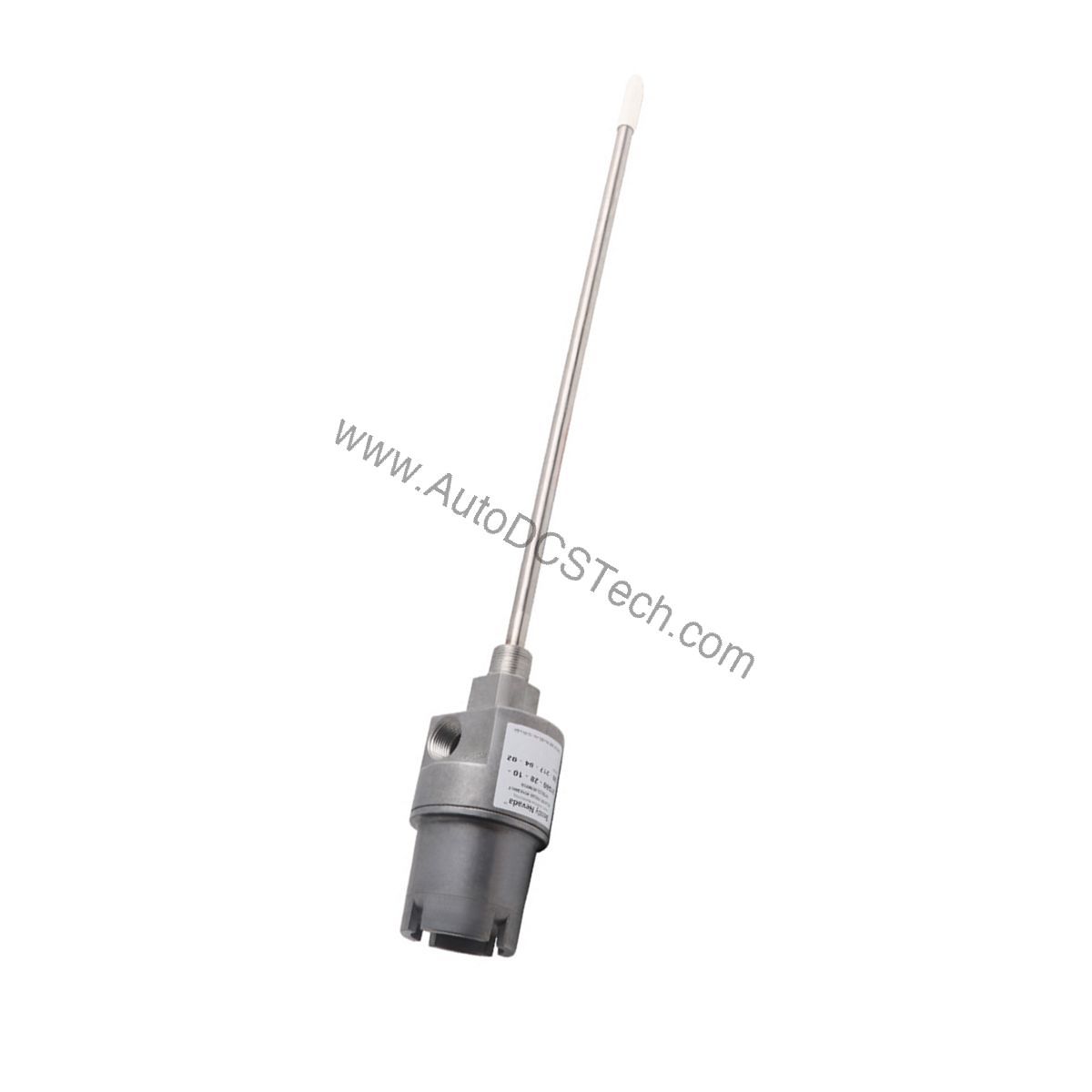

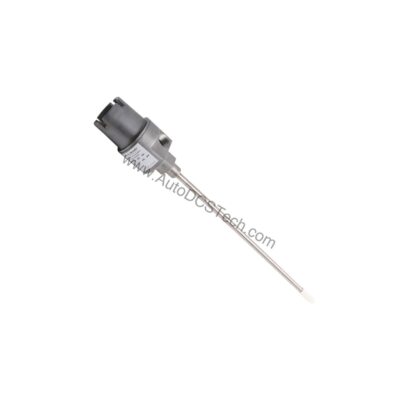

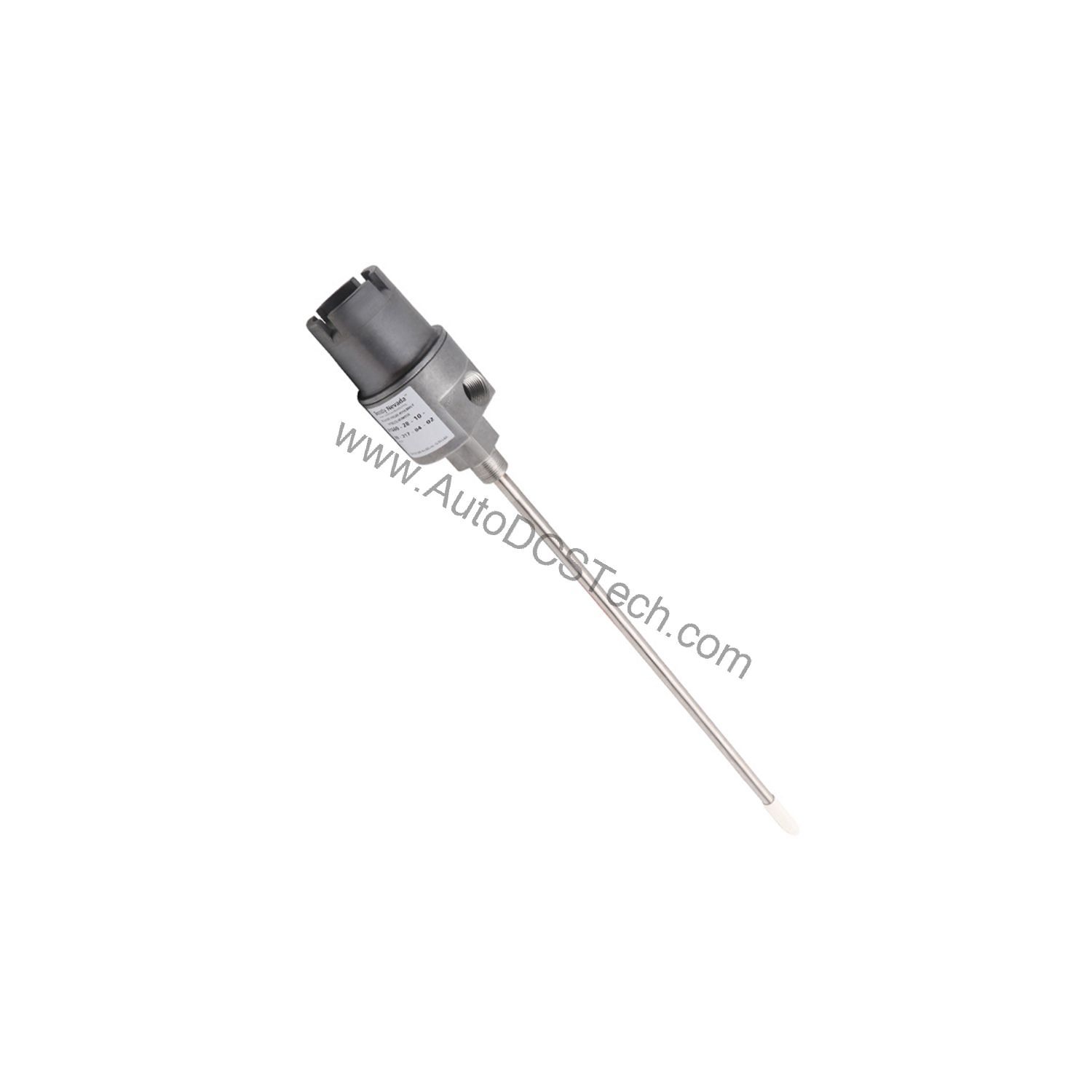

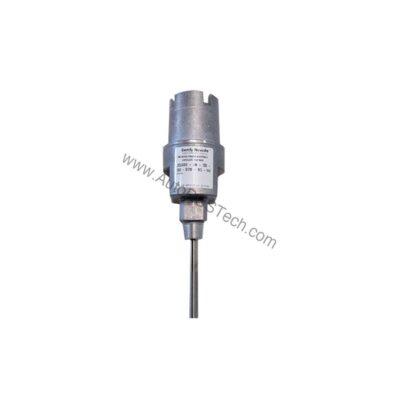

Bently Nevada 21000-16-10-15-098-03-02 Proximity Probe Housing Assembly

Technical Specifications Breakdown

Key parameters for the 21000-16-10-15-098-03-02 are listed below for quick reference:

Industrial Applications for Reliable Vibration Monitoring

This housing assembly is purpose-built for use in rotating machinery such as turbines, compressors, and pumps. The 3300 XL 8 mm probe provides precise radial vibration and position measurements. The API 670 compliance ensures it meets industry standards for externally mounted proximity probe housings.

Installation and Setup Guidance

Proper installation is critical for accurate readings. The 3/4-14 NPT mounting thread provides a secure, leak-proof connection. The included fittings allow flexible conduit routing: a 3/4-14 NPT plug, a reducer to 1/2-14 NPT, and a cable seal grip with grommets for cable diameters from 1/8 to 3/8 inches. Ensure the probe penetration (D dimension) of 9.8 in is set correctly to achieve the optimal gap. The standoff adapter length of 1.5 in (38 mm) positions the probe correctly relative to the shaft.

Maintenance and Reliability

Routine inspection of the housing and probe assembly is recommended. Check the O-rings and thread seal for integrity during every maintenance cycle. The aluminum body with 304 stainless steel sleeve resists corrosion in harsh environments. For hazardous area installations, verify that the CSA Type 4 enclosure rating and explosion-proof certifications are maintained after any service. Always follow the manufacturer's guidelines for safe handling.

Robust Protection for Critical Machinery Monitoring

For maintenance engineers working in demanding industrial environments, the Bently Nevada 21000-16-10-15-098-03-02 proximity probe housing assembly delivers the ruggedness and reliability required for continuous vibration monitoring. This assembly is engineered to protect sensitive proximity probes in hazardous locations, ensuring uptime and data integrity.

Compliance and Certifications

This assembly complies with FCC Part 15 and RoHS Directive 2011/65/EU. Hazardous area approvals include CSA certification for explosion-proof applications: Class 1 Divisions 1 and 2 Groups C and D, Class 2 Divisions 1 and 2 Groups E, F and G, Class III, Enclosure Type 4, T5 @ Ta = -50 °C to +40 °C, T4 @ Ta = -50 °C to +80 °C. It is fully compliant with API 670 Standard.

Selection Guide and Purchasing Advice

When selecting a replacement or new installation, verify the probe cable length (1.0 m), standoff adapter (1.5 in), and probe penetration (9.8 in) match your machine train requirements. AutoDCSTech stocks the Bently Nevada 21000-16-10-15-098-03-02 as new and original in factory packing with a 12-month warranty. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
