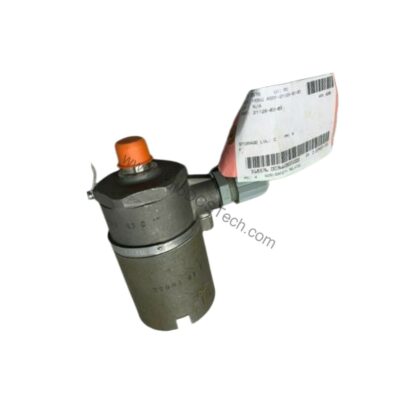

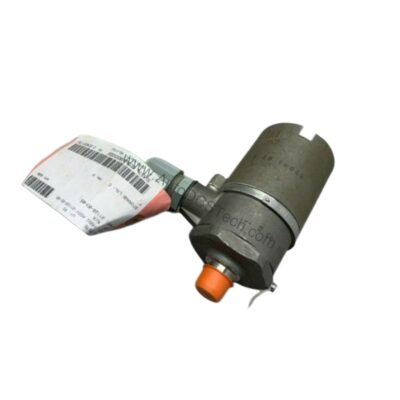

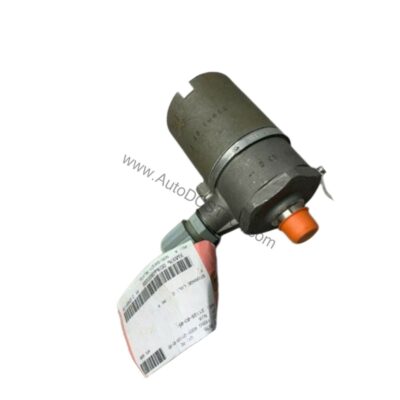

Bently Nevada 21128-14-01 Velocity Transducer Housing, NEMA 4X/IP65

Technical Specifications Breakdown

Key parameters for the 21128-14-01 are listed below for quick reference:

Real-World Applications

Protecting Sensors in Washdown Environments

In food processing and pharmaceutical plants, high-pressure washdowns are routine. The 21128-14-01 housing's NEMA 4X and IP65 ratings shield the velocity sensor from water ingress, preventing false readings and premature failure. The 303 stainless steel construction resists corrosion from cleaning agents, ensuring long-term reliability.

Vibration Monitoring in Harsh Outdoor Installations

For outdoor machinery such as pumps, compressors, and fans, exposure to rain, dust, and temperature extremes is unavoidable. This housing's temperature range of -29°C to +121°C accommodates both freezing winters and hot process environments. The neoprene O-ring maintains a secure seal across this range, keeping contaminants out.

Installation Guidance

When installing the 21128-14-01, ensure the cable exit fitting (1/2-in NPT plug) is properly sealed to maintain the IP65 rating. The tall cap option accommodates Velomitor CT sensors or 9200/74712 Seismoprobe sensors with isolated base. Use cable part number 89477-AA to connect the Velomitor sensor to a monitor. Verify that the internal mounting thread (1/2-in 20 UNF) matches the sensor's thread before assembly.

Maintenance and Reliability

Periodically inspect the housing for signs of physical damage or corrosion, especially in aggressive environments. Check the neoprene O-ring for cracks or deformation during routine maintenance. Replace the O-ring if compromised to preserve the moisture seal. The housing is not submersible, so avoid immersion in liquids.

Industrial Protection for Critical Velocity Measurements

In many industrial environments, velocity sensors face constant threats from hose-directed water, corrosive chemicals, and physical impact. The Bently Nevada 21128-14-01 velocity transducer housing is engineered to eliminate these failure points, ensuring reliable vibration monitoring in the most demanding conditions. Constructed from 303 stainless steel, this housing meets NEMA 4X and IP65 requirements when properly installed, making it a robust solution for protecting your velocity sensor investment.

Compatibility and Integration

The 21128-14-01 is designed for use with Bently Nevada velocity sensors. For hazardous locations, the CA21128 explosion-proof version is CSA certified for Classes I, II, III, Division 1, Groups B, C, D, E, F, and G, and must be ordered with a CSA approved sensor. For BASEEFA-approved installations, the BA42608 housing complies with BS EN 60079 14 and IP65 per IEC 144.

Selection and Purchasing Advice

When selecting a housing, consider the environmental classification of your installation. For non-hazardous areas, the standard 21128 housing is preferred. For explosive atmospheres, choose the CA21128 or BA42608 variant. Contact AutoDCSTech to verify current lifecycle status and availability before ordering. We stock genuine Bently Nevada components to support your critical machinery protection systems.
